110/220V Neon Strip Series
- 5-year warranty
- Multiple Color Options
- Waterproof and Durable
- Various Voltage Options
- Flexible Vertical Bending
- Uniform and Soft Lighting
- Cuttable & Customizable Lengths
- Customizable Lengths & Easy Installation
Side Bend Neon Strip Series Index

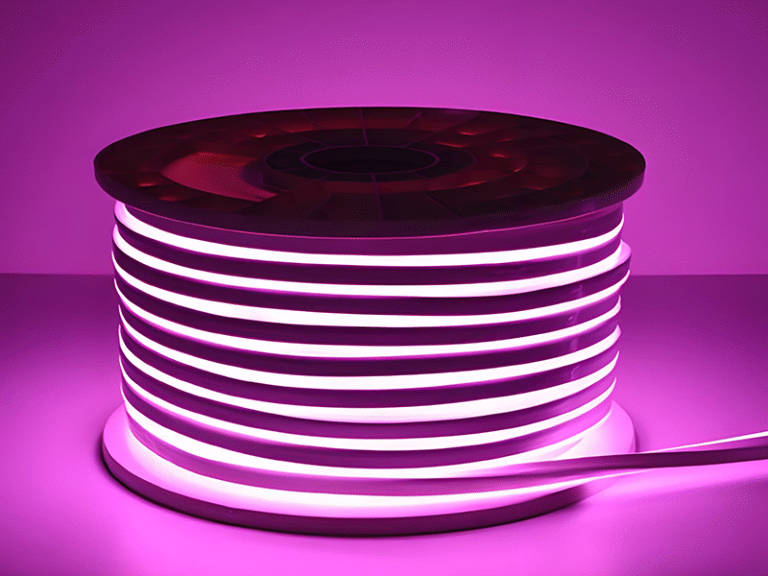

What is 110/220V Neon Strip?
The 110/220V neon strip lights is an LED neon light strip designed to operate directly on 110V or 220V AC power, making it compatible with voltage standards in different countries and regions without the need for additional transformers or drivers, which simplifies installation and reduces costs. It features high-brightness, low-power LED light sources combined with a flexible design that allows easy bending into various shapes to meet diverse decorative needs. Additionally, this strip typically offers waterproof and dustproof protection, making it suitable for both indoor and outdoor environments. Widely used in advertising signs, architectural contour lighting, commercial window displays, and interior decoration, the Neon 220/110V led strip lights is an efficient, reliable, and easy-to-install lighting solution.
Produce
1. Raw material preparation
Purchase LED chips (high brightness chips), FPCB flexible boards, silicone rubber materials, conductive wires, connector accessories, etc. Inspect the quality of incoming materials to ensure that all components meet performance standards (such as brightness, voltage, fire rating, etc.).
2. Surface mount technology (SMT)
Attach LED chips and electronic components onto the FPCB flexible circuit board. Use reflow soldering technology to solder components to ensure reliable electrical connections.
3. Welding and Testing
Weld the wire (power cord) onto the FPCB. Preliminary lighting test to check for solder leaks and dead lights in the lamp beads.
4. Encapsulation/ Extrusion coating
Using a 110/220V silicone extrusion molding process, the entire FPCB is wrapped in silicone. Simultaneously complete the shaping and curing of the light strip, ensuring its flexibility, weather resistance, and uniformity of light.
5. Cutting and welding the tail
Cut according to customer requirements and weld the tail seal or joint.
6. Waterproof treatment
Waterproof sealing treatment shall be applied to the joint and tail of the light strip. Some models support IP67~IP68 waterproof rating and require special pressure testing.
7. Aging test
Turn on the light strip for long-term aging (usually 4-8 hours) to test its stability and heat dissipation performance.
8. Quality Inspection and Packaging
Comprehensive quality inspection (appearance, brightness, voltage, current, waterproof performance, etc.). After passing the inspection, proceed with packaging steps such as winding, labeling, bagging, and sealing.

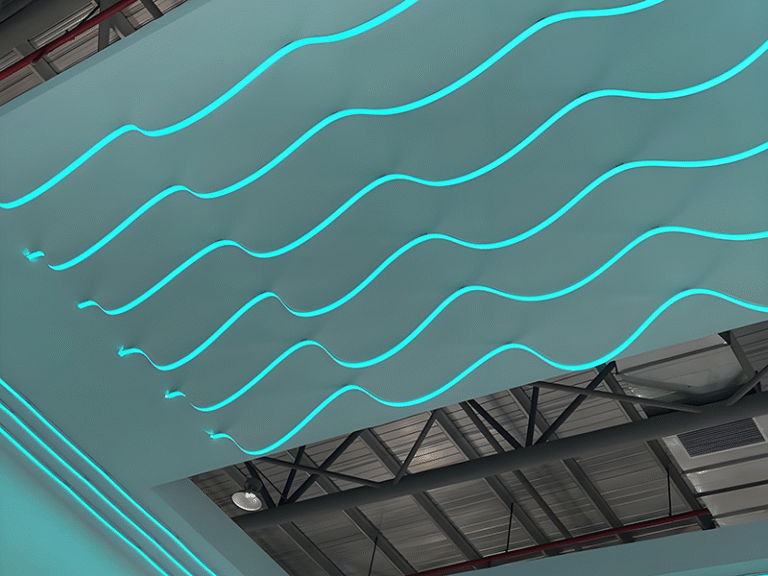

Application scenarios
110V/220V neon led strip are widely used in commercial signage, architectural contour lighting, indoor and outdoor decoration, stage setups, and urban nightscape illumination. Their high-voltage operation eliminates the need for complex drivers, making installation simple and reliable. They are ideal for large-scale continuous installations, delivering bright and even lighting that enhances visual impact and ambiance. Whether for shopping mall signs, hotel lobbies, festive decorations, or public facility lighting, and outdoor led strip lights110V/220V neon provide a durable and efficient lighting solution.
Classification
LED 110/220V neon light strips are mainly divided into single color and RGB color.

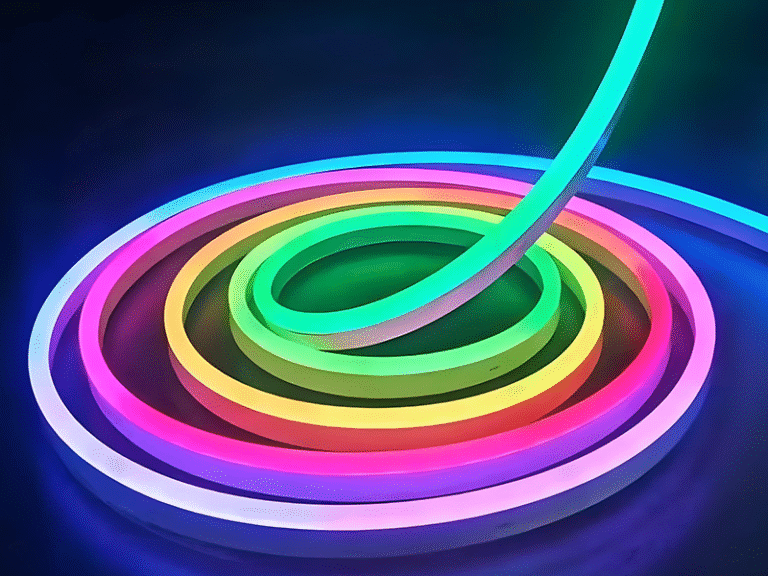

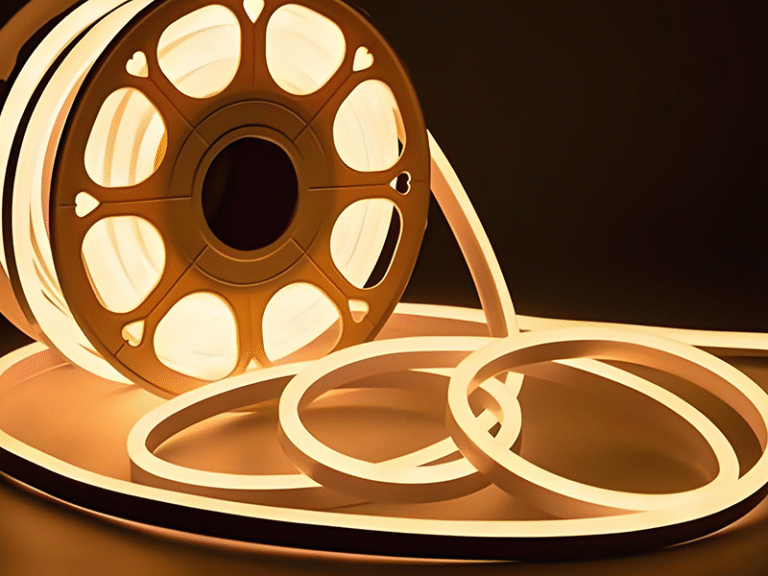

The LED 110/220V neon strip lights is a high-voltage lighting solution designed for long-distance installations, operating directly from mains power without the need for an external driver, offering easy installation and high efficiency. It comes in two types: single-color and RGB. The single-color version delivers stable light output with high brightness, ideal for outline lighting, signage, and architectural decoration where a fixed color is desired; the RGB version, controlled via a controller, allows multiple color changes and dynamic effects such as fading, jumping, and flashing, making it perfect for stage ambiance, festive decorations, and creative lighting designs. Both types feature flexibility, waterproof performance, and weather resistance, making them suitable for a wide range of indoor and outdoor applications.
Product name | Product size（W*H） | Input voltage | Item No | Lighting color | LED/m | PCB width | Power/m | Cuttable length |
High voltage Single color | 08*16mm | AC220V | GL-A-2835 -120D-220V | 3000-600K Red、Green、Bule、Yellow | 120 | 6mm | 6W | 1M/Cut |
High voltage RGB color | 10*20mm | AC220V | GL-B-5050 RGB-60D-220V | RGB | 60 | 10mm | 10W | 1M/Cut |

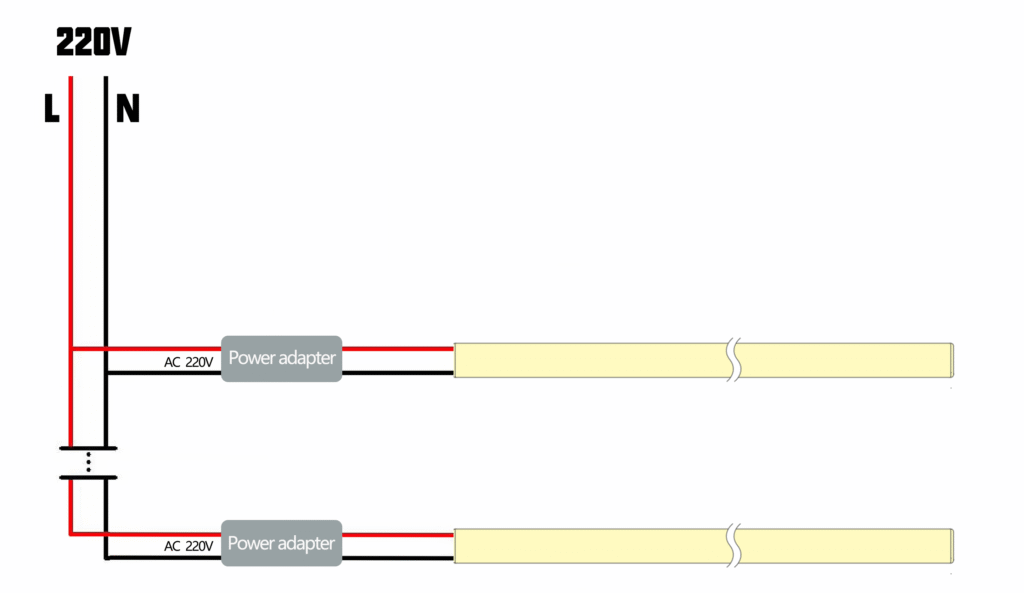

The Connection of 110/220V Neon Strip
The wiring diagram for LED 110V 220V neon led tape is relatively straightforward. Typically powered by 110V or 220V AC mains, the strip connects via a plug power cord and includes a rectifier (or bridge rectifier) to convert and stabilize the voltage. The strip usually features a single-end power input, with the other end sealed using an end cap for waterproofing. Proper polarity and secure connections are essential during installation. To enhance waterproof performance, it is recommended to use waterproof rings and sealant, making the setup suitable for outdoor or damp environments.
110/220V neon strip product video
The 110/220V neon led light strips features easy installation, high brightness, and the ability to operate over long distances without the need for an external power supply. Designed to run directly on 110V or 220V mains voltage, it eliminates the complexity of traditional low-voltage systems. Using high-brightness LEDs encased in flexible silicone or PVC, it offers excellent flexibility, weather resistance, and can be cut to custom lengths. With an IP65 to IP67 waterproof rating, it is suitable for a wide range of outdoor environments. This makes it ideal for commercial signage, outdoor advertising, bridge lighting, festive decorations, landscape projects，and architectural area lighting. Especially in engineering applications, it provides a practical solution for efficient installation and extended illumination.
Certificate
To ensure the best user experience and the safety and quality of our LED sheet, we do our utmost to make every production step in good control and inspection. We are now hold the certificate for different market, such as UL, cUL, CE, UKCA, C-TICK, ect.
