Side Emitting SMD LED Strip Light | Flexible Edge Lighting LED Strip
- Ultra-thin flexible structure, easy to install
- Ideal for narrow and linear lighting spaces
- Low power consumption and long lifespan
- Compatible with various dimming controllers
- Customizable length with clear cutting marks
- High-brightness chips ensure stable efficiency
- Side-emitting design for soft and even lighting
- Multiple color temperatures for various scenes
Side Emitting LED Strip Light Index
What is a Side Emitting SMD LED Strip?

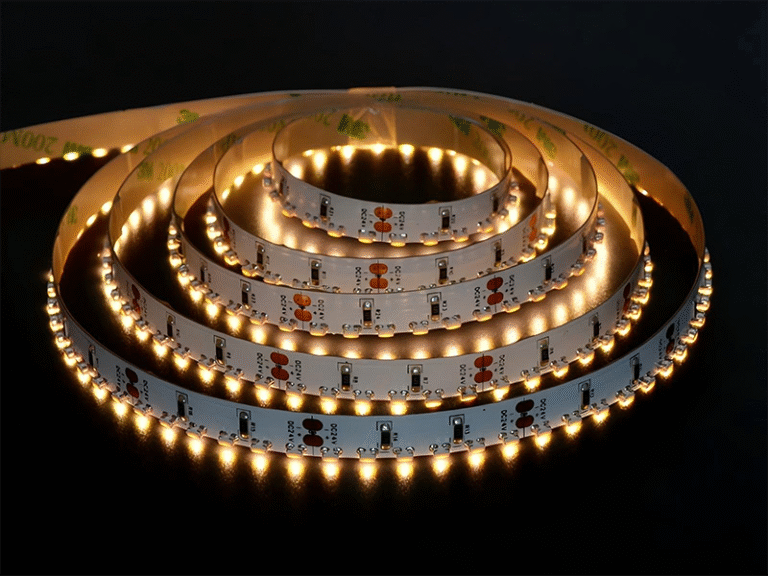

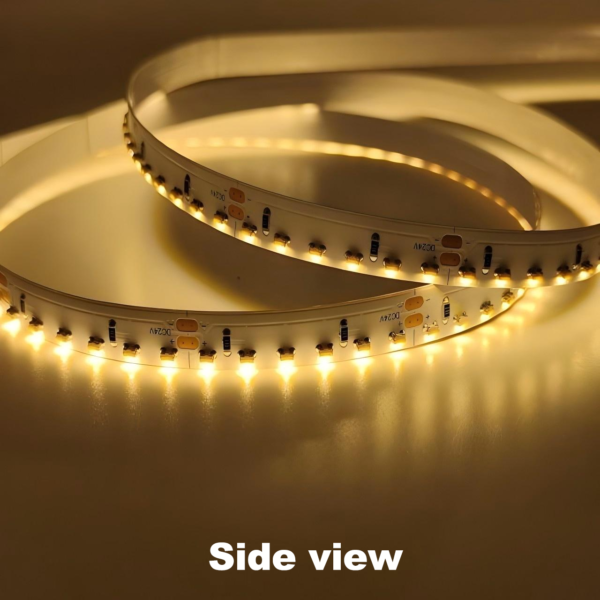

The SMD Side emmiting led strip is a flexible linear lighting product that uses side-emitting packaging technology, emitting light at a 90° horizontal angle instead of the traditional front-facing direction. This design allows light to be evenly distributed along the strip’s side, making it ideal for hidden installations, wall washing, or contour outlining applications. The strip typically features high-brightness SMD chips with low power consumption, high color rendering, excellent heat dissipation, and a cuttable design. It supports various installation methods and is widely used in architectural decoration, cabinet lighting, advertising light boxes, and embedded furniture illumination.

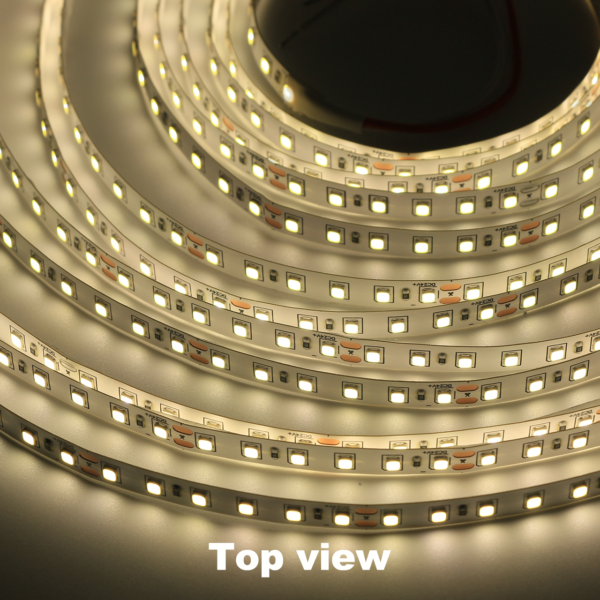

Side view LED strip light vs Standard LED strip light
Side emitting LED strips and top emitting LED strips have different designs and lighting effects. Understanding their differences can help you choose the best LED strip for your project. Here are five key comparison points:
1.Light Direction
Side Emitting: Emits light along the edge, perfect for edge lighting, cabinet LED strip lighting, and display case illumination.
Top Emitting: Emits light upward, ideal for general overhead lighting or task lighting.
2.Illumination Uniformity
Side Emitting: Provides smooth, linear light with no hotspots, great for architectural linear LED projects.
Top Emitting: May create uneven brightness; suitable for areas needing concentrated light.
3.Installation Flexibility
Side Emitting: Ultra-thin and flexible, fits narrow spaces and corners easily.
Top Emitting: Less flexible, requires wider mounting surfaces.
4.Best Applications
Side Emitting: Cabinets, shelves, display cases, edge-lit signage, cove lighting.
Top Emitting: General room lighting, workbenches, high shelves, under-cabinet task lighting.
5.Visual Effect & Aesthetics
Side Emitting: Creates subtle, elegant lighting along edges, enhancing interior design and retail displays.
Top Emitting: Provides direct, bright illumination, more functional than decorative.
How to produce the SMD LED Strip
The SMD LED strip production process includes PCB mounting, SMD chip placement, reflow soldering, waterproof sealing, aging test, and final quality inspection to ensure stable performance and consistent light output.
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic
Applications of Side Emitting LED Strip

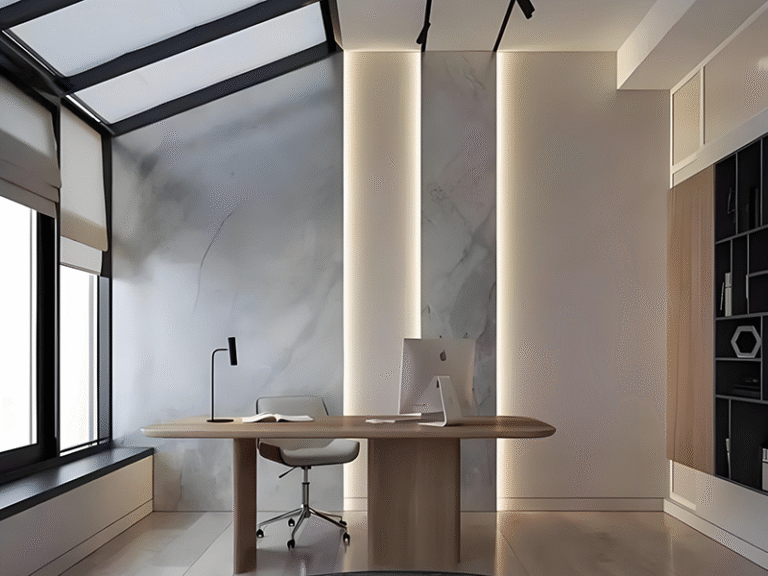

The SMD Side View led strip light feature a side-emitting design that allows light to spread evenly from the strip’s edge, making them ideal for narrow spaces, edge outlines, and indirect lighting applications. They are commonly used in ceiling coves, stair handrails, cabinet edges, mirror backlighting, light boxes, and architectural outlines, creating soft linear illumination and enhancing spatial depth while offering flexible decorative and functional lighting effects.
How to set up the side emitting led strip

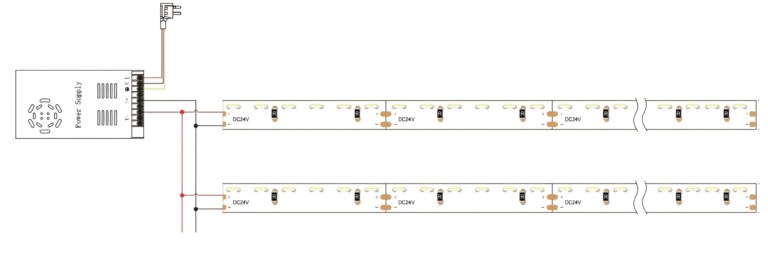

The wiring of the LED Side glow led light strip typically uses a DC 12/24V constant voltage connection, consisting of a power supply, controller, and light strip. The positive and negative terminals of the power supply are connected to the controller’s input, and the controller’s output is connected to the corresponding terminals of the light strip to ensure stable voltage and signal transmission. For single-color strips, the power supply can be connected directly; for RGB or tunable color strips, a controller is required to adjust color and brightness. When multiple rolls are connected in series or parallel, ensure the total power does not exceed the power supply capacity, and add signal amplifiers for long-distance wiring to maintain brightness consistency and safe operation.
Single color

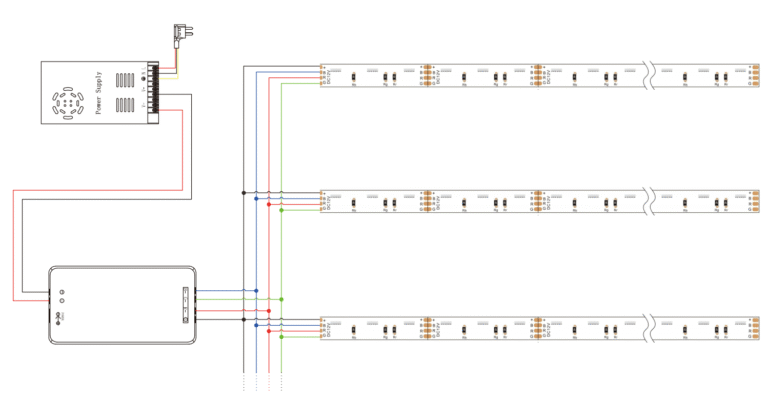

RGB
Classification and Product Specifications
LED Side emitting flexible led strip is mainly divided into 60leds,120leds,156leds.
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | CRI (Ra) | Beam Angle(°) | Color |
8mm | 60LEDs | 12/24V | 50mm/100mm | 6.2W | Ra＞80 | 120° | WW/NW/CW |
8mm | 120LEDs | 12/24V | 25mm/50mm | 12W | Ra＞80 | 120° | WW/NW/CW |
8mm | 156LEDs | 12/24V | 19.2mm/38.4mm | 15.8W | Ra＞80 | 120° | WW/NW/CW |
10mm | 60LEDs | 12V | 50mm | 12W | / | 120° | RGB |
LED SMD Side Emitting Product video
The video showcasing the SMD Side View led strip typically demonstrates its even side-emitting lighting effect, highlighting how the strip provides soft and efficient illumination in various settings. The video often features the strip’s application in home, commercial, and decorative lighting, emphasizing its flexibility, energy-saving features, and easy installation. It also showcases the strip’s cutting, installation methods, and dimming functionality, emphasizing its customizability and high adaptability.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.
LED Light Controller
The SMD Side emmiting led strip light typically requires a constant voltage power supply and an intelligent controller to ensure stable brightness and color temperature. The power supply generally uses 12V or 24V input, with overload, overvoltage, and short circuit protection to ensure safe and reliable power delivery. The controller is responsible for adjusting the brightness, switching the color temperature, and segmenting control. It supports PWM or DMX signal output, making it suitable for various applications such as commercial lighting and interior decoration. With these supporting devices, the LED SMD side-emitting light strip can achieve efficient, adjustable lighting effects while maintaining system stability and long lifespan.
Frequently Asked Questions About Side Emitting SMD LED Strip
Q1: What is a side emitting SMD LED strip light?
A side emitting SMD LED strip light is a flexible lighting solution that emits light from the side rather than the top surface. This design creates smooth and uniform edge lighting LED strip effects without visible hotspots. It is widely used in cabinet lighting, display lighting, and architectural linear lighting projects.
Q2: What are the advantages of side emitting LED strips compared to standard LED strips?
Side emitting LED strips provide more consistent and seamless lighting for edge applications compared to traditional top-emitting strips. They are ideal for edge-lit LED strip lighting, display case lighting, and acrylic panel illumination. Additionally, they reduce glare and improve visual aesthetics in commercial lighting environments.
Q3: Can I cut and customize the length of a side emitting LED strip?
Yes, most side emitting SMD LED strips are designed as cuttable LED strip lights, allowing you to cut at marked intervals. This makes them perfect for custom length LED strip installations in cabinets, shelves, and signage. Proper cutting ensures minimal waste and flexible project adaptation.
Q4: Where can side emitting LED strip lights be used?
Side emitting LED strip lights are commonly used in cabinet LED lighting, retail display lighting, and architectural edge lighting designs. They are also ideal for cove lighting, shelf lighting, and linear accent lighting applications. Their flexibility allows installation in narrow or curved spaces.
Q5: Are side emitting LED strips energy efficient and durable?
Yes, these strips use high-quality SMD LEDs that offer energy-efficient LED lighting with low power consumption. With a lifespan of up to 50,000 hours, they are a reliable solution for long-lasting commercial LED lighting projects. This reduces maintenance costs and improves overall lighting efficiency.
Q6: Do side emitting LED strips support dimming and smart control?
Most side emitting LED strip lights are compatible with LED dimmers and smart lighting control systems. This allows users to adjust brightness for different environments such as ambient lighting, accent lighting, and display lighting setups. It also supports integration into modern smart home or commercial systems.
Q7: How do I install a side emitting LED strip properly?
Installation is simple with adhesive backing or mounting profiles, making it suitable for easy install LED strip lighting projects. For best results, use aluminum channels to enhance heat dissipation and achieve smoother linear LED lighting effects. Proper installation ensures durability and optimal performance in edge lighting applications.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
