Mini cutting LED Strip Light
- 5-year warranty
- Single CCT option
- Flexible installation
- Plug and play connection
- Uniform and glare free lighting
- 20 minutes to answer questions
- Support OEM, ODM or other Custom Made Requirements
- Free bending, cutting, and splicing, suitable for various lighting scenes
Mini cutting LED Strip Light Index
What is Mini cutting COB LED strip light?

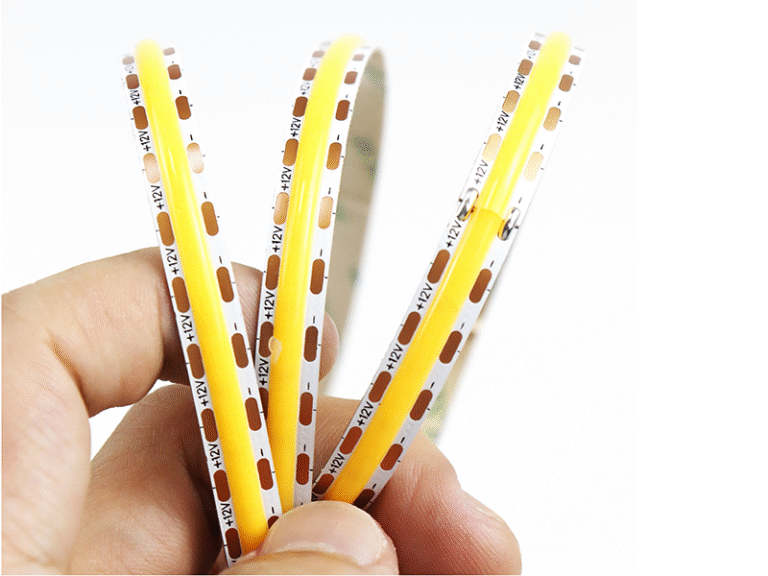

Mini Cutting cob led strip light is a high-density flexible strip that uses Chip On Board (COB) packaging technology. It has the characteristic of ultra short cutting units and can support fine cutting as small as 8.33mm, greatly improving the flexibility and accuracy in customized lighting. Compared to traditional light strips, COB light strips emit more continuous and uniform light, without visible bead particles, and have a softer and more comfortable visual effect. At the same time, they have advantages such as high color rendering, high brightness, low heat, and long lifespan. With its excellent flexibility and small cutting units, LED COB Mini Cutting light strips are particularly suitable for precision installation environments, such as furniture embedded lighting, display cabinet lighting, advertising word lights, creative linear lighting fixtures, etc., providing a more beautiful and detailed light source solution for high-end lighting.

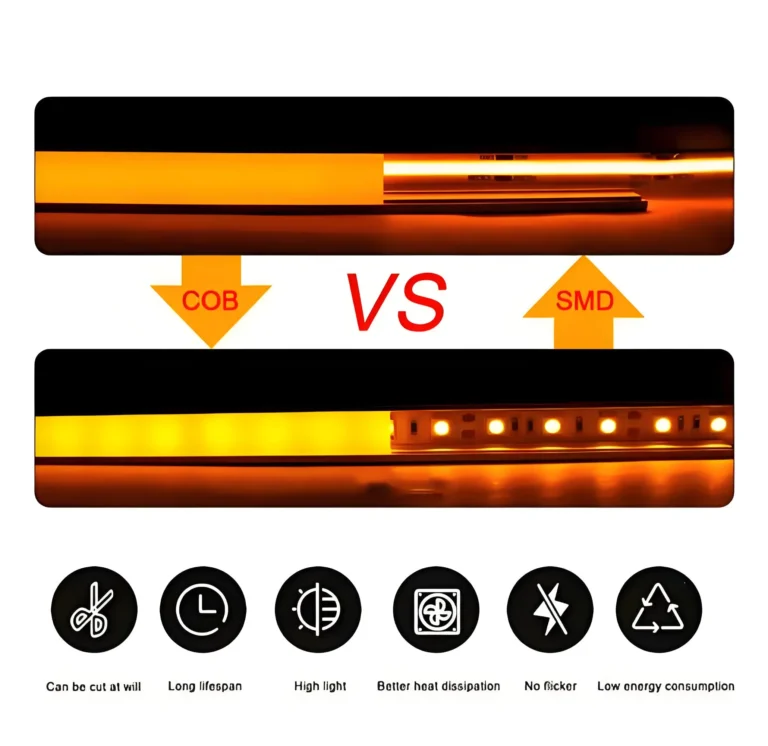

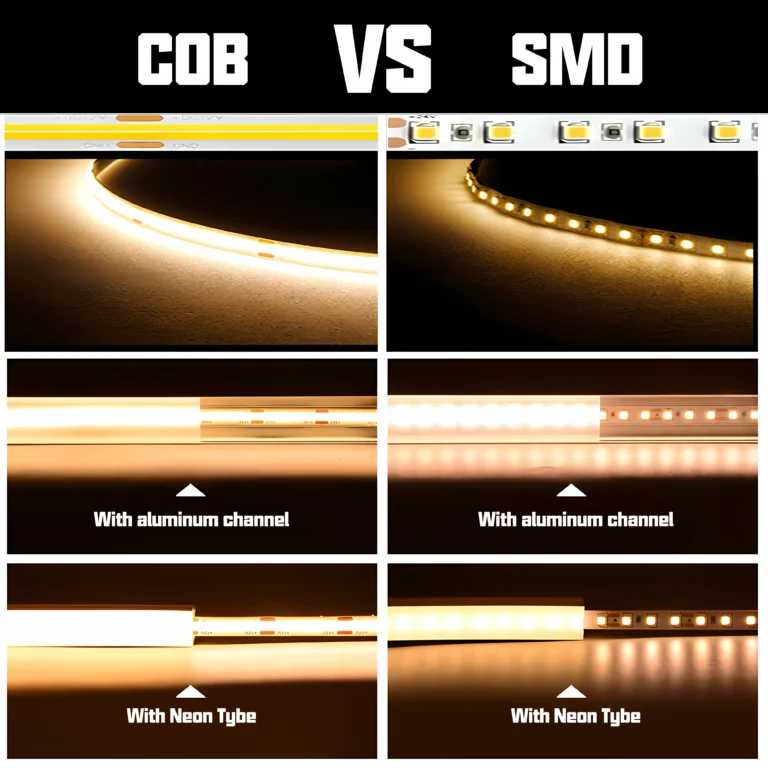

The difference between COB and SMD
Comparing to Surface Mounted Devices(SMD) led strip, COB LED strips offer wider beam angle, higher CRI and more uniform lighting. It is with a 180-degree beam angle, Free cutting of LED cob light strip. 90 CRI and dotless light illumination, flexible, energy efficiency, excellent heat dissipation and long lifespan.

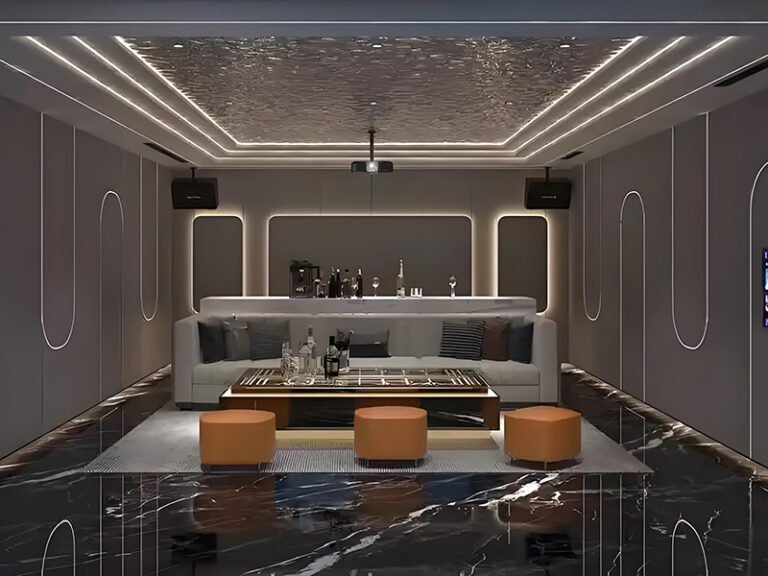

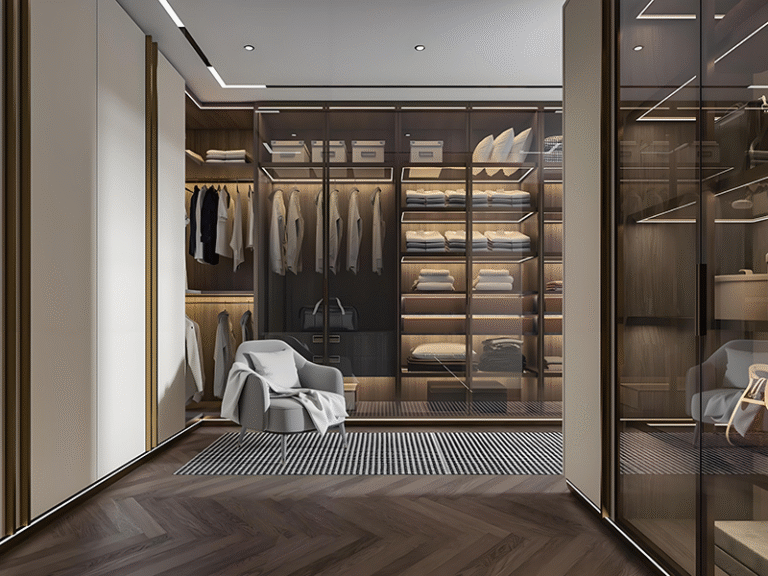

Applications of COB LED strips

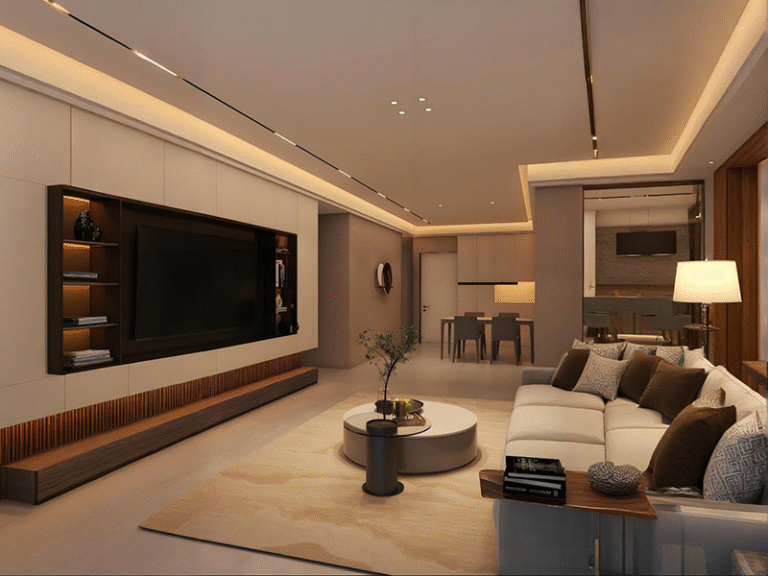

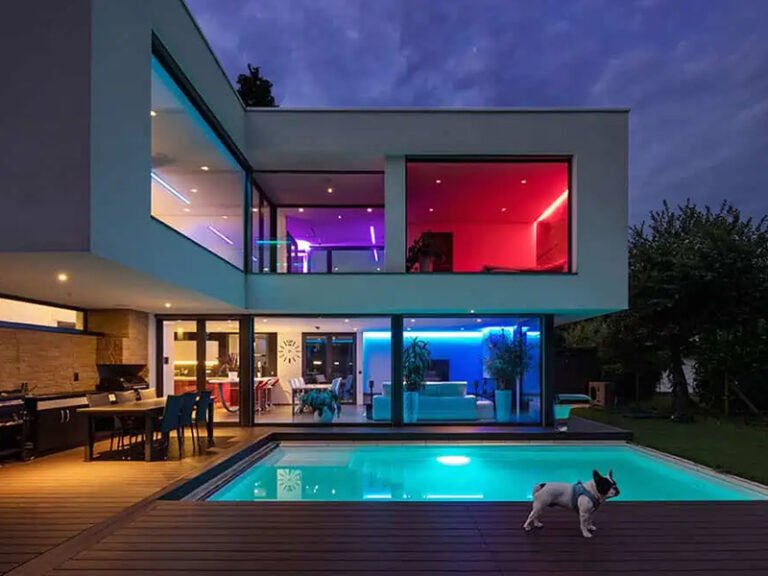

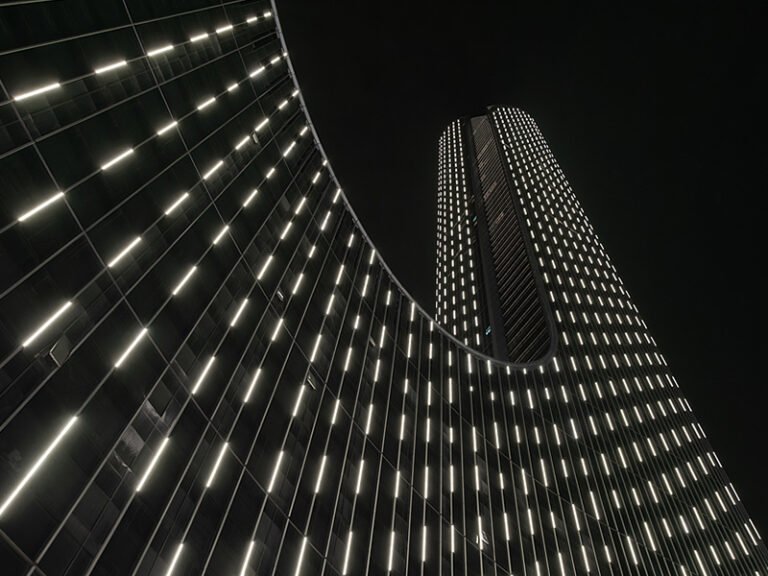

Be known as dotless and high CRI led strip lights, cob led strip are widely adopted in high-end indoor and outdoor scenarios. Such as: Cabinet lighting, Kitchen/bathroom Lighting, Residential lighting, Commercial lighting, Entertainment lighting, Landscape lighting, Architectural lighting, high CRI LED strip.
How to produce the COB LED Strip
We combine advanced technology with rigorous quality control to manufacture high-performance LED lighting products. Our production line is fully equipped with industry-leading machines and testing systems to guarantee precision and reliability at every stage.

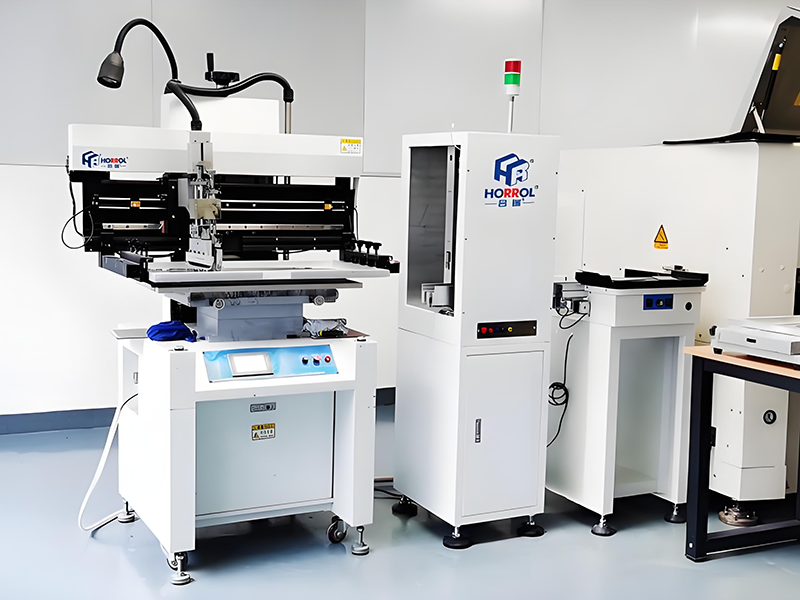

Step1. Solder Past Printing
Step2. Flip Chip Bonding
Step3. Reflow Soldering
Step4. Testing Machine
Step5. Automated Dispensing
Step6. Oven

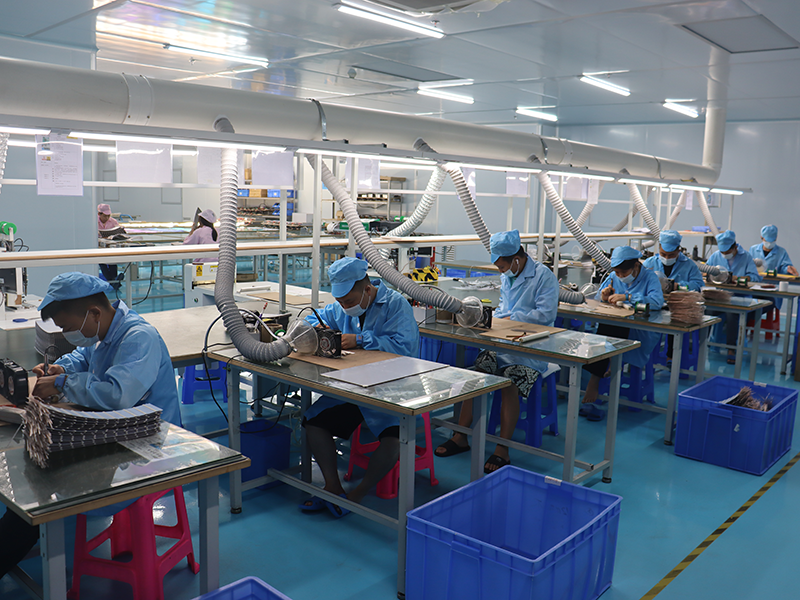

Step7. After Welding

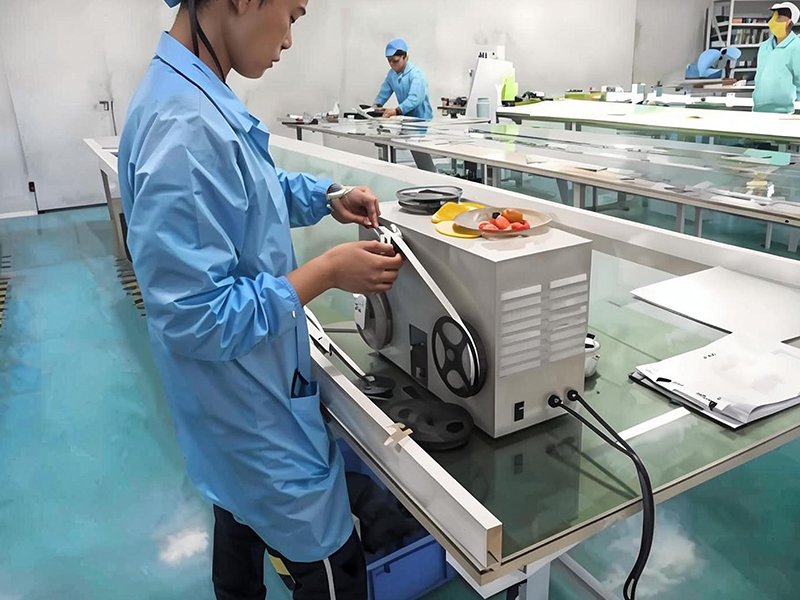

Step8. Reeling & Labeling

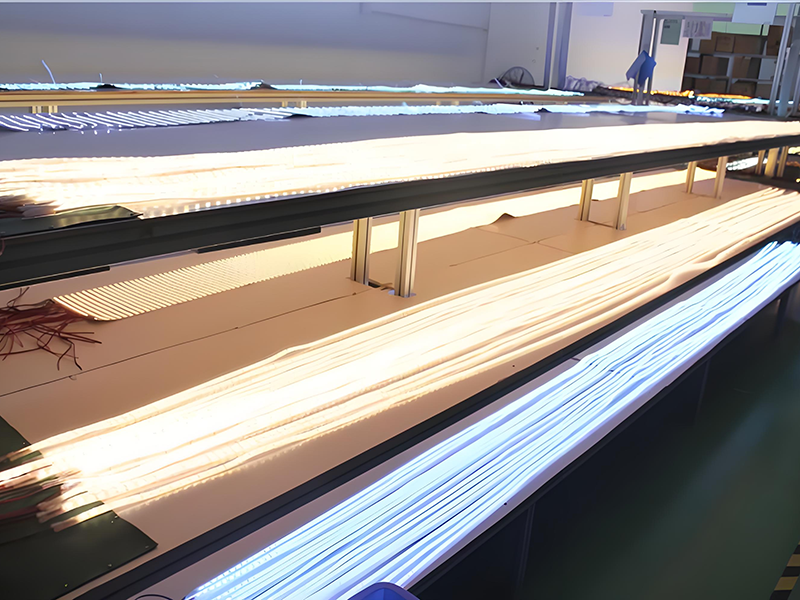

Step9. Aging

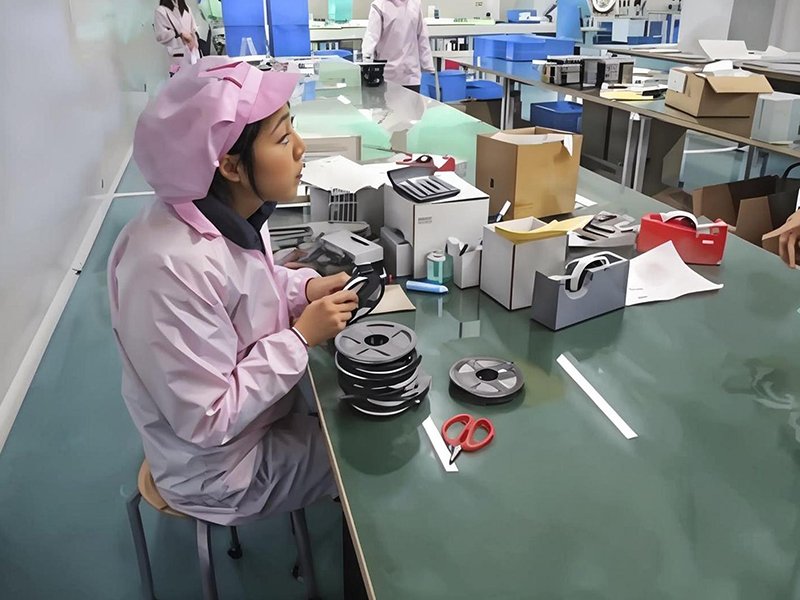

Step10. Final Testing

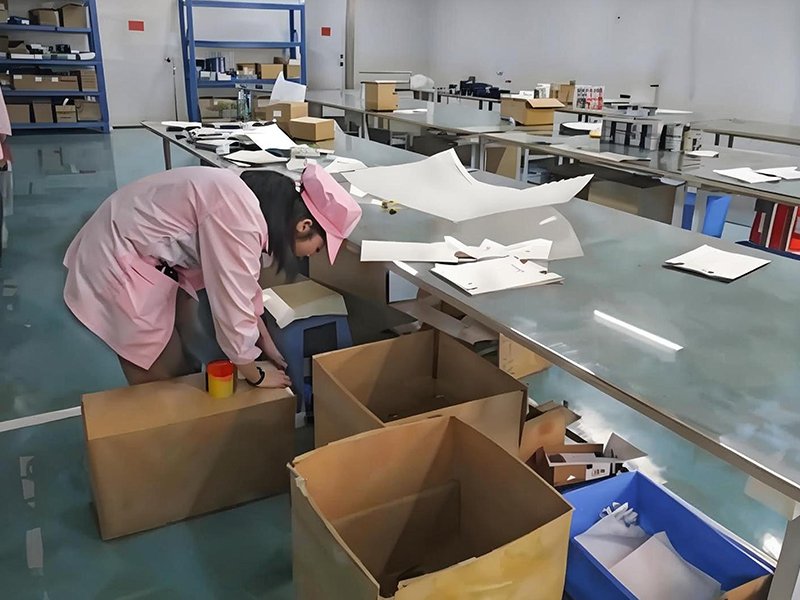

Step11. Packing
How to set up the COB LED Strip

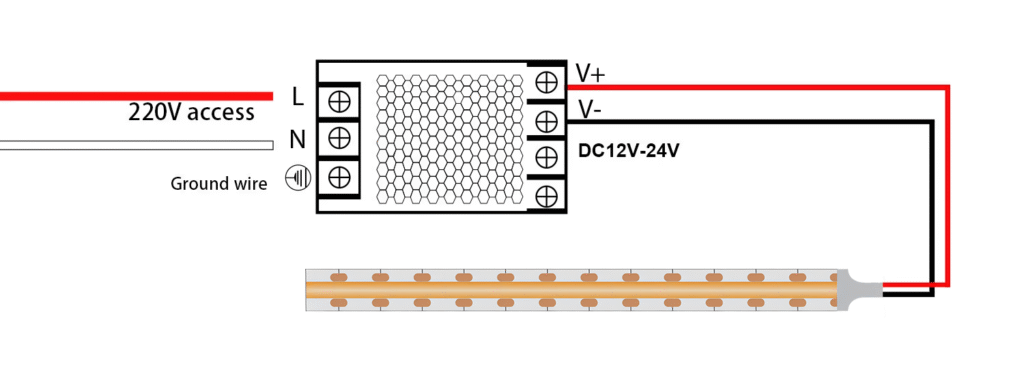

The working voltage of the COB led strip is DC 12V or DC 24V, it needs the constant voltage led driver (LED power supply) to light up as below.
How to connect the COB LED strip lights by led strip connector
We have different type of connector to fit for different led strips. There are 2pin 3pin 4pin 5pin and 6pin to fit for 5mm 6mm 8mm 10mm 12mm PCB width LED strips. And there are Strip to Wire, Strip to Strip, Corner 3 different applications like below.

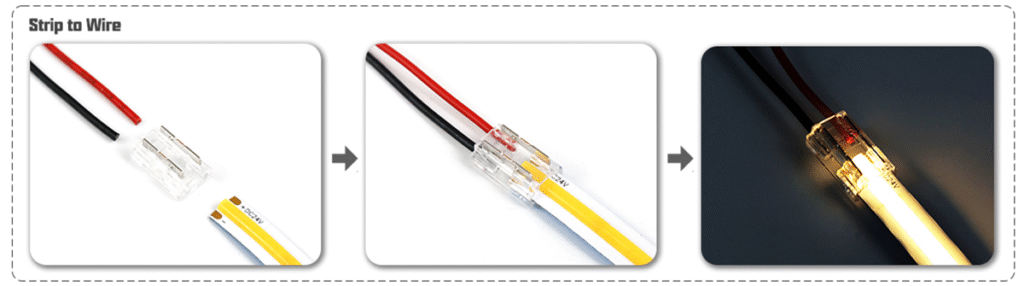

1. Strip to wire
When you cut lengths of the led strip from a reel and it without wire, you can select the led strip to wire connector as below.

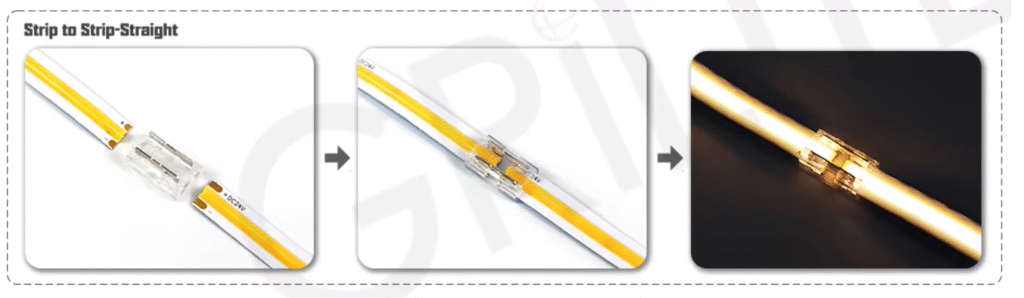

2. Strip to strip
When you need to connecting another led strip to the existing one, you can use the led strip to strip connector as below.

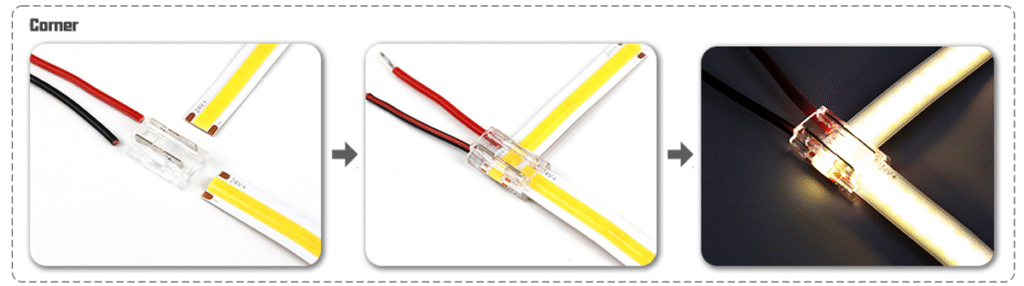

3. Corner
When you need to connect led strips in Corner, you can use led strip corner connector as below.
Classification
LED mini cutting cob light are mainly divided into 480 LEDS ,512LEDS
| PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
| 4mm | 480LEDs | 5V | 12.5mm | 5W | 120° | 90 | WW/NW/CW |
| 5mm | 480LEDs | 24V | 8.3mm | 6W | 120° | 90 | WW/NW/CW |
| 8mm | 480LEDs | 5V | 10.4mm | 5W | 120° | 90 | WW/NW/CW |
| 8mm | 480LEDs | 12/24V | 8.33/12.5mm | 9W | 120° | 90 | WW/NW/CW |
| 8mm | 512LEDs | 12/24V | 7.7/15.62mm | 9W | 120° | 90 | WW/NW/CW |
| 10mm | 512LEDs | 24V | 15.62mm | 14W | 120° | 90 | WW/NW/CW |
Product specification
LED COB mini cutting cob LED Product video
The Mini Cutting cob led strip lights is an innovative lighting solution that combines exceptional flexibility with premium light quality. Utilizing high-density COB (Chip on Board) technology, it delivers smooth, continuous illumination with no visible light dots, providing soft and comfortable lighting that reduces eye strain. One of its most outstanding features is the “mini cutting” design, allowing it to be cut every 25mm, offering maximum flexibility for custom installations in irregular shapes or tight spaces. Operating on safe low-voltage options (12V or 24V), the strip boasts high color rendering (CRI>90), high brightness, low energy consumption, and long lifespan. Built on a highly flexible FPC substrate, it is easy to bend and install into cabinets, showcases, furniture, and other embedded lighting applications. Whether for commercial displays, decorative lighting, or DIY projects, the COB Mini Cutting strip provides professional-grade lighting performance and is an ideal choice for those who demand both precision and aesthetics.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.

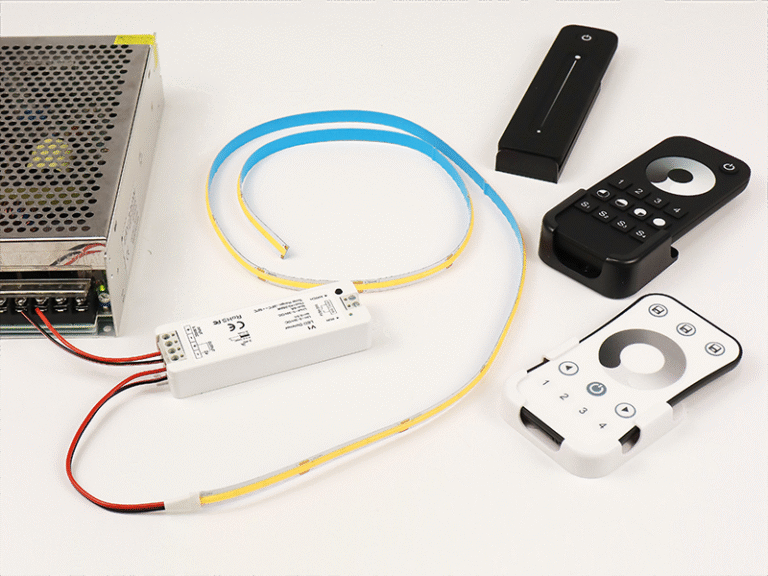

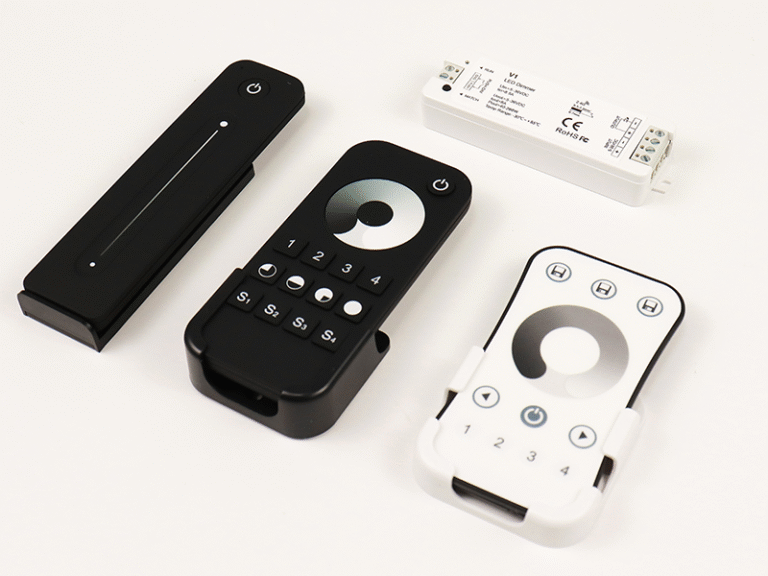

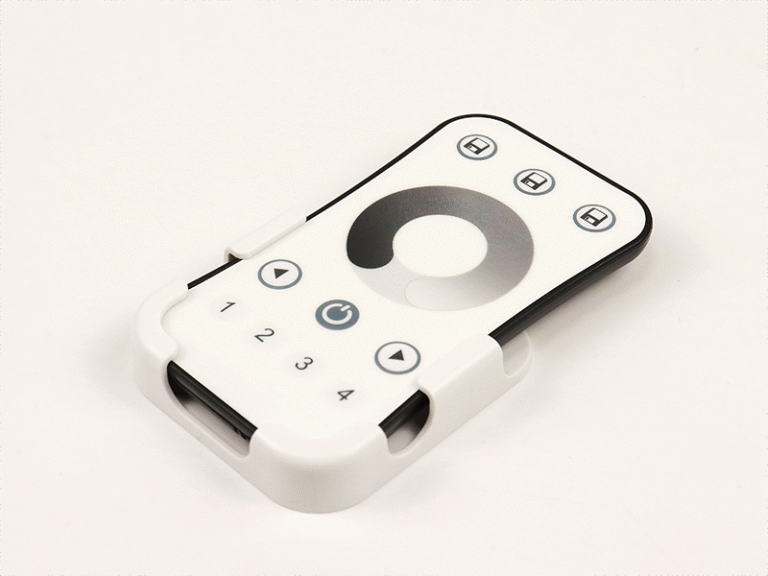

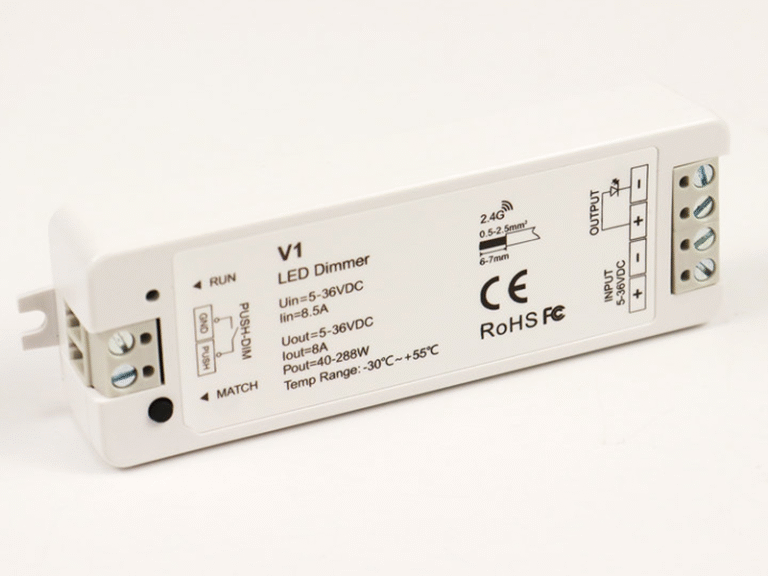

LED Light Controller

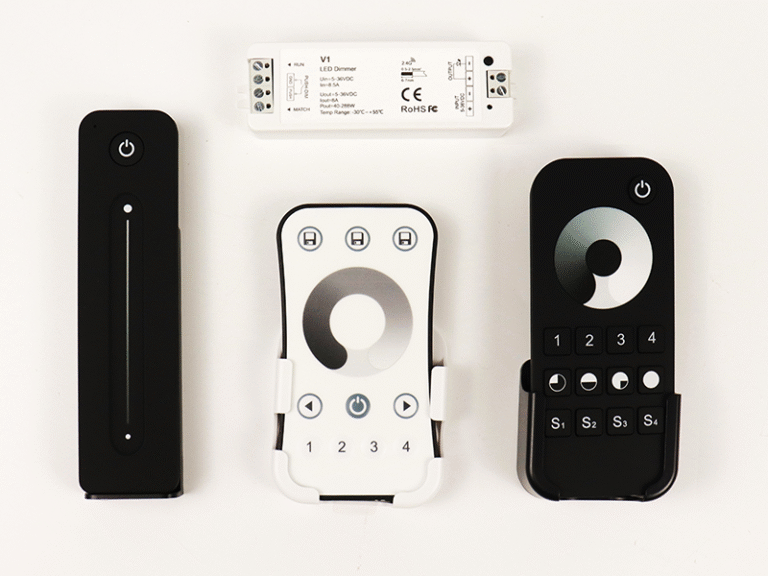

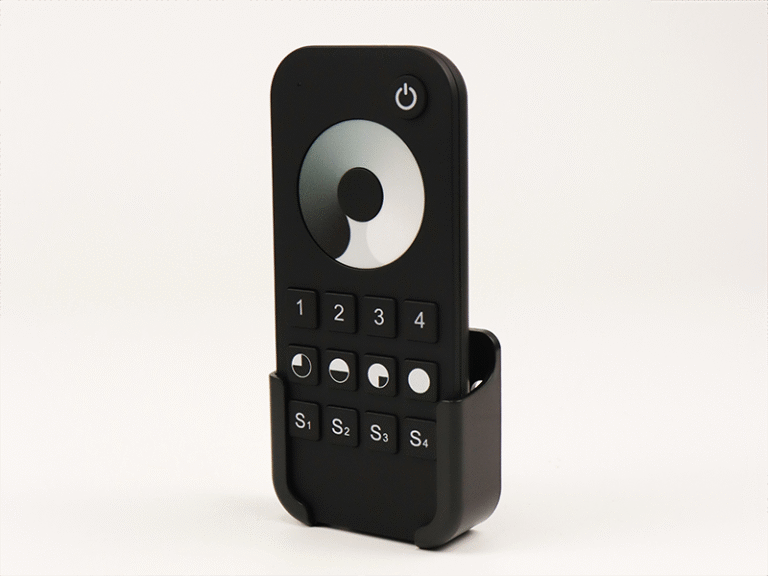

For controlling COB (Chip-on-Board) LED strips. Remote control LED strip lights. Enables smooth dimming, dynamic color transitions, and preset modes (static, flash, fade). Compatible with 12V/24V strips, supports remote/app control (via Bluetooth/Wi-Fi). Ideal for home, commercial, or decorative lighting. Energy-efficient, durable, and easy to install.

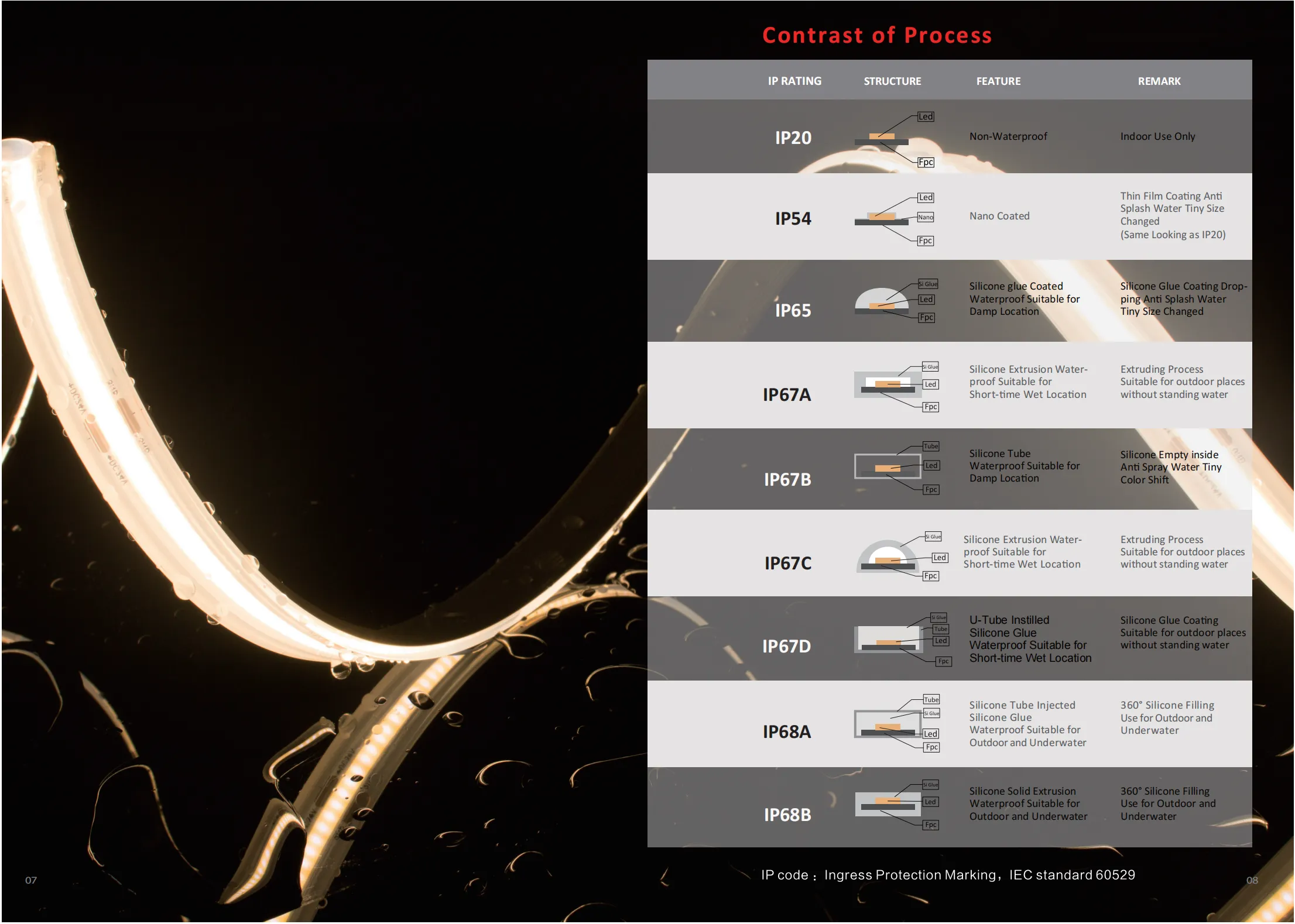

Waterproof Rating Guide for LED Strip Lights
Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
