LED light Sheet Series
- 5 Years Warranty
- Plug&play connecting
- 20 Minutes Response to Inquiries
- Uniform light illumination, flexibility and DIY capability
- Support OEM, ODM or other Custom Made Requirements
- Free bending, cutting, and splicing for diverse lighting scenarios
- Single Color, Dual color, RGB, RGBW, RGBCT and Addressable RGB Available
LED Light Sheet Series Index
What is LED Light Sheet ?

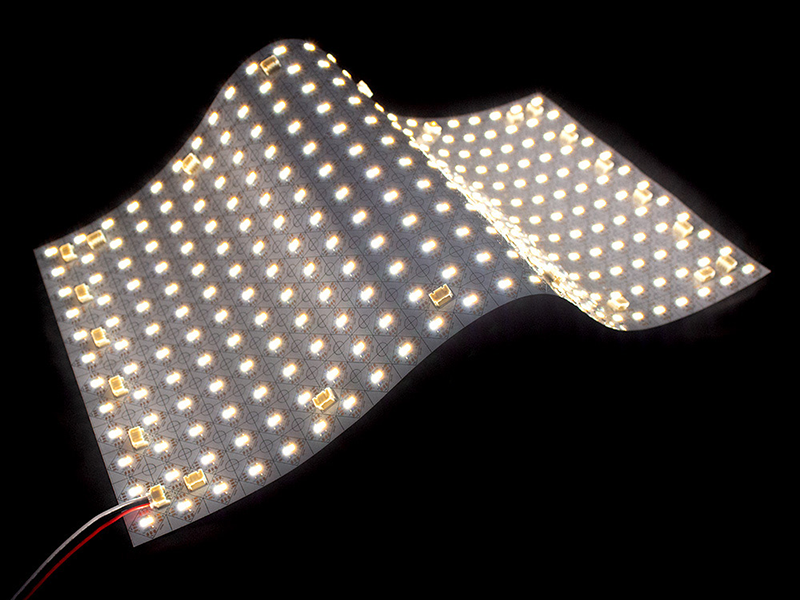

The SMD led sheet lighting is an LED lighting panel manufactured using SMD (Surface Mount Device) technology, typically consisting of multiple small LED beads evenly distributed on a thin board. This type of light source board has high light efficiency, low power consumption, and long service life, and is often used in fields such as backlighting, advertising screens, light boxes, marble tables, indoor and outdoor lighting, etc. Due to its compact structure, good heat dissipation, and ability to achieve uniform lighting, LED SMD light sheets are widely used in places that require high brightness and large areas of uniform lighting. Its slim design also makes it very suitable for applications with limited space.
LED Light Sheet vs LED Strip Light
Application scenarios

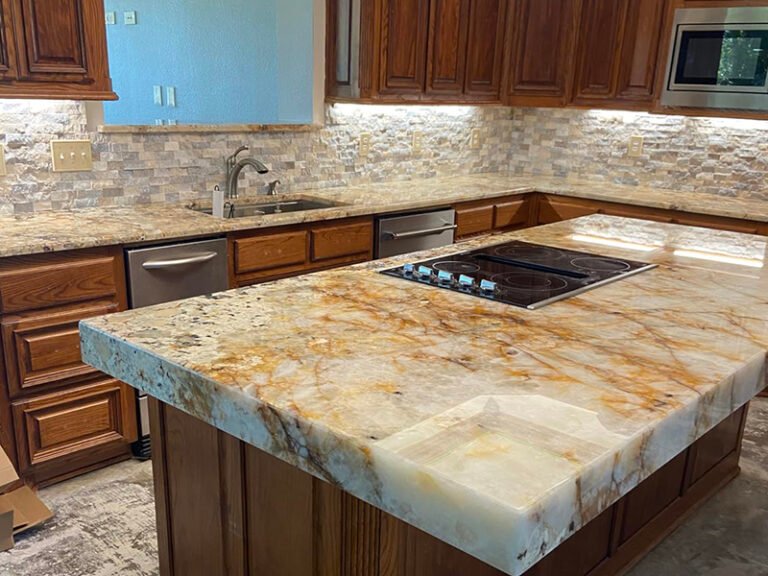

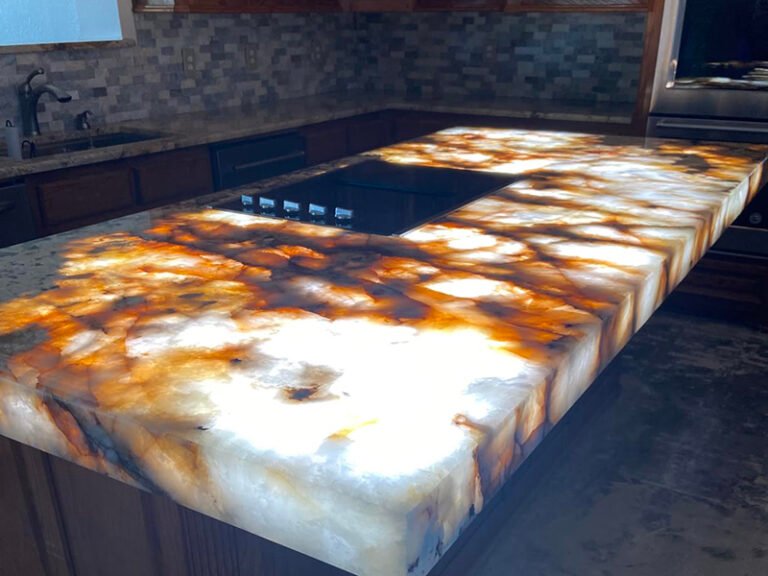

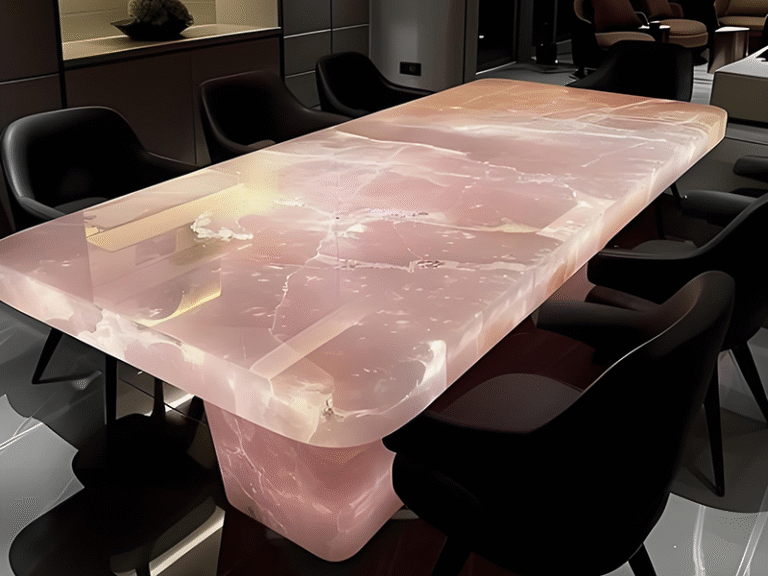

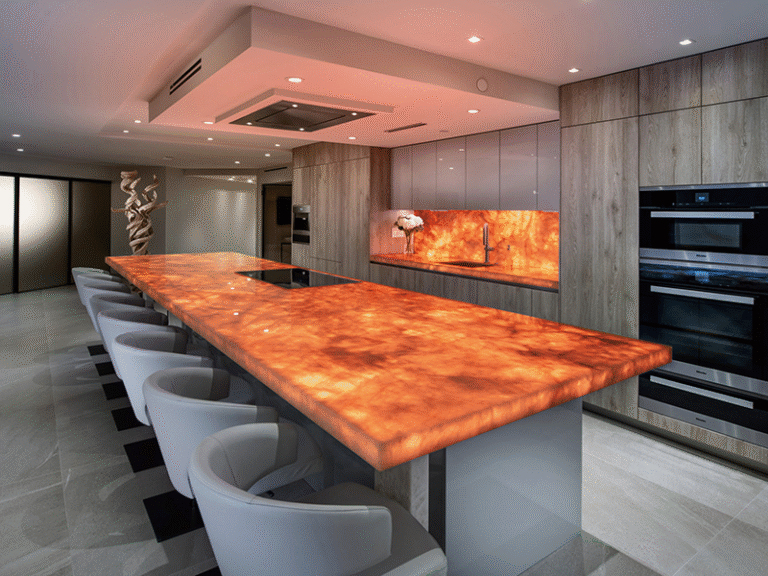

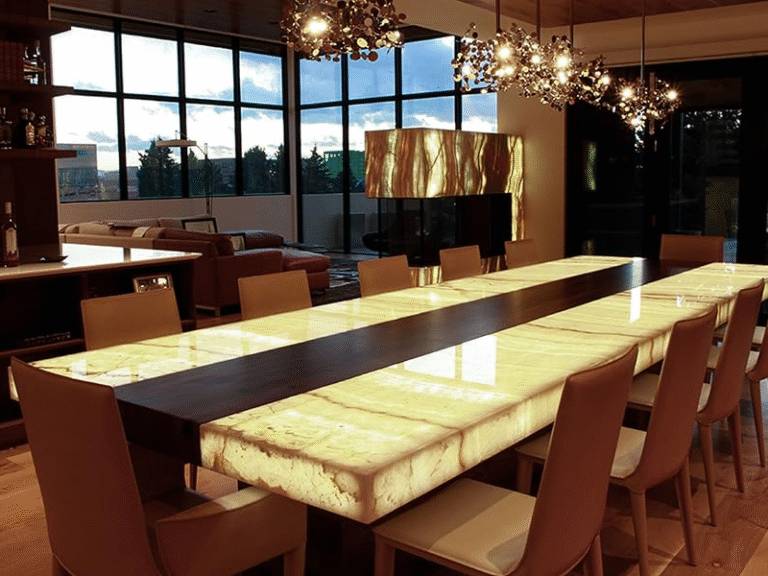

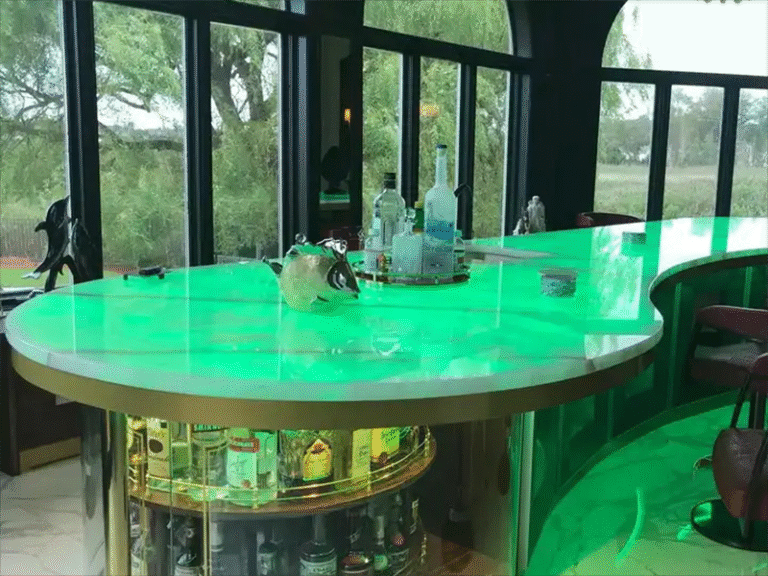

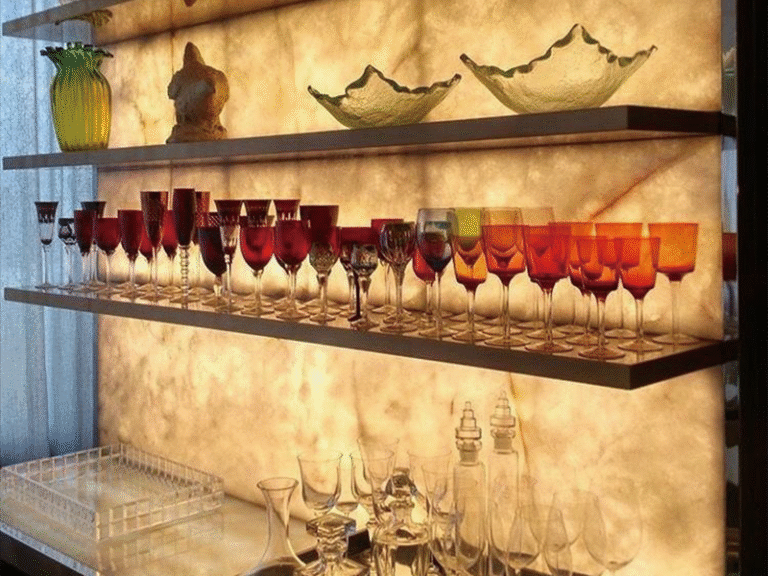

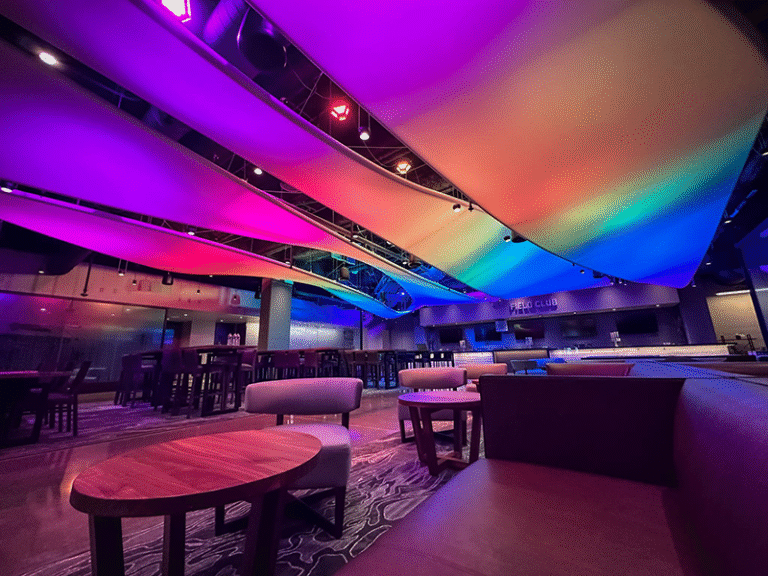

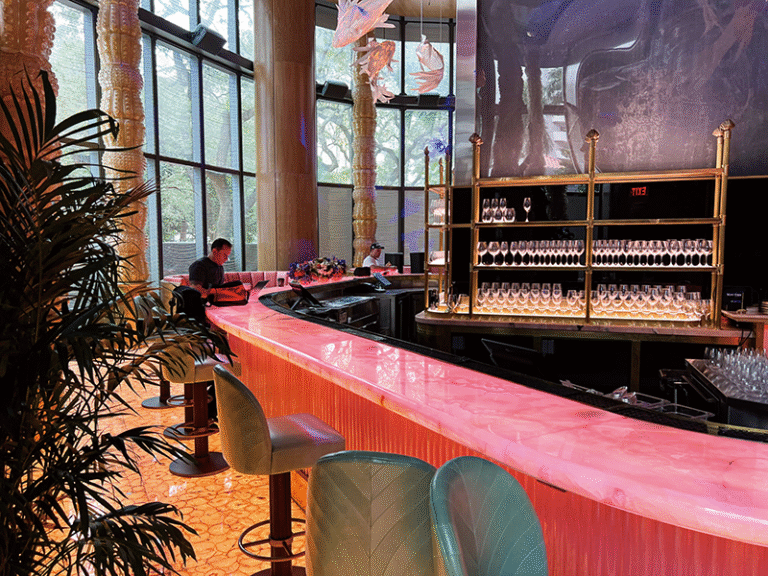

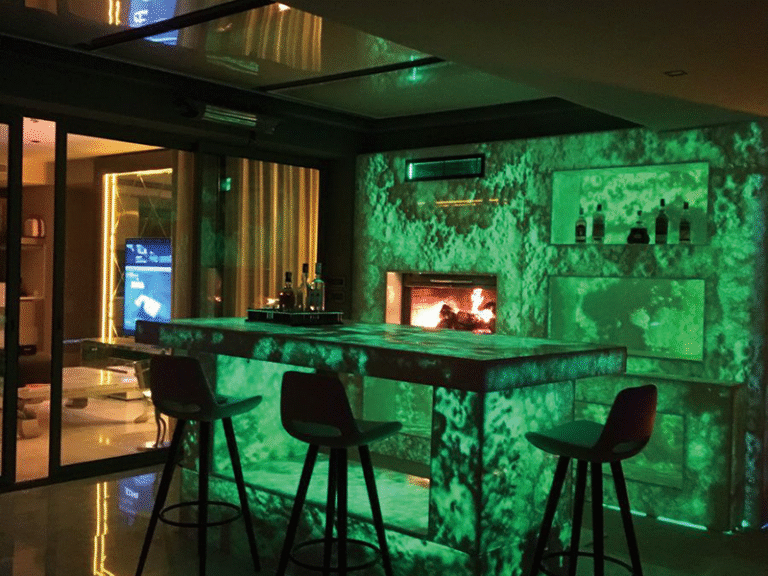

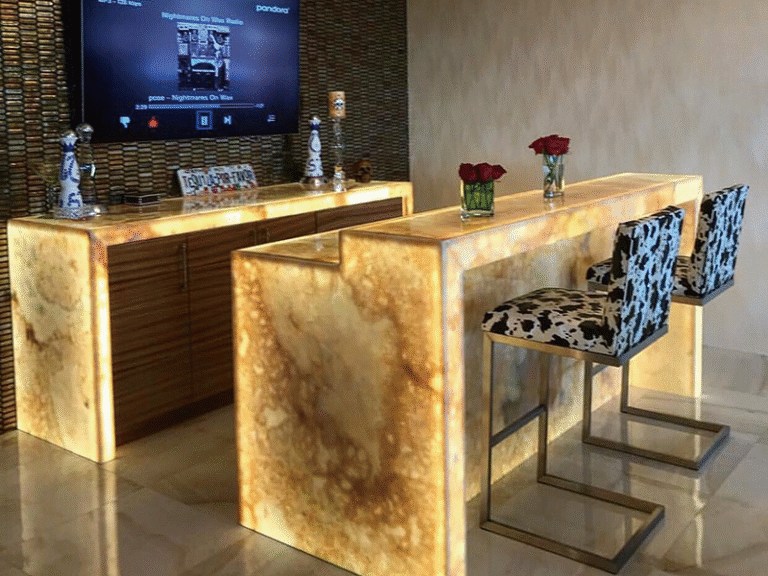

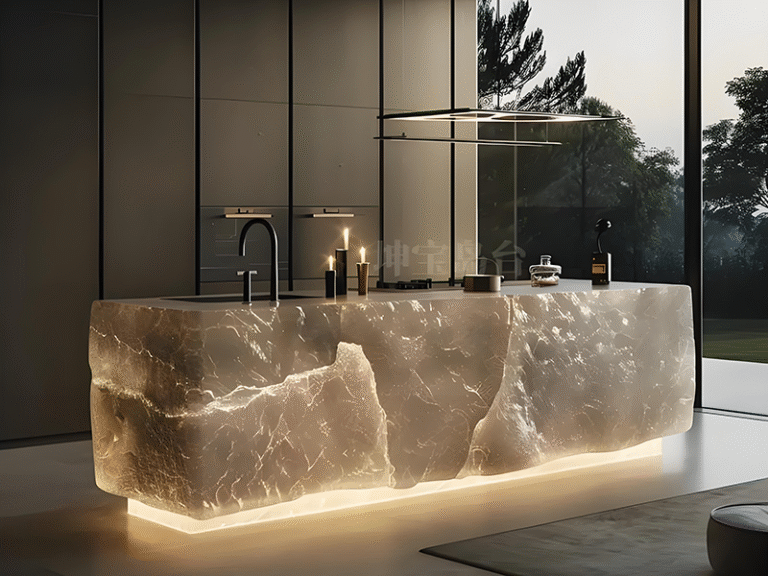

Owing to its uniform light illumination, flexibility and DIY capability, LED sheet is widely used as the back light of Bar Counter, Decorative Floor and Ceilings, Feature Wall and Light Box, etc.
Classification
LED sheet lighting are commercially available in two primary standardized dimensions: 480×240mm (for European market ) and 600×300mm (for North American Market). We can suppply diverse color configurations to meet various application requirements. They include belows:
Single Color
Dual Color
RGB

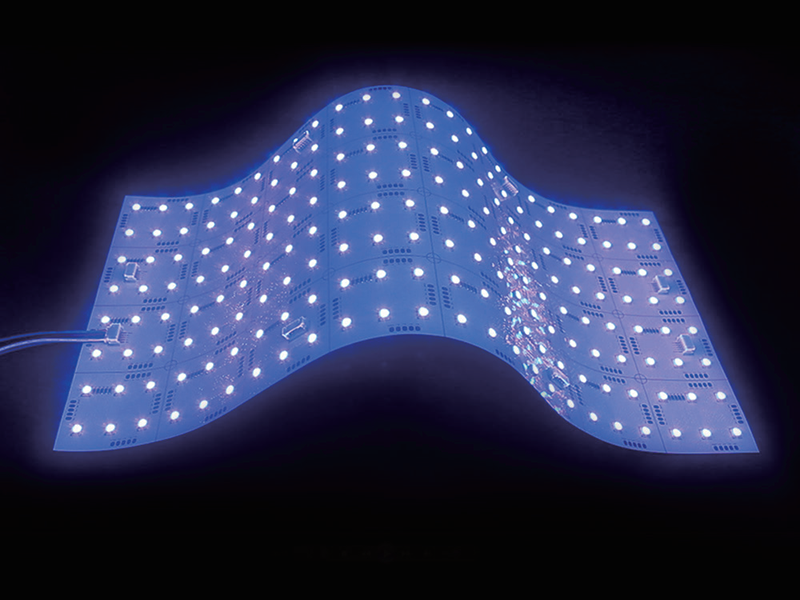

RGBW
RGB+Dual Color

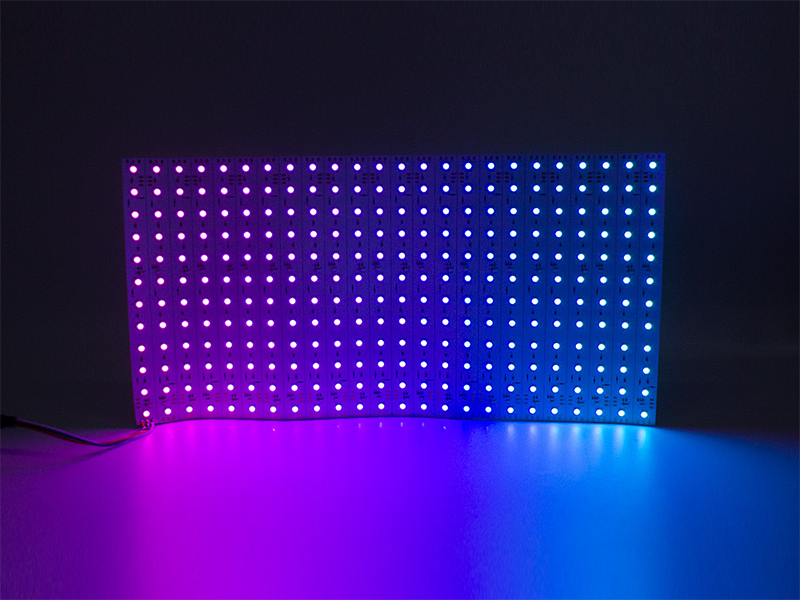

Programmable Dynamic Color (SPI, DMX)
Below are the main classifications of our LED sheets
| Dimensions (mm) | LED Source | LED Qty/sheet(LEDs) | Watts/sheet(W) | Cutting size(mm) | CRI (Ra) | Working Voltage(V) | Color | Remark |
| 480×240mm | 2835 | 192leds | 30W | 60×60mm | 90 | DC24V | WW/NW/CW | |
| 480×240mm | 2835 | 288leds | 30W | 20×20mm | 90 | DC24V | WW/NW/CW | Hot Sell |
| 480×240mm | 2835 | 576led | 30W | 20×20mm | 90 | DC24V | Dual Color | |
| 480×240mm | 5050 | 288leds | 40W | 40×120mm | / | DC24V | RGB | |
| 480×240mm | 5050(4in1) | 192leds | 40W | 60×60mm | / | DC24V | RGBW | |
| 480×240mm | 5050(4in1) | 288leds | 40W | 40×120mm | / | DC24V | RGBW | Hot Sell |
| 480×240mm | 5050(5in1) | 288leds | 50W | 40×120mm | / | DC24V | RGB+Dual COlor | |
| 480×240mm | 5050 | 72leds | 38W | 40×40mm | / | DC24V | RGB IC | SPI |
| 480×240mm | 5050 | 288leds | 70W | 20×240mm | / | DC24V | RGBW IC | SPI |
| 600×300mm | 2835 | 450leds | 40W | 20×20mm | 90 | DC24V | WW/NW/CW | Hot Sell |
| 600×300mm | 5050(4in1) | 360leds | 50W | 50×120mm | / | DC24V | RGBW | Hot Sell |
| 600×240mm | 2835 | 160leds | 20W | 30×30mm | 90 | DC24V | WW/NW/CW | |
| 600×240mm | 5050(4in1) | 240leds | 30W | 60×60mm | / | DC24V | RGBW |
How to Install and Connect LED Light Sheet
To handle different-sized applications, we need to connect and light up individual LED light sheets. This requires compatible components like LED Power Supplies, LED Controllers, LED Connectors, Wire Clips, and other accessories. The wiring setup and parts used will vary depending on the LED color and power rating of the leds. Below, we’ll categorize the different connection methods (wiring diagram) based on different colors.
Single Color:

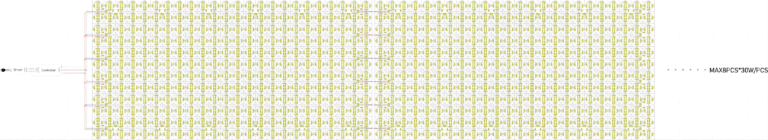

Dual Color:

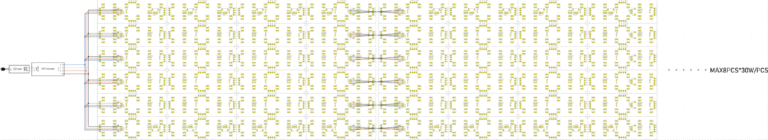

RGB:

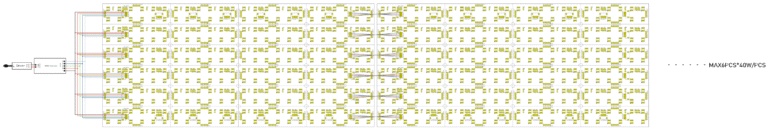

RGBW:

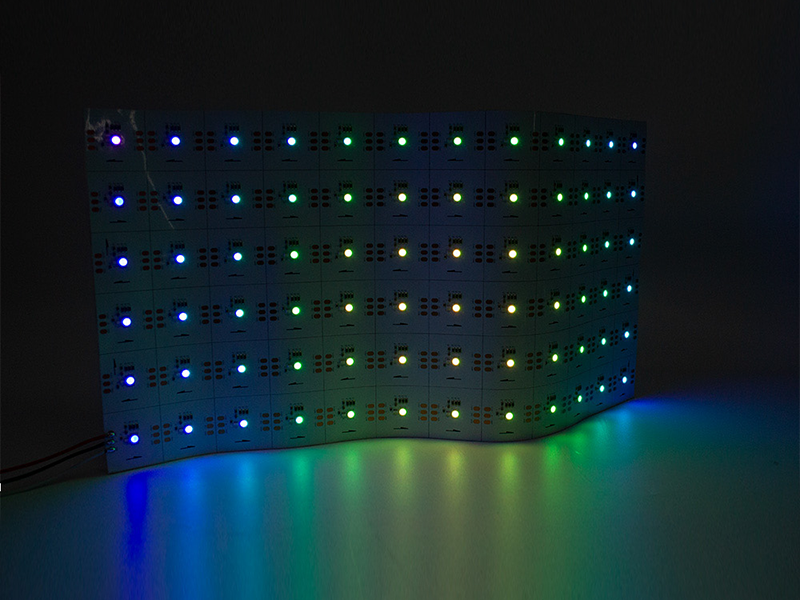

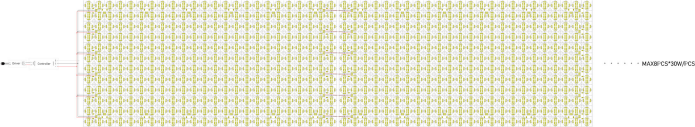

RGBIC
Product specification
Product video
The light sources of our LED sheet light use 2835 or 5050 LED. We can supply Single Color, Dual Color, RGB, RGBW, RGBCT and SPI/DMX colors. 480×240mm and 600×300mm are the main dimensions in the market. 480×240mm for European countries and 600×300mm for North American countries. And custom made dimensions is also available.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.
FAQ – LED Light Sheet Panel Guide
1.Can LED light sheet be cut to size?
Yes, cuttable LED light sheet panels can be trimmed along marked lines to fit custom sizes. Flexible LED sheet lighting allows precise length adjustments for backlighting, light boxes, and architectural projects.
2.What is LED light sheet used for?
LED light sheet panels are ideal for backlighting, light boxes, ceiling panels, and retail displays. Flexible LED sheet lighting ensures even illumination for large surfaces and decorative applications.
3.Are LED sheets better than LED strips?
For large-area uniform lighting, LED sheet panels perform better than LED strip lights. LED sheet lighting provides dot-free illumination, making it perfect for light boxes, signage, and feature walls.
4.How do you install LED light sheet?
Installation of LED sheet panels is simple with plug-and-play connectors and DC power supplies. Flexible LED sheets can be mounted on light boxes, ceilings, or walls for seamless backlighting.
5.What voltage do LED light sheets use?
Most LED sheet panels operate at DC24V for safety and stable performance. Some cuttable LED sheet lighting also supports 12V, suitable for small backlighting projects or display cases.
6.Can LED sheet be used for light box applications?
Yes, LED light sheet panels are commonly used for light box backlighting. Flexible LED sheet lighting ensures uniform brightness and enhances the visual impact of advertising or display panels.

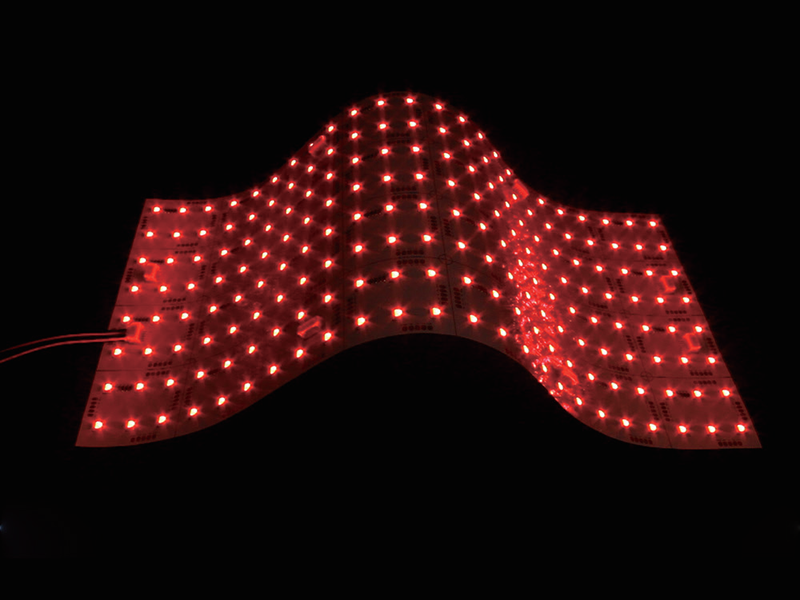

7.Is LED sheet flexible?
Flexible LED sheet panels can bend slightly to fit curved surfaces or creative installations. This flexibility makes LED light sheet panels ideal for custom architectural lighting and decorative backlit designs.

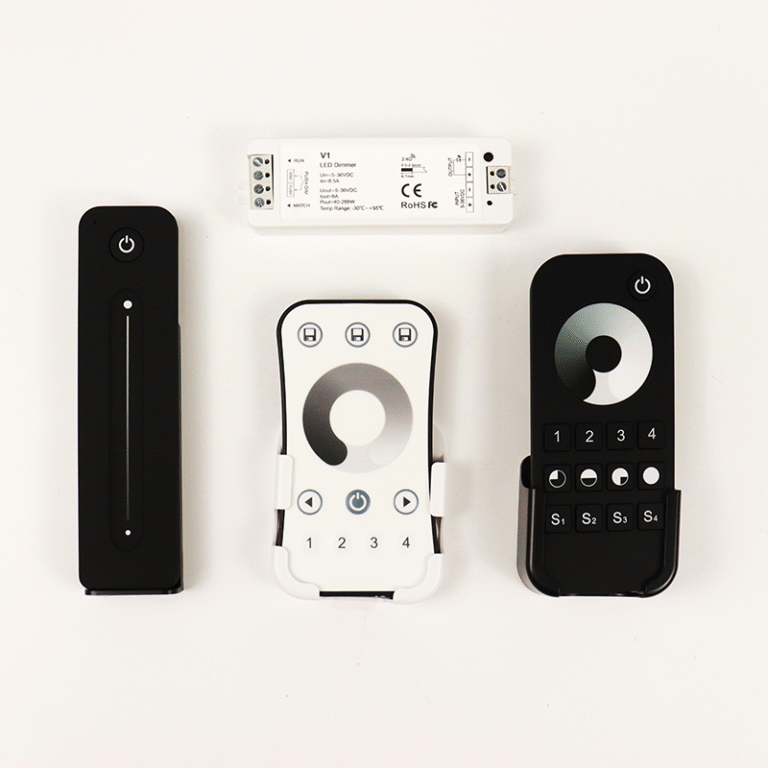

Power Supply & LED Controller
It will need to have LED Power Supplies, LED Controllers and LED Connectors to power on and control our LED sheets. High quality power supply and controller will needed to ensure the long lifespan and warranty. We are one of the distributors of Meanwell power supplies, Skydance LED controllers.
