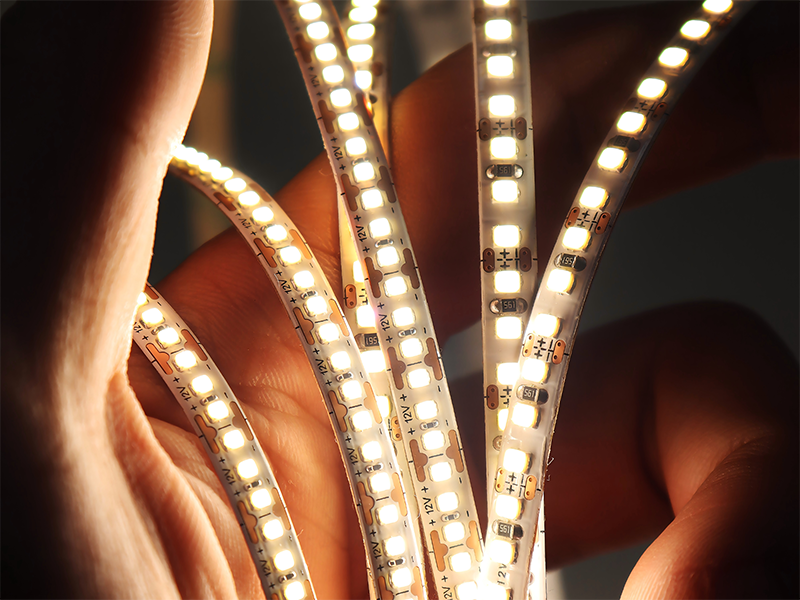

Ultra Narrow LED Strip Light (3mm / 4mm / 5mm) for Commercial Lighting
- Flexible PCB, flexible bending
- Long lifespan, stable and reliable
- Ultra thin design, strong concealment
- Easy to install, supports multiple methods
- High color rendering index, realistic colors
- Multi color temperature selection, widely used
- High brightness chip with superior light efficiency
- Low power consumption, energy-saving and environmentally friendly
Ultra thin LED Strip Light Index
What is Ultra thin SMD led strip light?
SMD ultra thin led strip is a flexible lighting solution designed with an ultra-slim profile, using high-brightness SMD LEDs as the light source. It features minimal thickness, excellent flexibility, energy efficiency, and good heat dissipation, delivering uniform and soft linear illumination even in limited spaces. It is widely used in cabinets, display cases, home decoration, commercial spaces, and architectural outlines where a thinner strip is required. With versatile installation options, such as pairing with aluminum profiles or direct adhesive mounting, it offers both a clean aesthetic and reliable durability.

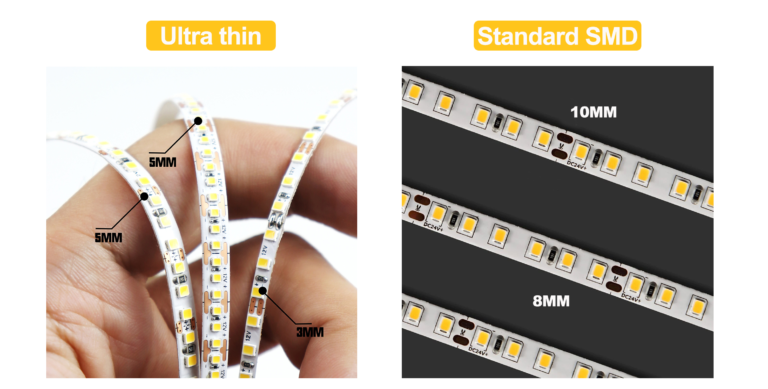

Ultra Thin LED Strip vs Standard LED Strip
| Feature | Ultra Narrow LED Strip | Standard LED Strip |
|---|---|---|
| Width | 3mm–5mm | 8mm–10mm |
| Installation | Tight space | General |
| Application | Cabinet / profile | General lighting |
1. PCB Width
Ultra thin LED strips feature a much narrower PCB, typically around 3–5mm, while standard LED strips usually have a wider PCB of 8–10mm.
2. Installation Space
Ultra thin strips are designed for narrow spaces such as cabinet gaps, display shelves, and slim aluminum channels. Standard strips require more installation space.
3. Concealment
Due to their slim profile, ultra thin LED strips are easier to hide within furniture edges or architectural details, creating a cleaner lighting effect.
4. Lighting Applications
Ultra thin LED strips are ideal for precision lighting in cabinets, displays, and decorative details, while standard LED strips are commonly used for general lighting.
5. Design Flexibility
The compact size of ultra thin LED strips allows more flexible installation in tight or complex lighting designs.
How to produce the SMD LED Strip
The SMD LED strip production process includes PCB mounting, SMD chip placement, reflow soldering, waterproof sealing, aging test, and final quality inspection to ensure stable performance and consistent light output.
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic
Commercial Applications of Ultra Narrow LED Strip

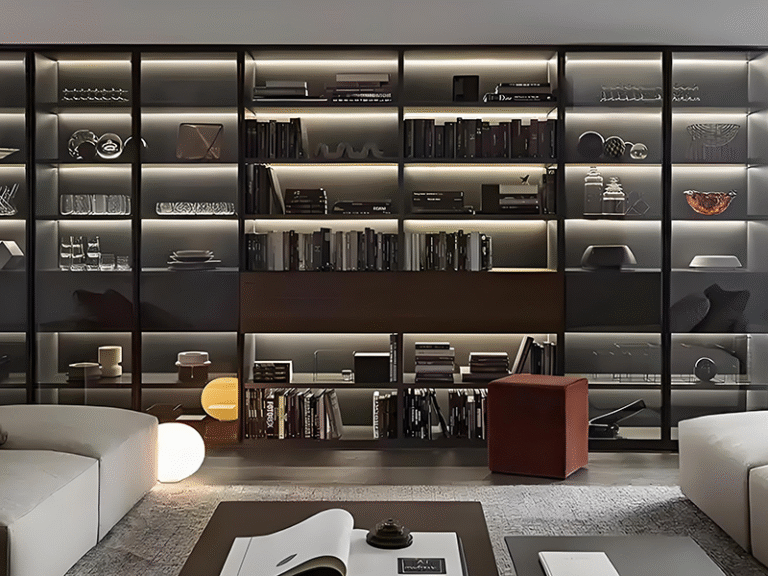

Retail Display Lighting
- ultra narrow LED strip for retail display lighting

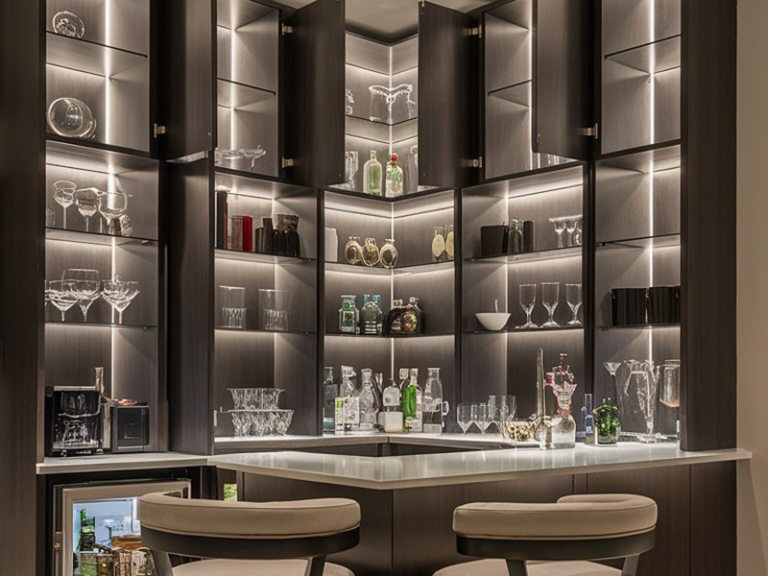

Jewelry Showcase Lighting
- slim LED strip for jewelry display

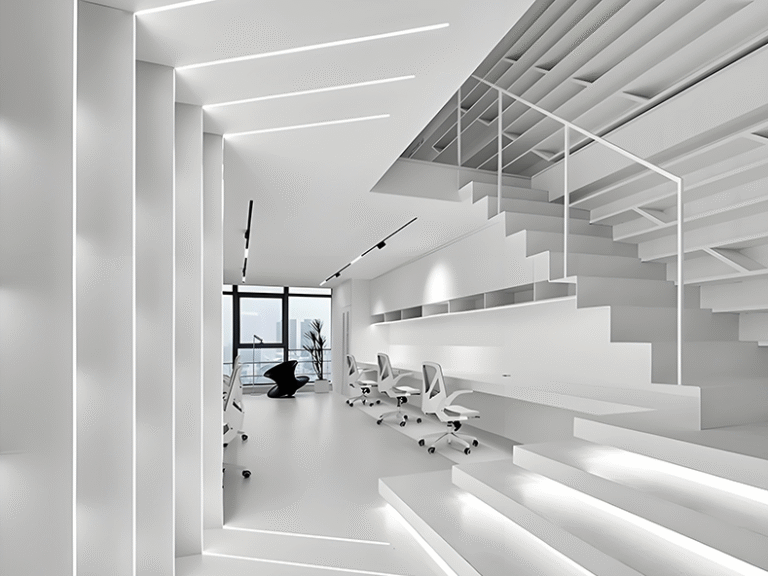

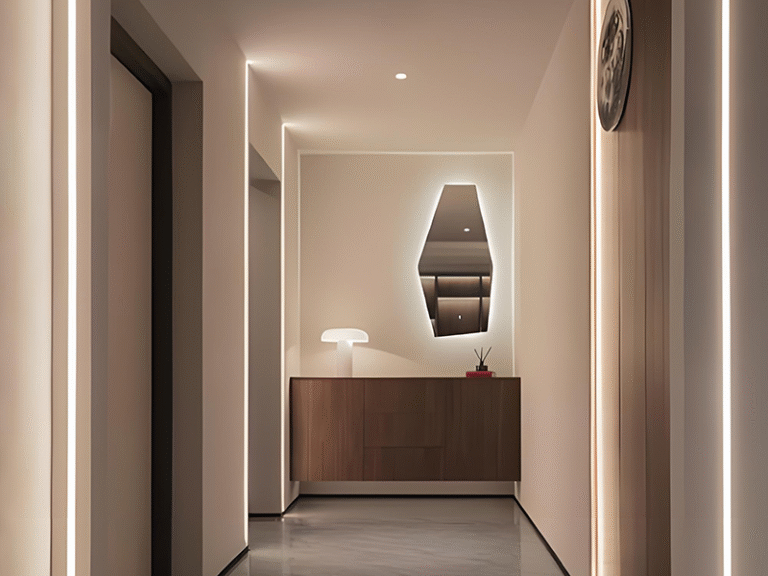

Architectural Linear Lighting
- narrow LED strip for linear lighting system

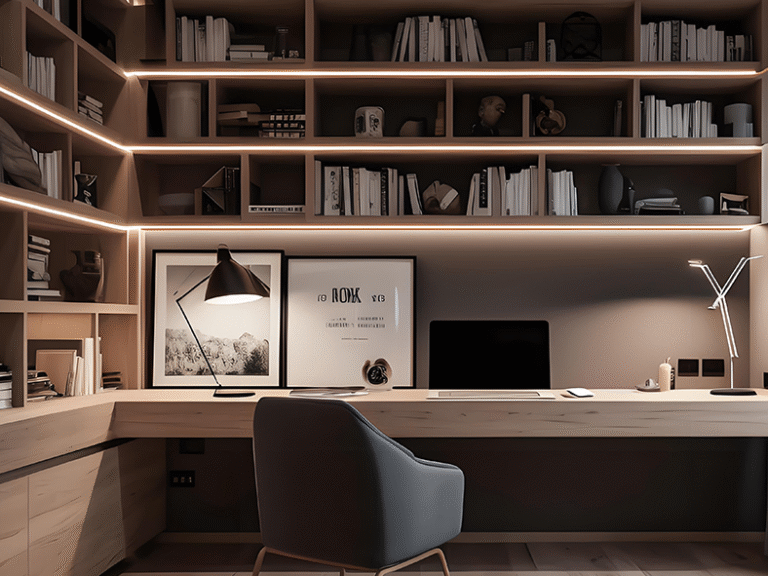

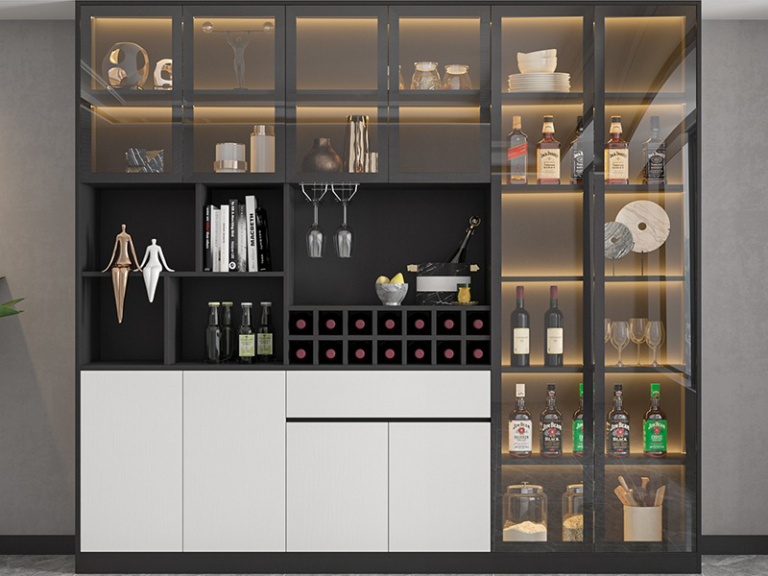

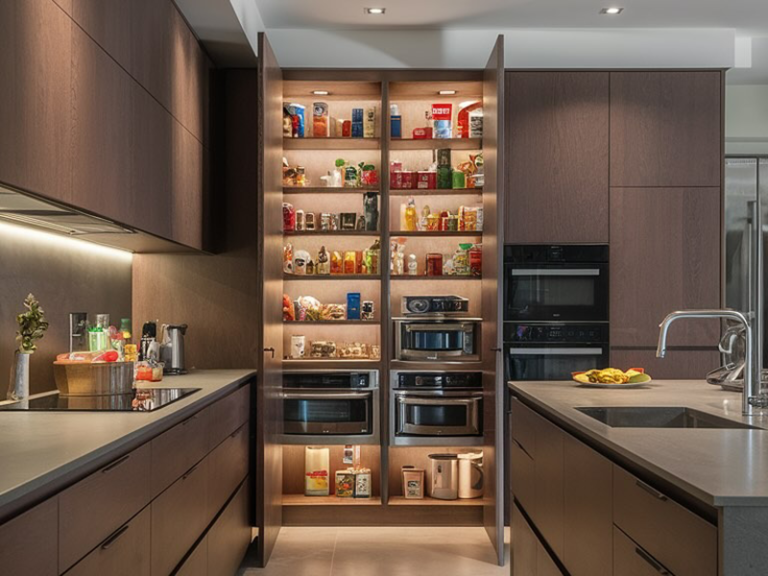

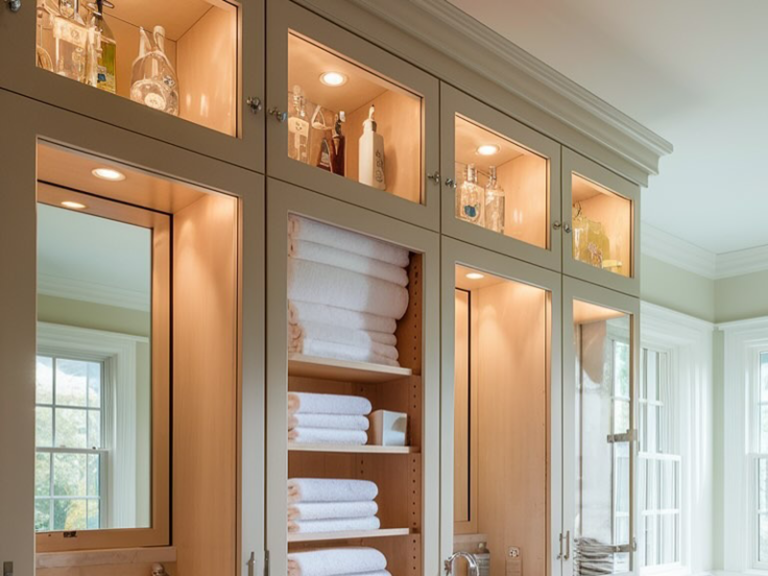

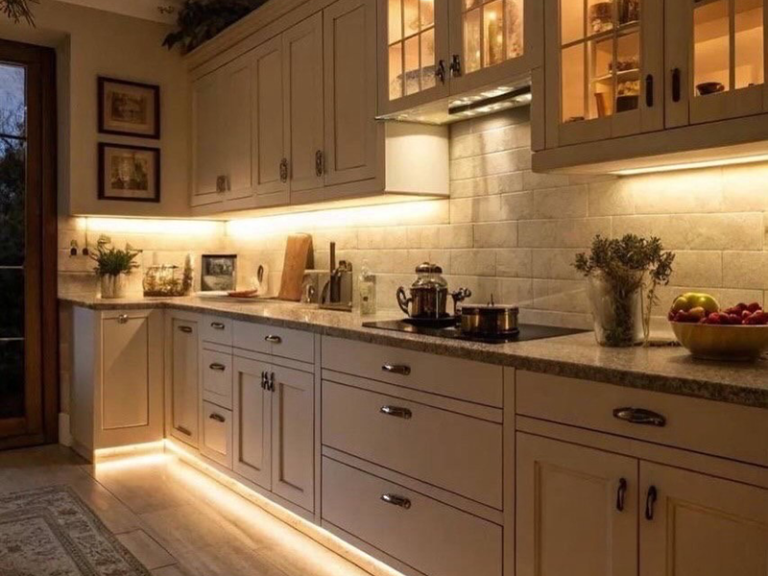

Cabinet & Joinery Lighting
- ultra thin LED strip for cabinet lighting

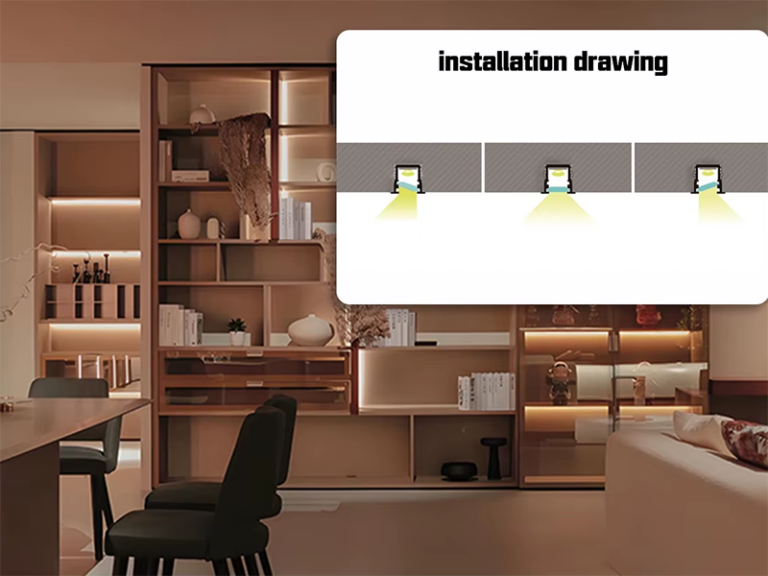

Aluminum Profile Lighting
- slim LED strip for aluminum profile

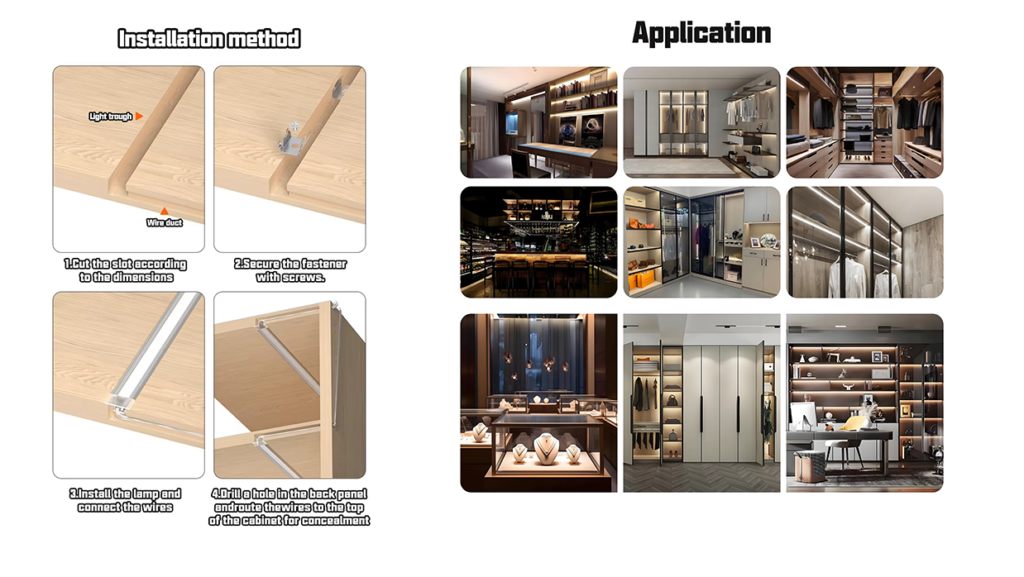

How to set up the narrow LED strip light
The wiring method for SMD ultra thin led strip is usually as follows: one end is connected to the DC power cord through soldering or non soldering terminals, the red wire is connected to the positive pole (+), and the black wire is connected to the negative pole (-); If multiple light strips need to be spliced, the copper pads at both ends of the light strips can be connected through terminals or welding; During installation, Ultra thin led mini strip lights is often used in conjunction with aluminum slots or silicone sleeves to ensure heat dissipation and protection. The overall wiring is simple and intuitive, making it easy to install and maintain quickly.

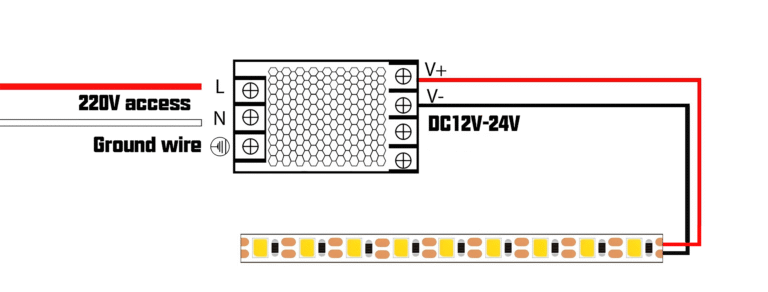

Single Color

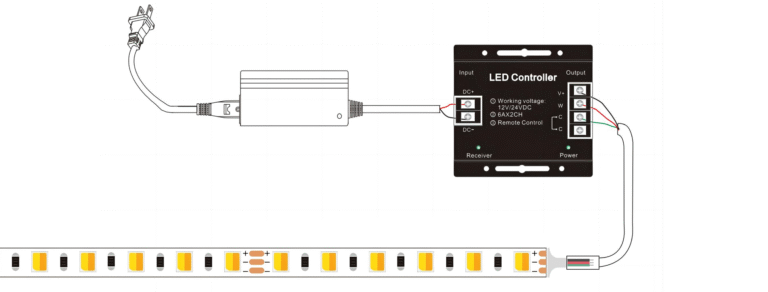

Dual Color
Classification and Product Specifications
SMD narrow led strip lights are available in three types: single-color series, dual-color series, and solderless cabinet lights. The single-color series offers stable illumination for basic lighting needs, the dual-color series allows flexible color temperature adjustment to create different atmospheres, and the solderless cabinet lights feature plug-and-play installation, making them ideal for cabinets, wardrobes, and other compact spaces.
①Single Color&Dual Color Series
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
3mm | 168LEDs | 12V | 17.86mm | 7W | 120° | ＞90 | WW/NW/CW |
3mm | 192LEDs | 12V | 15.625mm | 6.5W | 120° | ＞90 | WW/NW/CW |
4mm | 160LEDs | 12V | 18.75mm | 7.2W | 120° | ＞90 | WW/NW/CW |
5mm | 120LEDs | 12V | 25mm | 7.2W | 120° | ＞90 | WW/NW/CW |
5mm | 120LEDs | 12V | 25mm | 7.2W | 120° | ＞97 | WW/NW/CW |
5mm | 120LEDs | 12V | 8.33mm | 7.2W | 120° | ＞90 | WW/NW/CW |
5mm | 168LEDs | 12V | 17.86mm | 8.7W | 120° | ＞90 | WW/NW/CW |
5mm | 168LEDs | 12V | 5.95mm | 7W | 120° | ＞90 | WW/NW/CW |
5mm | 136LEDs | 12V | 7.35mm | 7.2W | 120° | ＞95 | WW/NW/CW |
5mm | 240LEDs | 12V | 12.5mm | 6.5W | 120° | ＞90 | WW/NW/CW |
5mm | 240LEDs | 12V | 25mm | 6.5W | 120° | ＞90 | WW/NW/CW |
5mm | 348LEDs | 12V | 8.62mm | 7.5W | 120° | ＞90 | WW/NW/CW |
5mm | 120LEDs | 12/24V | 25/50mm | 9.6W | 120° | ＞90 | 3000-6500K |
5mm | 120LEDs | 12/24V | 8.33mm | 9.6W | 120° | ＞90 | 3000-6500K |
②Solderless Cabinet Light Series
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
4mm | 168LEDs | 12V | 5.95mm | 6W | 120° | ＞90 | WW/NW/CW |
5mm | 150LEDs | 12V | 6.66mm | 7.5W | 120° | ＞90 | WW/NW/CW |
6.5mm | 120LEDs | 12V | 6.66mm | 6W | 120° | ＞90 | WW/NW/CW |
6.8mm | 204LEDs | 12V | 14.7mm | 7.5W | 120° | ＞90 | WW/NW/CW |
LED SMD Ultra thin Product video
This video showcases the SMD ultra thin led tape in detail and in action. With its slim profile, the strip can be easily concealed in narrow spaces, creating a clean and modern look. High-quality SMD LEDs are arranged evenly, delivering consistent illumination without dark spots, while the soft and natural color temperature makes it suitable for both everyday lighting and ambient effects. Close-up shots highlight the refined craftsmanship and flexibility of the strip, showing how it adapts to different installation scenarios. Once lit, the light spreads evenly, offering impressive brightness and a premium visual experience,mini ultra-thin led cabinet light strip Whether for home decor, cabinet lighting, or commercial ambience design, this ultra-thin strip light provides professional and elegant illumination.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.

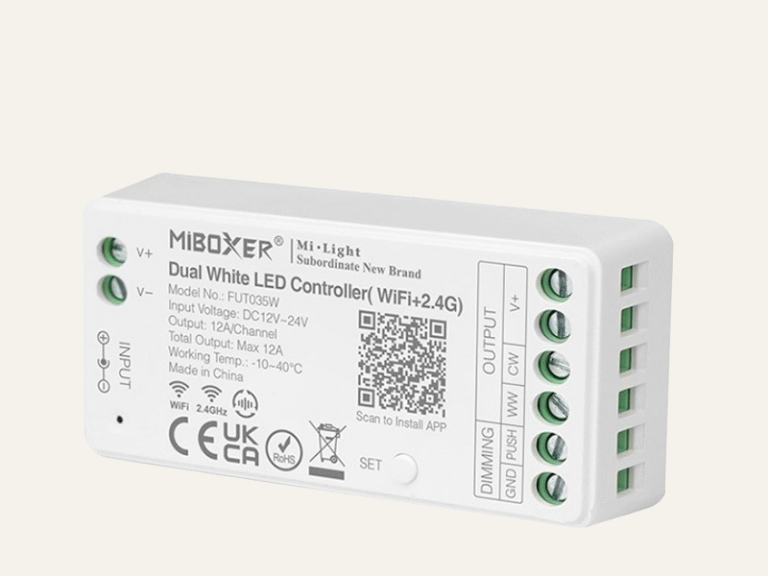

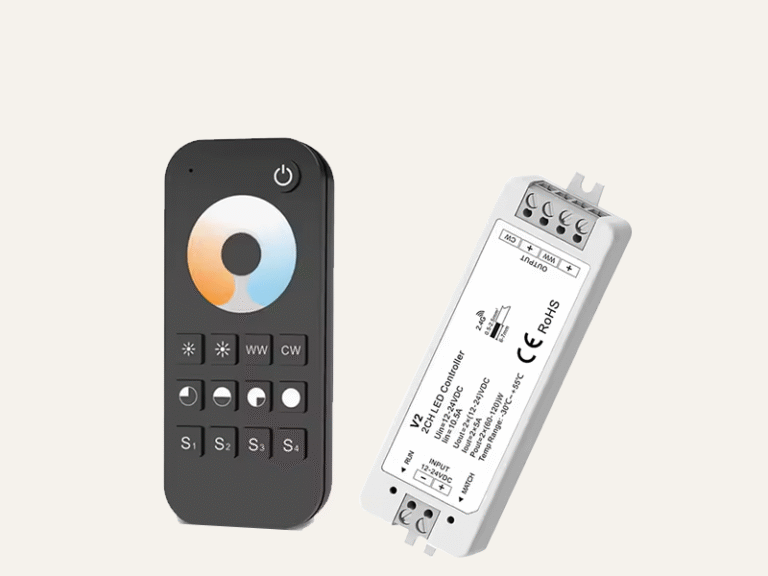

LED Light Controller
The SMD Ultra slim led strip lights single color temperature and dual color temperature strip lights can be paired with various power supplies and controllers. Single CCT strips typically work with DC power supplies and knob, touch, or remote dimmers for easy brightness adjustment, while dual CCT strips require dedicated CCT controllers and power supplies to achieve seamless switching between warm and cool tones, with stepless adjustment via remote, APP, or smart home systems. Featuring easy installation and strong compatibility, they are ideal for residential, commercial, and decorative lighting applications.
Frequently Asked Questions About Ultra Thin LED Strip Lights
1. What is the narrowest LED strip light available?
The ultra narrow LED strip light can be as slim as 3mm width, making it ideal for tight installation spaces. This type of slim LED strip is widely used in cabinet lighting and aluminum profile applications. It is the best solution when standard LED strip lights are too wide.
2. Can ultra narrow LED strip light be cut to custom lengths?
Yes, most ultra narrow LED strip lights feature a cuttable design, allowing flexible length customization. This makes them perfect for projects requiring precise installation, such as display lighting and furniture lighting. A cuttable narrow LED strip helps reduce waste and improve installation efficiency.
3. Where can ultra narrow LED strip light be used?
Ultra narrow LED strip light is commonly used in cabinet lighting, retail display lighting, and architectural linear lighting. Its slim design allows installation in narrow or hidden spaces. It is especially suitable for commercial lighting projects that require clean and precise illumination.
4. What is the difference between 3mm and 5mm LED strip light?
A 3mm LED strip is designed for extremely tight spaces, while a 5mm LED strip offers slightly higher brightness and stability. Both belong to ultra thin LED strip light categories but serve different installation needs. Choosing the right width depends on your project requirements and lighting intensity.
5. What voltage is best for ultra narrow LED strip light, 12V or 24V?
A 12V ultra narrow LED strip light is suitable for short runs and small installations. A 24V slim LED strip is better for longer runs with less voltage drop. For commercial lighting projects, 24V narrow LED strip light is generally recommended.
6. Is ultra narrow LED strip light suitable for aluminum profiles?
Yes, ultra narrow LED strip light is ideal for aluminum profile lighting systems due to its slim width. It fits perfectly into narrow channels, creating a clean linear lighting effect. This makes it a popular choice for architectural and commercial lighting designs.
7. How to install ultra narrow LED strip light?
Installing an ultra narrow LED strip light involves connecting it to a compatible power supply and securing it with adhesive backing or aluminum profiles. Proper wiring ensures stable performance and long lifespan. For best results, follow a professional LED strip installation guide for narrow LED strip lighting.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
