S Shape LED Strip Light for Signage & Curved Lighting | Flexible Zigzag LED Strip Manufacturer
- Easy to cut and connect safely
- Suitable for indoor and outdoor use
- Multiple color options for creative designs
- Flexible zigzag design for curved installations
- Smooth, continuous light without visible dots
- Smooth, continuous light without visible dots
- Durable PCB ensures long-lasting performance
- Energy-efficient LED technology for low consumption
S Shape LED Strip Light Index

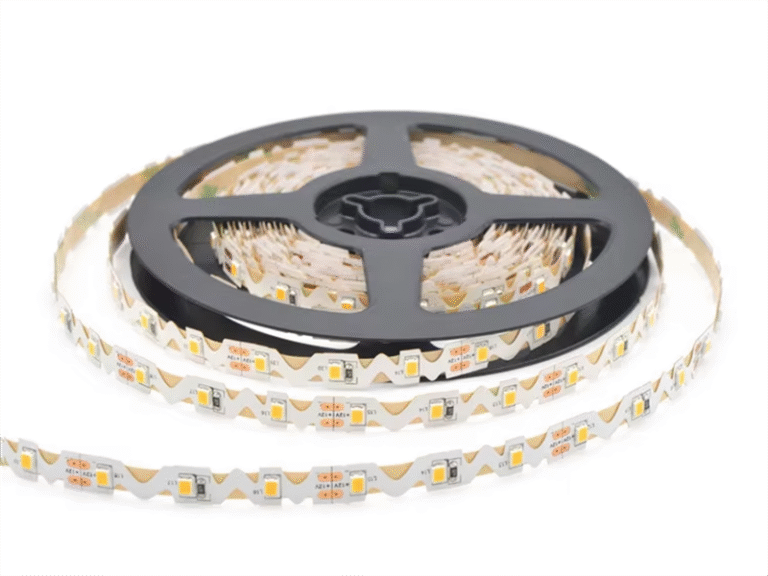

What is S Shape SMD led strip light?
S Shape LED strip lights are flexible LED tape lights designed with a zigzag PCB layout that allows the strip to bend horizontally and vertically. Unlike traditional straight LED strips, the S-shaped design enables smooth curves, corners, and complex shapes without cutting or reconnecting the strip.
Because of this flexibility, S shape LED strips are widely used for signage lighting, advertising light boxes, logo backlighting, and decorative architectural lighting where traditional LED strips cannot follow curved designs.
They typically operate at DC12V or DC24V, support multiple color options such as single color, RGB, or addressable RGB, and provide uniform lighting with high energy efficiency

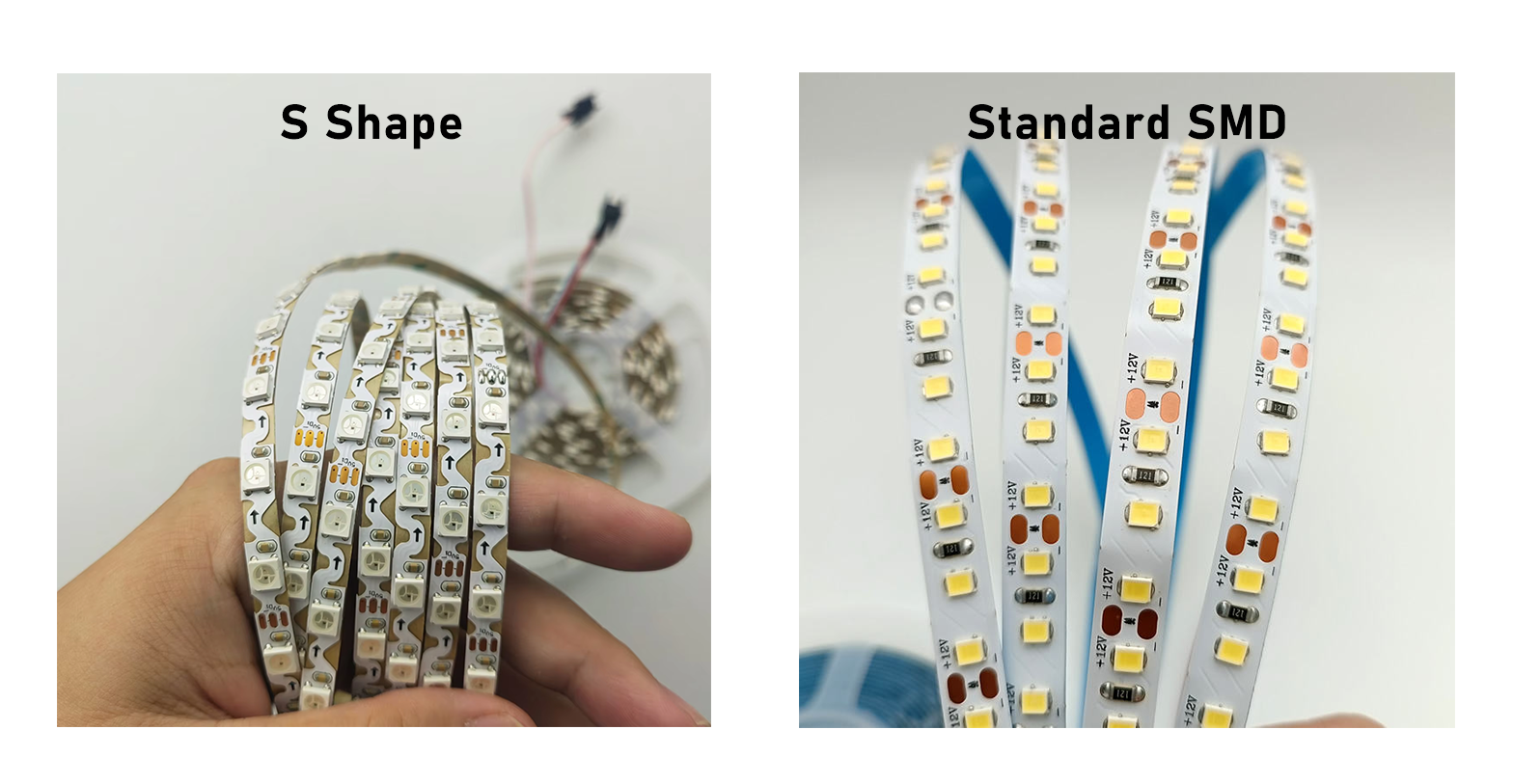

S Shape LED Strip vs Standard SMD LED Strip
1 Flexibility
S shape LED strips can bend in multiple directions, while standard SMD LED strips mainly bend in one direction.
2 Curved Installation
S shape strips easily follow curves, corners, and complex shapes, while standard strips are better for straight lines.
3 Lighting Applications
S shape LED strips are commonly used for signage, logos, and decorative curves, while standard SMD strips are widely used for linear lighting.
4 Installation Convenience
S shape LED strips reduce cutting and soldering when installing curved lighting designs.
5 Design Possibilities
The zigzag PCB structure of S shape LED strips allows more creative lighting layouts compared with standard SMD LED strips.
How to produce the SMD LED Strip
The SMD LED strip production process includes PCB mounting, SMD chip placement, reflow soldering, waterproof sealing, aging test, and final quality inspection to ensure stable performance and consistent light output.

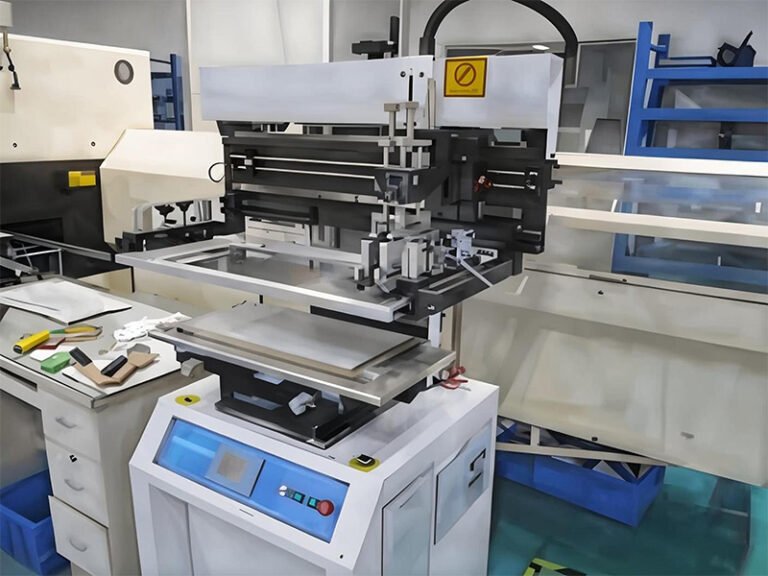

Step1. Solder Past Printing.pic

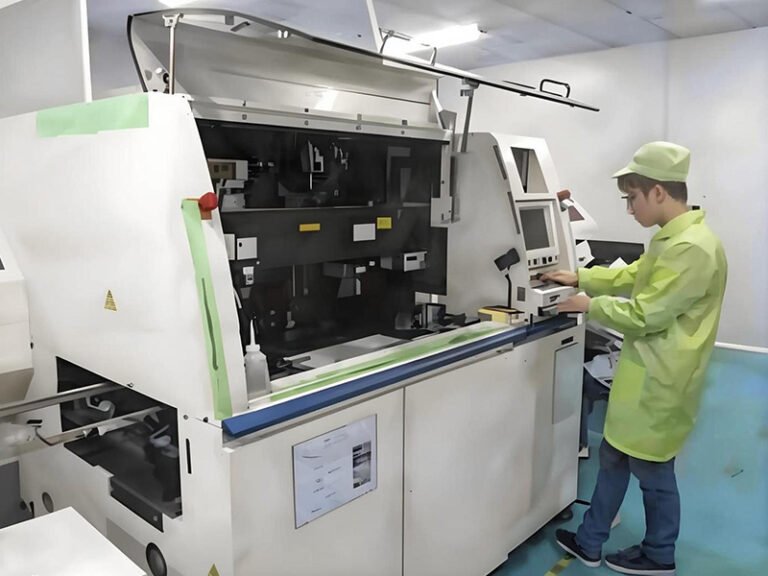

Step2. SMT.pic

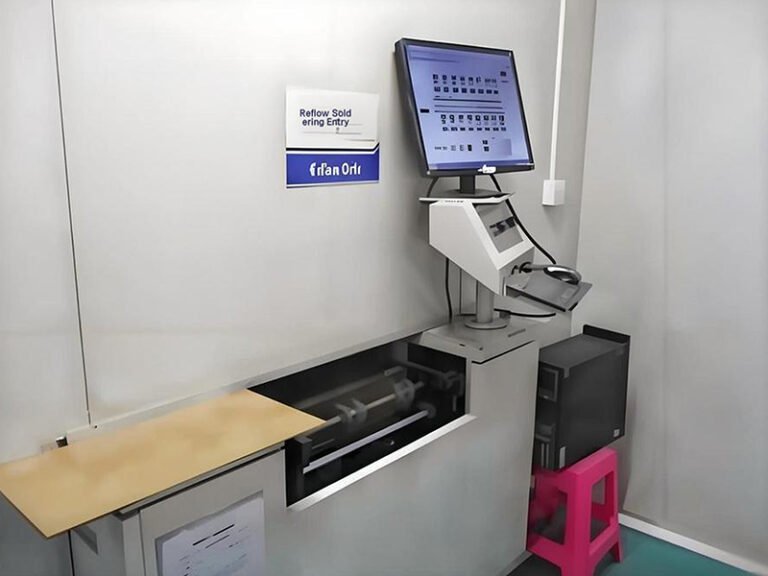

S3. Reflow Soldering.pic

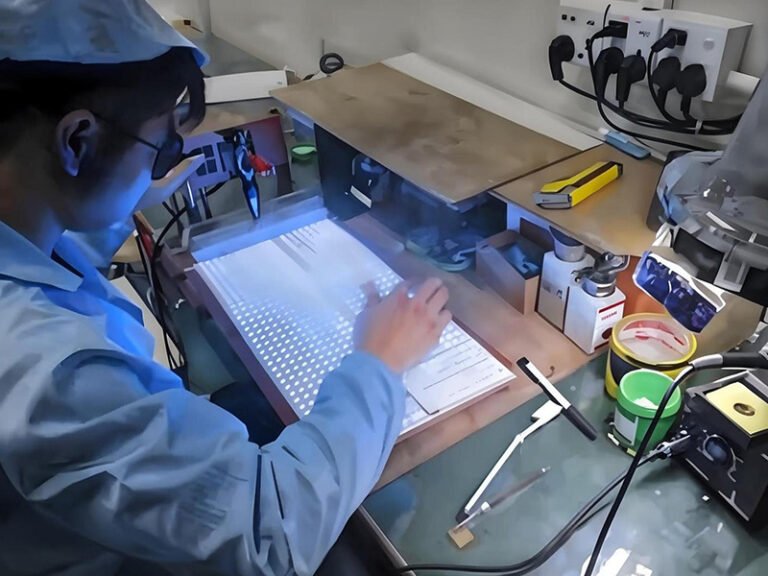

Step4. Testing.pic

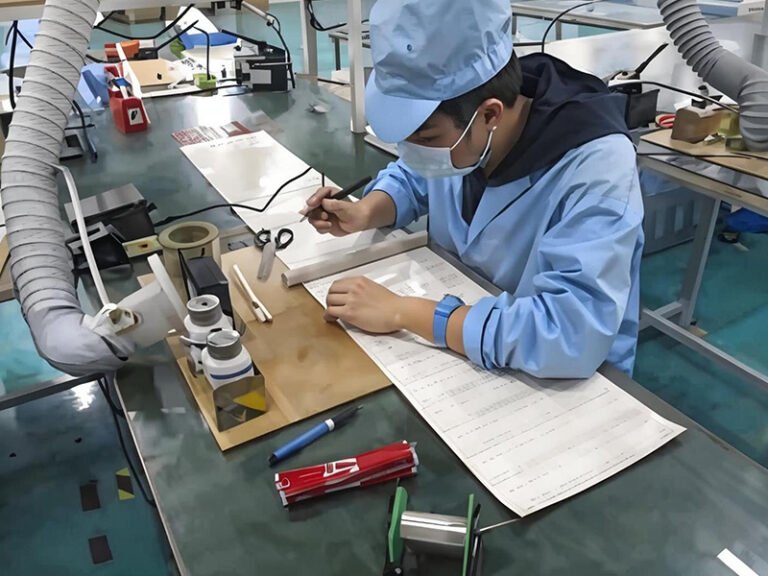

Step5. After Welding.pic

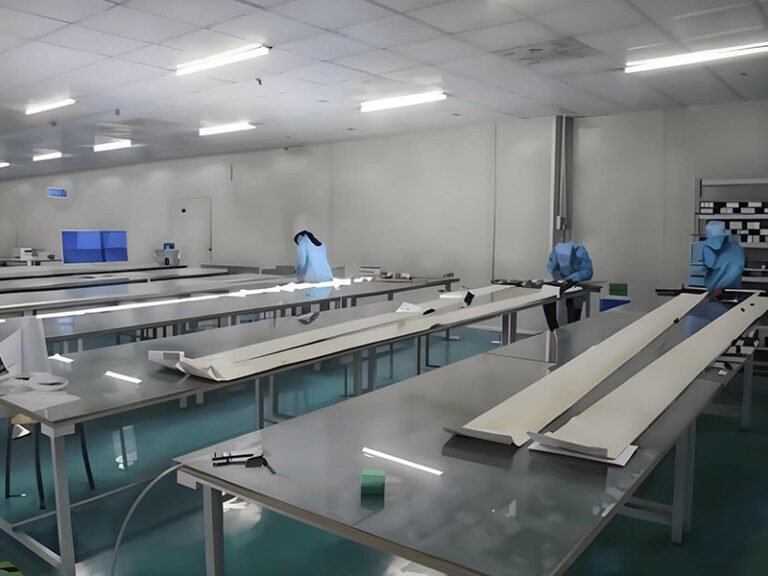

Step6. Aging.pic

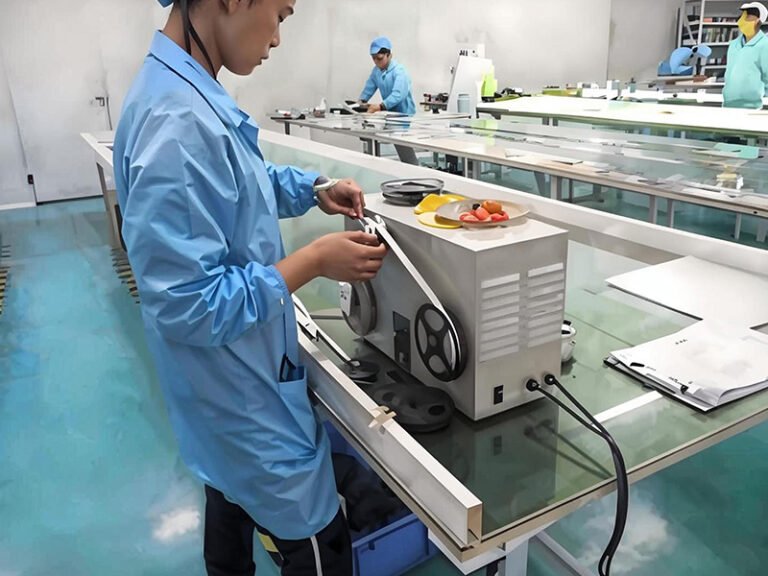

Step7. Reeling & Labeling.pic

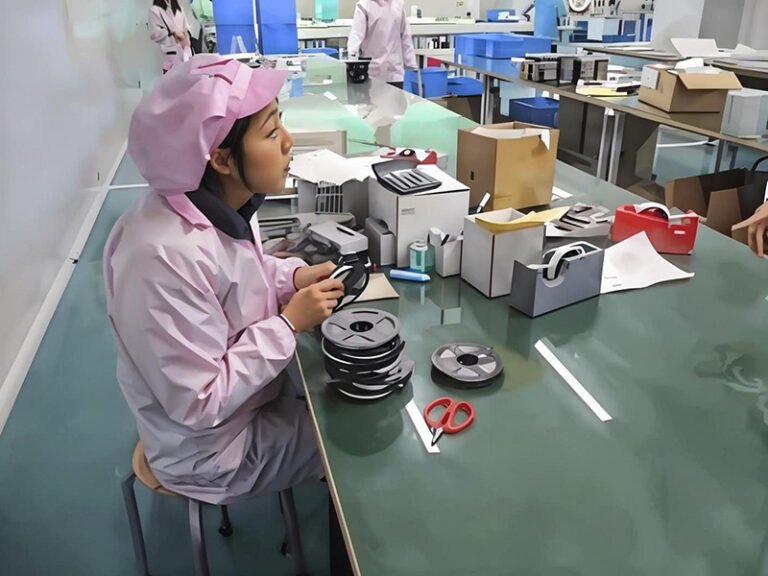

Step8. Final Testing.pic

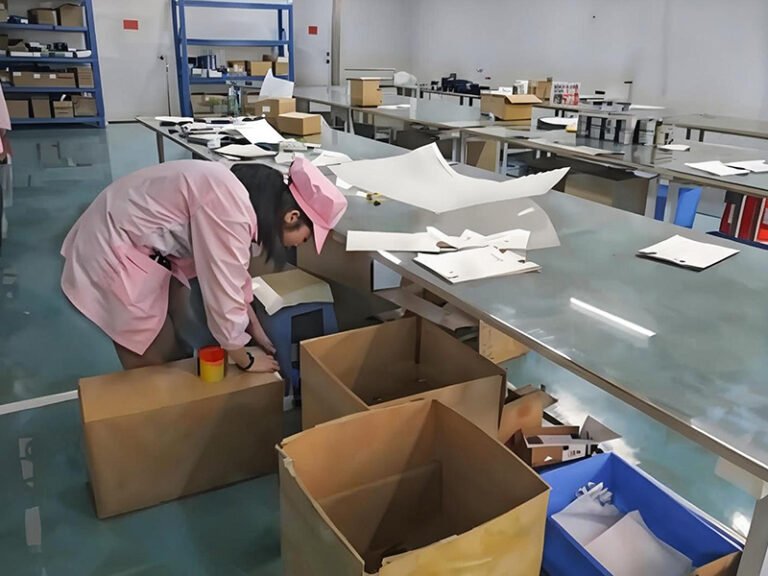

Step9. Packing.pic

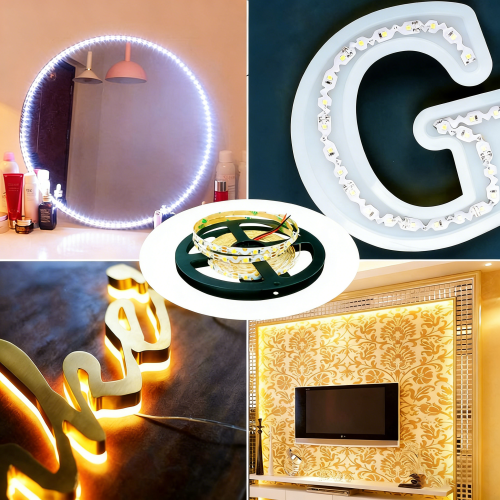

S Shape LED Strip Light for Flexible Curved Lighting Applications

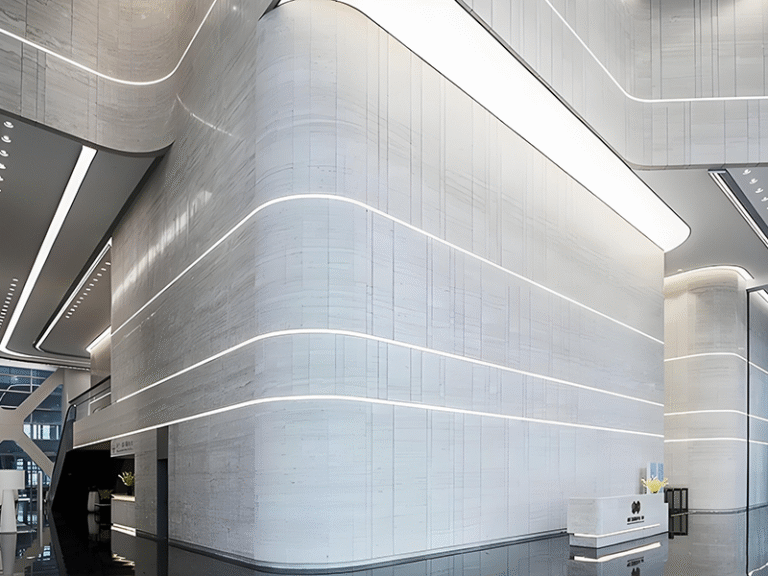

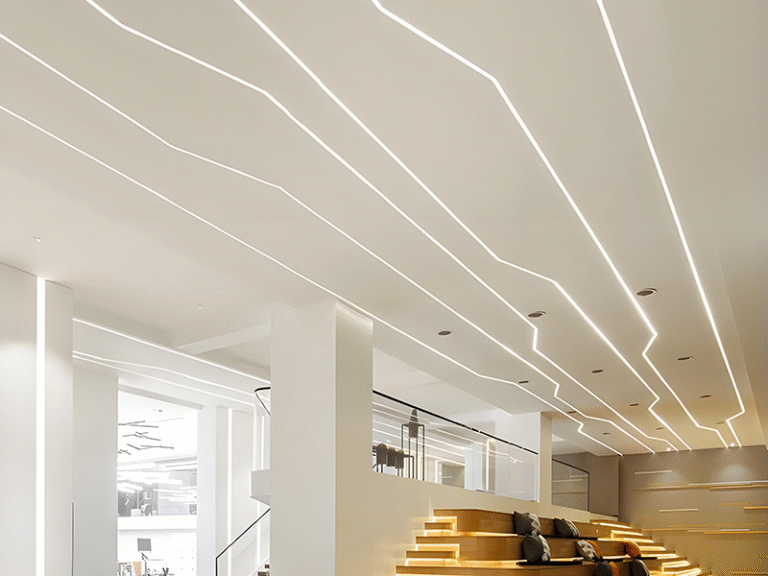

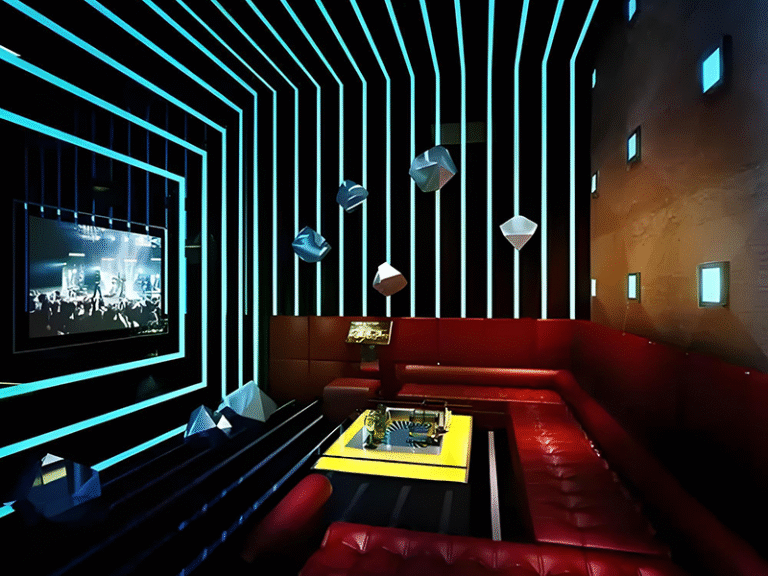

The S Shape bendable led strip lights features a unique “S” curve design that allows it to bend and fit around corners with ease, making it ideal for flexible layouts such as irregular ceiling designs, curved display cabinets, circular or wave-shaped light troughs, and customizable advertising light boxes; it is widely used in commercial spaces like shopping malls, hotels, and showrooms to outline contours, create ambiance, or highlight the flowing sense of space design; in home applications, it can be installed on TV background walls, bar counters, cabinets, or mirror frames to achieve creative decoration and soft illumination; with its high brightness, easy installation, and flexible shaping capability, the S Shape strip light offers designers and users more personalized lighting solutions.
How to set up the S Shape LED Tape Light

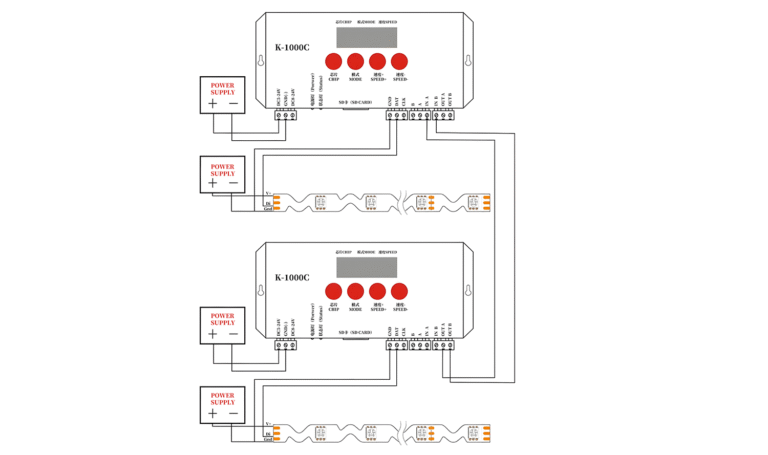

S Shape flex led strip lights have three connection types: single-color strips only require connecting the positive and negative terminals directly to the power supply, making the wiring very simple; RGB strips usually come with a 4-pin interface (common anode + RGB channels), which should be connected to an RGB controller before linking to the power supply for color changes; while Addressable RGB strips include an independent signal line, typically with 3 or 4 pins (power + ground + data/clock), and must be connected to a dedicated SPI or IC controller to achieve pixel-by-pixel control and dynamic effects. This setup is more complex but delivers richer lighting effects.

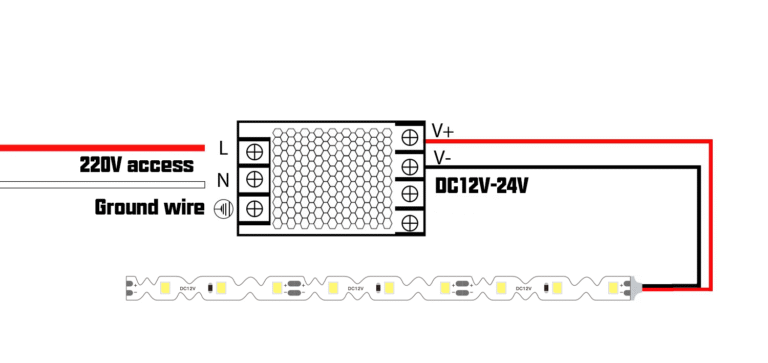

Single

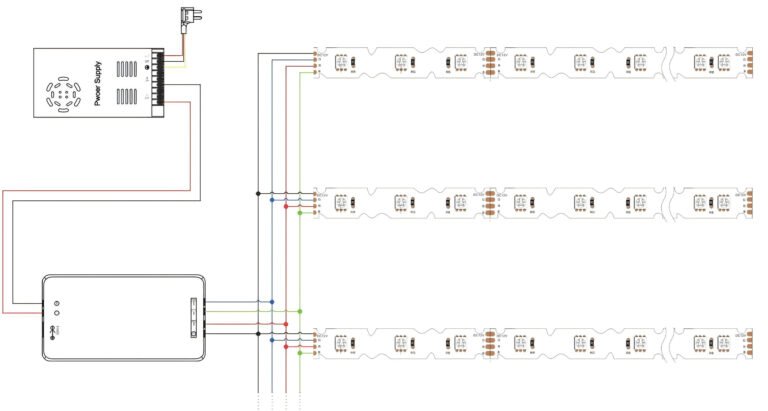

RGB
Addressable RGB
Classification and Product Specifications
LED RGB S Shape strip lights are categorized into single-color and RGB versions. The single-color type features an S-shaped flexible design, allowing easy installation in straight or curved layouts for uniform lighting and decorative use. The RGB type, with the same flexible structure, supports multi-color changes and dynamic effects, creating a more vibrant lighting atmosphere to meet diverse application needs.
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
6mm | 60LEDs | 12/24V | 50/100mm | 6W | 120° | ＞80 | WW/CW |
6mm | 60LEDs | 5V | 50mm | 12W | 120° | N/A | Addressable RGB |
6mm | 60LEDs | 12V | 50mm | 12W | 120° | N/A | Addressable RGB |
6.5mm | 120LEDs | 12V | 25mm | 14W | 120° | ＞80 | WW/CW |
12mm | 42LEDs | 12/24V | 71.4mm | 10W | 120° | N/A | RGB |
LED SMD S Shape Product video
The S Shape led Zigzag light is a type of LED strip designed with an “S”-shaped flexible PCB, which makes it different from traditional straight strips by allowing easy bending and curved installation. It is especially suitable for applications that require navigating corners, circular, or wave-shaped structures. With its S-shaped layout, the strip maintains a continuous lighting effect while flexibly adapting to complex installation environments without the need for extra cutting or splicing. S Shape led snake light is widely used in light boxes, signage, custom-shaped decorations, and creative lighting designs.
S Shape LED Strip Lighting FAQ
1. What is an S shape LED strip light?
An S shape LED strip light is a flexible zigzag LED strip designed for curved and irregular lighting applications. Unlike standard LED strips, it allows horizontal bending without cutting. It is widely used as a bendable LED strip for signage and custom lighting projects.
2. What are S shape LED strips used for?
S shape LED strip lights are mainly used in signage lighting, light boxes, and curved architectural lighting. Their flexible PCB structure makes them ideal for zigzag LED strip light for channel letters and advertising displays. They are also suitable for creative commercial lighting designs.
3. Can S shape LED strip lights bend freely?
Yes, S shape LED strips support horizontal bending, making them perfect for complex curves. This makes them a top choice for flexible LED strip for curved surfaces and irregular installations. However, they are not designed for vertical bending like standard strips.
4. What is the difference between S shape LED strip and standard LED strip?
S shape LED strips are designed for flexibility in curves, while standard LED strips are mainly for straight lines. The zigzag PCB allows better adaptability in curved LED strip lighting applications. For signage and creative designs, S shape LED strip is a more efficient solution.
5. Can S shape LED strip lights be used for signage lighting?
Yes, they are one of the best solutions for signage and light box lighting. Their design makes them ideal as a flexible LED strip for channel letters and backlit advertising boards. They provide uniform brightness and easy installation.
6. What voltage and color options are available?
S shape LED strip lights are available in 5V, 12V, and 24V options depending on the application. They support single color, RGB, and addressable lighting solutions. This makes them suitable for customizable S shape LED strip lighting projects.
7. Is S shape LED strip easy to install?
Yes, installation is simple with adhesive backing and flexible design. It can be easily shaped for curves, making it ideal for easy installation flexible LED strip for signage and decorative lighting. It also reduces cutting and installation time.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.

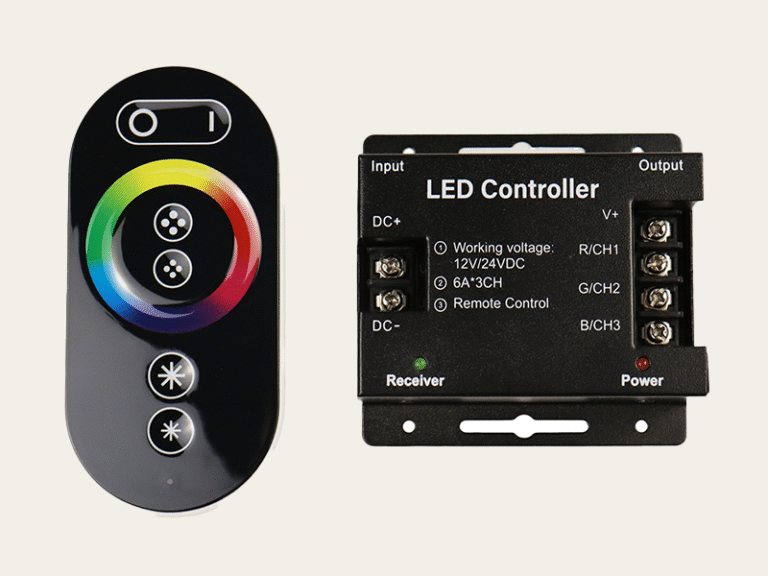

LED Light Controller

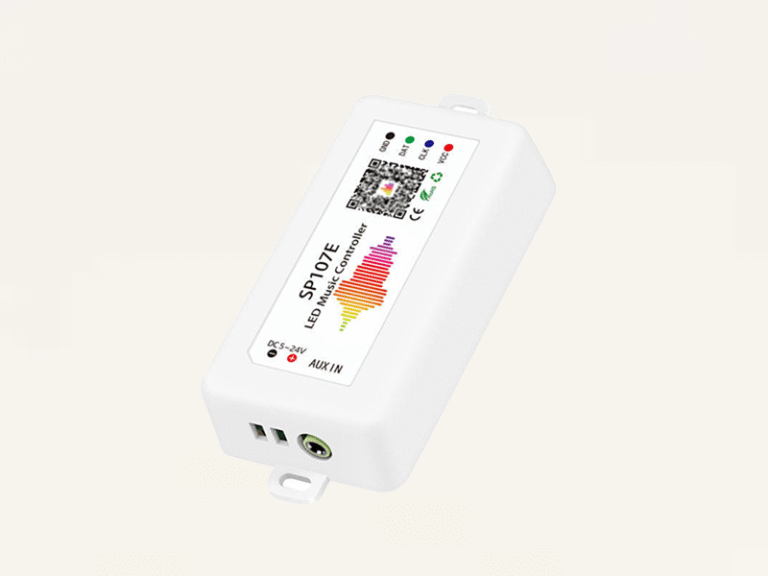

S Shape Curve Type led lights come in three types: Single Color, RGB, and Addressable RGB. Single Color strips are paired with a single color temperature controller for brightness and color temperature adjustment; RGB strips work with an RGB controller, allowing color switching and mixing to create vibrant atmospheres; while Addressable RGB strips use a dedicated addressable controller, enabling individual pixel control for effects like chasing, flowing, and gradient, making them suitable for everything from basic lighting to dynamic decorative scenes.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
