Ultra Long COB & SMD LED Strip Lights | High Performance LED for Commercial & Architectural Lighting
- Ultra-long continuous LED lighting
- Dot-free smooth illumination
- High CRI >90 for true colors
- Flexible installation for large spaces
- Energy-saving, low power consumption
- Compatible with constant current driver
- Durable, 50,000-hour lifespan
- Easy maintenance and cleaning
Ultra Long Length LED Strip Light Index
What Is an Ultra Long LED Strip?
The Ultra Long COB LED Strip Lights are high-brightness, energy-efficient COB LED strips for commercial lighting. They deliver seamless, continuous illumination without visible dots, making them perfect for retail displays, cabinet lighting, architectural projects, and large-scale commercial installations. Flexible and customizable, these long-length COB LED strips can be cut to fit any space while providing uniform, professional-quality lighting.

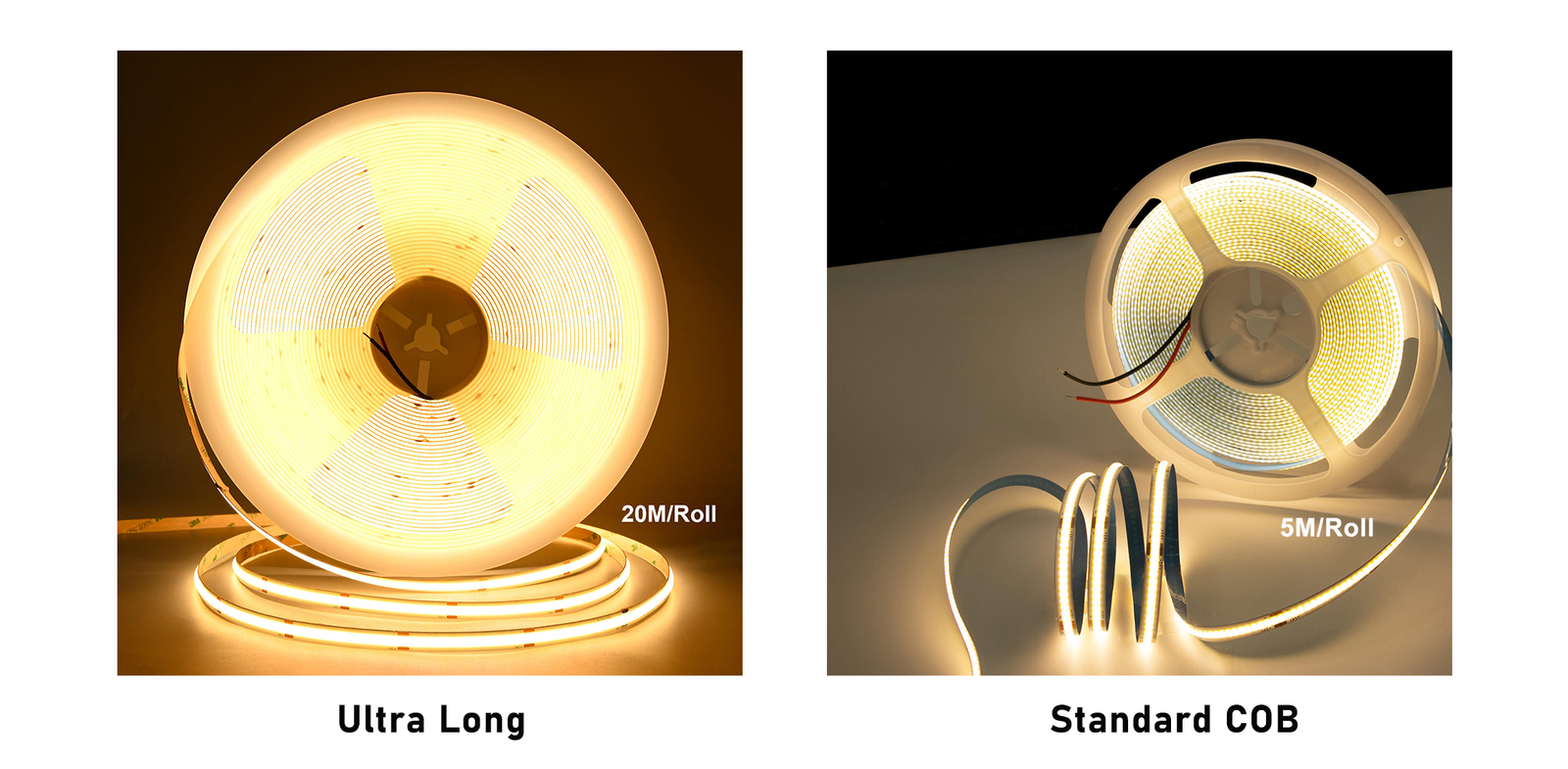

Ultra Long COB LED Strip vs Standard LED Strip
Ultra Long COB LED strips support 10–20m continuous runs without voltage drop, ideal for commercial lighting, large-scale architectural projects, and warehouse linear lighting.
Standard COB LED strips are limited to 5m runs, may experience brightness decay, and are better suited for small-scale or decorative lighting applications.
Key Differences:
- Run Length: 10–20m vs 5m
- Voltage Drop: None vs noticeable
- Lighting Quality: Dotless uniform light vs visible LED dots
- Installation: Fewer connections, faster setup vs more wiring points
- Best Use: Commercial & architectural projects vs short-distance decorative lighting

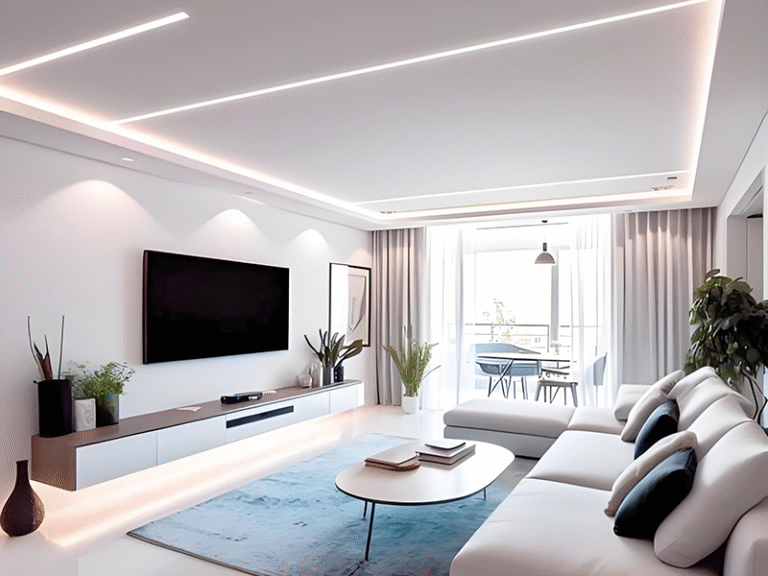

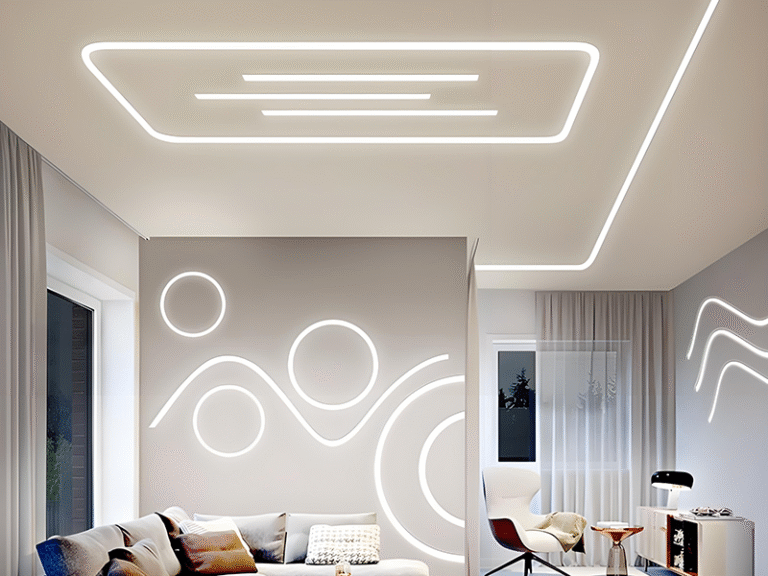

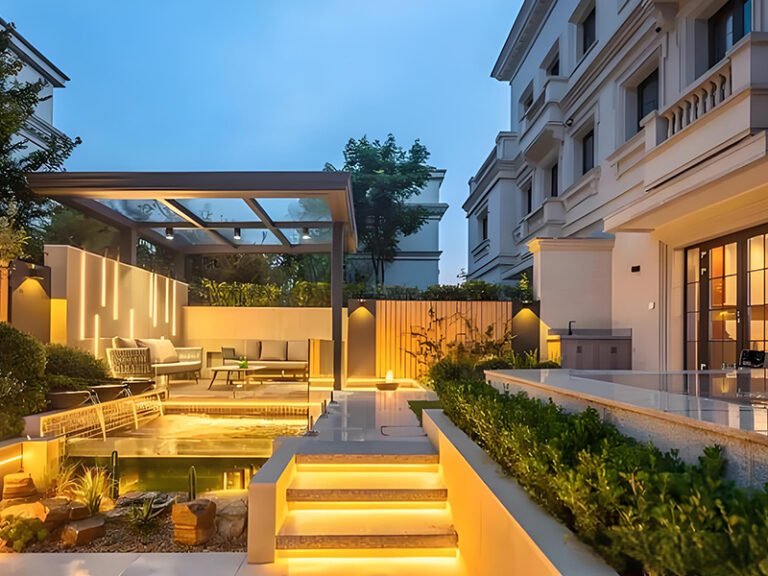

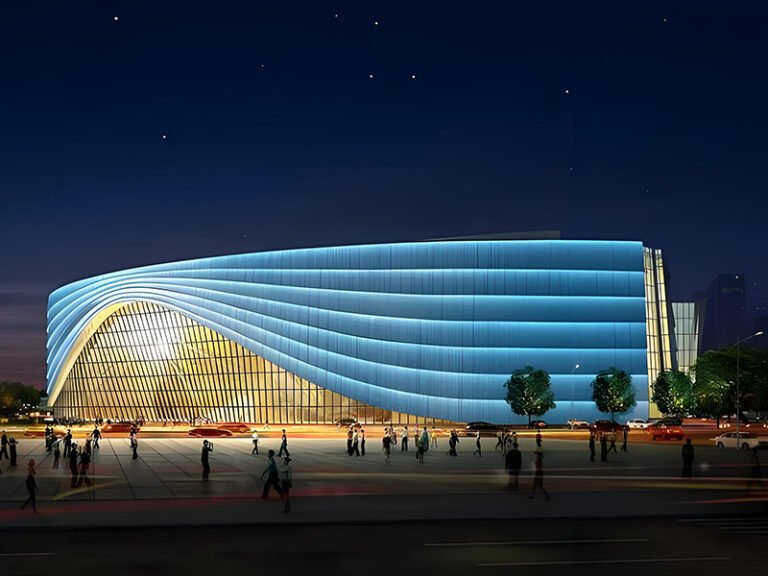

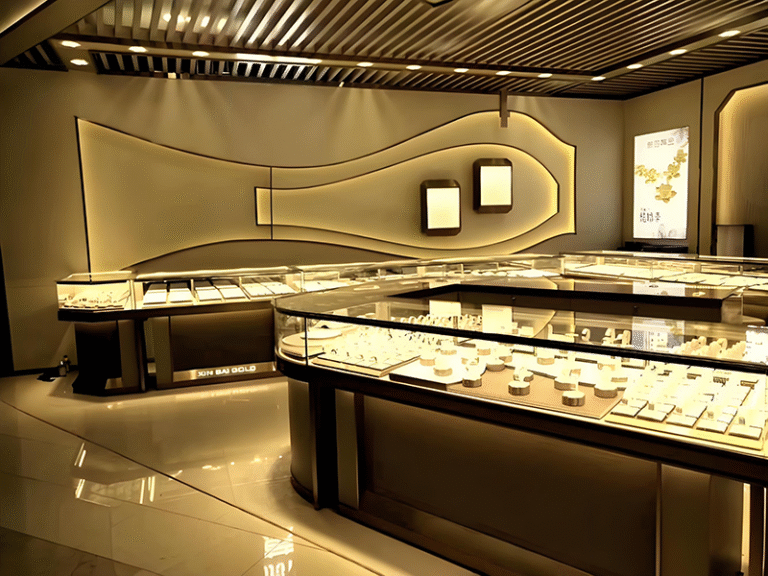

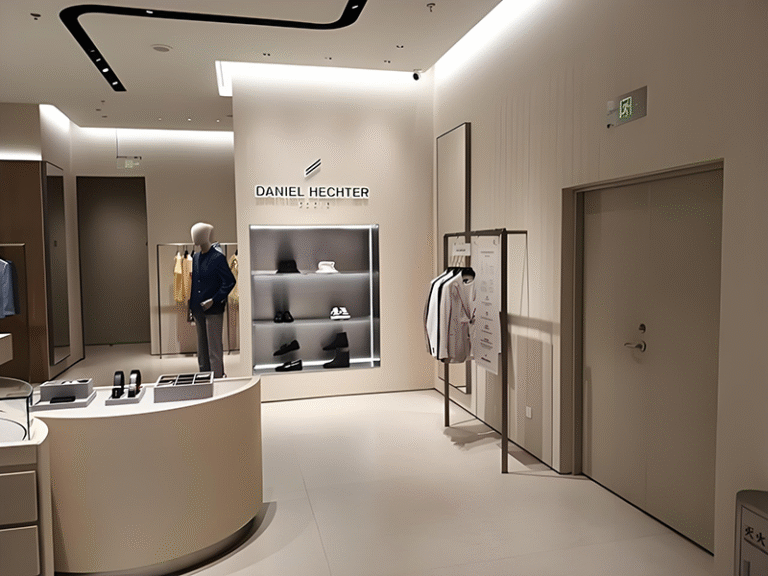

Applications of Ultra Long LED Strip Lights
The Ultra Long COB LED Strip delivers dot-free, seamless lighting for long spaces, ideal for commercial and architectural projects.
- Commercial corridors & malls – ultra long COB LED strips for continuous, dot-free lighting
- Architectural lines & ceilings – seamless COB LED tape for uniform architectural illumination
- Exhibition halls & displays – high CRI, energy-efficient LED strips for consistent exhibit lighting
- Retail shelves & showrooms – long run LED strips for bright, even display lighting
- Offices & large indoor spaces – continuous LED tape for smooth, extra long LED tape for corridor lighting
How to produce the COB LED Strip
We combine advanced technology with rigorous quality control to manufacture high-performance LED lighting products. Our production line is fully equipped with industry-leading machines and testing systems to guarantee precision and reliability at every stage.
Step1. Solder Past Printing
Step2. Flip Chip Bonding
Step3. Reflow Soldering
Step4. Testing Machine
Step5. Automated Dispensing
Step6. Oven
Step7. After Welding
Step8. Reeling & Labeling
Step9. Aging
Step10. Final Testing
Step11. Packing

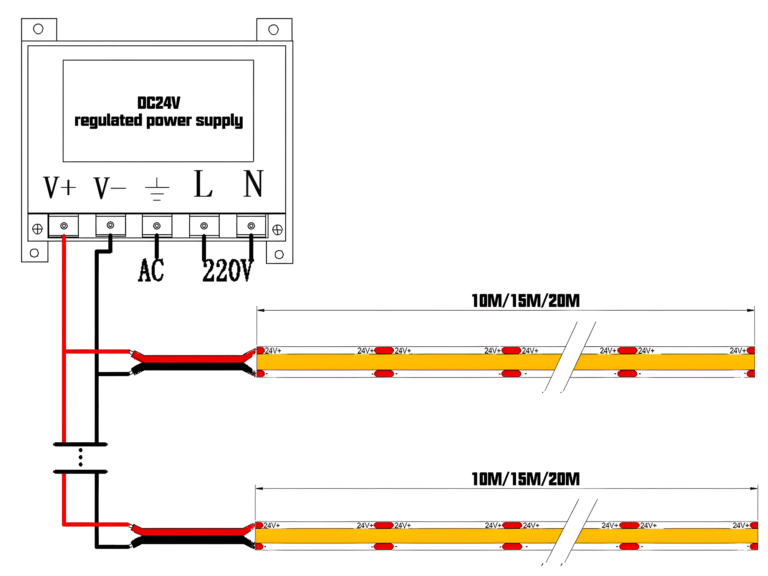

How to set up the long run 20M LED strip
The working voltage of the dot-free continuous LED lighting is DC 12V or DC 24V, it needs the constant voltage led driver (LED power supply) to light up as below.
How to connect the COB LED strip lights by led strip connector
We have different type of connector to fit for different led strips. There are 2pin 3pin 4pin 5pin and 6pin to fit for 5mm 6mm 8mm 10mm 12mm PCB width LED strips. And there are Strip to Wire, Strip to Strip, Corner 3 different applications like below.
1. Strip to wire
When you cut lengths of the led strip from a reel and it without wire, you can select the led strip to wire connector as below.
2. Strip to strip
When you need to connecting another led strip to the existing one, you can use the led strip to strip connector as below.
3. Corner
When you need to connect led strips in Corner, you can use led strip corner connector as below.
Classification for Ultra long length led strip light
Ultra long length COB led light strips is mainly divided into 8mm, 10mm,12mm.
Length | PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
10M | 8mm | 384LEDs | 24V | 31.25mm | 10W | 120° | ≥90 | WW/NW/CW |
10M | 8mm | 384LEDs | 24V | 31.25mm | 10W | 120° | ≥90 | WW/NW/CW |
20M | 8mm | 480LEDs | 24V | 50mm | 8W | 120° | ≥90 | WW/NW/CW |
20M | 8mm | 480LEDs | 48V | 50mm | 8W | 120° | ≥90 | WW/NW/CW |
10M | 8mm | 624LEDs | 24V | 19.26mm | 14W | 120° | ≥90 | WW/NW/CW |
15M | 10mm | 384LEDs | 24V | 31.25mm | 10W | 120° | ≥90 | WW/NW/CW |
10M | 10mm | 624LEDs | 24V | 19.26mm | 14W | 120° | ≥90 | WW/NW/CW |
10/20M | 12mm | 600LEDs | 24V | 20mm | 24W | 120° | ≥90 | WW/NW/CW |
10M | 12mm | 960LEDs | 24V | 33.33mm | 28W | 120° | ≥90 | WW/NW/CW |
LED COB ultra long length cob LED Product video
The LED COB Ultra Long Length light strip adopts high-density COB packaging technology, delivering a seamless and dot-free lighting effect. It supports stable operation over extended lengths such as 10 meters, 20 meters, or even longer in a single run, effectively avoiding brightness inconsistencies and installation issues caused by frequent connections in traditional strips. With a high color rendering index (CRI ≥90), it accurately restores true colors and supports flexible cutting to fit various complex installation scenarios. Designed with low-voltage input, it is energy-efficient, safe, and generates minimal heat—ideal for residential, commercial, cabinet, and architectural lighting. Its flexible material and high reliability also ensure a long service life, making it a professional lighting solution that combines both performance and aesthetics.
Certificate
The Ultra Long COB LED Strip delivers dot-free, seamless lighting for long commercial corridors, exhibition halls, retail displays, and architectural lines. Certified by trusted third-party organizations including UL, CE, and RoHS, it ensures high-quality, safe, and environmentally compliant LED lighting for every installation. With high CRI, energy-efficient design, and easy installation, this long run LED strip provides smooth, uniform illumination for large spaces while reducing maintenance and energy costs.
LED Light Controller
For controlling COB (Chip-on-Board) LED strips. Remote control LED strip lights. Enables smooth dimming, dynamic color transitions, and preset modes (static, flash, fade). Compatible with 12V/24V strips, supports remote/app control (via Bluetooth/Wi-Fi). Ideal for home, commercial, or decorative lighting. Energy-efficient, durable, and easy to install.
Frequently Asked Questions about Ultra Long COB LED Strip
1. What is the maximum continuous length of the Ultra Long COB LED Strip?
The Ultra Long LED Strip can run up to 20 meters continuously. Longer runs require proper power injection to maintain **dot-free continuous LED lighting.
2. Does it require a specific LED driver?
Yes, use a compatible constant current driver for optimal performance. This ensures **seamless COB LED tape** with consistent brightness.
3. Can I cut the Ultra Long LED Strip to a custom size?
Yes, it can be cut every 50mm at the marked points. Make sure connections are secure to maintain **high CRI, continuous LED tape.
4. Where can the Ultra Long COB LED Strip be installed?
It is ideal for commercial corridors, exhibition halls, retail displays, and architectural lines. Perfect for long run LED strips for large spaces.
5. Is the LED strip energy-efficient?
Yes, it consumes low power while providing high brightness. This energy-efficient LED strip reduces electricity costs in long installations.
6. What is the lifespan of the Ultra Long LED Strip?
Rated for 50,000 hours of operation under normal conditions. High-quality COB LEDs maintain smooth, dot-free LED lighting over time.
7. Is the LED strip waterproof?
The strip is available in IP20 for indoor use or IP65 for water-resistant applications. This makes it suitable for seamless LED lighting in various environments.
Waterproof Rating Guide for LED Strip Lights
Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
