Running Water SMD LED Strip Light | Dynamic Chasing Lighting for Commercial Projects
- Energy-saving and long lifespan
- High CRI for true color rendering
- Supports flowing dynamic effects
- Flexible cutting and easy installation
- Excellent heat dissipation and stability
- Stable brightness with uniform lighting
- Suitable for various commercial spaces
- Single color temperature, soft and natural light
Running water LED Strip Light Index

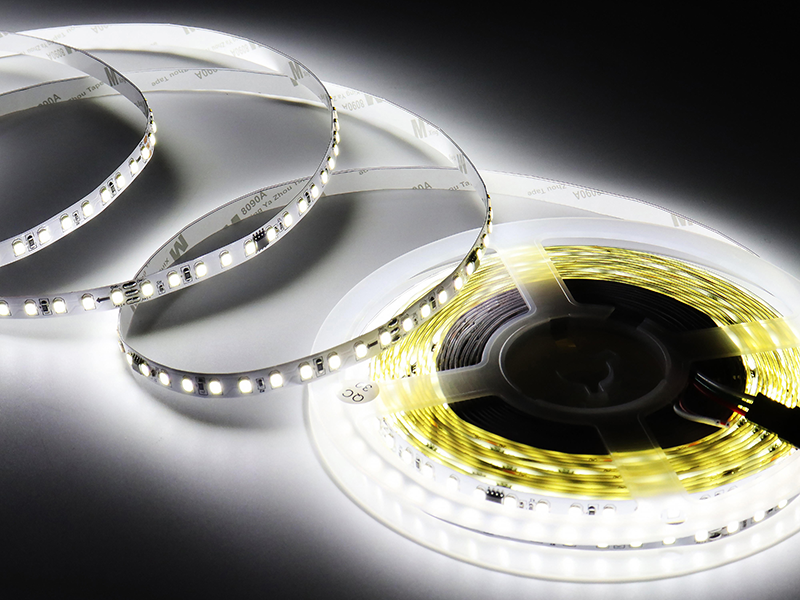

What is Running water SMD led strip light?
The LED SMD single-color running light strip is a dynamic lighting solution that uses surface-mounted (SMD) LED technology to produce a continuous light in one fixed color temperature. It achieves flowing, fading, and flashing effects through built-in ICs or external controllers, delivering smooth and uniform illumination. Designed with constant voltage DC input, it features high brightness, low power consumption, easy installation, and customizable length. This light strip is ideal for applications such as architectural outlines, advertising displays, showcases, stage effects, and commercial lighting where dynamic visual effects are desired.
Running Water LED Strip vs Standard LED Strip
1. Lighting Effect
Running water LED strips create flowing or chasing light effects, while standard LED strips provide static illumination.
2. Visual Impact
Dynamic lighting makes running water LED strips ideal for decorative lighting and visual displays.
3. Control System
Running water strips require compatible LED controllers to manage lighting sequences.
4. Application
Running water LED strips are commonly used for stage lighting, signage, commercial decoration, and architectural lighting.
5. Creative Lighting
Designers prefer running water LED strips when dynamic lighting effects are required.
Running Water LED Strip vs Addressable LED Strip
1. Lighting Effect
Running water LED strips create a preset flowing or chasing lighting effect along the strip. Addressable LED strips allow each LED or group of LEDs to be individually controlled for complex lighting patterns.
2. Control Method
Running water LED strips usually use built-in IC chips with simple controllers. Addressable LED strips require programmable controllers to create customized lighting effects.
3. Complexity
Running water LED strips are easier to install and operate. Addressable LED strips require more advanced programming and control systems.
4. Lighting Flexibility
Running water LED strips mainly support flowing or sequential lighting effects. Addressable LED strips support a wide range of effects such as color chasing, animation, and dynamic lighting scenes.
5. Applications
Running water LED strips are commonly used for decorative lighting, signage, and commercial displays. Addressable LED strips are widely used in stage lighting, gaming setups, digital displays, and creative lighting projects.
6. Cost
Running water LED strips are usually more cost-effective. Addressable LED strips are typically more expensive due to advanced control features.
How to produce the SMD LED Strip
The SMD LED strip production process includes PCB mounting, SMD chip placement, reflow soldering, waterproof sealing, aging test, and final quality inspection to ensure stable performance and consistent light output.
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic

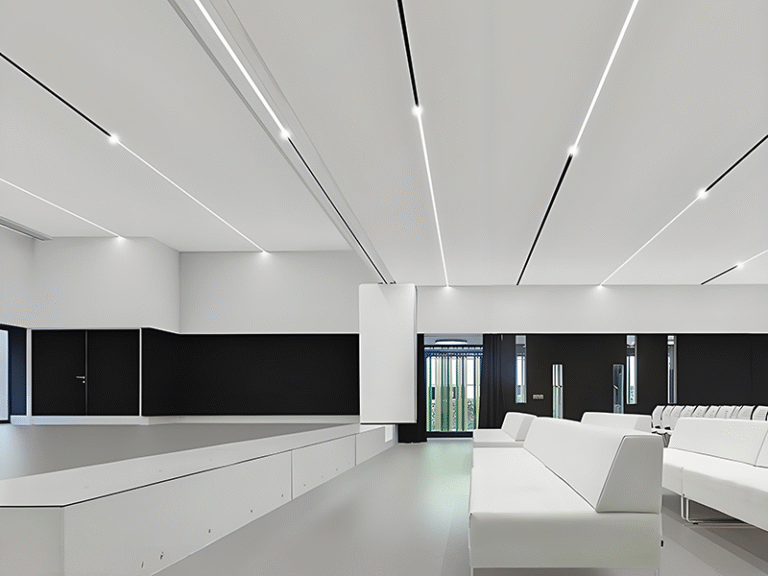

Applications of Running water SMD LED strips
SMD chasing led lights, with their dynamic flowing effects and high brightness, are widely used in commercial lighting and decorative applications. They are commonly installed in building outlines, window displays, stage backgrounds, signage, KTVs, bars, and shopping malls, creating a dynamic atmosphere and strong visual impact through continuous motion lighting. Supporting various control systems such as DMX, SPI, or remote control, these strips enable multicolor transitions and rhythm synchronization, making them ideal for festive decorations, brand displays, and creative lighting projects that enhance spatial depth and visual appeal.

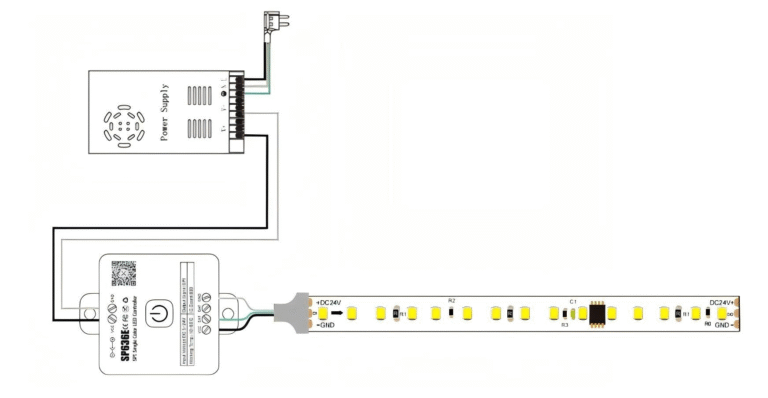

How to set up the Running water SMD LED Strip
The wiring of the SMD running single-color dynamic led lights typically consists of three parts: the power supply, controller, and light strip. The output of the power supply connects to the controller’s power input, while the controller’s signal output connects to the input end of the light strip, providing both power and running light effect control. The strip usually operates on a 24V constant voltage; ensure correct polarity connections to avoid damage. When connecting multiple strips in series, use a power supply with sufficient capacity and add signal amplifiers as needed to extend and synchronize the running effect, ensuring stable operation and consistent brightness.

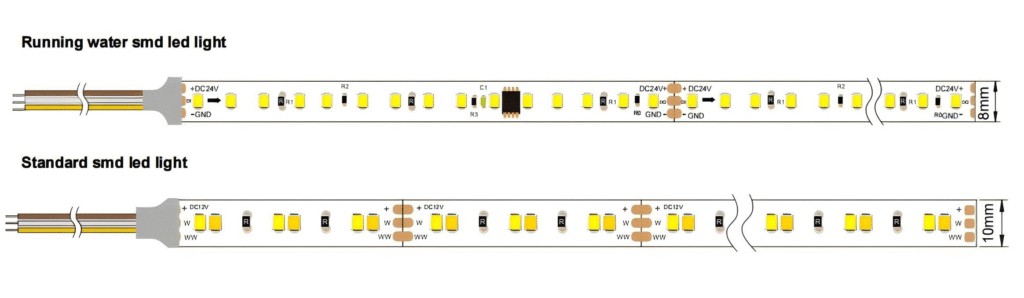

LED SMD Running Water Light Strip VS Standard SMD LED Strip
The LED SMD running water light strip creates a dynamic flowing or chasing light effect that adds visual impact and decorative appeal, making it ideal for commercial spaces, architectural lighting, and atmosphere creation. In contrast, a normal SMD LED strip provides static, steady illumination mainly for functional lighting purposes such as cabinets, shelves, and general indoor use. Running water strips usually require a controller and offer adjustable speed, direction, and effects, while normal SMD strips are simpler, more cost-effective, and easier to install.
Classification and Product Specifications
SMD led running lights are mainly single color temperature running types, controlled by built-in ICs to create a dynamic flowing lighting effect that lights up sequentially from one end to the other. The strip features a constant color temperature design, such as warm white, natural white, or cool white, providing soft and uniform illumination.
PCB Width (mm) | LEDQty/M (LEDs) | IC | Pixels | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
8mm | 120LEDs | WS2811 | 8px | 24V | 125mm | 10W | 120° | Ra＞80 | WW/CW/NW |
LED SMD Running water Product video
The LED SMD single color temperature chasing light strip video showcases smooth, flowing lighting effects with soft and uniform brightness and consistent color temperature. Featuring high-brightness SMD chips and precise control technology, it delivers a stable single color temperature chasing mode, ideal for commercial displays, decorative outlines, background walls, and stage lighting, creating a refined and dynamic visual experience.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.
LED Light Controller
The SMD single-color led chasing lights typically uses a constant voltage power supply, commonly 12V or 24V, to ensure stable operation and consistent brightness. The controller, driven by IC chips, enables dynamic effects such as running, fading, and gradual lighting, with adjustable modes and speeds. The power supply features overload, overvoltage, and short-circuit protection. With a simple control structure and easy installation, it is widely used in window displays, advertising decoration, and commercial ambient lighting.
FAQ about Running Water SMD LED Strip
Q1: What is a Running Water SMD LED strip?
A Running Water SMD LED strip is a dynamic lighting solution that creates flowing, chasing light effects using built-in IC control. It is widely used in commercial and architectural projects where continuous motion lighting is desired. The strip is flexible, cuttable, and easy to install for various applications.
Q2: How do I connect a Running Water LED strip to a power supply?
You should connect the positive and negative wires of the strip to a 24V constant voltage power supply following the wiring diagram. Correct connection ensures stable running water effects without flickering. Using the proper voltage and polarity protects the IC from damage.
Q3: Can Running Water LED strips be controlled with SPI or DMX controllers?
Yes, most Running Water SMD LED strips are compatible with SPI or DMX controllers to create customizable chasing patterns. Controllers allow adjusting speed, brightness, and color sequences dynamically. This makes them ideal for stage, architectural, and commercial lighting designs.
Q4: Are Running Water LED strips cuttable for custom lengths?
Absolutely, these strips can be cut at marked intervals without affecting the remaining sections. Cuttable design ensures easy installation in different project layouts and shapes. After cutting, each segment can be reconnected or powered independently for flexible setup.
Q5: What is the recommended installation environment for these strips?
Running Water SMD LED strips perform best in dry or protected indoor areas unless rated for waterproofing. They can be mounted on aluminum channels for heat dissipation and enhanced durability. Proper installation ensures long lifespan and consistent chasing light effects.
Q6: How do I achieve a smooth flowing effect on multi-strip installations?
To create seamless running water effects across multiple strips, use synchronized controllers and follow the wiring diagram. Matching voltage and IC protocol between strips is essential for uniform motion. Proper mounting and alignment enhance the visual impact of continuous lighting.
Q7: What are the common applications for Running Water LED strips?
These dynamic LED strips are widely used in commercial signage, architectural outlines, stage lighting, and interior decoration. Their high brightness, smooth chasing effects, and flexible installation make them suitable for creating eye-catching visual displays. They can transform ordinary spaces into dynamic, illuminated environments.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
