Dual Color SMD LED Strip Light | Tunable White CCT LED Tape
- Long-lasting lifespan
- Stable color rendering
- Soft and uniform lighting
- Easy and quick installation
- Energy-efficient performance
- Adjustable color temperature
- Strong dimming compatibility
- Suitable for various applications
CCT Tunable LED Strip Light Index
What is CCT Tunable SMD led strip light?

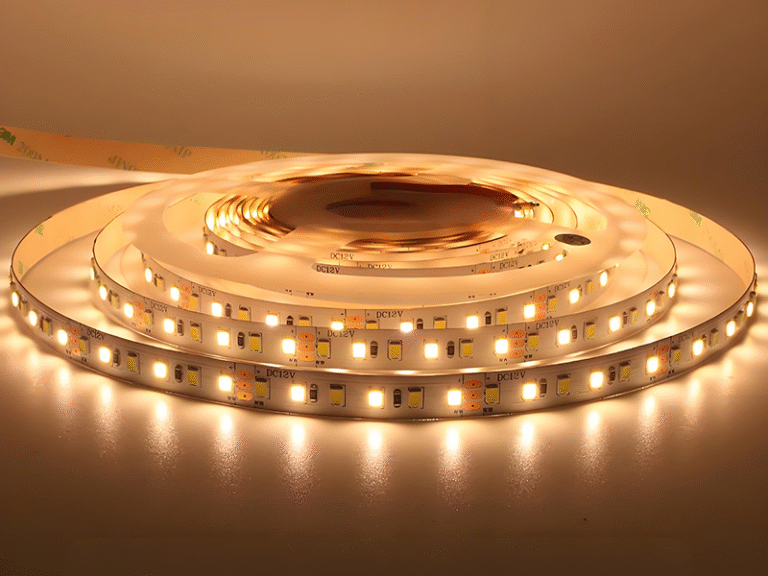

SMD dual-color temperature led color changing lights is a flexible lighting strip made with surface-mounted LED technology, featuring either two chips—warm white and cool white—within the same LED bead or alternating warm and cool white LEDs along the strip. It allows users to adjust the color temperature freely, ranging from warm yellow light (around 2700K) to cool white light (around 6500K), using a controller or dimming system. This flexibility helps create different atmospheres to suit various environments. The dual color warm white led lights typically offers features such as cuttability, flexible installation, adhesive backing, and low-voltage safety. It is widely used in home decoration, cabinets, commercial spaces, hotels, display cases, and accent lighting. Users can control brightness and color temperature through remote controls, wall dimmers, or smart systems, achieving lighting effects from cozy and warm to bright and clear. It is a modern lighting solution that combines practicality, aesthetics, and adjustability.

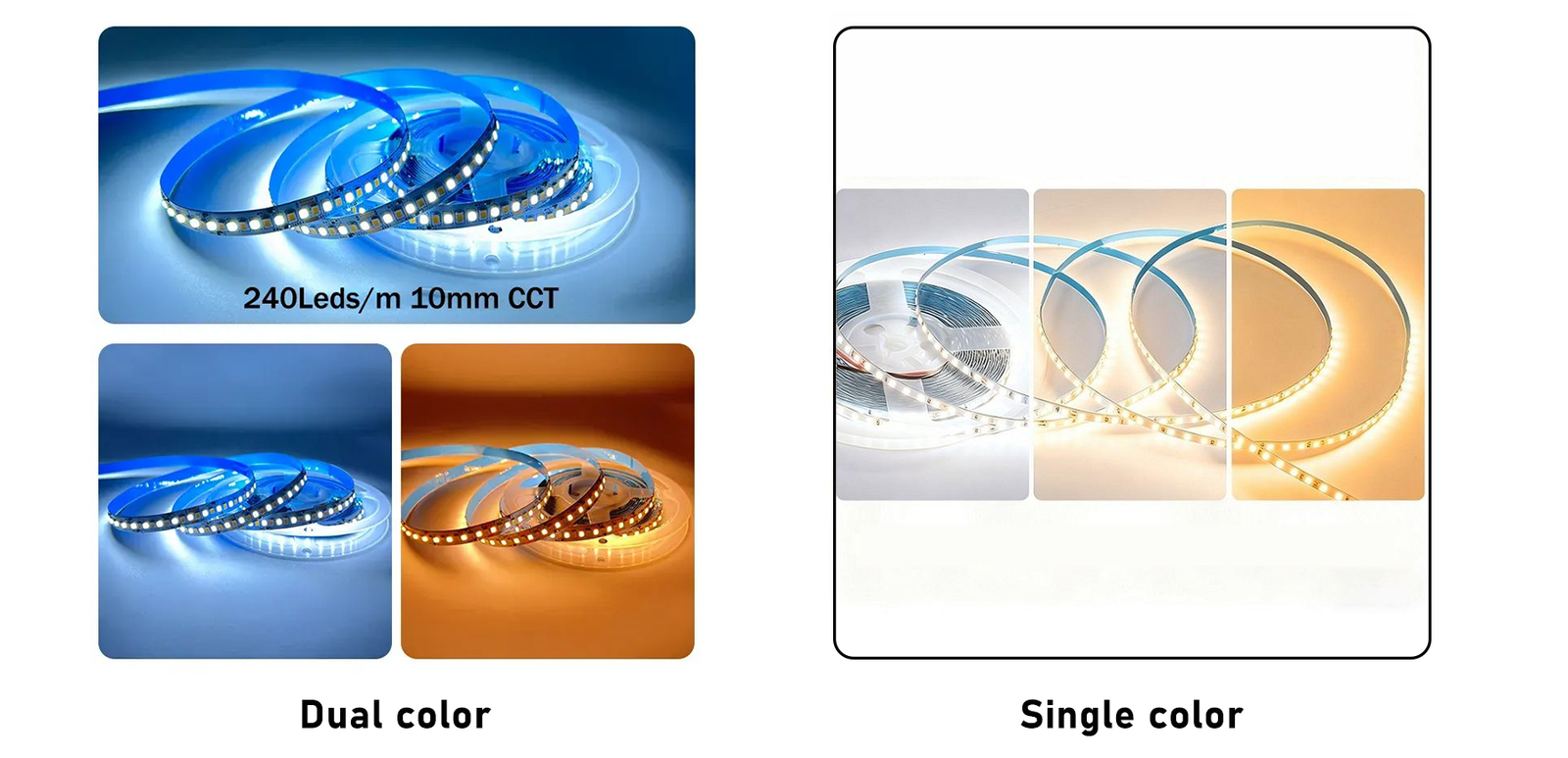

Dual Color LED Strip VS Single Color LED Strip
1. Color Flexibility
Dual color LED strips allow adjustable color temperature, while single color strips provide fixed lighting.
2. Lighting Atmosphere
Dual color strips can switch between warm and cool lighting to match different environments.
3. Application Range
Dual color LED strips are widely used in residential lighting, commercial lighting, and hospitality projects.
4. Control System
Dual color LED strips require a CCT controller to adjust color temperature.
5. Design Flexibility
Lighting designers prefer dual color LED strips when adjustable lighting conditions are required.
How to produce the SMD LED Strip
The SMD LED strip production process includes PCB mounting, SMD chip placement, reflow soldering, waterproof sealing, aging test, and final quality inspection to ensure stable performance and consistent light output.
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic
Applications of SMD Tunable White LED Strip
Dual color LED strip lighting provides adjustable color temperature for hotels, retail stores, cabinets, and architectural lighting projects.

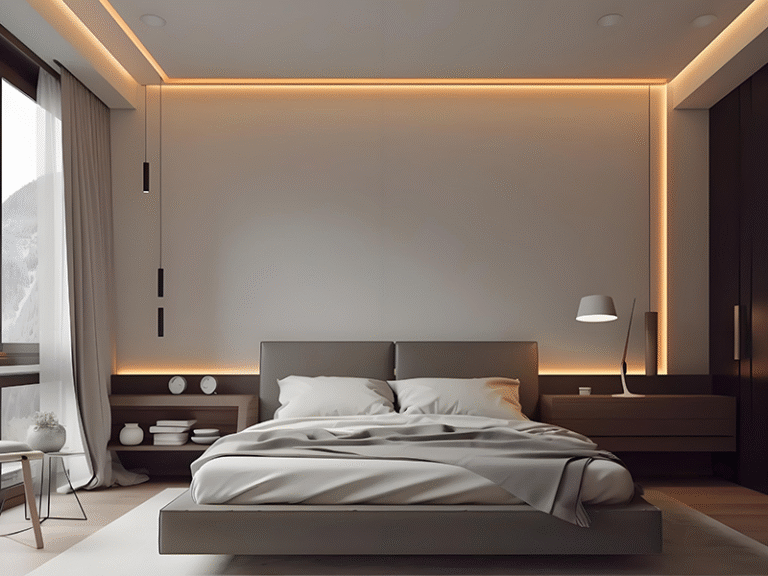

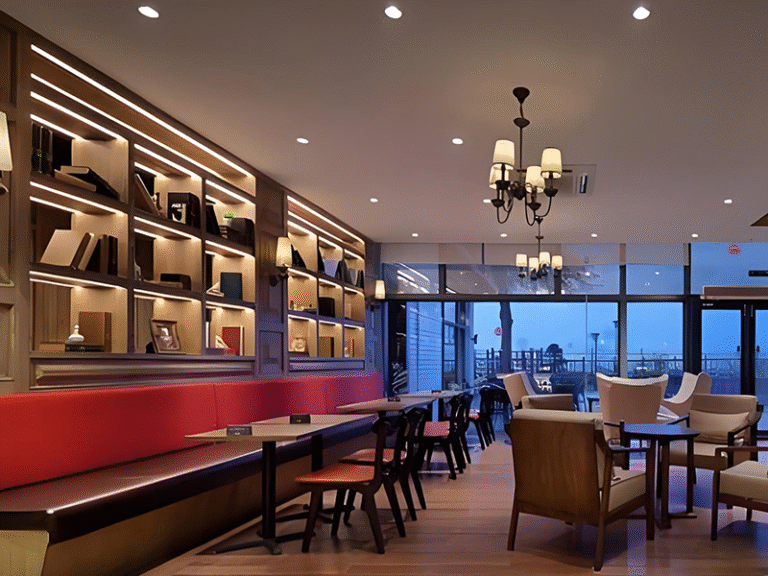

LED Strip Lighting for Hotels
Create comfortable atmospheres in guest rooms, corridors, and reception areas with adjustable warm and cool white lighting.
LED Strip Lighting for Retail Stores
Adjust lighting color temperature to highlight products and improve store display visibility.

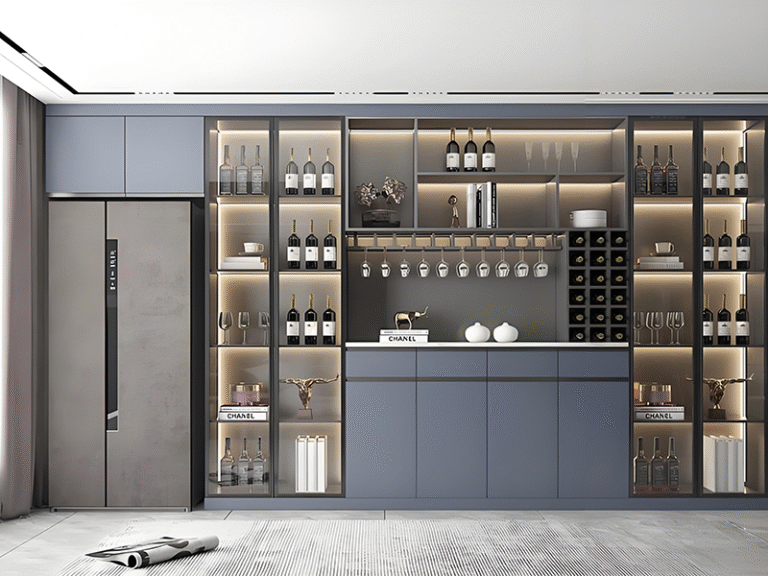

LED Strip Lighting for Cabinets
Ideal for kitchen cabinets, wardrobes, and display cabinets requiring clear and flexible lighting.

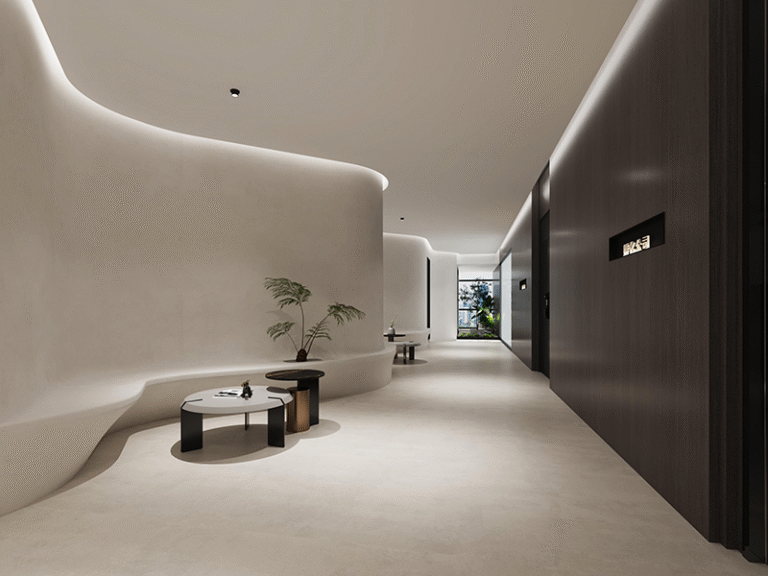

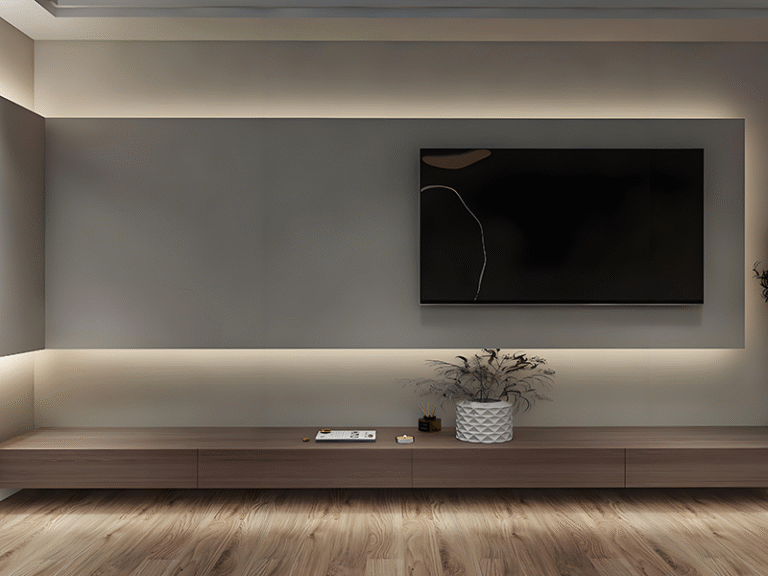

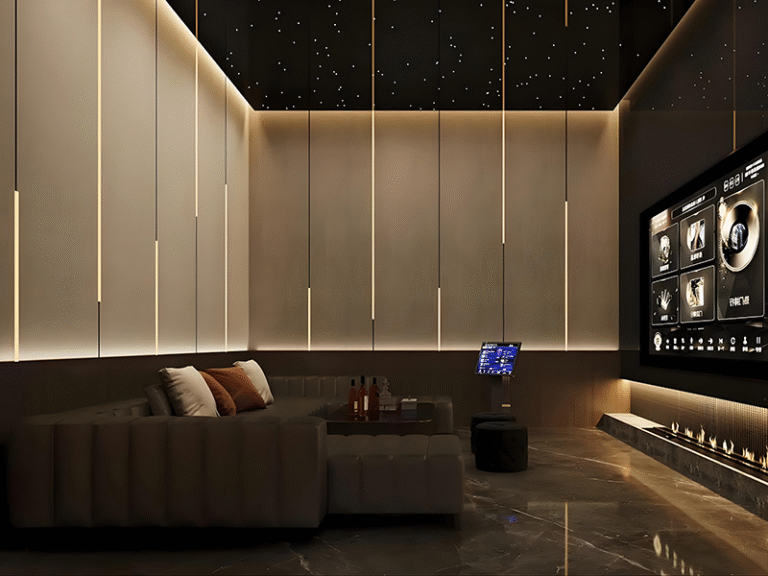

LED Strip Lighting for Architecture
Perfect for cove lighting, wall details, and architectural features needing adjustable ambient lighting.
How to set up the SMD Dual Color LED Strip Light

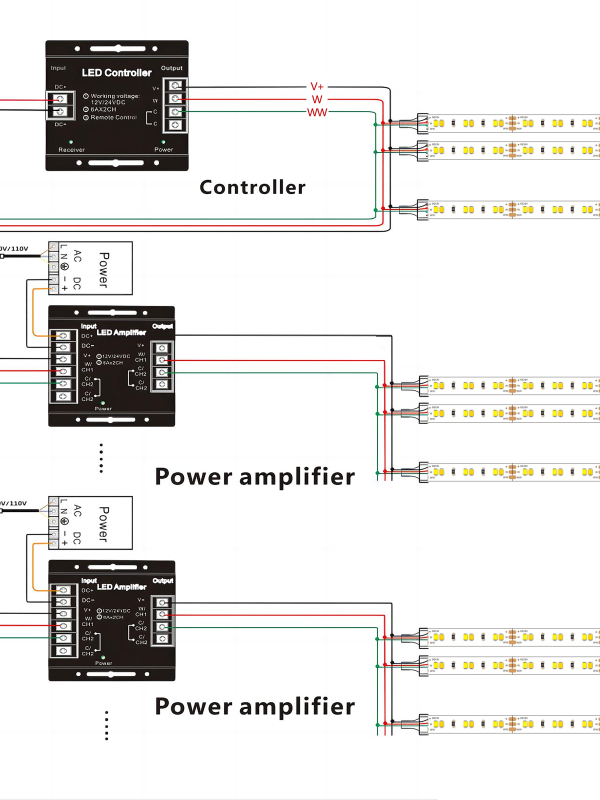

The wiring of SMD Dual color warm led lights typically uses three wires: one common line (usually the positive), and two separate lines for warm white and cool white circuits. The power supply and controller connect to the common line and the warm white/cool white lines to adjust the current ratio, enabling changes in color temperature and brightness. When wiring, follow the strip’s port markings (e.g., “+ / WW / CW”), ensure the correct voltage, and avoid reversing polarity.
Technical specifications for dual CCT SMD LED strip
LED Duale color cct led strip is mainly divided into 60leds,120leds,224leds,364leds.
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | CRI (Ra) | Beam Angle(°) | Color |
10mm | 364LEDs | 24V | 38.5mm | 20W | Ra＞95 | 120° | WW/CW |
10mm | 120LEDs | 12/24V | 50mm/100mm | 19.2W | Ra＞80 | 120° | WW/CW（2in1） |
10mm | 60LEDs | 12V | 100mm | 19.2W | Ra＞80 | 120° | WW/CW（2in1） |
10mm | 120LEDs | 12/24V | 50mm/100mm | 24W | Ra＞90 | 120° | WW/CW |
10mm | 224LEDs | 24V | 62.5mm | 22.4W | Ra＞90 | 120° | WW/CW |
LED SMD CCT Tunable Product video
The SMD dual-color dimmable led tape features high-brightness chips and professional color tuning technology, allowing seamless switching between warm white and cool white in a single strip. The video showcases its flexible, bendable design, cuttable markings, and multiple installation methods. Whether it’s for cabinets, ceilings, background walls, or commercial lighting, it adapts effortlessly. With a remote or controller, you can easily adjust the brightness and color temperature to match any setting. It’s simple to install and delivers instant lighting effects.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.

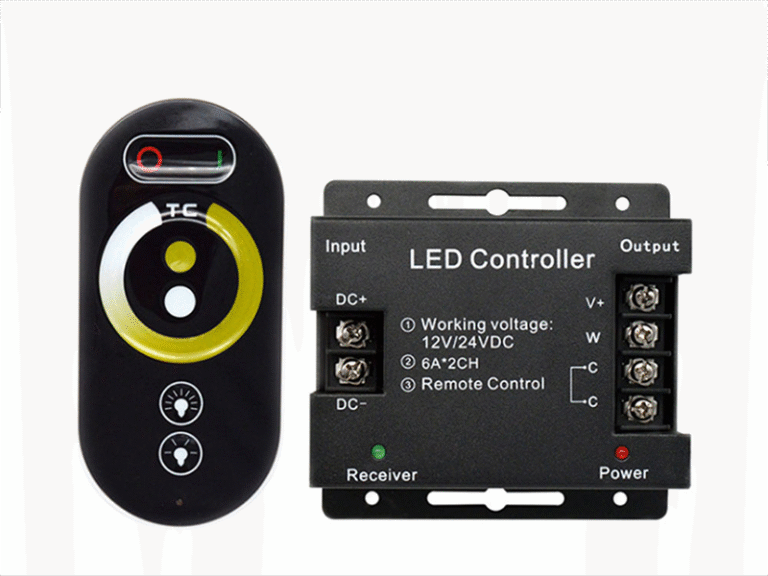

LED Light Controller for tunable white LED strip light
SMD Dual color tunable led light typically use a DC power supply, most commonly 12V or 24V. The power supply should be selected based on the total wattage of the strip and include about 20% extra capacity to ensure stable performance. The controller is usually a CCT dimmer with dual-channel output that separately adjusts the brightness of warm white and cool white LEDs to achieve color temperature tuning. Common controller types include knob dimmers, IR remote controllers, 2.4G wireless models, or Bluetooth/App control. The power supply connects to the controller’s input, and the controller’s output connects to the strip light, enabling both power delivery and color adjustment in one system.
FAQ – Dual Color SMD LED Strip Light
1️⃣ What is a dual color LED strip light?
A dual color LED strip light is a versatile lighting solution that combines warm white (2700K) and cool white (6500K) in one SMD LED strip. It allows users to adjust the color temperature using a CCT adjustable LED strip controller. This tunable feature makes it ideal for both commercial lighting projects and architectural applications.
2️⃣ How does a CCT adjustable LED strip work?
A CCT adjustable LED strip contains separate warm and cool white SMD LEDs that can be dimmed or blended to achieve the desired color temperature. Using a tunable white LED strip control system, you can easily switch between cozy warm light and bright cool light for different settings. It’s perfect for offices, retail displays, and hospitality lighting.
3️⃣ Dual color vs RGB LED strip, which is better?
Dual color LED strips provide adjustable white light from 2700K to 6500K, making them suitable for functional and commercial lighting. RGB LED strips focus on color-changing effects but lack precise white light control. For professional environments, a dual color SMD LED strip offers better versatility and higher CRI for visual comfort.
4️⃣ Can I control color temperature from 2700K to 6500K?
Yes, most dual color LED SMD strips allow seamless adjustment from 2700K warm white to 6500K cool white. Using a CCT adjustable LED strip controller, you can set the color temperature to match the ambiance or task lighting requirement. This tunable white feature is essential for commercial and architectural lighting projects.
5️⃣ What voltage options are available for dual color LED strips?
Dual color SMD LED strips typically come in 12V or 24V options, suitable for both small and large-scale installations. Choosing the right tunable white LED strip voltage ensures efficient power consumption and reliable brightness. Always confirm the voltage requirement before installation.
6️⃣ Are tunable white LED strips suitable for commercial lighting?
Absolutely. Tunable white LED strips allow precise color temperature adjustment, improving both aesthetics and energy efficiency in commercial applications. Dual color LED SMD strips are widely used in offices, retail displays, hotels, and architectural lighting projects.
7️⃣ How to install dual color SMD LED strip lights?
Installation is straightforward: clean the surface, cut the strip at marked intervals, and connect it to a compatible CCT adjustable LED strip driver. For long runs, consider using soldering or connectors to maintain consistent brightness. Proper installation ensures long-lasting performance and maximum efficiency.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
