Addressable RGB & RGBW COB LED Strip Lights – Pixel LED for Dynamic Lighting | GRILITE
- Cuttable and joinable for custom lengths
- RGBW/RGBCW colors for versatile lighting
- Flexible strip fits curved or angled surfaces
- Compatible with SPI/DMX digital controllers
- Individually controllable LEDs for pixel effects
- Smooth, dotless lighting with high-density COB
- Supports dynamic chasing and animation effects
- deal for stage, architectural, and signage lighting
Addressable RGB&RGBW LED Strip Light Index

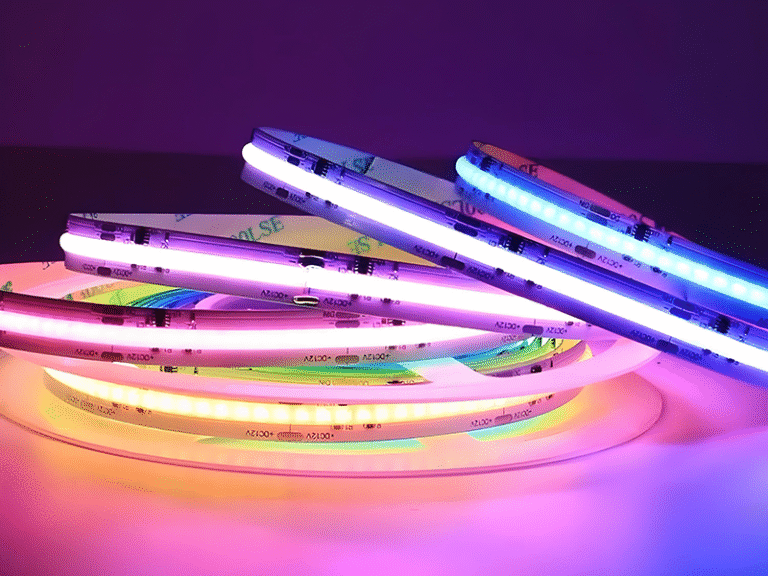

What is Addressable RGB & RGBW COB LED Strip Lights
Addressable RGB & RGBW cob led strip lights are flexible lighting solutions that use Chip On Board (COB) technology, where numerous LED chips are densely packed directly onto a flexible substrate to create a seamless, uniform light source without visible individual LED dots. These strips feature addressable control, meaning each LED or group of LEDs can be individually programmed to display different colors and dynamic lighting effects. The RGB version combines red, green, and blue LEDs for vibrant color mixing, while the RGBW version adds a separate white LED to deliver richer color tones and more natural white light. With addressable functionality, these strips can produce complex animations such as chasing, fading, and flowing effects, making them ideal for stage lighting, architectural accents, and smart lighting applications. When paired with dedicated controllers and software, they offer high brightness, flexibility, energy efficiency, and easy installation, making them a popular choice for modern, customizable lighting designs.

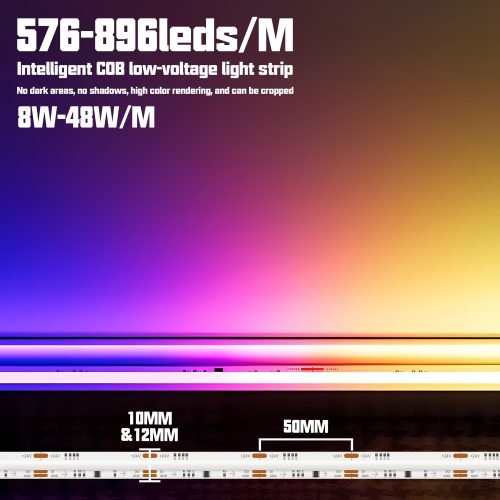

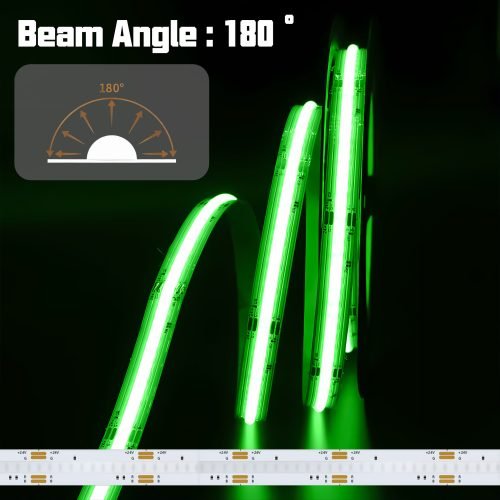

Addressable RGB RGBW VS Standard RGB RGBW
1. Control Method
Addressable LED Strip
Each LED or segment can be controlled independently through a built-in IC chip.
Standard LED Strip
All LEDs are controlled together and change color simultaneously.
2. Lighting Effects
Addressable LED Strip
Supports dynamic effects such as chasing, flowing, gradient, and animation lighting.
Standard LED Strip
Mainly supports static color, fading, and simple flashing effects.
3. Color Display
Addressable LED Strip
Different LEDs can display different colors at the same time.
Standard LED Strip
The entire strip shows only one color at a time.
4. Control System
Addressable LED Strip
Requires a digital controller and supports programmable lighting control.
Standard LED Strip
Uses a basic RGB/RGBW controller with simple color adjustment.
5. Application Scenarios
Addressable LED Strip
Suitable for stage lighting, media facades, gaming setups, and dynamic decorative lighting.
Standard LED Strip
Ideal for cabinet lighting, cove lighting, retail displays, and ambient lighting.
6. Cost and Installation
Addressable LED Strip
Higher cost and slightly more complex installation due to IC control.
Standard LED Strip
More affordable with easier installation and stable operation.

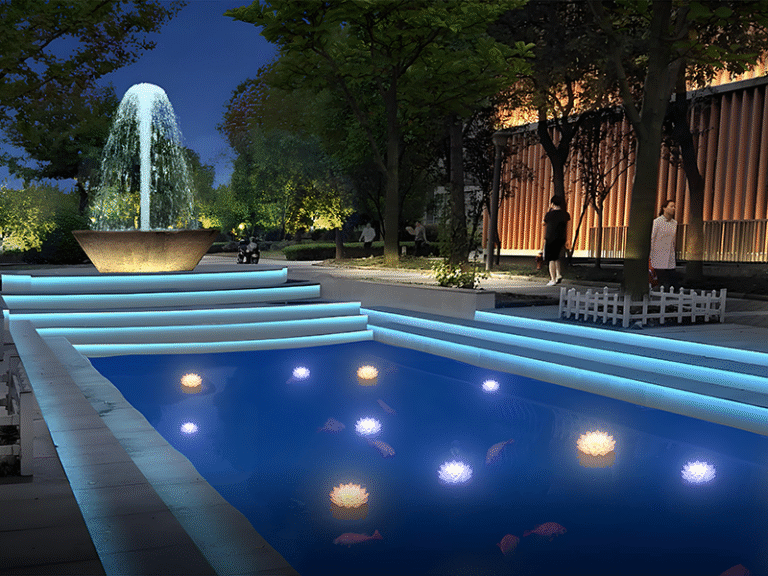

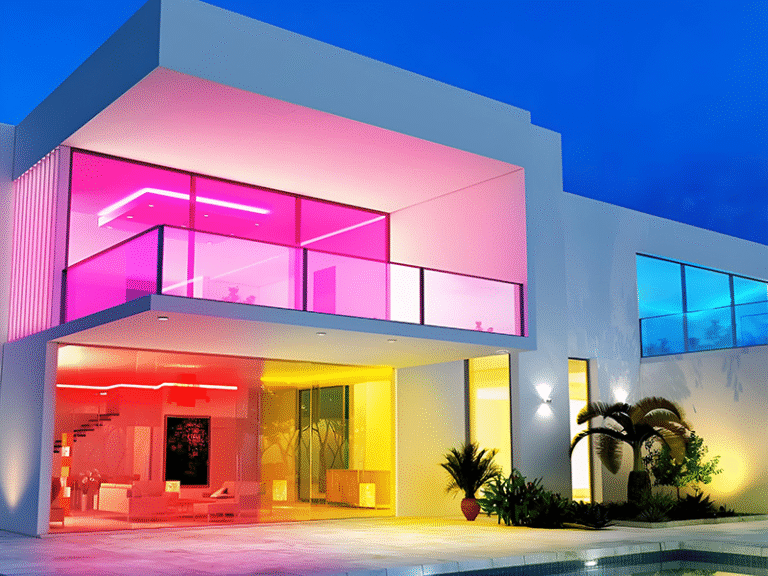

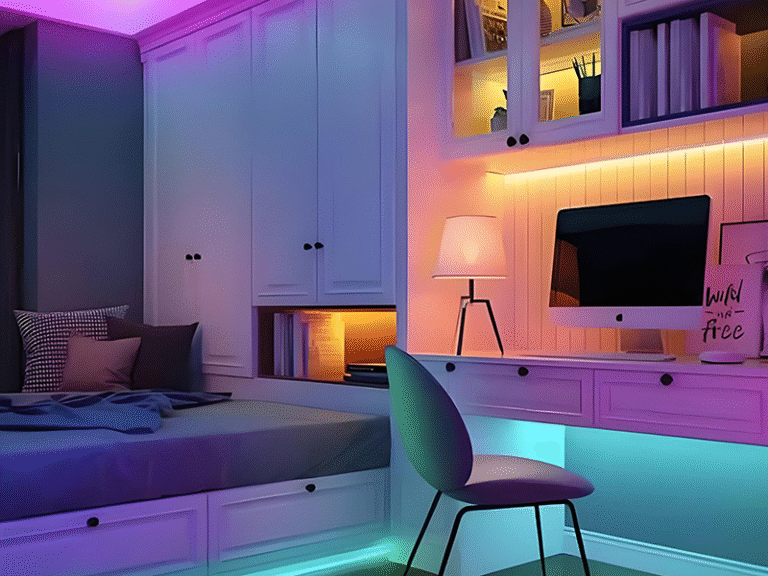

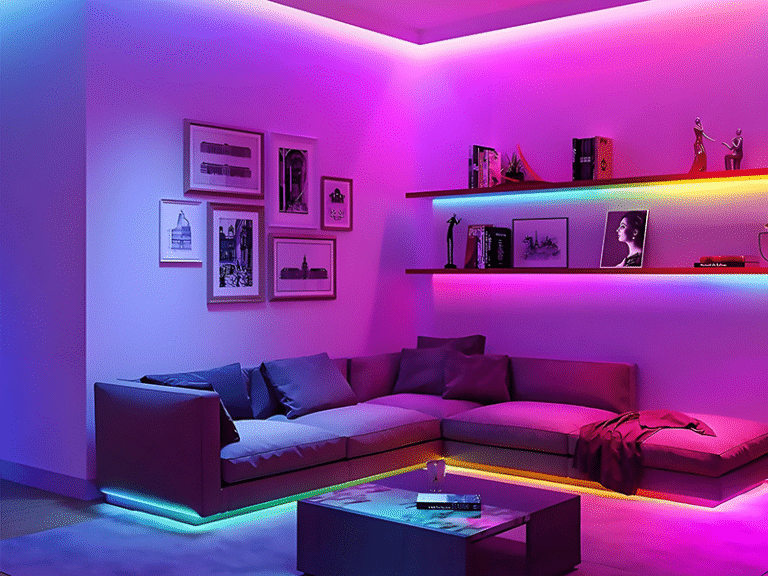

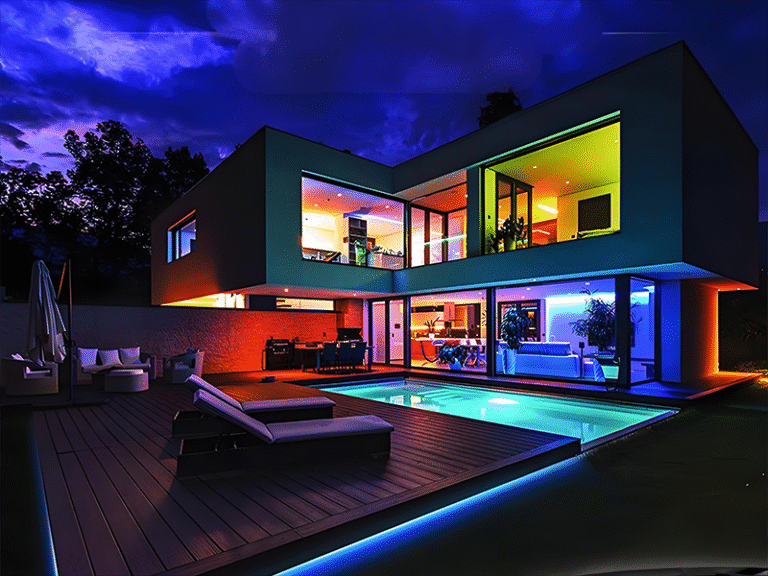

Applications of Addressable RGB LED Strip
The COB RGB & RGBW addressable led lights combine high-density COB technology with addressable control, delivering smooth, uniform illumination with precise pixel-level dynamic effects. The RGB led lights version offers vibrant color-changing capabilities, while the RGBW led strip lights version adds a dedicated white light channel for enhanced brightness and color rendering. These pixel led strip strips are ideal for high-end interior ambiance, smart home lighting, KTV and entertainment venues, commercial displays, gaming setups, and creative lighting installations—making them a perfect solution for personalized and visually striking lighting designs.
How to produce the COB LED Strip
We combine advanced technology with rigorous quality control to manufacture high-performance LED lighting products. Our production line is fully equipped with industry-leading machines and testing systems to guarantee precision and reliability at every stage.
Step1. Solder Past Printing
Step2. Flip Chip Bonding
Step3. Reflow Soldering
Step4. Testing Machine
Step5. Automated Dispensing
Step6. Oven
Step7. After Welding
Step8. Reeling & Labeling
Step9. Aging
Step10. Final Testing
Step11. Packing

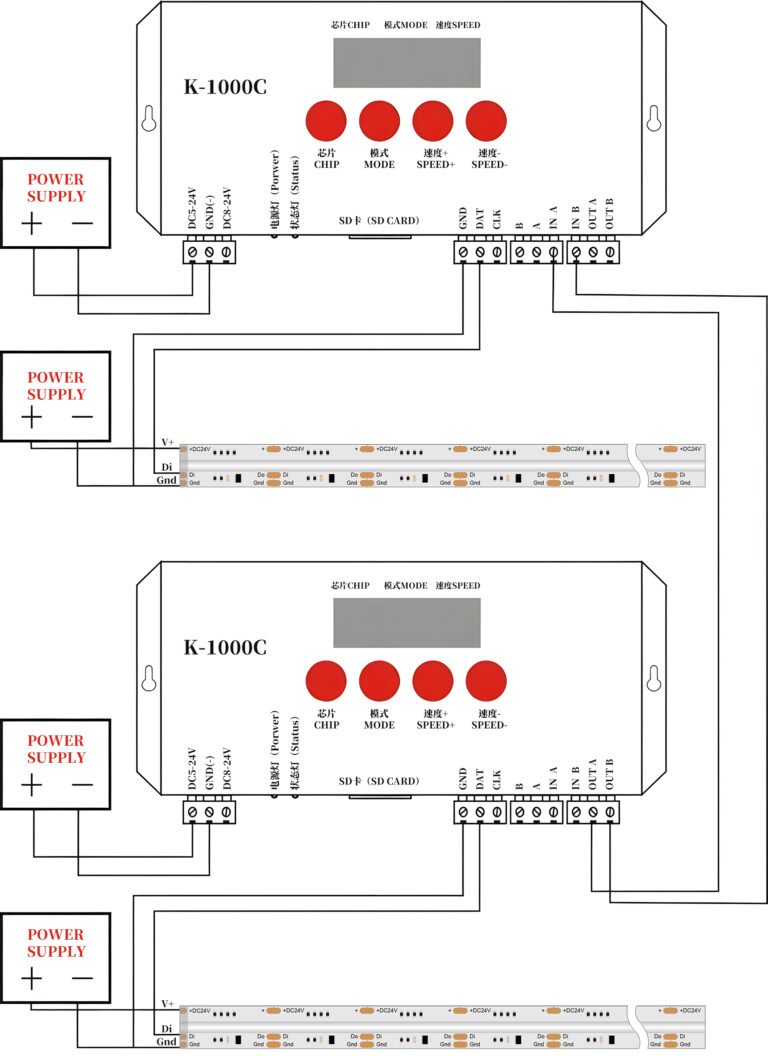

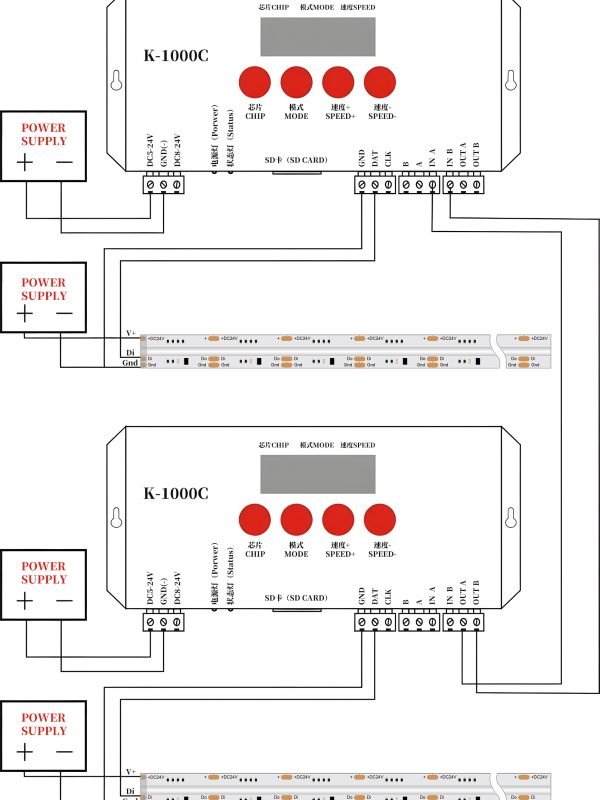

How to set up the COB LED Strip
The working voltage of the COB led strip is DC 12V or DC 24V, it needs the constant voltage led driver (LED power supply) to light up as below.
How to connect the COB LED strip lights by led strip connector
We have different type of connector to fit for different led strips. There are 2pin 3pin 4pin 5pin and 6pin to fit for 5mm 6mm 8mm 10mm 12mm PCB width LED strips. And there are Strip to Wire, Strip to Strip, Corner 3 different applications like below.
1. RGB COB led strip light
2. RGBW OB led strip light
Classification for High Density Addressable COB LED strip light
COB RGB&RGBW led strip lights is mainly divided into 5mm, 10mm,12mm,15mm
PCB Width(mm) | LEDQty/M (LEDS) | Pixels/m | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
5mm | 160LEDs | 80 | 5V | 12.5mm | 14W | 120° | N/A | RGB |
10mm | 360LEDs | 10 | 24V | 83.33mm | 10W | 120° | N/A | RGB |
10mm | 420LEDs | 10 | 12V | 62.5mm | 12W | 120° | N/A | RGB |
10mm | 420LEDs | 10 | 24V | 100mm | 12W | 120° | N/A | RGB |
10mm | 576LEDs | 16 | 12V | 62.5mm | 8W | 120° | N/A | RGB |
10mm | 576LEDs | 16 | 24V | 62.5mm | 16W | 120° | N/A | RGB |
10mm | 630LEDs | 14 | 12V | 71.42mm | 9W | 120° | N/A | RGB |
10mm | 630LEDs | 10 | 24V | 100mm | 13W | 120° | N/A | RGB |
10mm | 720LEDs | 20 | 12V | 50mm | 10W | 120° | N/A | RGB |
10mm | 720LEDs | 20 | 24V | 50mm | 19W | 120° | N/A | RGB |
12mm | 720LEDs | 20 | 12V | 50mm | 10W | 120° | N/A | RGB |
12mm | 720LEDs | 20 | 24V | 50mm | 19W | 120° | N/A | RGB |
12mm | 720LEDs | 20 | 12V | 50mm | 12W | 120° | N/A | RGB |
12mm | 720LEDs | 20 | 24V | 50mm | 21W | 120° | N/A | RGB |
10mm | 784LEDs | 14 | 24V | 71.43mm | 21W | 120° | N/A | RGBW |
15mm | 840LEDs | 14 | 24V | 71.42mm | 29W | 120° | N/A | RGBCW |
12mm | 840LEDs | 14 | 12V | 71.42mm | 7W | 120° | N/A | RGBW |
12mm | 840LEDs | 10 | 24V | 100mm | 16W | 120° | N/A | RGBW |
12mm | 896LEDs | 32 | 24V | 31.25mm | 48W | 120° | N/A | RGBW |
Product specification
Addressable RGB&RGBW cob LED Product video
The COB RGB&RGBW individually addressable led strip is a high-end lighting product that combines high brightness, soft and uniform light, and intelligent control. Featuring COB packaging technology, the LEDS are densely arranged to deliver continuous, smooth illumination without visible spots or dark areas. ws2812b led light strip supports individually addressable control, enabling vibrant dynamic effects and complex lighting programs. Ideal for creative lighting, smart homes, commercial displays, and more. The RGB version offers dazzling multicolor effects, while the RGBW version adds a high-brightness white channel for purer colors and greater versatility.
FAQ – Addressable RGB / RGBW LED Strip Lights
1. What is an addressable RGB LED strip?
An addressable RGB LED strip contains built-in IC chips that allow each LED or segment to be controlled individually, enabling dynamic lighting effects such as chasing, flowing, and color animation.
2. What is the difference between addressable and standard RGB LED strips?
Addressable LED strips allow independent control of each LED, while standard RGB LED strips change color uniformly across the entire strip.
3. What controller is required for addressable LED strips?
Addressable LED strips require a compatible digital controller such as SPI, DMX, or programmable controllers designed for pixel LED lighting.
4. Can addressable LED strips be cut?
Yes, most addressable LED strips can be cut at marked cutting points. After cutting, connectors or soldering can be used to reconnect the strip sections.
5. Which IC chips are used in addressable LED strips?
Common IC chips used in addressable LED strips include WS2811, WS2812, SK6812, and similar programmable driver chips that enable individual LED control and dynamic lighting effects.
6. Addressable RGB vs RGBW LED strip: which is better?
Addressable RGB LED strips focus on dynamic color effects, while addressable RGBW LED strips add a dedicated white LED for more natural white lighting and improved color mixing.
7. How to install addressable LED strip lights?
Addressable LED strips require a compatible power supply and digital controller. The strip connects to the controller’s data signal, allowing programmable lighting effects and individual LED control.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.

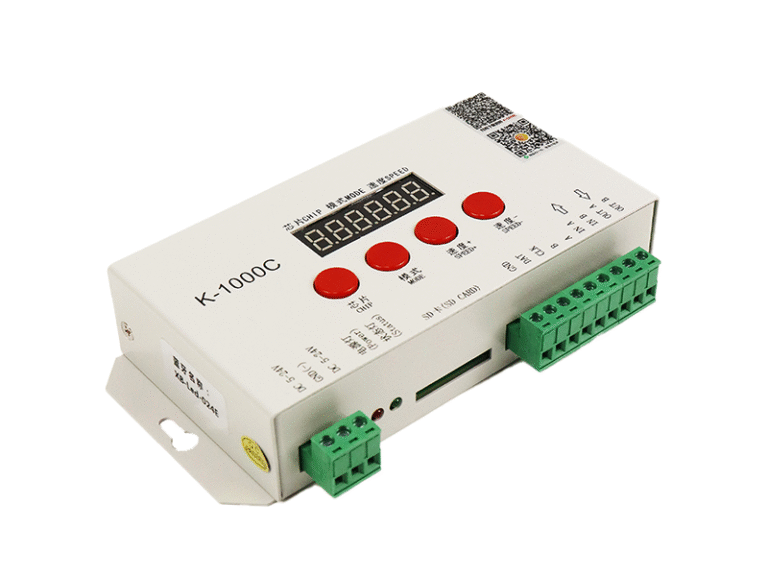

LED Light Controller

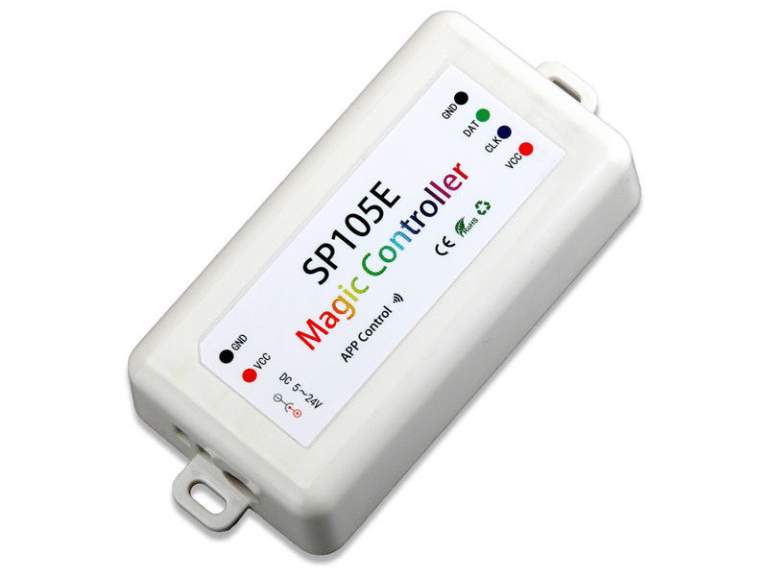

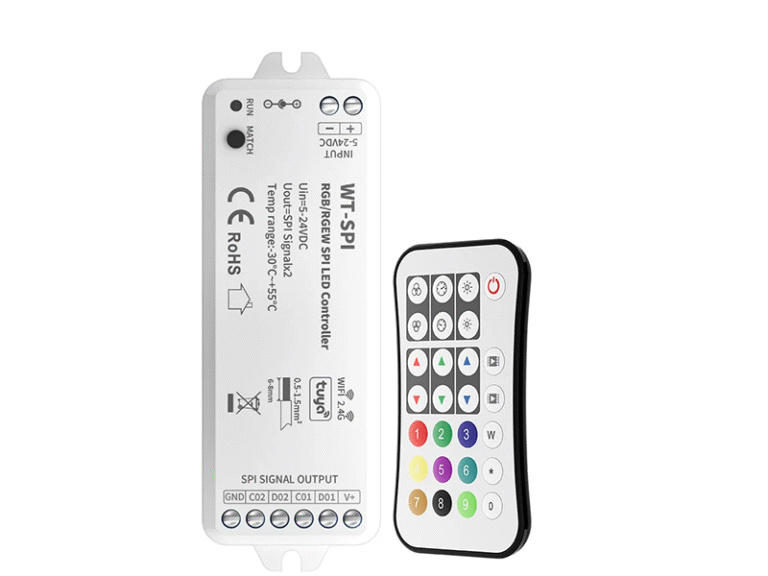

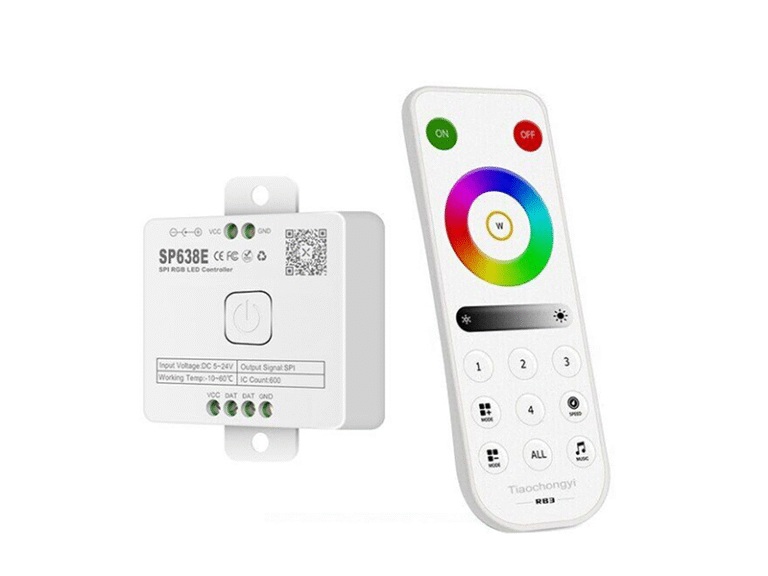

To achieve more brilliant and dynamic lighting effects, COB addressable RGB and RGBW LED strips must be used with dedicated addressable controllers. These controllers support various IC types such as K1000C, K8000C, SP105, SP638, SP639, and WT-SPI. They can be operated via remote control, mobile apps, or DMX master systems to create dynamic effects like music sync, chasing, gradient, and running light.
Waterproof Rating Guide for LED Strip Lights
Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
Why Choose Addressable COB LED Strip
Addressable COB LED strips combine high-density COB technology with pixel-level control, delivering smooth, dotless lighting and dynamic effects. Compared with traditional RGB LED strips, addressable LED strips provide independent LED control, programmable lighting effects, and more creative lighting possibilities, making them ideal for architectural lighting, stage lighting, gaming setups, and commercial displays.
