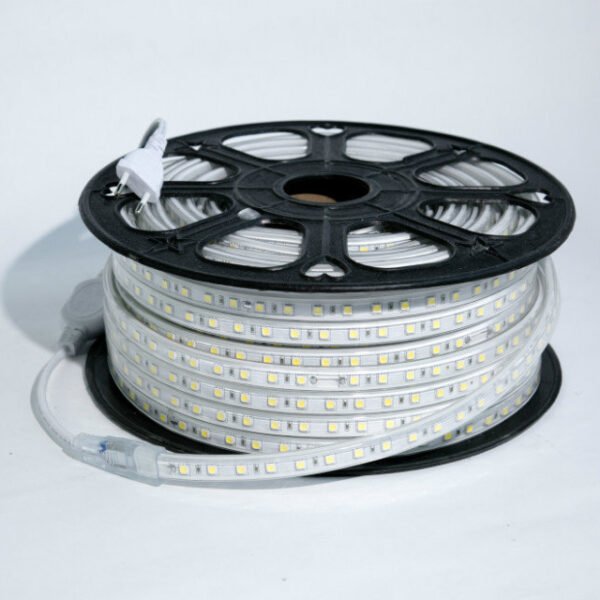

110V / 220V Dual‑Voltage Standard LED SMD Light Strip – High Brightness, Waterproof, and Energy Efficient
- Direct plug-in design, easy and quick installation
- Compatible with dual voltage, stronger versatility
- Supports long connections, wide lighting coverage
- Multiple color temperatures to meet various needs
- Flexible and bendable, adaptable to different shapes
- High-brightness chips, stable and uniform light output
- Waterproof and dustproof, suitable for various scenes
- Energy-saving and low power, long and stable lifespan
110V 220V Standard LED Strip Light Index
What is Standard smd led 220v ip65 strip light?
Standard 220V/110V led strip light outdoor waterproof is a high-voltage lighting product that uses high-brightness surface-mounted LEDs (SMD) and can be directly connected to 110V or 220V mains power without the need for an external power supply. 110V 220 standard waterproof led strip lights typically features a built-in rectifier and constant current circuit to ensure stable voltage and uniform brightness over long runs. The strip is cuttable, easy to install, and available in waterproof and dustproof options (up to IP65/IP67), making it ideal for indoor and outdoor applications such as architectural outlines, commercial signage, building façades, and landscape lighting, combining high efficiency with long service life.
110V/220V SMD LED Strip vs Low Voltage LED Strip
1. Installation & Wiring
110V/220V high voltage LED strip lights support direct AC input, making them a true driverless LED strip solution with faster installation and lower labor cost. In contrast, low voltage LED strip lights (12V/24V) require external drivers and more complex wiring, which increases setup time in commercial lighting projects.
2. Running Length & Voltage Drop
High voltage SMD LED strip lights are designed for long run applications, typically reaching up to 50 meters without noticeable voltage drop, making them ideal for large-scale outdoor lighting projects. Low voltage LED strip lights often face voltage drop issues after 5–10 meters, requiring additional power injection.
3. Safety & Application Environment
Low voltage LED strip lights (12V/24V) are safer for indoor use, especially in residential and decorative lighting. However, 110V/220V outdoor waterproof LED strip lights with IP67 or IP68 ratings are better suited for harsh environments like building outlines, landscape lighting, and architectural lighting.
4. Brightness & Performance
High voltage LED strip lights deliver consistent brightness across long distances, which is essential for commercial lighting and large installations. Low voltage SMD LED strip lights provide more stable output for short runs and are often preferred for detailed indoor lighting where precision and uniformity are required.
5. Cost & Project Efficiency
Driverless high voltage LED strip lights reduce the need for additional power supplies, lowering overall system cost and improving efficiency in large projects. Low voltage LED strip lights may have a lower unit price, but the total cost increases due to drivers, wiring, and installation complexity, especially in long run LED strip applications.
How to produce the SMD LED Strip
The SMD LED strip production process includes PCB mounting, SMD chip placement, reflow soldering, waterproof sealing, aging test, and final quality inspection to ensure stable performance and consistent light output.
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic

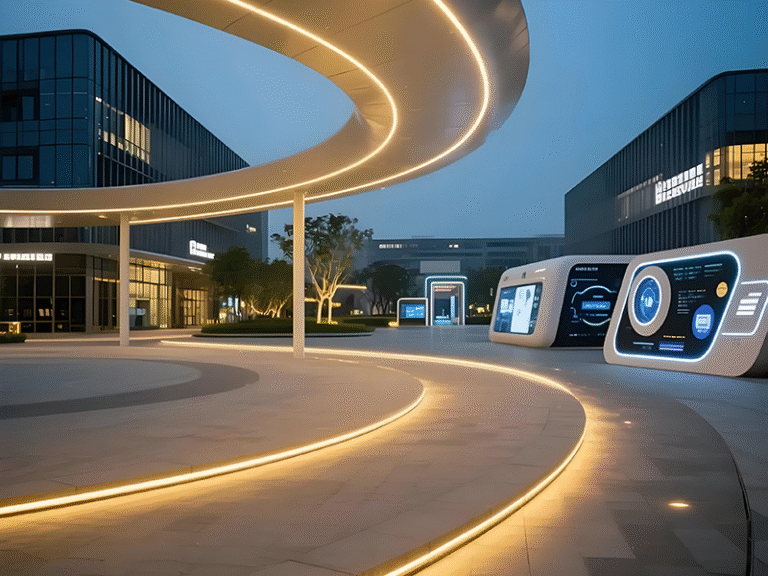

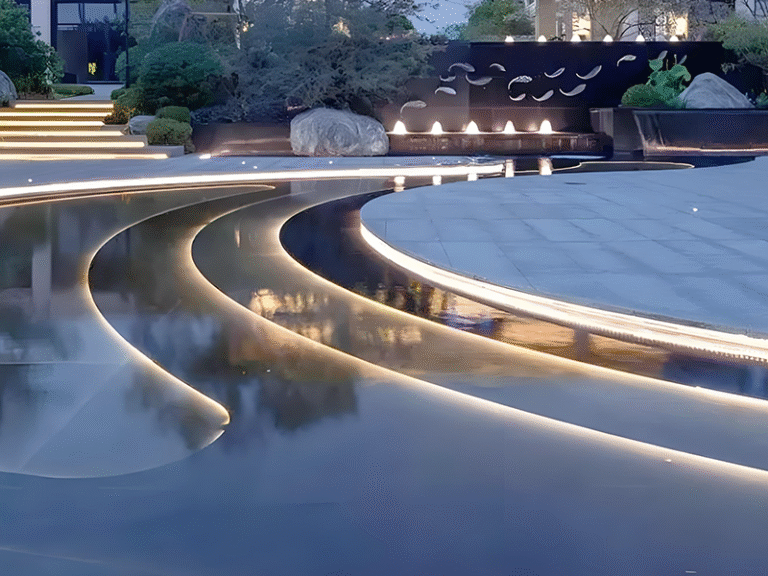

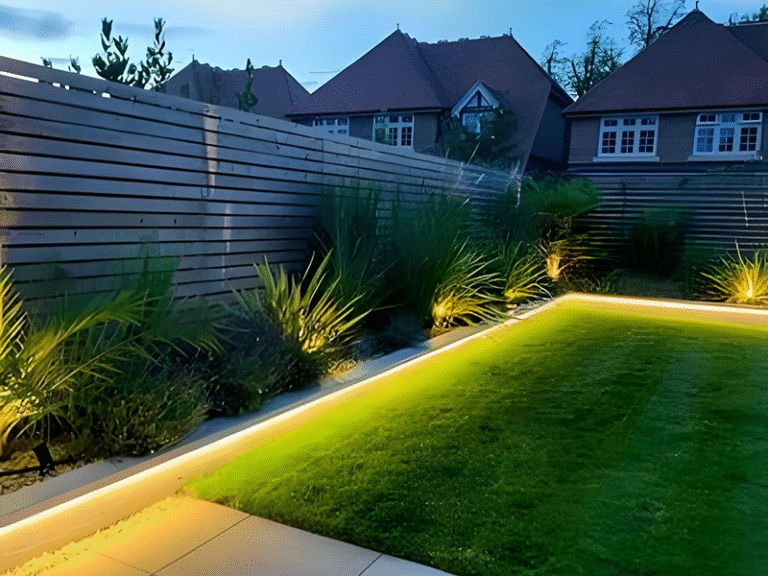

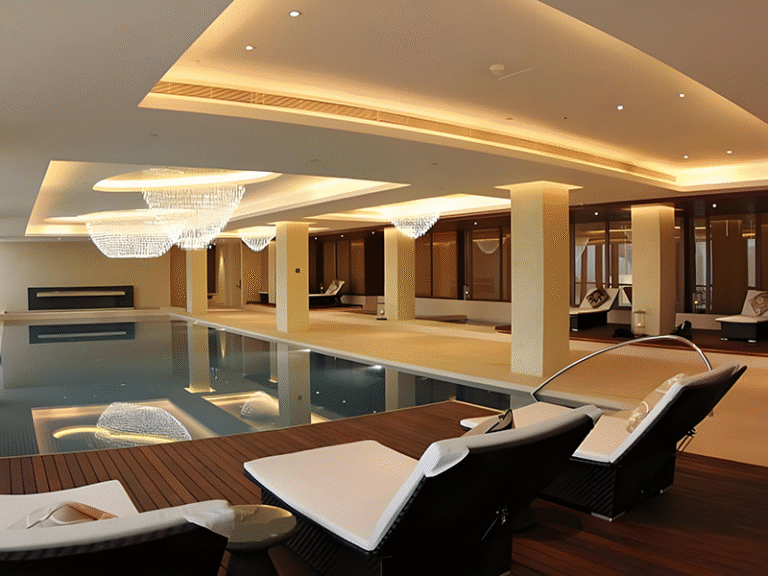

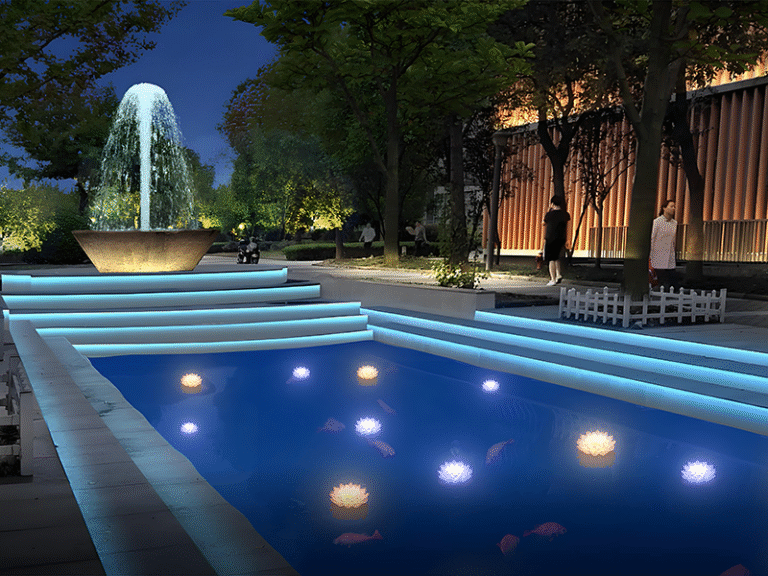

Applications of 110V 220V LED Strip Lights

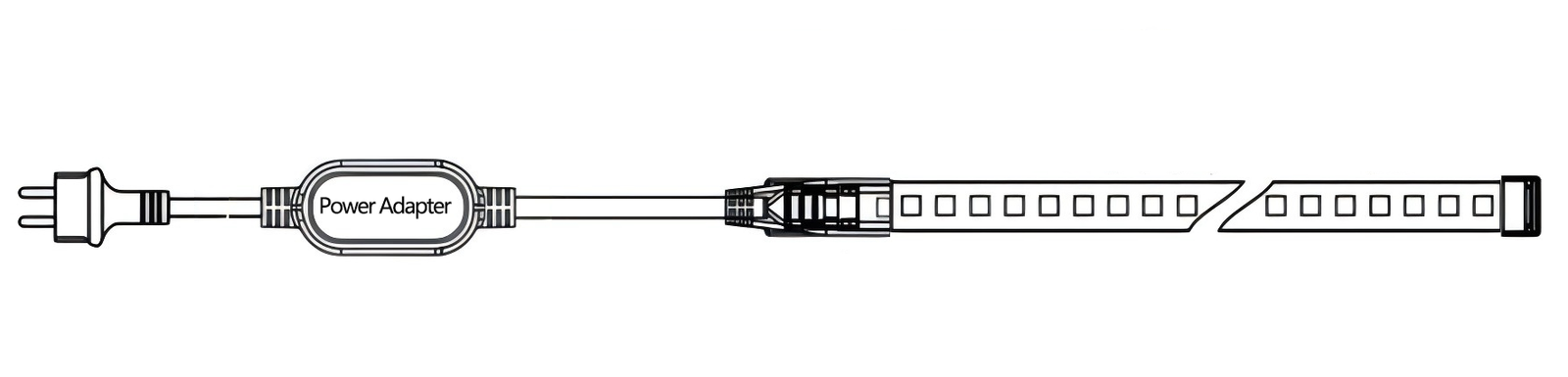

How to set up the Standard SMD strip led 110v 220v light
The LED SMD Standard 220V 110v led strip lights typically uses a high-voltage constant current design, converting AC power directly to DC through a rectifier bridge and current-limiting resistor, eliminating the need for an external power supply. During installation, one end connects to the AC 110V or 220V input (live and neutral wires), while the other end should be sealed with a waterproof tail cap for safety. If extension is required, waterproof connectors can be used for series connection, but the total length should remain within the rated range. The wiring is simple and convenient, making it ideal for large-scale commercial and outdoor lighting applications.
Classification for 110V/220V high voltage LED strip

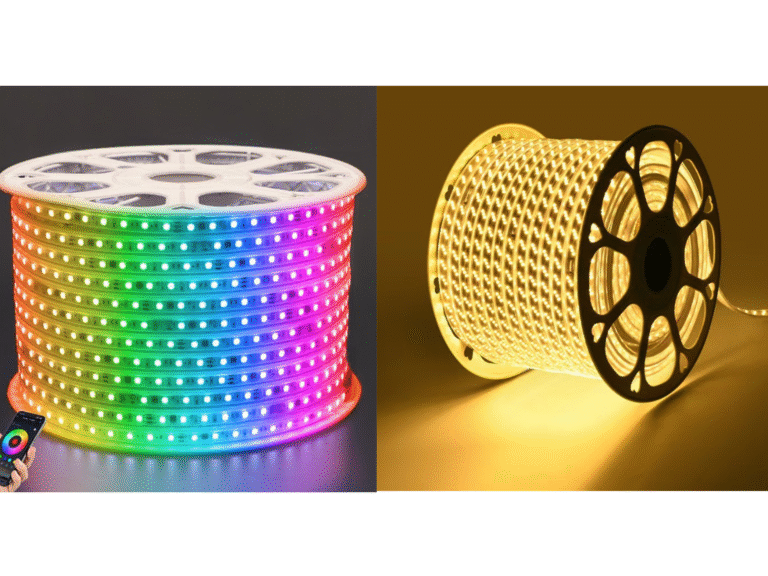

Standard led light strips 110v 220v are mainly divided into single-color temperature and RGB types. Single-color strips provide fixed light colors, such as warm white, natural white, or cool white, suitable for basic lighting needs with stable brightness and easy installation. RGB strips, on the other hand, allow multi-color changes and dynamic effects through a controller, ideal for decorative and ambient lighting. Both types can be cut along the marked lines, making them flexible for use in residential, commercial, and decorative applications.
Size (mm) | LEDQty/M (LEDs) | IP | Working Voltage(v) | Cut Length(m) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
L*W13*H7.5 | 60LEDs | IP67 | 110/220V | 0.5/1m | 8W | 120° | Ra＞80 | 3000k/4000k/6000k |
L*W13*H7.5 | 120LEDs | IP67 | 110/220V | 0.5/1m | 11W | 120° | Ra＞80 | 3000k/4000k/6000k |
L*W15.5*H7.5 | 144LEDs | IP67 | 110/220V | 0.5/1m | 12W | 120° | Ra＞80 | 3000k/4000k/6000k |
L*W16.5*H7.5 | 180LEDs | IP67 | 110/220V | 0.5/1m | 12W | 120° | Ra＞80 | 3000k/4000k/6000k |
L*W15.5*H7.5 | 60LEDs | IP67 | 110/220V | 0.5/1m | 8W | 120° | Ra＞80 | RGB |
LED SMD 110V 220V Standard Product video
The LED SMD Standard 110V/220V ip67 lights video showcases its plug-and-play high-voltage design, which requires no external power driver and allows for easy installation and long-distance continuous lighting. Featuring high-brightness SMD chips, the strip delivers stable light output and uniform color, available in warm white, natural white, and cool white options. With excellent waterproof and dustproof performance, it is widely used in outdoor architectural outlines, advertising decorations, and commercial lighting, offering high brightness and reliable illumination.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.
FAQ – 110V/220V SMD LED Strip Lights
1. Can 110V/220V LED strip lights connect directly to power?
Yes, high voltage LED strip lights are designed for direct AC input, which means no external driver is required during installation. This driverless LED strip solution simplifies wiring and reduces installation time in commercial lighting projects. It is widely used in long run LED strip applications where efficiency matters.
2. Are 110V/220V LED strip lights safe for outdoor use?
High voltage SMD LED strip lights with IP67 or IP68 ratings are built for outdoor environments, including rain and dust exposure. These outdoor waterproof LED strip lights are commonly used in architectural lighting and landscape lighting projects. Proper installation and insulation are essential to ensure long-term safety.
3. What is the maximum length of a high voltage LED strip?
A 110V/220V LED strip light can typically run up to 50 meters without significant voltage drop. This makes it ideal for large-scale outdoor lighting and building outline lighting projects. Compared to low voltage LED strip lights, it greatly reduces the need for additional power injection.
4. What is the difference between 110V and 220V LED strip lights?
The main difference lies in regional power standards, but both belong to high voltage LED strip light systems. They offer similar performance in terms of brightness, efficiency, and long distance lighting capability. Choosing the correct voltage ensures compatibility with your local electrical system.
5. Can high voltage LED strip lights be cut?
Yes, most cuttable LED strip lights allow cutting at fixed intervals, usually longer than low voltage versions. This makes them suitable for customized installations in outdoor lighting projects. Always follow the cutting marks to maintain proper circuit function.
6. Do 110V/220V LED strip lights flicker?
High-quality driverless LED strip lights include built-in rectifiers to minimize flicker and ensure stable lighting output. Flicker-free performance is important for commercial lighting environments and long-term visual comfort. Choosing reliable high voltage SMD LED strip lights helps maintain consistent illumination.
7. Where are 110V/220V LED strip lights commonly used?
These high voltage LED strip lights are widely used in outdoor lighting, architectural lighting, and large commercial lighting projects. Their long run capability makes them ideal for building outlines, bridges, and landscape lighting. They are especially suitable for projects requiring durable and waterproof LED strip solutions.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
