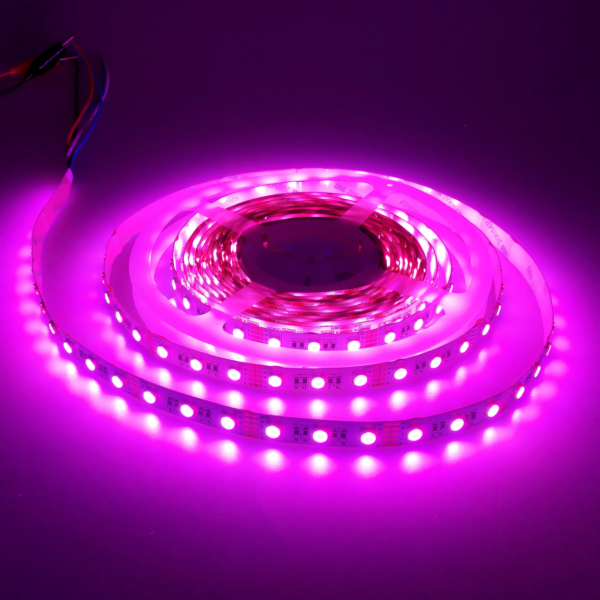

Addressable RGB&RGBW LED Strip Light
- Rich and dynamic colors
- Cuttable and extendable
- Long-lasting performance
- High brightness, low power
- Compatible with controllers
- Flexible and easy installation
- Individually addressable LEDs
- Supports multiple lighting effects
Addressable RGB&RGBW LED Strip Light Index

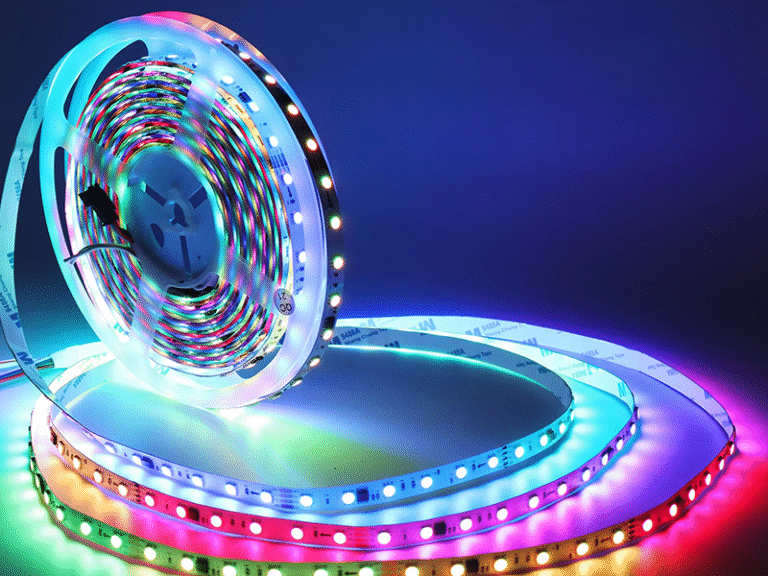

What is Addressable RGB&RGBW SMD led strip light?
Addressable RGB&RGBW color changing led strip lights is a smart lighting solution with individually controllable LEDs, each equipped with a built-in IC chip to enable precise color control and dynamic effects. The RGB version delivers vibrant, full-color lighting, while the RGBW version adds a dedicated white channel for both vivid color transitions and bright, pure white illumination. Widely used in ambient lighting, stage design, architectural decoration, and smart home systems, it supports multiple control methods and creates stunning effects such as chasing, flowing, breathing, and smooth color fading.
How to produce the SMD LED Strip
Be known as dotless and high CRI led strip lights, cob led strip are widely adopted in high-end indoor and outdoor scenarios. Such as: Cabinet lighting, Kitchen/bathroom Lighting, Residential lighting, Commercial lighting, Entertainment lighting, Landscape lighting, Architectural lighting, high CRI LED strip
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic
Applications of SMD LED strips

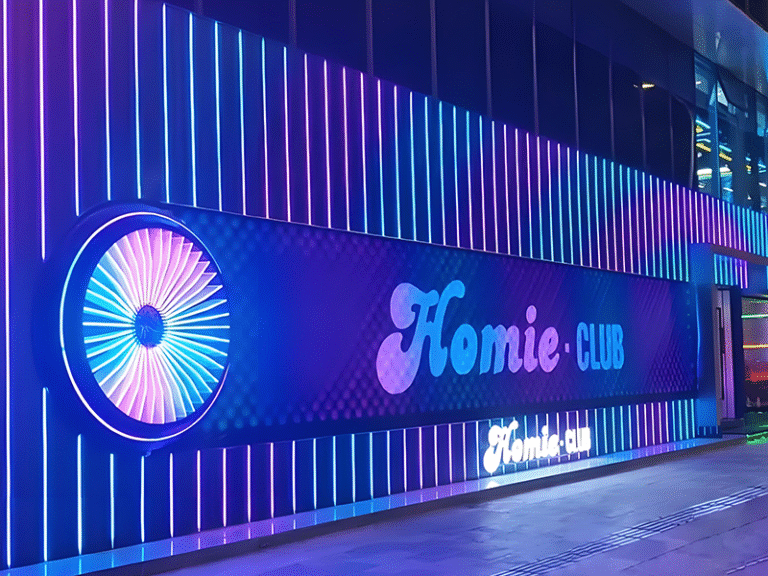

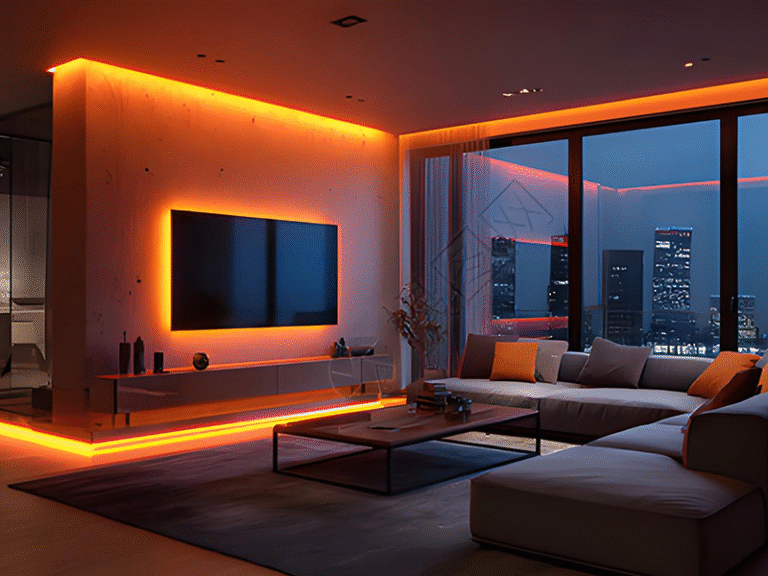

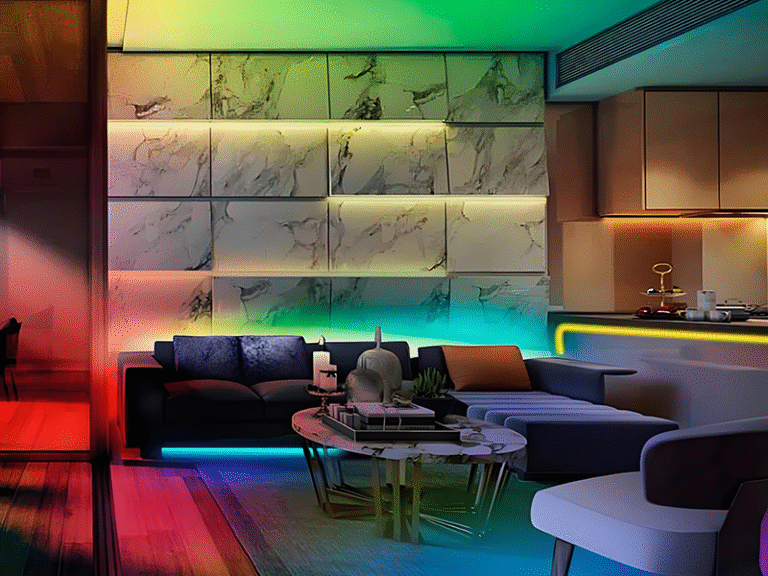

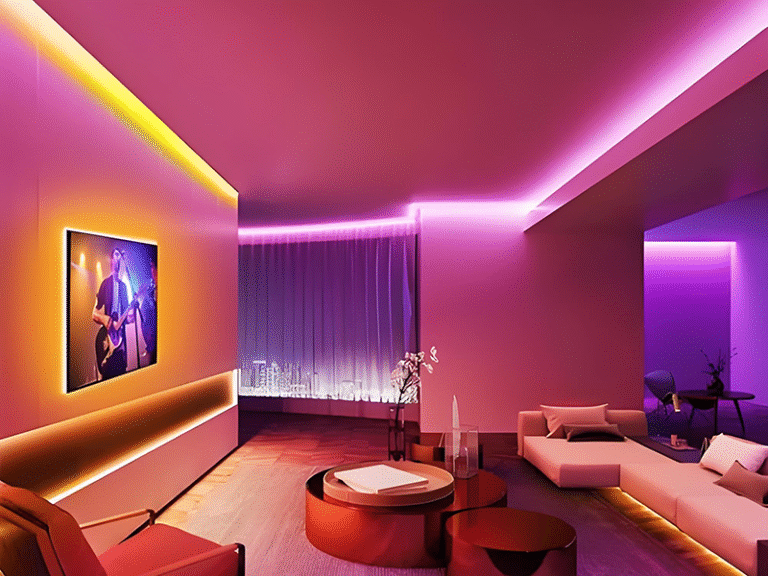

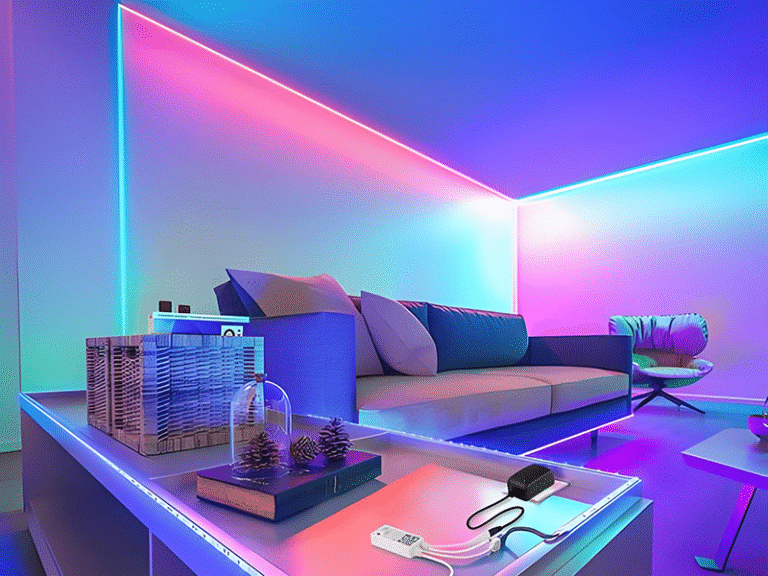

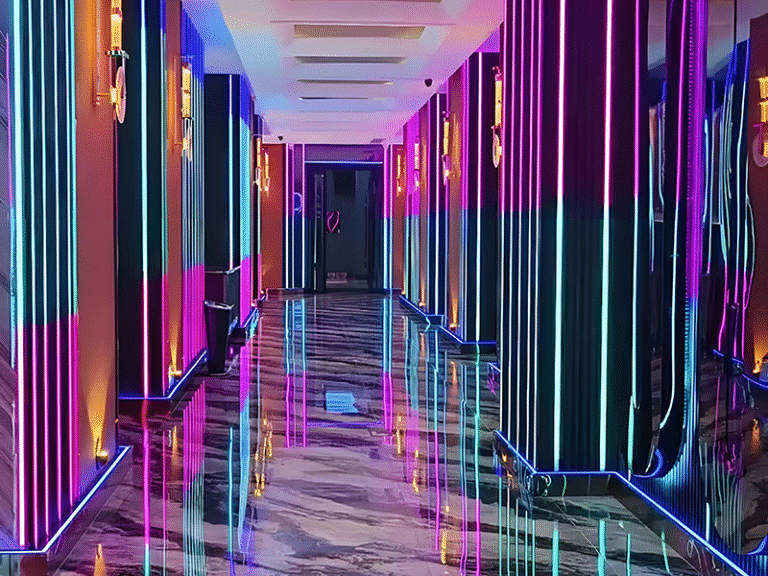

Addressable rgbw&rgb led lights are widely used in scenarios that require personalized lighting ambiance and dynamic effects, such as home theaters, gaming rooms, living room décor, bars, KTVs, stages, showrooms, commercial spaces, and outdoor architectural lighting. With their pixel-level control, they can create stunning effects like flowing, chasing, pulsing, and fading lights. Additionally, RGBW strips feature an independent white channel, offering both practical illumination and vibrant mood lighting—making them ideal for home entertainment as well as professional commercial and artistic displays.
How to set up the SMD LED Strip

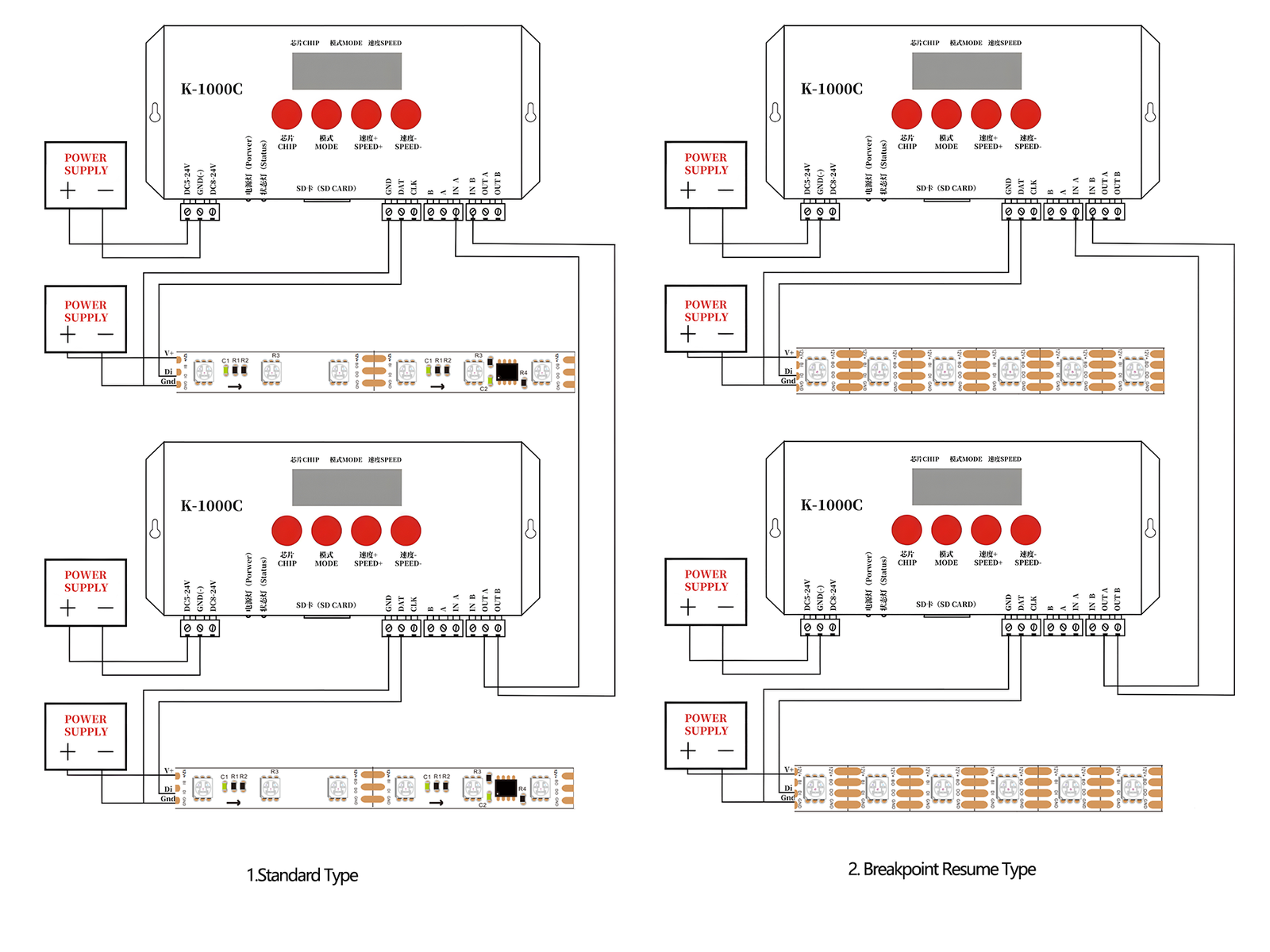

The wiring of RGB and RGBW addressable led strip is quite similar: both require power positive and negative terminals (+V / GND) connected to the power supply, and a data line (DI) to receive control signals. The RGBW strip has an additional white channel (W), so the controller must also connect to the W signal line. In general, the wiring order is Power + → Strip V+, Power – → Strip GND, Controller Data Out → Strip DI (and Clock CK if required), and make sure the power supply and controller share a common ground to ensure stable data transmission.
Classification and Product Specifications
RGB and RGBW addressable led tape are categorized into Standard Type and Breakpoint Resume Type. The Standard Type uses a conventional control chip structure, where each LED or segment is individually addressable and operates continuously, making it suitable for regular lighting effects. The Breakpoint Resume Type features redundant signal pathways within each segment, so even if one LED fails or the signal is interrupted, the subsequent LEDs can continue functioning. This ensures uninterrupted performance, making it ideal for high-end decoration, engineering projects, and complex installations.
①Standard Type:
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | ICs | Pixels | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | Color |
S shape 6mm | 60LEDs | 5V | WS2812B | 60px | 50mm | 10W | 120° | RGB |
S shape 6mm | 60LEDs | 12V | WS2812B | 60px | 50mm | 10W | 120° | RGB |
10mm | 60LEDs | 12V | SM16703 | 20px | 50mm | 14.4W | 120° | RGB |
10mm | 60LEDs | 24V | SM16703 | 10px | 100mm | 14.4W | 120° | RGB |
10mm | 30LEDs | 5V | WS2812B /SK6812 | 30px | 33.33mm | 7.2W | 120° | RGB |
10mm | 60LEDs | 5V | WS2812B /SK6812 | 60px | 16.67mm | 7.2W | 120° | RGB |
12mm | 144LEDs | 5V | WS2812B /SK6812 | 144px | 6.94mm | 36.6W | 120° | RGB |
10mm | 30LEDs | 12V | WS2811 | 10px | 100mm | 7.2W | 120° | RGB |
10mm | 60LEDs | 12V | WS2811 | 20px | 50mm | 14.4W | 120° | RGB |
10mm | 60LEDs | 24V | WS2811 | 10px | 100mm | 14.4W | 120° | RGB |
② Breakpoint Resume Type: One LED die will not affect other LED
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | ICs | Pixels | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | Color |
10mm | 30LEDs | 5V | WS2813 | 30px | 33.33mm | 7.2W | 120° | RGB |
10mm | 60LEDs | 5V | WS2813 | 60px | 16.67mm | 14.4W | 120° | RGB |
10mm | 30LEDs | 12V | WS2815 | 30px | 100mm | 7.2W | 120° | RGB |
10mm | 60LEDs | 12V | WS2815 | 60px | 50mm | 14.4W | 120° | RGB |
12mm | 144LEDs | 12V | WS2815 | 144px | 20.83mm | 36.6W | 120° | RGB |
LED SMD Addressable RGB&RGBW Product video
SMD RGB & RGBW addressable led tape Specification provides detailed information on product parameters, control methods, wiring diagrams, lighting effects, and application scenarios. You can download the specification directly from this page to learn about voltage, current, power, color control, and compatible controllers — offering complete technical support for design, installation, and procurement.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.
LED Light Controller
To achieve more brilliant and dynamic lighting effects, SMD RGB and RGBW addressable led lights must be used with dedicated addressable controllers. These controllers support various IC types such as K1000C, K8000C, SP105, SP638, SP639, and WT-SPI. They can be operated via remote control, mobile apps, or DMX master systems to create dynamic effects like music sync, chasing, gradient, and running light.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
