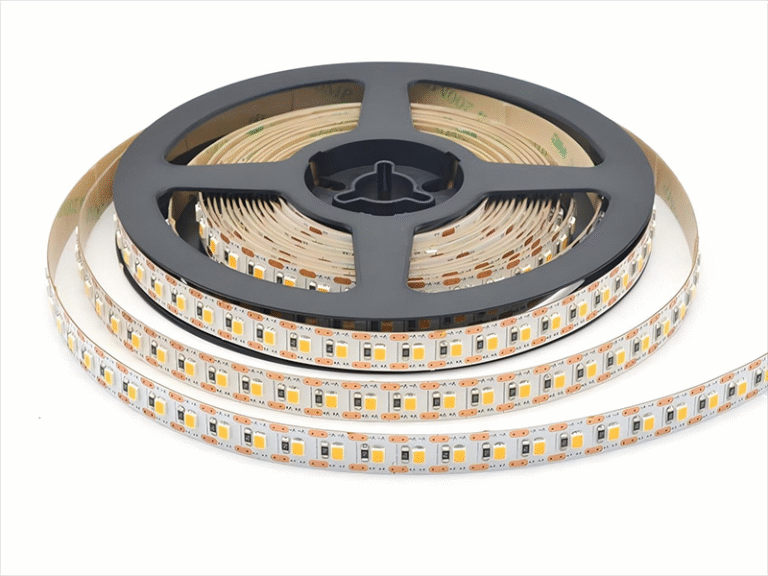

Mini Cut SMD LED Strip Light
- Solderless quick connectors
- Compact size, fits narrow spaces
- Flexible FPCB, easy to bend and fit
- High-density LEDs, uniform lighting
- No dark spots, linear lighting effect
- Low power consumption, long-lasting

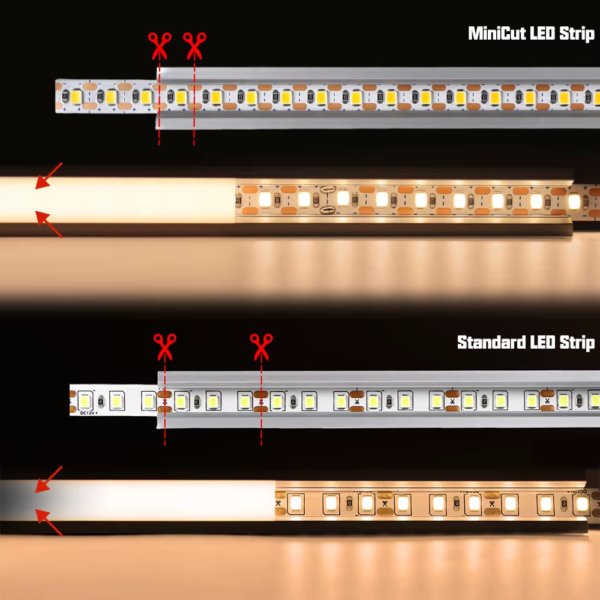

- Ultra-short cutting interval, flexible installation
- Compatible with various aluminum profiles and controllers
Mini cut LED Strip Light Index
What is Mini Cut SMD led strip light?

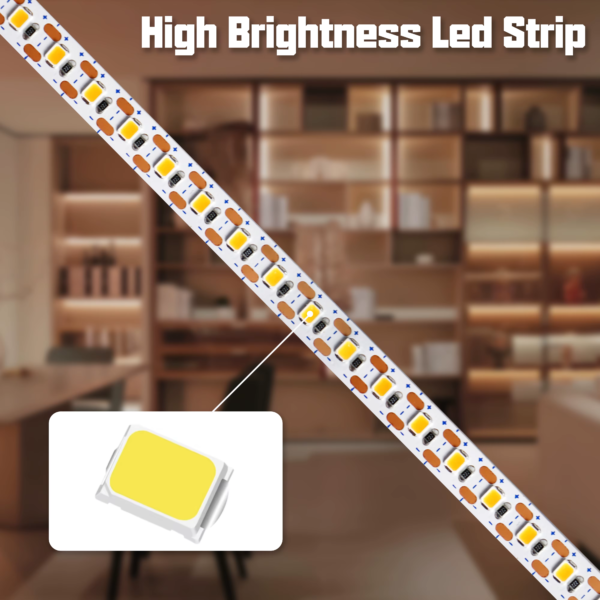

The SMD Mini cut led mini strip lights is a high-density, compact, and flexible LED strip that supports high-frequency cutting. It uses miniature SMD packaging technology (such as SMD2835), which maintains high brightness and consistent color temperature while significantly reducing the spacing between LEDs and cutting units. Its key feature is the “Mini Cutting” design, allowing for precise, ultra-short cutting intervals. This enables users to customize lengths flexibly according to installation spaces or lighting requirements, avoiding issues such as brightness gaps or length mismatches. The strip typically uses high color rendering (CRI ≥ 90) LED chips, offering excellent heat dissipation and low light decay performance. It can be paired with aluminum profiles and diffusers to achieve uniform, seamless linear lighting effects. Widely used in high-end cabinet lighting, display cases, furniture integration, and commercial decorative lighting, it combines professional lighting quality with installation flexibility.
How to produce the SMD LED Strip
Be known as dotless and high CRI led strip lights, cob led strip are widely adopted in high-end indoor and outdoor scenarios. Such as: Cabinet lighting, Kitchen/bathroom Lighting, Residential lighting, Commercial lighting, Entertainment lighting, Landscape lighting, Architectural lighting, high CRI LED strip
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic
Applications of SMD LED strips

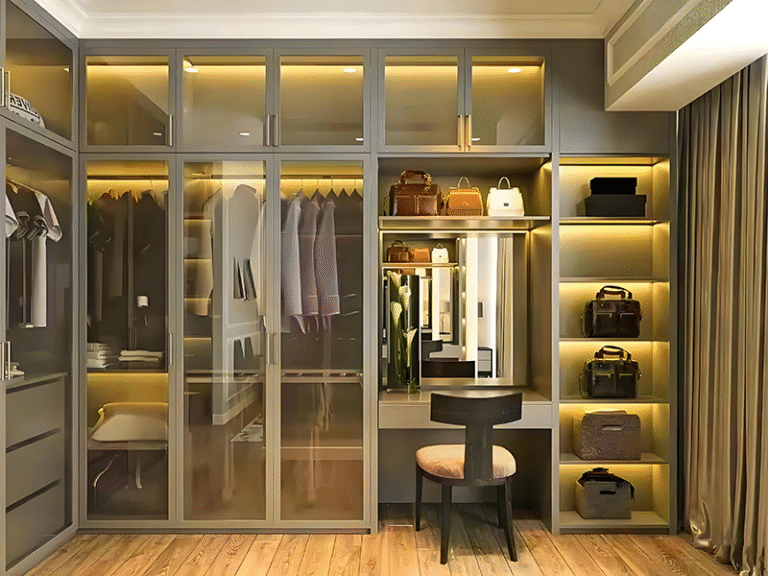

The LED mini cutting smd lights, due to its compact and flexible design, is widely used in narrow spaces or areas that require precise customization. It is ideal for applications such as furniture lighting, display shelves, cabinets, and bathroom mirror cabinets. Its ability to be cut to size makes it perfect for creating tailored lighting layouts in projects that demand accuracy and flexibility.
How to set up the SMD LED Strip
The wiring method of the mini cutting smd led lights is very simple: it is usually powered by a DC power supply (such as 12V or 24V), with the positive and negative poles corresponding to the red and black wires or the terminals marked “+” and “–”. When cutting, you can cut along the marked cutting lines on the strip—each section retains a complete circuit unit. For extension or corner connections, use solderless quick connectors or soldering to join the copper pads of the cut sections with power or connection wires, ensuring the polarity is consistent. Finally, install the strip into the aluminum profile and connect it to the power supply for stable illumination.

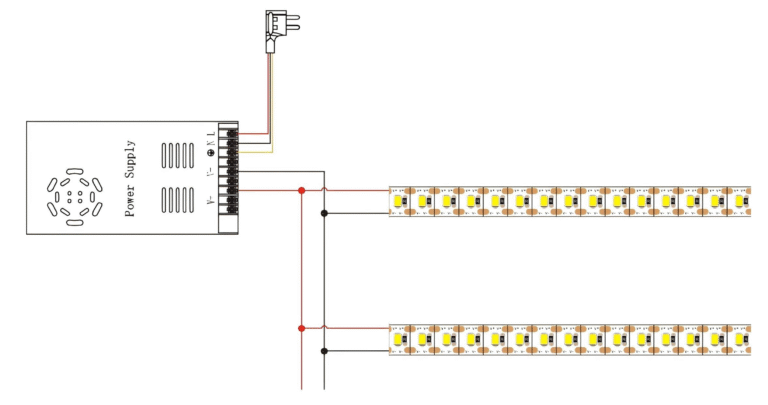

1. single color

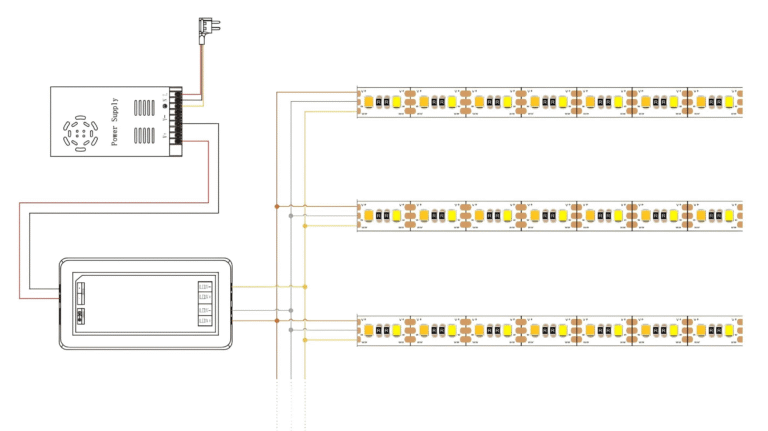

1. Dual color
Classification and Product Specifications
LED mini cut smd lights are mainly divided into two types: single color temperature and dual color temperature. The single color temperature type offers a fixed color temperature option, such as warm white, natural white, or cool white, providing stable lighting performance for single lighting applications. The dual color temperature type allows adjustment between different color temperatures through a control system, achieving smooth transitions from warm to cool tones for greater flexibility and ambient lighting effects.
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | CRI (Ra) | Beam Angle(°) | Color |
10mm | 120LEDs | 5V | 8.3mm | 12W | Ra＞90 | 120° | WW/NW/CW |
10mm | 120LEDs | 12V | 8.3mm | 14W | Ra＞90 | 120° | WW/NW/CW |
10mm | 120LEDs | 24V | 8.3mm | 19W | Ra＞90 | 120° | WW/NW/CW |
10mm | 120LEDs | 5V | 16.7mm | 12W | Ra＞90 | 120° | Dual color-3000-6000K |
10mm | 120LEDs | 12V | 16.7mm | 14W | Ra＞90 | 120° | Dual color-3000-6000K |
10mm | 120LEDs | 24V | 16.7mm | 19W | Ra＞90 | 120° | Dual color-3000-6000K |
LED SMD Mini cut Product video
This Mini cutting cuttable led tape light video showcases its ultra-short cutting distance design, allowing flexible length adjustment along the marked lines to fit various installation needs. With its mini size, the strip is ideal for precise lighting and compact spaces, while maintaining high brightness and uniform illumination, highlighting its convenience and customizable lighting performance.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.
LED Light Controller
Mini cutting cuttable led strip lights are compatible with 5V, 12V, or 24V power supplies, with the appropriate driver selected based on the strip’s voltage. Single-color strips work with single-color controllers for brightness adjustment and on/off control, while dual-color temperature strips use CCT controllers to balance warm and cool white tones, creating various lighting atmospheres. The system is easy to install, highly compatible, and ideal for precise lighting applications.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
