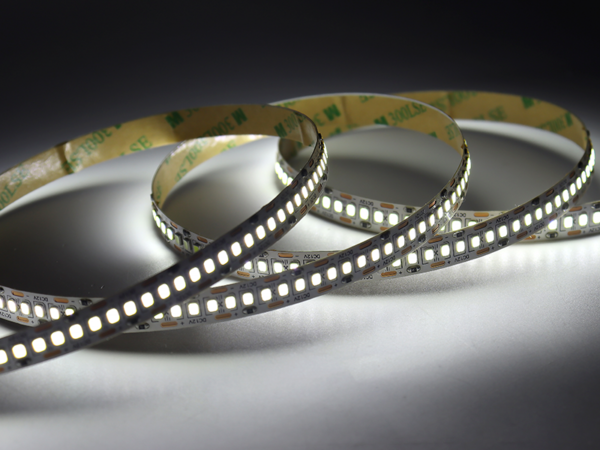

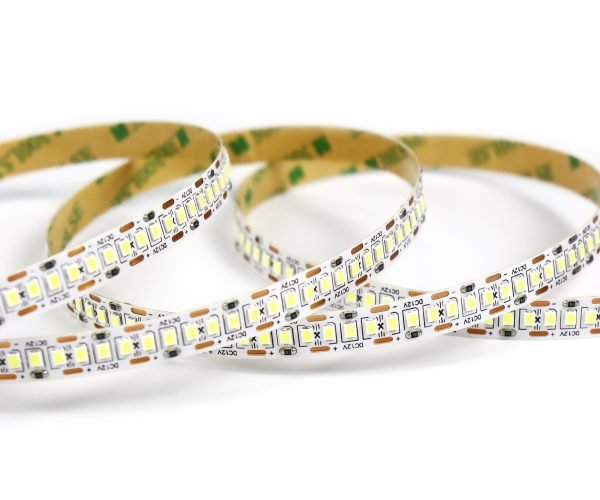

Mono Color SMD LED Strip Light
- Freely cuttable design
- Stable voltage and safety
- Excellent heat dissipation
- Suitable for various scenes
- Easy and flexible installation
- High brightness with low power
- Uniform light without dark spots
- Long lifespan up to 50,000 hours
Mono Color LED Strip Light Index
What is Mono Color SMD led strip light?
SMD single color led strip is a linear lighting product that uses surface-mounted diodes (SMD) as the light source, featuring high luminous efficiency, uniform brightness, low energy consumption, and flexible installation. It emits light with a fixed color temperature, commonly available in warm white (2700K–3000K), neutral white (4000K), and cool white (6000K–6500K), allowing suitable selection for different lighting atmospheres and application needs. The strip adopts high-quality flexible PCB boards and high-CRI LED chips to ensure true color rendering, soft light output, and flicker-free performance. Mono color 2835 led strip can be paired with aluminum profiles and diffusers to enhance heat dissipation and optical uniformity. Typically operating on DC12V or 24V constant voltage, the strip supports free cutting, easy installation, and convenient maintenance. It is widely used in commercial displays, cabinet lighting, architectural outlines, hotel decoration, and residential linear lighting, providing high-quality, stable, and reliable illumination.
How to produce the SMD LED Strip
The SMD LED strip production process includes PCB mounting, SMD chip placement, reflow soldering, waterproof sealing, aging test, and final quality inspection to ensure stable performance and consistent light output.
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic

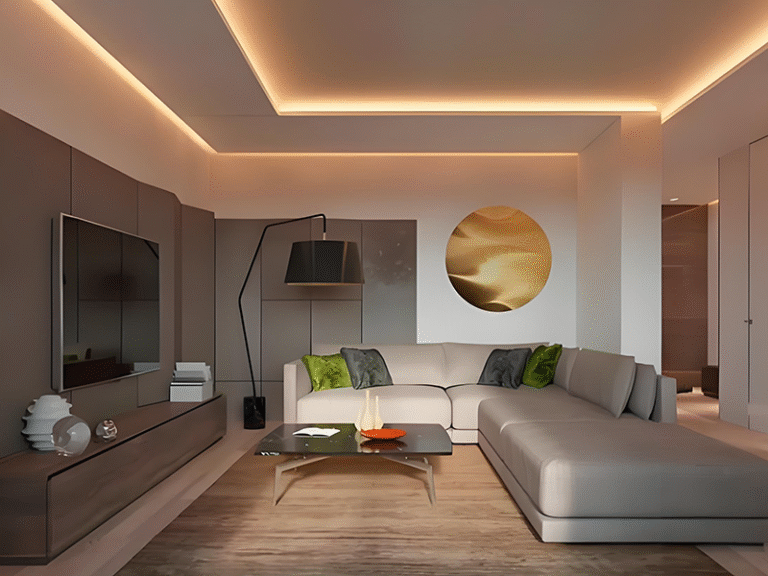

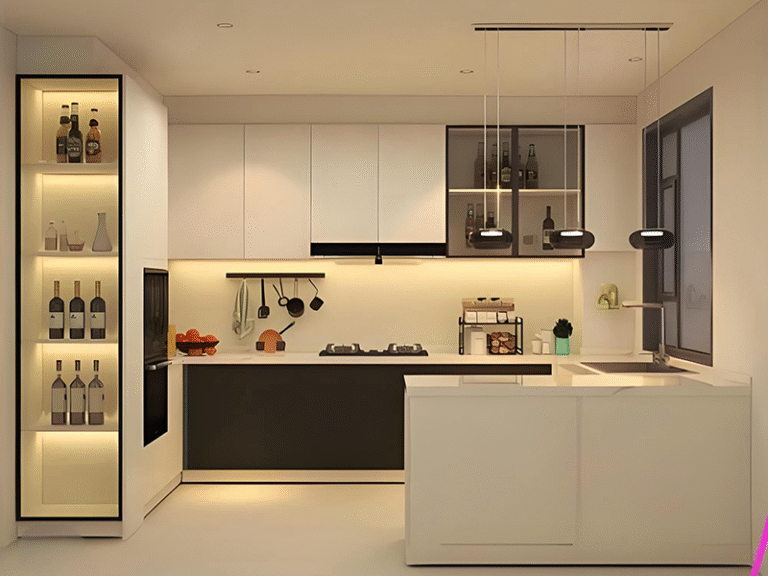

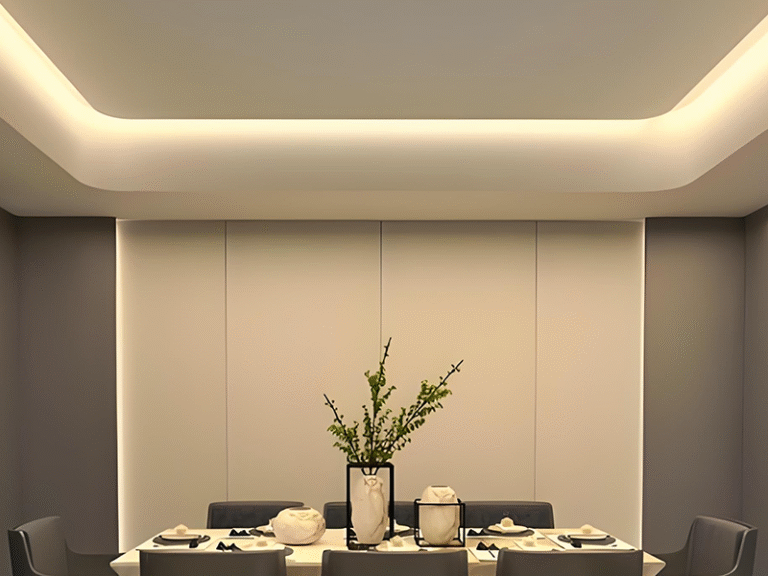

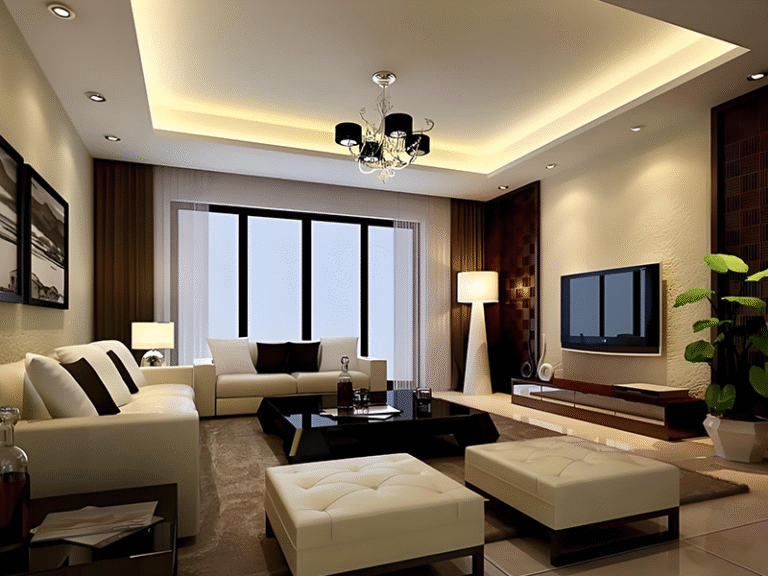

Applications of SMD LED strips

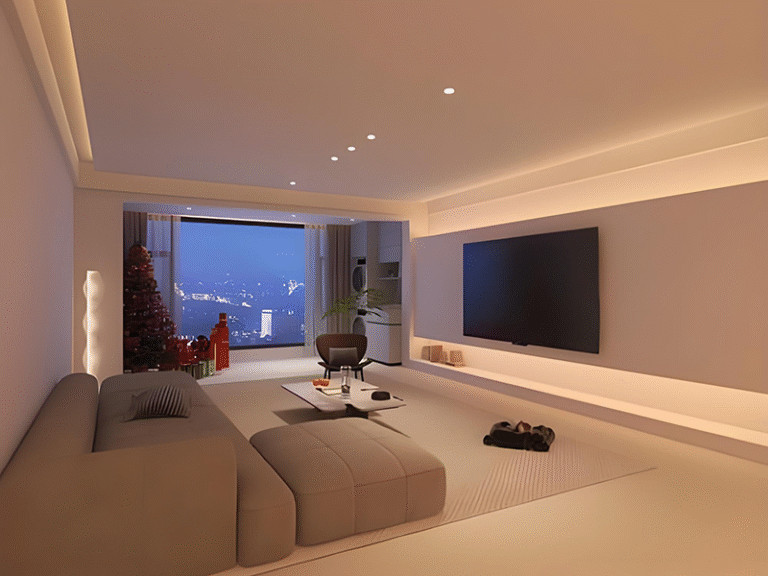

SMD Mono color 2835 led strip light are widely used in areas requiring stable color and uniform illumination, such as commercial displays, cabinet lighting, ceiling lines, background walls, office spaces, and hotel decoration. With a fixed color temperature design—available in warm white, neutral white, or cool white—they create various lighting atmospheres to suit different environments. Featuring high color rendering, low energy consumption, and long lifespan, they are ideal for professional lighting applications that demand consistent brightness and visual comfort.

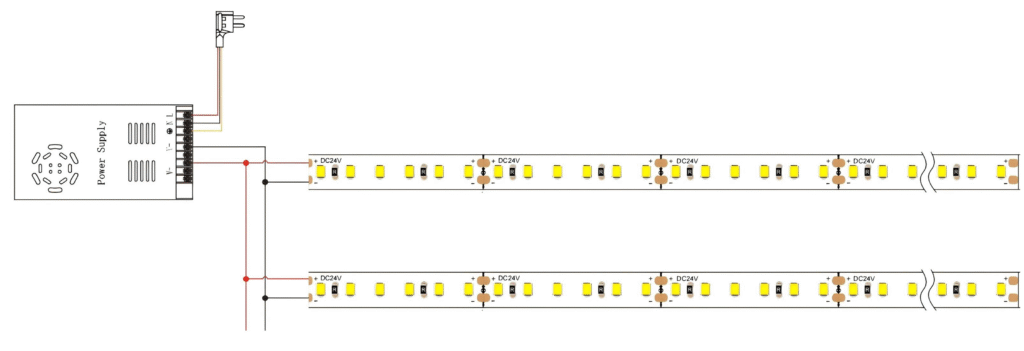

How to set up the SMD LED Strip
The wiring of an SMD Mono-color led strip lights warm white typically uses a constant voltage DC power supply (commonly 12V or 24V). The positive terminal of the power supply (V+) connects to the positive terminal of the strip, and the negative terminal (V−) connects to the negative terminal of the strip. To maintain consistent brightness and stable voltage, it is recommended to supply power in parallel every 5 meters to prevent voltage drop over long distances. During installation, use a constant voltage power supply and reverse-polarity-protected connectors that match the required power rating to ensure system safety, reliability, and uniform illumination — ideal for cabinet lighting, cove lighting, and display applications.
Classification and Product Specifications
SMD Mono color warm white led lights are mainly classified into two types: 120 LEDs and 240 LEDs. The 120 LEDs version features a standard density layout, offering uniform brightness and lower power consumption, ideal for basic lighting and decorative applications. The 240 LEDs version adopts a high-density design with closer LED spacing, providing higher brightness and smoother, more continuous light output—perfect for commercial spaces or precise lighting environments that demand superior illumination uniformity. Both types are available in a wide range of color temperatures (2700K–6500K) to suit different atmospheres and lighting needs.
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
8mm | 120LEDs | 12/24V | 25/50mm | 19.2W | 120° | Ra＞90 | WW/NW/CW |
10mm | 120LEDs | 12/24V | 25/50mm | 24W | 120° | Ra＞90 | WW/NW/CW |
10mm | 240LEDs | 24V | 25mm | 24W | 120° | Ra＞90 | WW/NW/CW |
LED SMD Mono Color Product video
The SMD Mono color cool white led strip lights delivers uniform and continuous linear illumination through high-brightness SMD chips, ensuring stable color temperature and excellent color rendering. Its clean single-tone design enhances spatial layering, making it ideal for cabinet lighting, display showcases, ceiling outlines, and commercial decoration. In video presentations, Mono color led strip light 24v exhibits a professional, flicker-free lighting effect that highlights the product’s high quality and visual consistency.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.
LED Light Controller
LED SMD single color cool white led tape are typically equipped with a constant voltage power supply system and a simple control module. The power supply usually operates on DC 12V or 24V input and features overload, overvoltage, and short-circuit protection to ensure stable operation and consistent brightness over time. The control part often includes switch, dimming, or sensor controllers, enabling stepless brightness adjustment through PWM signals. This configuration is compatible with various installation environments and lighting needs, making it ideal for commercial, display, and indoor ambient lighting applications.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
