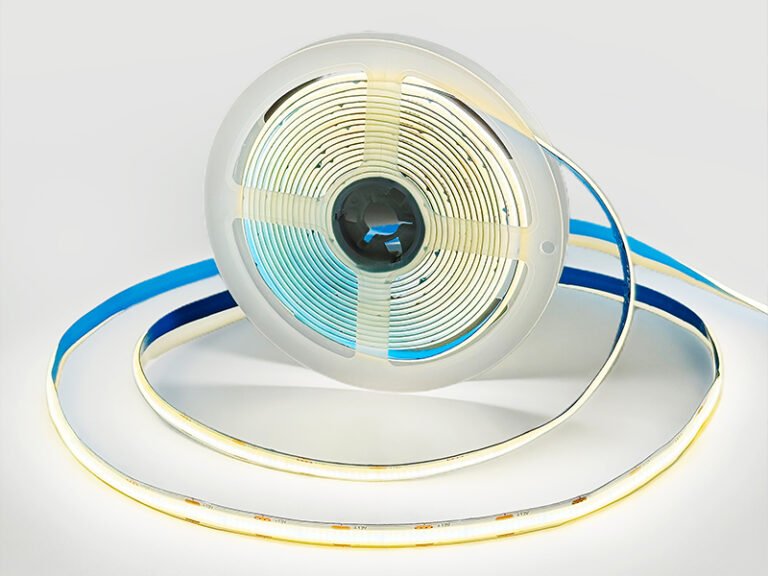

High-brightness single-color COB strip light, mini cut, ultra-narrow channel installation.
- High-density COB chips for dotless lighting
- Uniform light output without visible spots
- Flexible PCB for curved installations
- Wide 180° beam angle illumination
- Available in multiple color temperatures
- 12V and 24V voltage options
- Cuttable design for easy length adjustment
- Suitable for cabinet and linear lighting applications
Single Color COB LED Strip Light Index
What is COB single color led strip lights?
The COB single color led strip lights uses advanced Chip On Board (COB) technology to deliver a high-density, seamless lighting effect with no visible light dots, offering only three fixed color temperature options: pure white, warm white, and cool white. It provides uniform, delicate illumination with high color rendering, making it ideal for both decorative and functional lighting in applications such as cabinets, display cases, ceiling coves, and shop windows. With flexible design, long lifespan, and easy installation, it allows users to choose the right color temperature to create bright, cozy, or refreshing lighting atmospheres.
The difference between COB and SMD
Comparing to Surface Mounted Devices(SMD) led strip, COB LED strips offer wider beam angle, higher CRI and more uniform lighting. It is with a 180-degree beam angle, Free cutting of LED cob light strip. 90 CRI and dotless light illumination, flexible, energy efficiency, excellent heat dissipation and long lifespan.

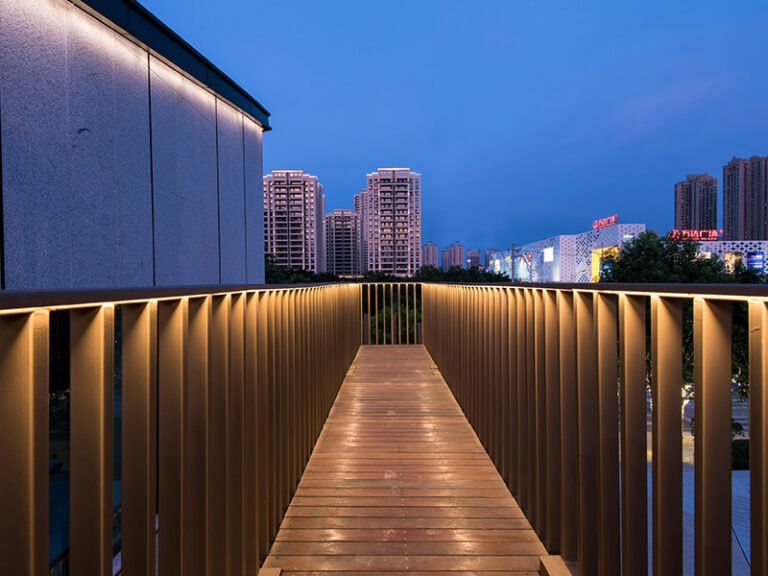

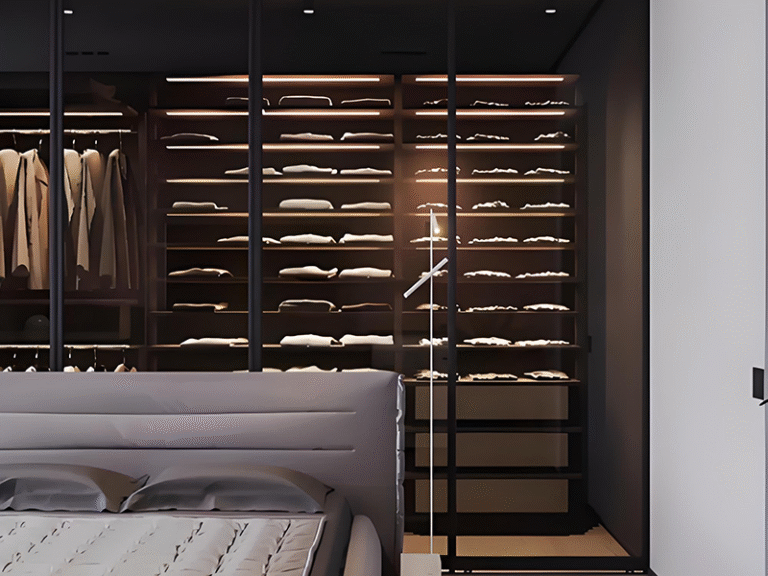

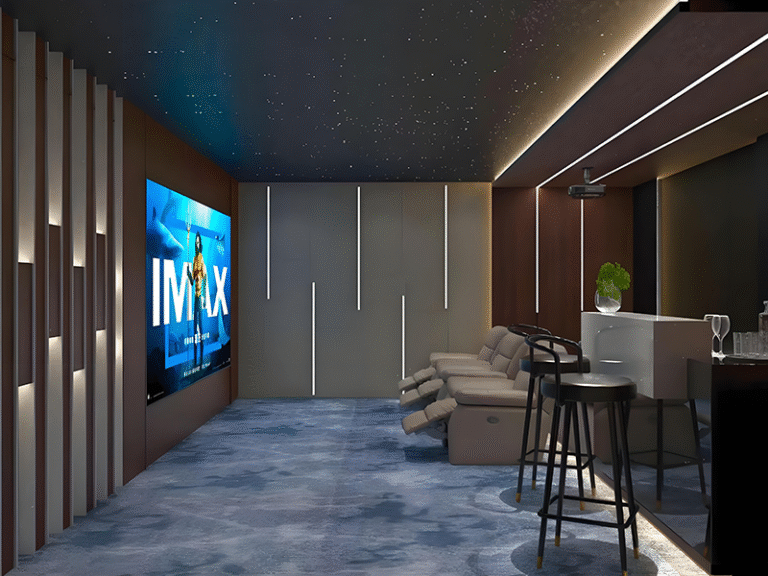

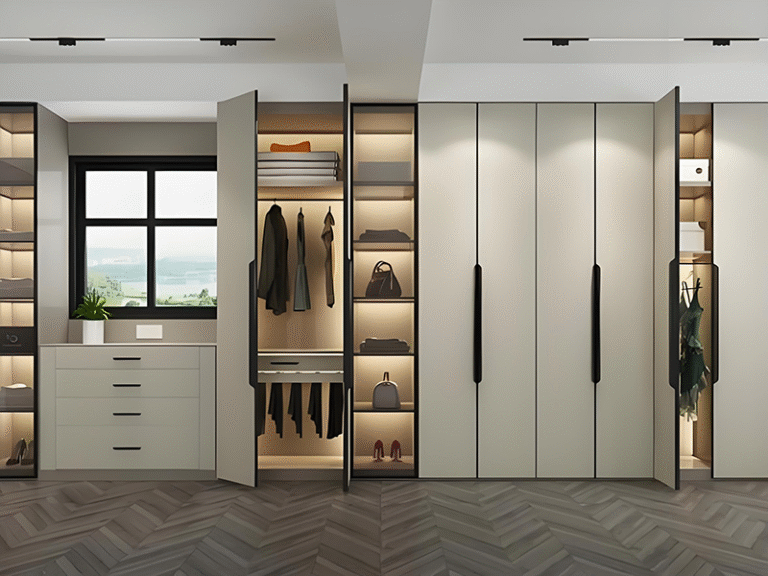

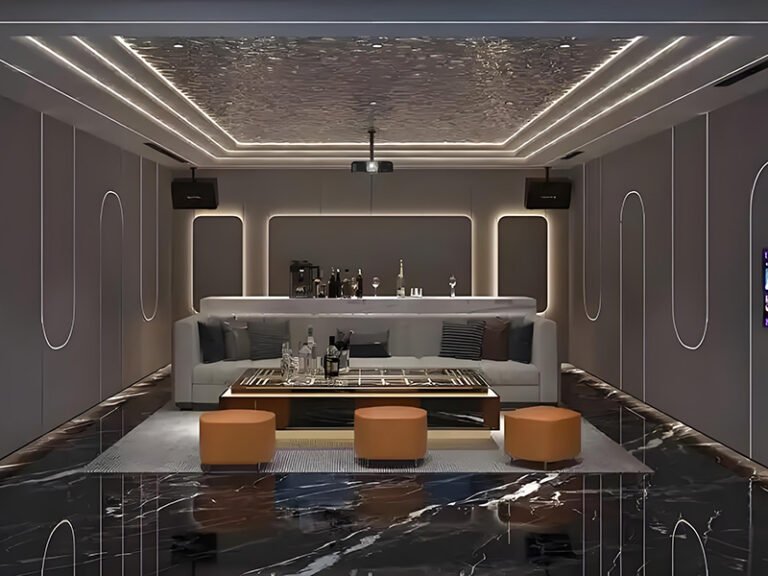

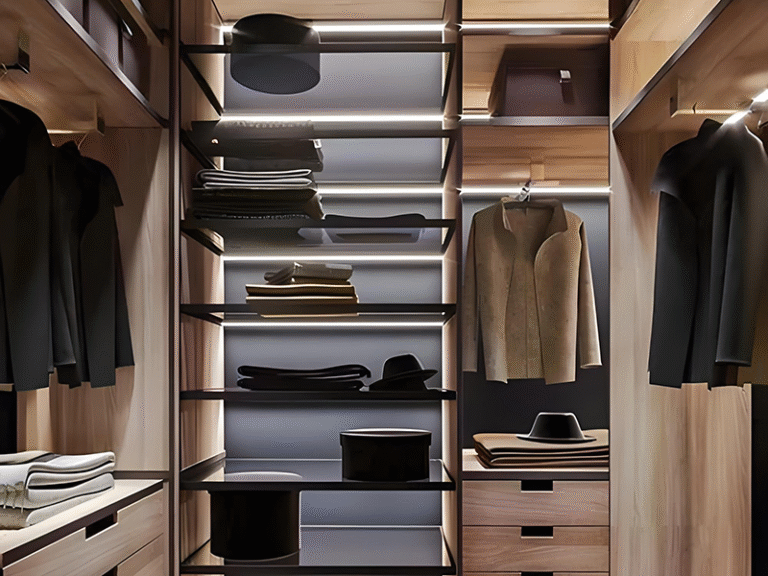

Applications of Single Color LED Strip
Be known as dotless and high CRI led strip lights, cob led strip are widely adopted in high-end indoor and outdoor scenarios. Such as: Cabinet lighting, Kitchen/bathroom Lighting, Residential lighting, Commercial lighting, Entertainment lighting, Landscape lighting, Architectural lighting, high CRI LED strip.
How to produce the COB LED Strip
We combine advanced technology with rigorous quality control to manufacture high-performance LED lighting products. Our production line is fully equipped with industry-leading machines and testing systems to guarantee precision and reliability at every stage.
Step1. Solder Past Printing
Step2. Flip Chip Bonding
Step3. Reflow Soldering
Step4. Testing Machine
Step5. Automated Dispensing
Step6. Oven
Step7. After Welding
Step8. Reeling & Labeling
Step9. Aging
Step10. Final Testing
Step11. Packing

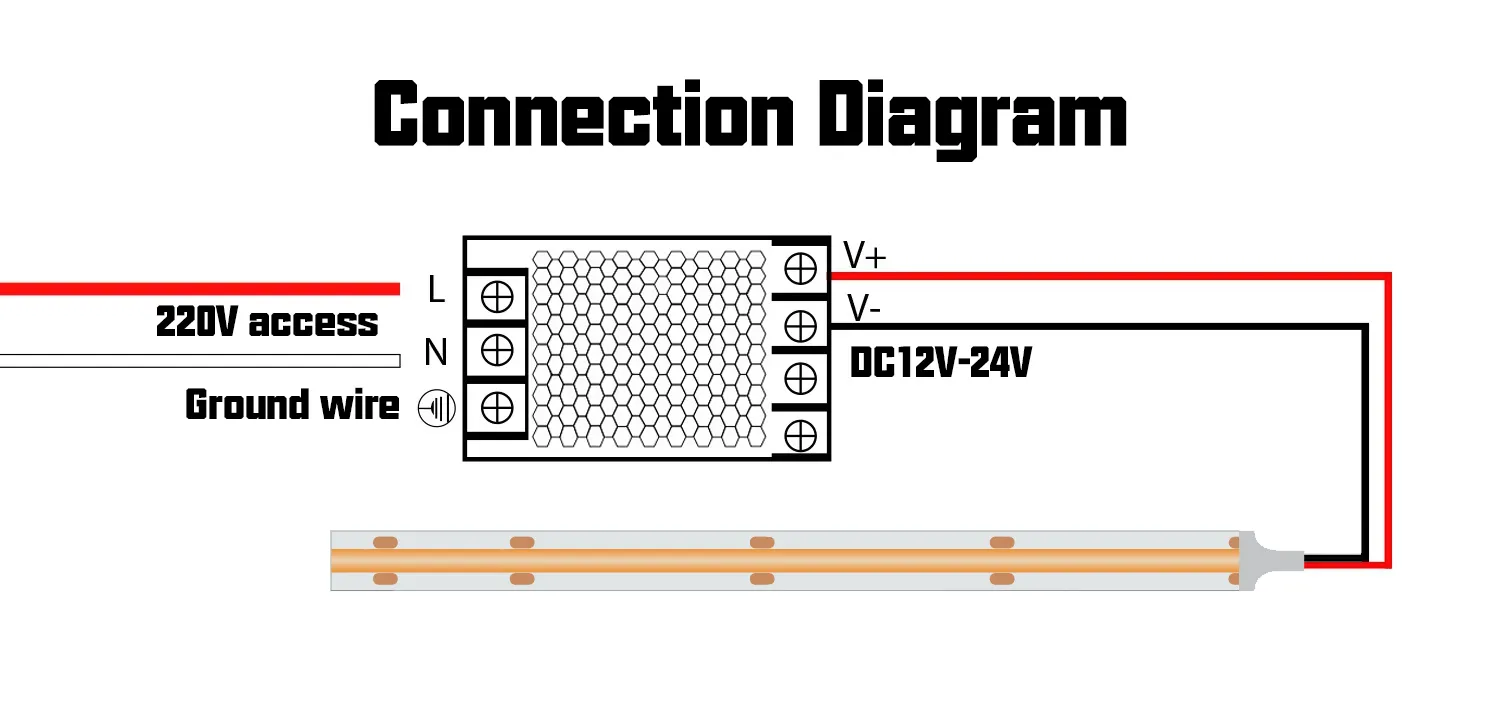

How to set up the COB LED Strip
The working voltage of the COB single led lights are DC 12V or DC 24V, it needs the constant voltage led driver (LED power supply) to light up as below.
How to connect the COB LED strip lights by led strip connector
We have different type of connector to fit for different led strips. There are 2pin 3pin 4pin 5pin and 6pin to fit for 5mm 6mm 8mm 10mm 12mm PCB width LED strips. And there are Strip to Wire, Strip to Strip, Corner 3 different applications like below.

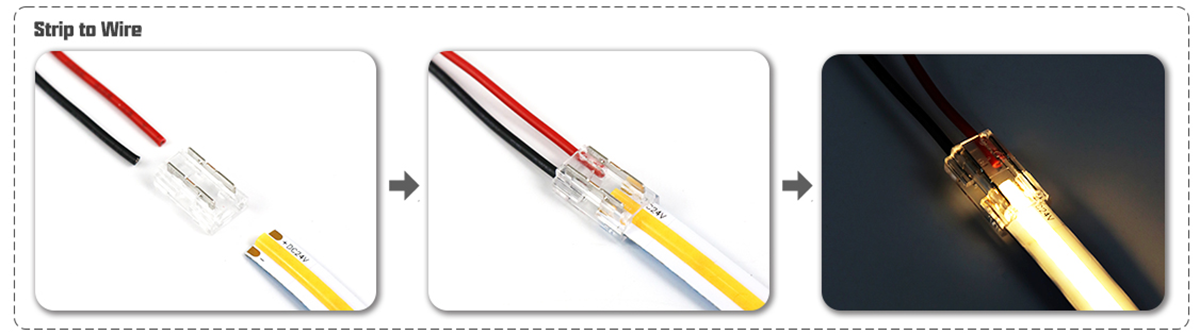

1. Strip to wire
When you cut lengths of the led strip from a reel and it without wire, you can select the led strip to wire connector as below.

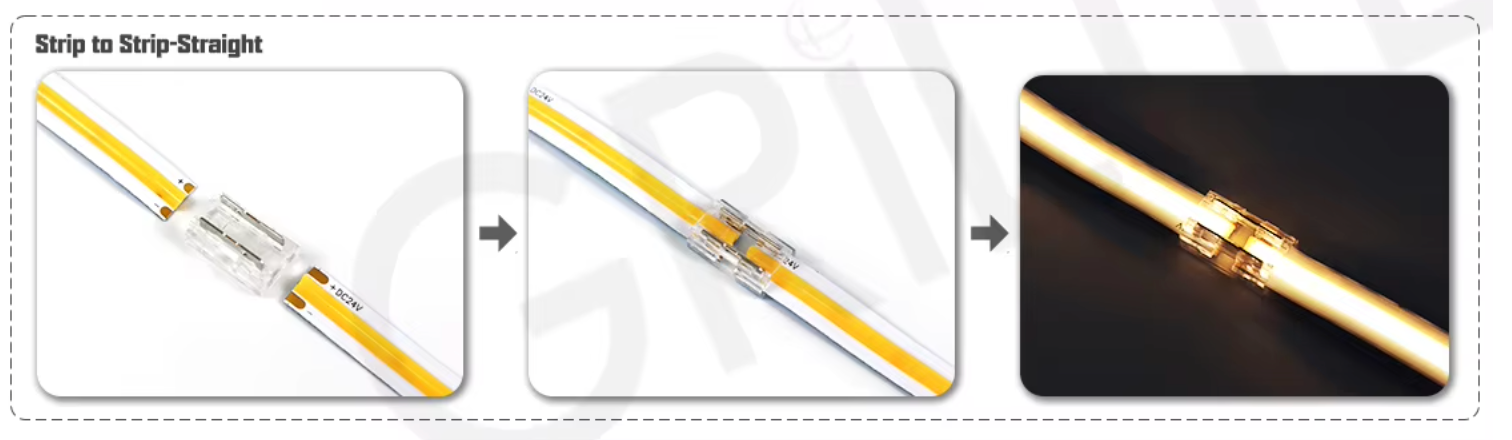

2. Strip to strip
When you need to connecting another led strip to the existing one, you can use the led strip to strip connector as below.

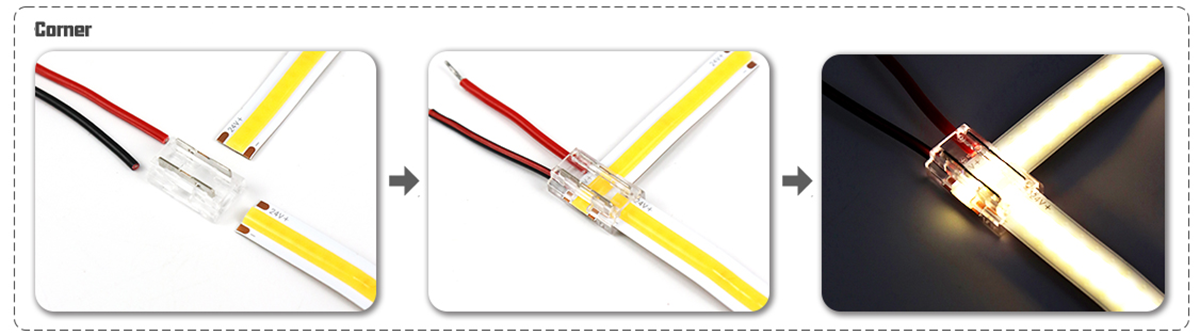

3. Corner
When you need to connect led strips in Corner, you can use led strip corner connector as below.
Classification
Single color COB LED light strip are mainly divided into 320 LEDS ,480LEDS,and 528 LEDS.
| PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
| 8mm | 320LEDs | 12V | 25mm | 8W | 120° | 90 | WW/NW/CW |
| 8mm | 320LEDs | 24V | 50mm | 8W | 120° | 90 | WW/NW/CW |
| 8mm | 480LEDs | 12V | 25mm | 10.5W | 120° | 90 | WW/NW/CW |
| 8mm | 480LEDs | 24V | 50mm | 10.5W | 120° | 90 | WW/NW/CW |
| 10mm | 528LEDs | 12V | 22.73mm | 14W | 120° | 90 | WW/NW/CW |
| 10mm | 528LEDs | 24V | 45.45mm | 14W | 120° | 90 | WW/NW/CW |
Single Color COB cct led light Product video
LED single color cob light is a lighting product based on on-chip chip technology, which forms a high-density and highly uniform light source by directly packaging multiple LED chips on a substrate. Single color cob led strip is widely used in home, commercial, industrial, and outdoor scenes due to its uniform light efficiency, high efficiency, energy saving, and long lifespan, meeting diverse needs from basic lighting to professional design. Single color cob led tape Its technological advantages not only improve the quality of lighting, but also promote the development trend of green energy conservation and intelligent lighting.
How to Choose the Right Single Color LED Strip

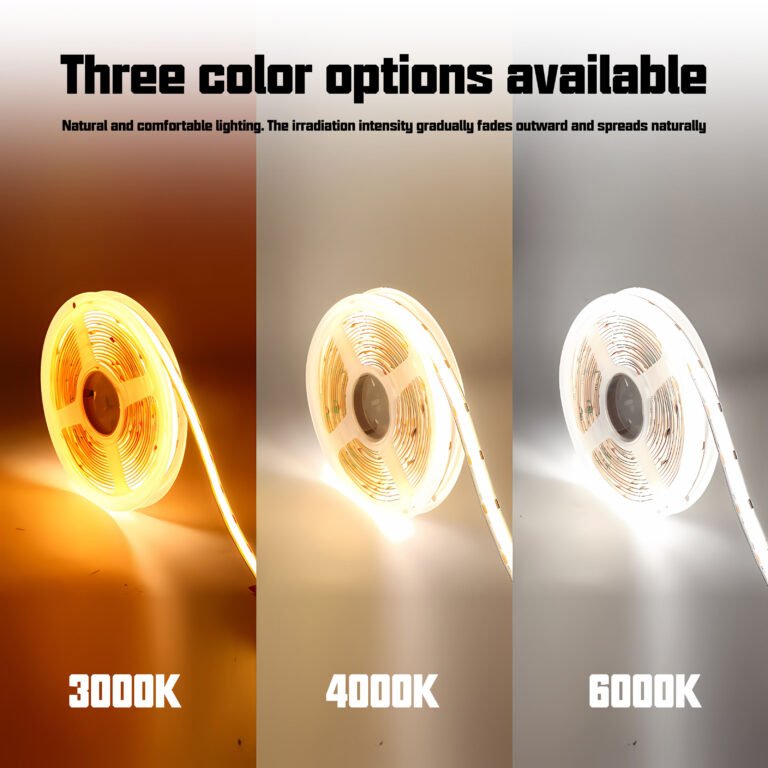

When selecting a single color LED strip, focus on several key specifications. Choose the voltage (12V or 24V) according to the installation length and power supply. Select the appropriate color temperature, such as 3000K, 4000K, or 6000K, based on the lighting environment. Check the power and brightness (W/m and lumens) to ensure the strip meets illumination requirements. The PCB width and cutting length should match the installation channel or aluminum profile. If the strip will be used in humid or outdoor areas, select the appropriate IP waterproof rating. These factors determine whether the LED strip fits the installation structure and lighting requirements.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.
LED Light Controller
For controlling COB (Chip-on-Board) LED strips. Remote control LED strip lights. Enables smooth dimming, dynamic color transitions, and preset modes (static, flash, fade). Compatible with 12V/24V strips, supports remote/app control (via Bluetooth/Wi-Fi). Ideal for home, commercial, or decorative lighting. Energy-efficient, durable, and easy to install.
FAQ – Single Color LED Strip Lights
1. What is a single color LED strip light?
A single color LED strip light emits one fixed color such as warm white, cool white, red, green, or blue. It provides stable and uniform lighting and is widely used in commercial and architectural lighting applications.
2. What voltage do single color LED strips use?
Most single color LED strips operate at DC12V or DC24V. These low-voltage systems require a compatible LED power supply to ensure stable performance and long lifespan.
3. Can single color LED strips be cut?
Yes. Most LED strip lights are designed with cutting marks that allow users to trim the strip to the desired length without affecting the remaining section.
4. How do you install a single color LED strip light?
Single color LED strips are typically installed using adhesive backing, aluminum channels, or mounting clips. Proper power supply connection and heat dissipation help ensure reliable operation.
5. What color temperatures are available for white LED strips?
White single color LED strips are available in different color temperatures, including Warm White (2700K–3000K), Natural White (4000K), and Cool White (6000K–6500K).
6. What are the common applications of single color LED strip lights?
Single color LED strips are widely used for cabinet lighting, display lighting, architectural lighting, signage illumination, and commercial decorative lighting.
7. What is the difference between single color LED strips and RGB LED strips?
Single color LED strips produce one fixed color, while RGB LED strips can change colors through a controller to create dynamic lighting effects.
Waterproof Rating Guide for LED Strip Lights
Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
