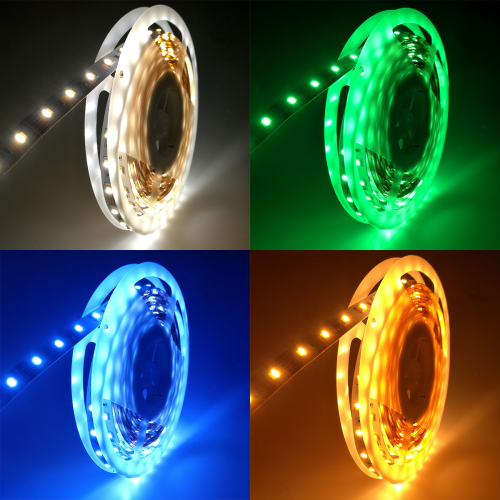

Standard RGB RGBW RGBWW LED Strip Light
- Bright and vivid colors
- Flexible installation and cutting
- Supports flexible color changes
- Uniform light with no dark spots
- Energy-efficient and long-lasting
- Suitable for multiple lighting scenes
- Compatible with various controllers
- Stable heat dissipation performance
Standard RGB RGBW RGBWW LED Strip Light Index

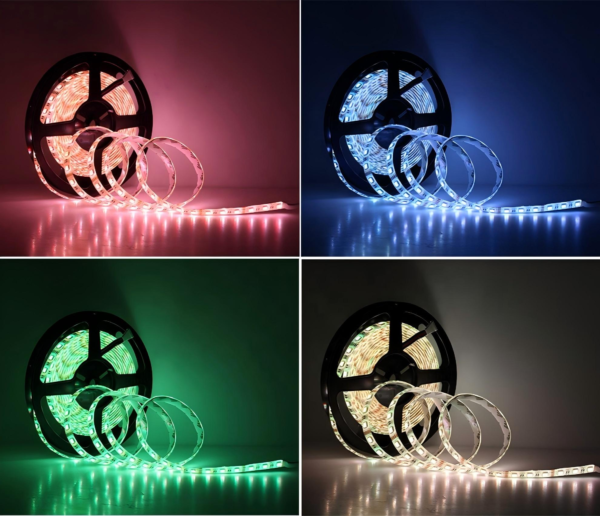

What is Standard RGB RGBW RGBWW SMD led strip light?
LED SMD Standard rgb rgbw rgbww led strip lights are multi-color lighting products using Surface-Mounted Device (SMD) technology. The RGB type combines red, green, and blue chips to produce a wide range of colors, while the RGBW type adds an independent white chip for purer white light and an extended color ga mut. These light strips typically support PWM or DMX512 control systems, enabling dimming, color adjustment, and dynamic lighting effects. With features such as high brightness, low power consumption, flexibility, and cuttable design, they are widely used in commercial lighting, decorative lighting, stage illumination, and smart home applications.
How to produce the SMD LED Strip
The SMD LED strip production process includes PCB mounting, SMD chip placement, reflow soldering, waterproof sealing, aging test, and final quality inspection to ensure stable performance and consistent light output.
Step1. Solder Past Printing.pic
Step2. SMT.pic
Step3. Reflow Soldering.pic
Step4. Testing.pic
Step5. After Welding.pic
Step6. Aging.pic
Step7. Reeling & Labeling.pic
Step8. Final Testing.pic
Step9. Packing.pic
Applications of SMD LED strips

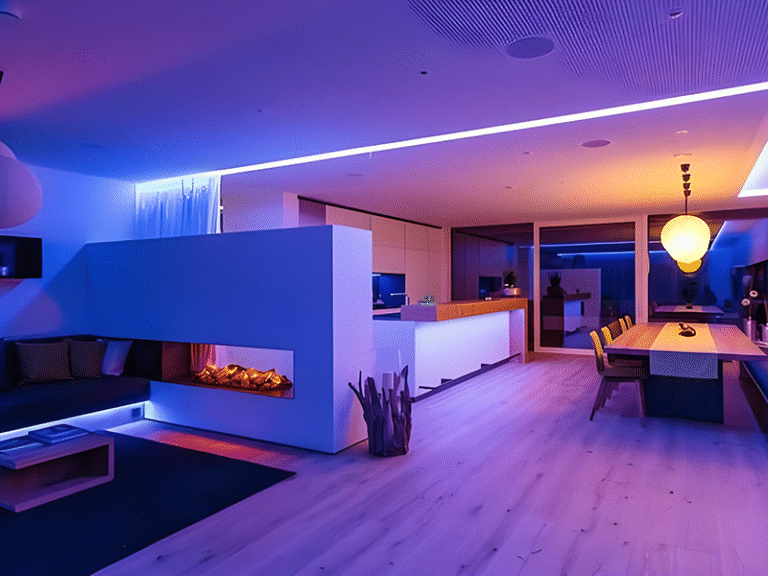

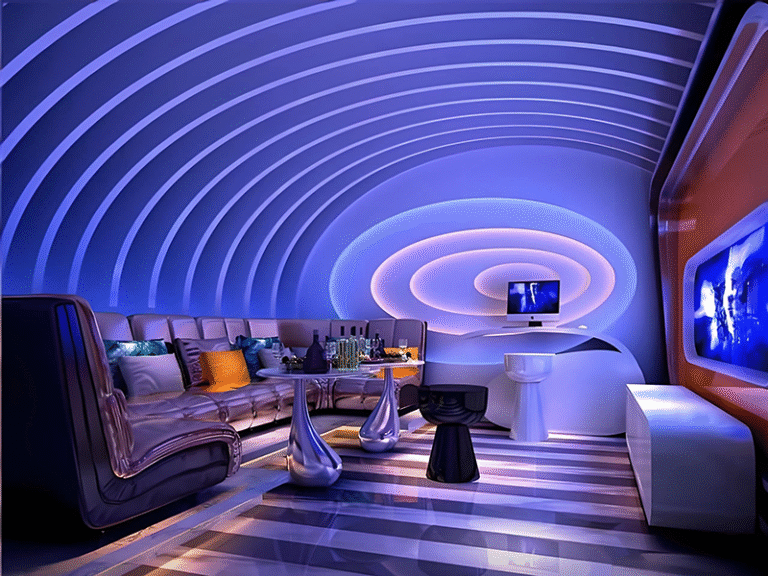

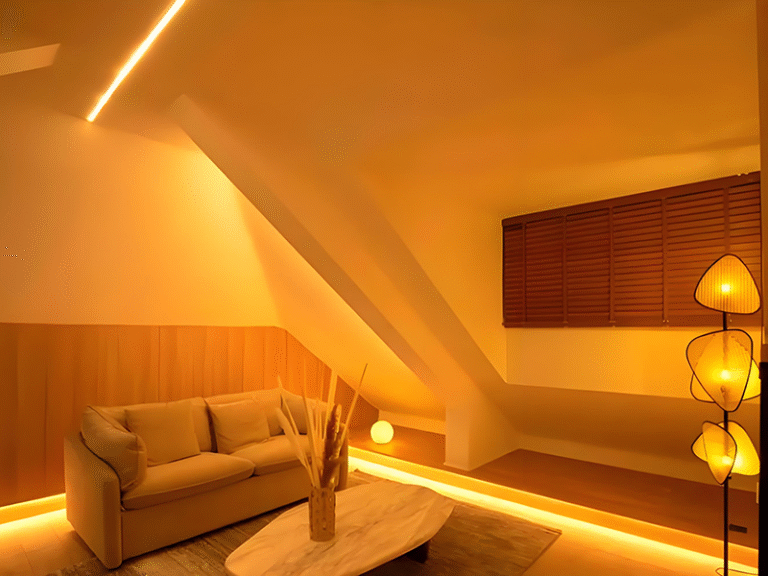

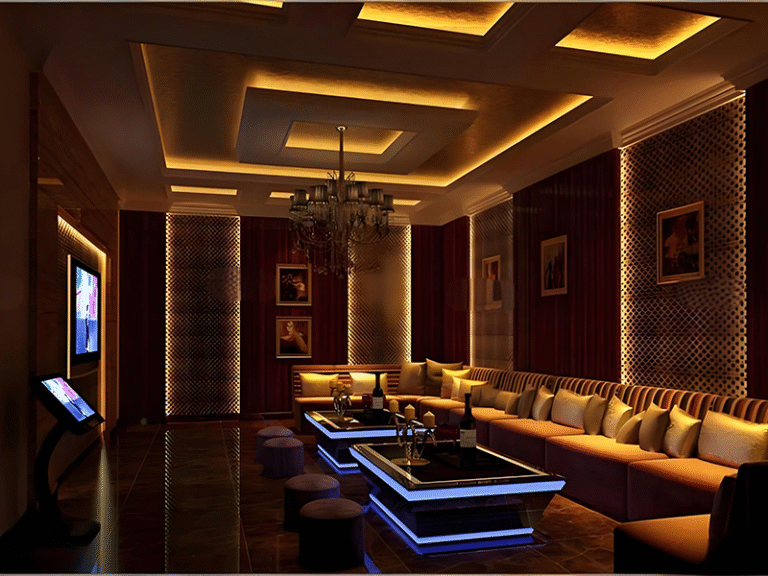

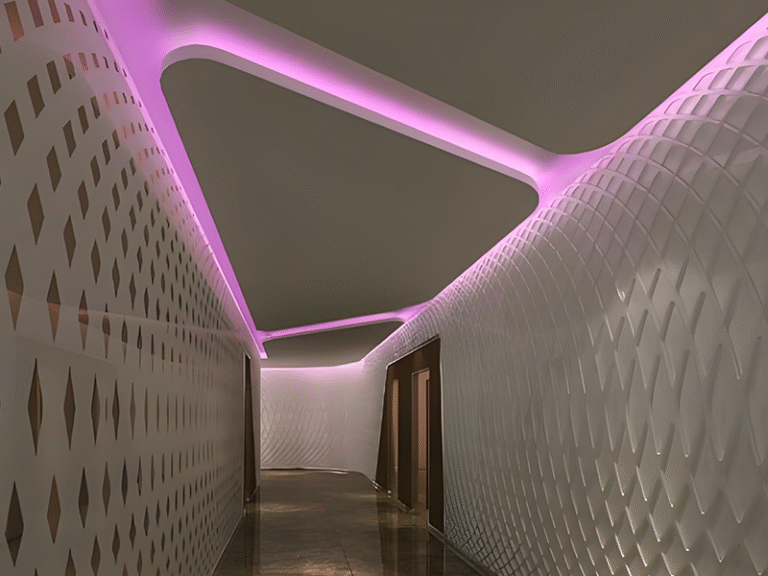

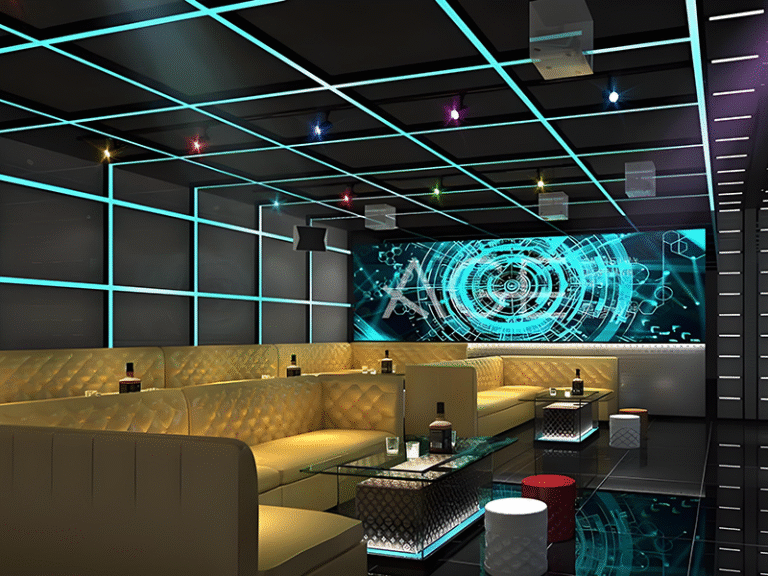

LED SMD Standard rgb rgbw led strip lights are widely used in commercial lighting, interior decoration, stage lighting, exhibitions, advertising signs, and architectural outlines. With rich color variations and flexible control options, they can create diverse dynamic effects and multi-layered visual atmospheres. The RGB type is ideal for vibrant decorative lighting, while the RGBW version adds pure white light, making it suitable for spaces that require both ambient and functional lighting, such as hotel lobbies, bars, shop windows, and home ambiance lighting.
How to set up the SMD LED Strip

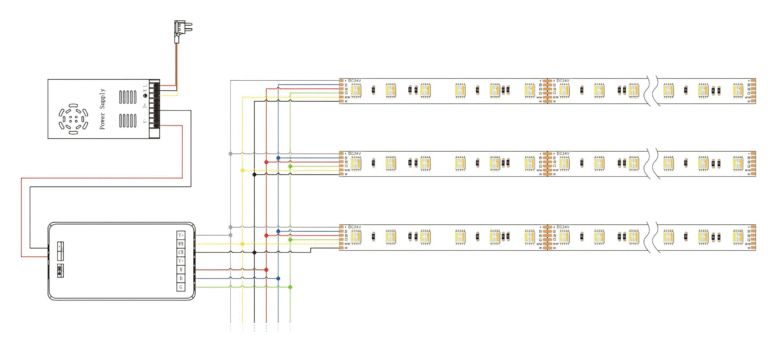

The wiring of Standard RGB/RGBW/RGBWW light strip typically follows a constant voltage design, connecting the positive power line (+24V or +12V) with each color channel signal wire for control. The rgb led lights includes three channels: R, G, and B; the rgbw led light adds an independent white (W) channel; while the rgbww light strip extends to five channels: RGB + WW (warm white) + CW (cool white). Each signal wire connects to the corresponding output terminal of the controller, with the controller input linked to the power supply and signal source (such as DMX or PWM), enabling multi-color dimming and dynamic lighting effects.

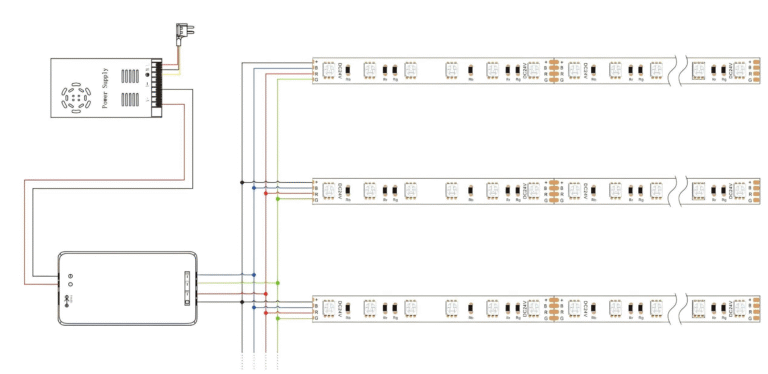

RGB

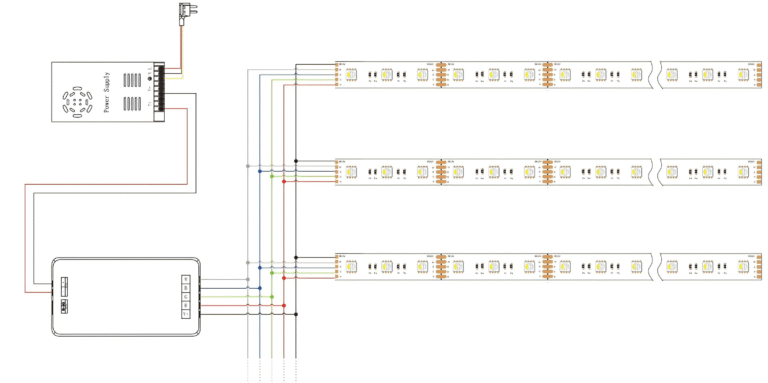

RGBW
RGBWW
Classification and Product Specifications
LED SMD Standard RGB RGBW RGBWW led color changing lights are categorized into three types: RGB, RGBW, and RGBCT. The RGB type mixes red, green, and blue chips to create dynamic color-changing effects, ideal for decorative lighting. The RGBW type adds an independent white chip to produce purer white light and richer color layers. The RGBCT type integrates tunable white functionality, allowing smooth adjustment between warm and cool tones while maintaining RGB color effects—perfect for versatile ambient lighting in both commercial and residential spaces.
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
8mm | 60LEDs | 24V | 100mm | 12W | 120° | / | RGB |
10mm | 60LEDs | 12/24V | 50/100mm | 14.4W | 120° | / | RGB |
12mm | 60LEDs | 12/24V | 50/100mm | 19.2W | 120° | Ra＞80 | RGBW |
12mm | 72LEDs | 24V | 83.3mm | 23W | 120° | Ra＞80 | RGBW |
12mm | 84LEDs | 12/24V | 35.7/71.4mm | 26.8W | 120° | Ra＞80 | RGBW |
12mm | 96LEDs | 24V | 62.5mm | 30.7W | 120° | Ra＞80 | RGBW |
12mm | 60LEDs | 24V | 100mm | 19.2W | 120° | Ra＞80 | RGBWW |
LED Standard RGB RGBW RGBWW Product video
The video showcases LED SMD Standard RGBWW dimmable led strip lights with vibrant color performance and flexible lighting effects. The RGB strip delivers rich three-color mixing; the RGBW version adds pure white light for wider applications; and the RGBCT model allows adjustable color temperature for smooth transitions from warm to cool tones. Overall, the strips feature uniform brightness, vivid colors, and responsive control, making them ideal for commercial spaces, home ambiance, and stage decoration lighting.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.

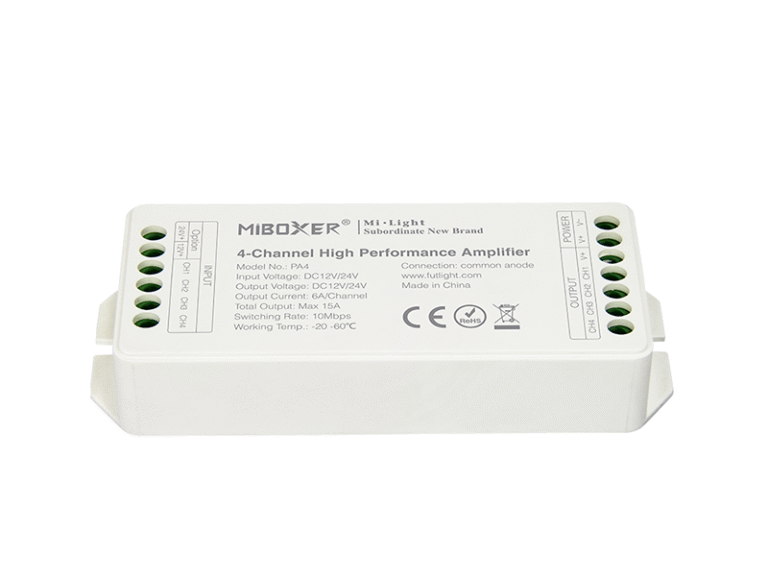

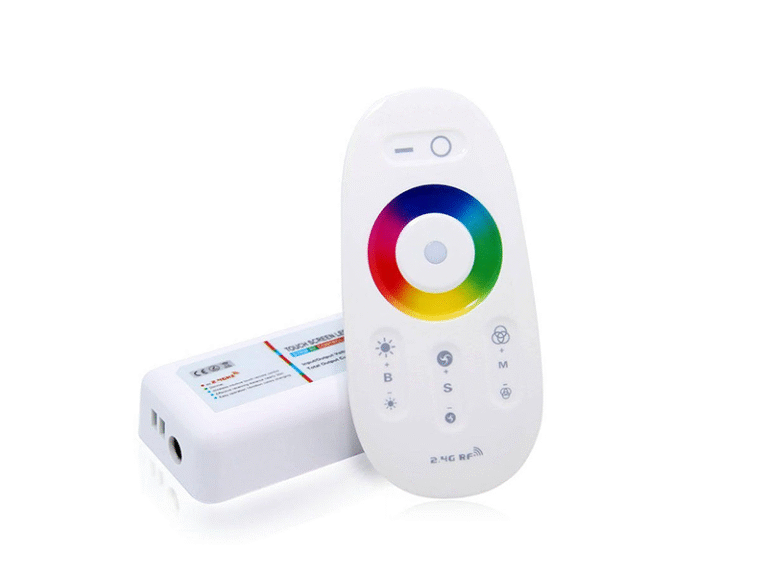

LED Light Controller
Standard RGB, RGBWW, and RGBW led tape light typically use constant-voltage DC power supplies (commonly 12V or 24V) with overload, overvoltage, and short-circuit protection to ensure safe and stable operation. The controllers usually adopt PWM or DMX512 signal control, enabling multi-color mixing, brightness adjustment, dynamic color changes, and scene programming. RGBW and RGBCT models are equipped with multi-channel control systems that independently manage the white or color temperature channels, making them ideal for commercial lighting, ambient decoration, and smart lighting applications.
Waterproof Classification
Waterproof Rating Guide for LED Strip Lights. Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
