360 Degree Neon Flex Series
- 5-year warranty
- Long operating life
- Waterproof and durable
- Widely applicable scenarios
- 360 degree full circle illumination
- Flexibility and ease of installation
- Energy saving, environmental protection
- High brightness and uniform lighting effect
360 Degree Neon Flex Series Index
360 Degree Neon Flex series Supplier & Manufacturer
GRILITELUX(GRILIGHT) is a professional smd and cob led strip Light Manufacturer in China. We have been specializing in LED strip and neon LED strip for over 13 years.
All of our products are CE, UKCA approved, and some are ETL UL CUL listed. We accept to supply OEM, ODM or other custom LED strip lights.
GRILITELUX cooperated with the clients who doing led lights wholesale, led strip wholesale, led electric wholesale, led lighting contractors, LED light distributor and furniture maker&designer who need led light furniture.
Produce
1. Raw material preparation
Purchase LED chips (high brightness chips), FPCB flexible boards, silicone rubber materials, conductive wires, connector accessories, etc. Inspect the quality of incoming materials to ensure that all components meet performance standards (such as brightness, voltage, fire rating, etc.).
2. Surface mount technology (SMT)
Attach LED chips and electronic components onto the FPCB flexible circuit board. Use reflow soldering technology to solder components to ensure reliable electrical connections.
3. Welding and Testing
Weld the wire (power cord) onto the FPCB. Preliminary lighting test to check for solder leaks and dead lights in the lamp beads.
4. Encapsulation/ Extrusion coating
Using a 360 degree silicone extrusion molding process, the entire FPCB is wrapped in silicone. Simultaneously complete the shaping and curing of the light strip, ensuring its flexibility, weather resistance, and uniformity of light.
5. Cutting and welding the tail
Cut according to customer requirements and weld the tail seal or joint.
6. Waterproof treatment
Waterproof sealing treatment shall be applied to the joint and tail of the light strip. Some models support IP67~IP68 waterproof rating and require special pressure testing.
7. Aging test
Turn on the light strip for long-term aging (usually 4-8 hours) to test its stability and heat dissipation performance.
8. Quality Inspection and Packaging
Comprehensive quality inspection (appearance, brightness, voltage, current, waterproof performance, etc.). After passing the inspection, proceed with packaging steps such as winding, labeling, bagging, and sealing.
What is 360 neon flex?
360 neon flex, also known as full circle LED light strip, is wrapped in silicone or PVC flexible material and equipped with high brightness LED beads inside, which can achieve uniform light emission in all directions without dead corners. Compared with traditional single-sided luminous light strips, its luminous angle is wider and the visual effect is better, especially suitable for scenes that require surround lighting effects.

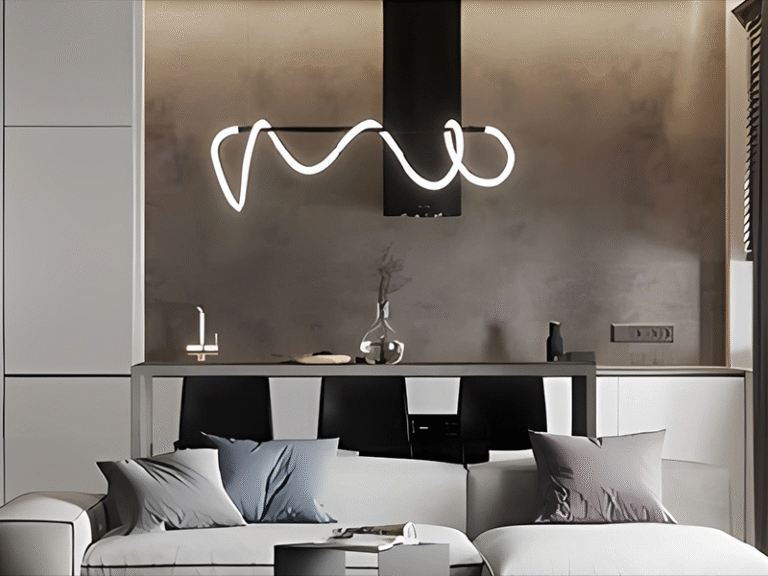

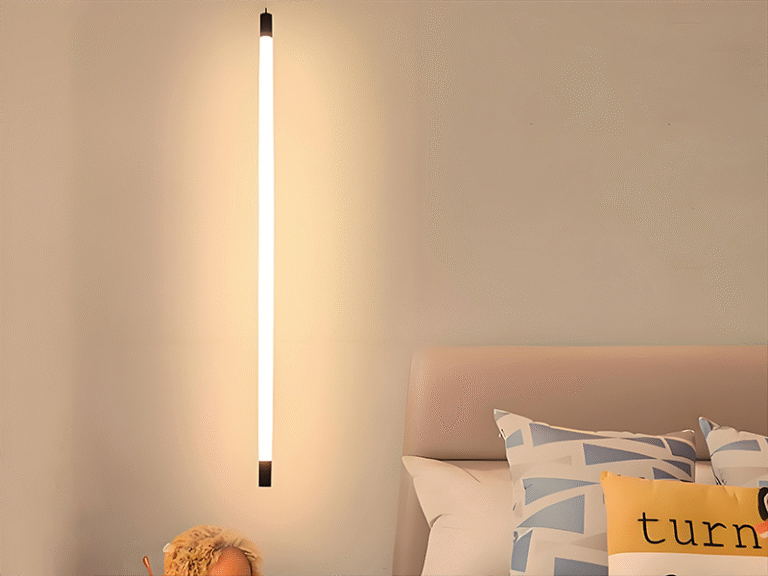

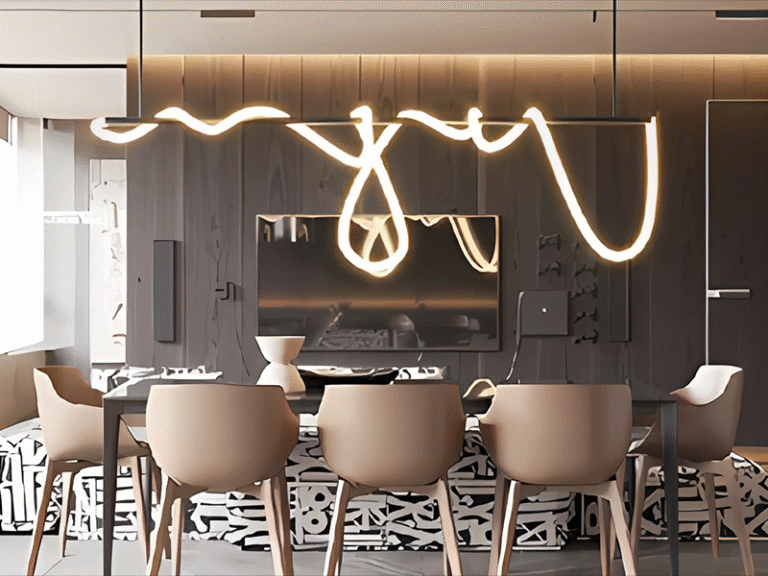

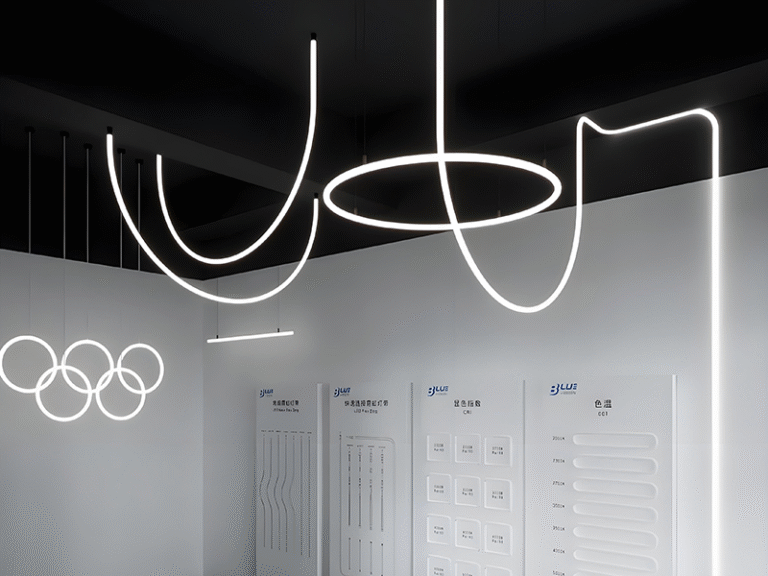

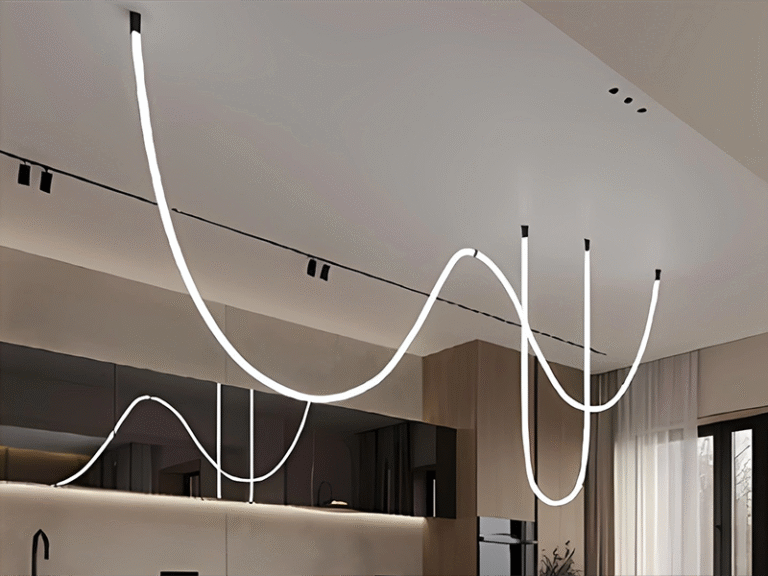

Application scenarios
Neon flex 360 are widely used in decoration, functionality, art, commerce, and other fields due to their full angle illumination, flexible installation, and energy-saving and environmentally friendly characteristics.
Classification
Below are the main classifications of our 360 degree led neon rope light.
Single neon tape
| CCT(k) | RA | Voltage | Power(W) | Lumen (LM/Mo) | Efficieny (LM/W) | Unit Length （mm） | Max. Run Length | CC/CV |
| 2100±150 | ≥90 | DC24V | 10 | 560 | 56 | 50 | 13(CC) | CC |
| 2400±150 | ≥90 | DC24V | 10 | 590 | 59 | 50 | 13(CC) | CC |
| 2700±150 | ≥90 | DC24V | 10 | 660 | 66 | 50 | 13(CC) | CC |
| 3000±150 | ≥90 | DC24V | 10 | 650 | 65 | 50 | 13(CC) | CC |
| 3500±200 | ≥90 | DC24V | 10 | 630 | 63 | 50 | 13(CC) | CC |
| 4000+200/-100 | ≥90 | DC24V | 10 | 700 | 70 | 50 | 13(CC) | CC |
| 5000+500/-300 | ≥90 | DC24V | 10 | 730 | 73 | 50 | 13(CC) | CC |
| 6500±500 | ≥90 | DC24V | 10 | 730 | 73 | 50 | 13(CC) | CC |
| Red | ≥90 | DC24V | 10 | 310 | 31 | 50 | 13(CC) | CC |
| Green | ≥90 | DC24V | 10 | 780 | 78 | 50 | 13(CC) | CC |
| Bule | ≥90 | DC24V | 10 | 160 | 16 | 50 | 13(CC) | CC |
| Yellow | ≥90 | DC24V | 10 | 240 | 24 | 50 | 13(CC) | CC |
| Pink | ≥90 | DC24V | 10 | 330 | 33 | 50 | 13(CC) | CC |
Dual neon lighting
| CCT(k) | RA | Voltage | Power(W) | Lumen (LM/Mo) | Efficieny (LM/W) | Unit Length （mm） | Max. Run Length (M) | CC/CV |
| 2700±150 | ≥90 | DC24V | 2.5 | 124 | 49 | 50 | 5 | CV |
| 6500±500 | ≥90 | DC24V | 2.5 | 127 | 50 | 50 | 5 | CV |
| 2700+6500 | ≥90 | DC24V | 5 | 250 | 50 | 50 | 5 | CV |
RGB led neon
| CCT(k) | RA | Voltage | Power(W) | Lumen (LM/Mo) | Efficieny (LM/W) | Unit Length （mm） | Max. Run Length (M) | CC/CV |
| R | — | DC24V | 3.3 | 75 | 23 | 50 | 5 | CV |
| G | — | DC24V | 3.3 | 231 | 70 | 50 | 5 | CV |
| B | — | DC24V | 3.3 | 46 | 14 | 50 | 5 | CV |
| RGB | — | DC24V | 10 | 350 | 65 | 50 | 5 | CV |

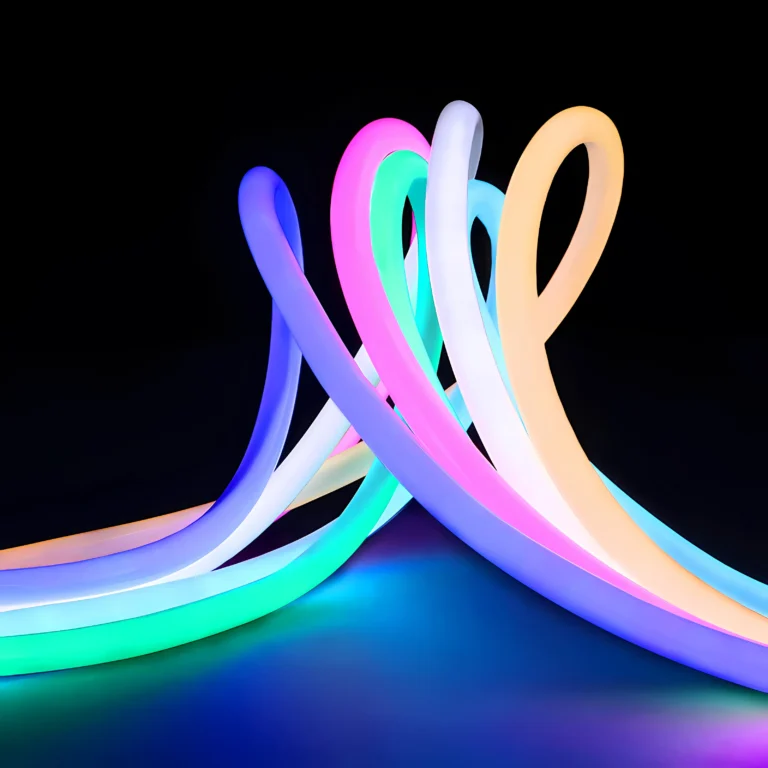

RGBW neon led tape
| CCT(k) | RA | Voltage | Power(W) | Lumen (LM/Mo) | Efficieny (LM/W) | Unit Length （mm） | Max. Run Length (M) | CC/CV |
| R | DC24V | 4.8 | 69 | 14.4 | 100 | 5 | 10 | WS2811 |
| G | DC24V | 4.8 | 219 | 45.6 | 100 | 5 | 10 | WS2811 |
| B | DC24V | 4.8 | 41 | 8.5 | 100 | 5 | 10 | WS2811 |
| RGB | DC24V | 12.5 | 294 | 23.5 | 100 | 5 | 10 | WS2811 |
The Connection of 360 degree neon flex
The wiring diagram of LED 360 degree neon flex usually includes the following steps: connect the head end of the strip through a DC power adapter (such as 12V/24V), ensure that the positive and negative poles correspond (red positive pole, black negative pole), and seal the end with a terminal plug; If segmented control or dimming is required, a controller (such as a PWM dimmer or intelligent module) should be connected in series between the power supply and the light strip; When used outdoors, waterproof glue should be used to seal the wiring joints and ensure that all interfaces are insulated; Power off operation is required before installation. After power on, test the uniformity of light emission and waterproof performance to avoid the risk of short circuit or leakage.

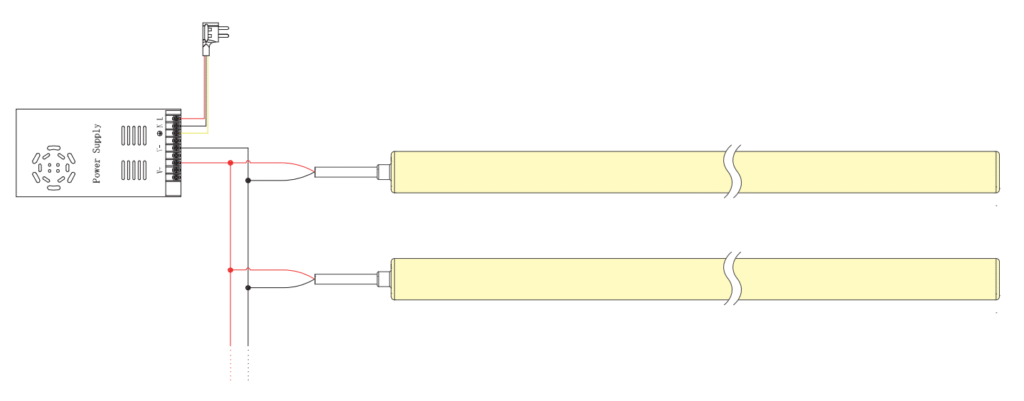

Single Color:

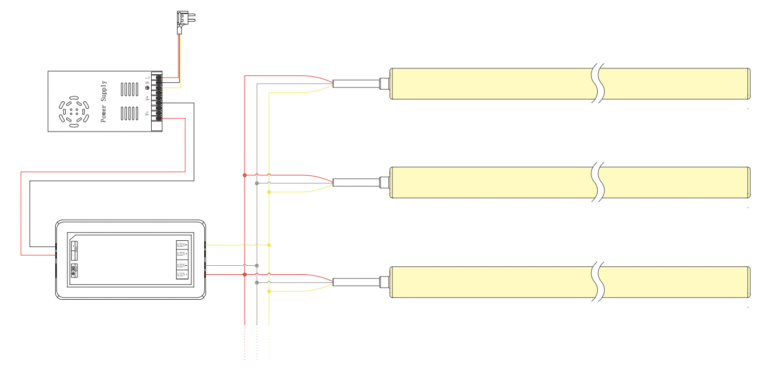

Dual Color:

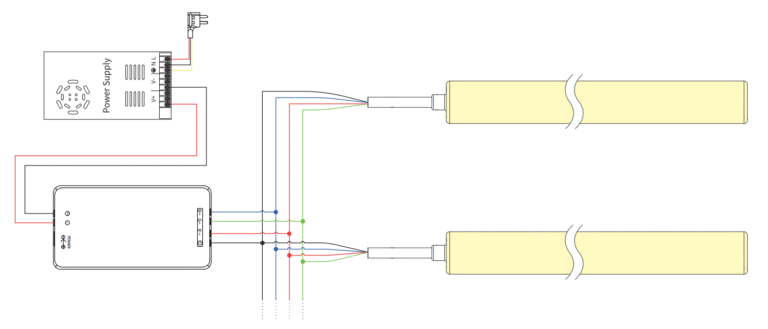

RGB:
RGBW:
Seamless 360 led neon Illumination. Powered by Advanced LED.
Seamless 360 led neon Illumination. Powered by Advanced LED. The LED 360 degree neon led tape presents its full surround uniform luminous effect through dynamic color gradient, breathing flicker, music rhythm and other modes, and is matched with building contours, home decoration or art installation scenes to highlight its high brightness, flexible bending installation and waterproof characteristics.360 degree neon led strip lights With the intelligent APP to control the picture, it creates an immersive light and shadow atmosphere, with strong visual impact, and intuitively reflects the diverse applications and technological beauty of the product.
Installation Method
The 360 neon flex has multiple installation methods, with the two main ones being wall surface mounting and ceiling pendant mounting. Details are as follows.

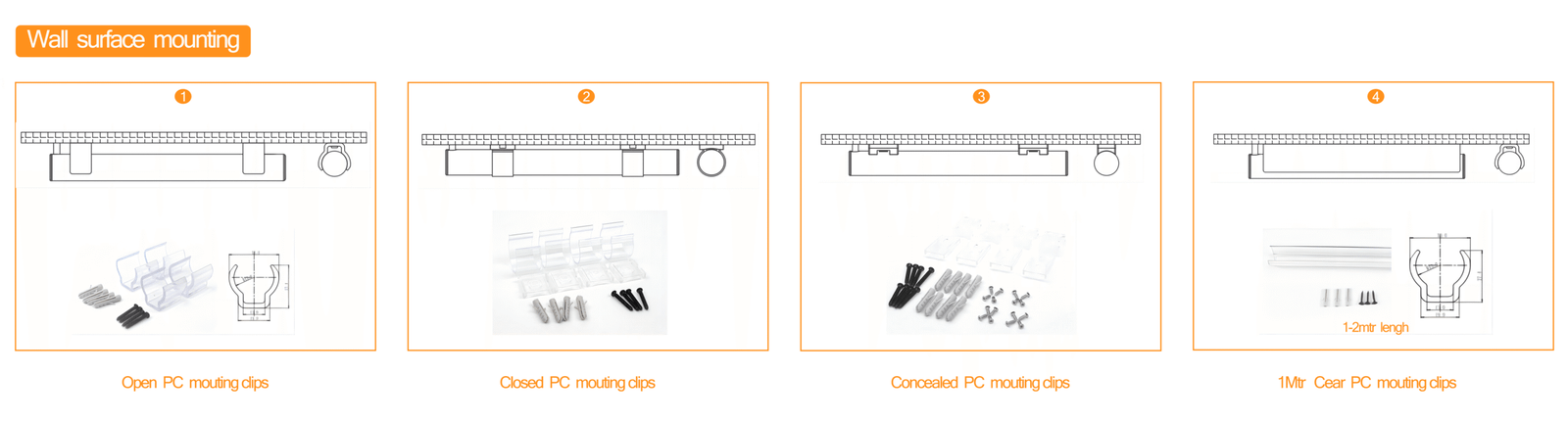

1.Wall surface mounting

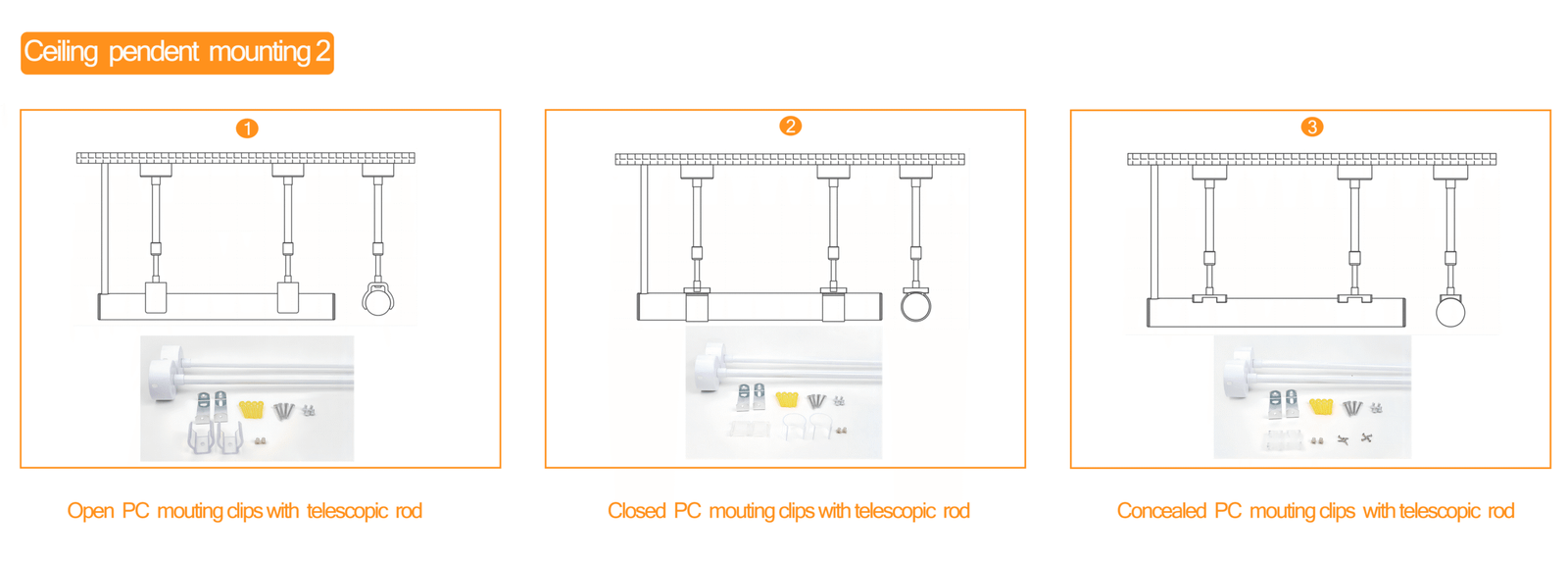

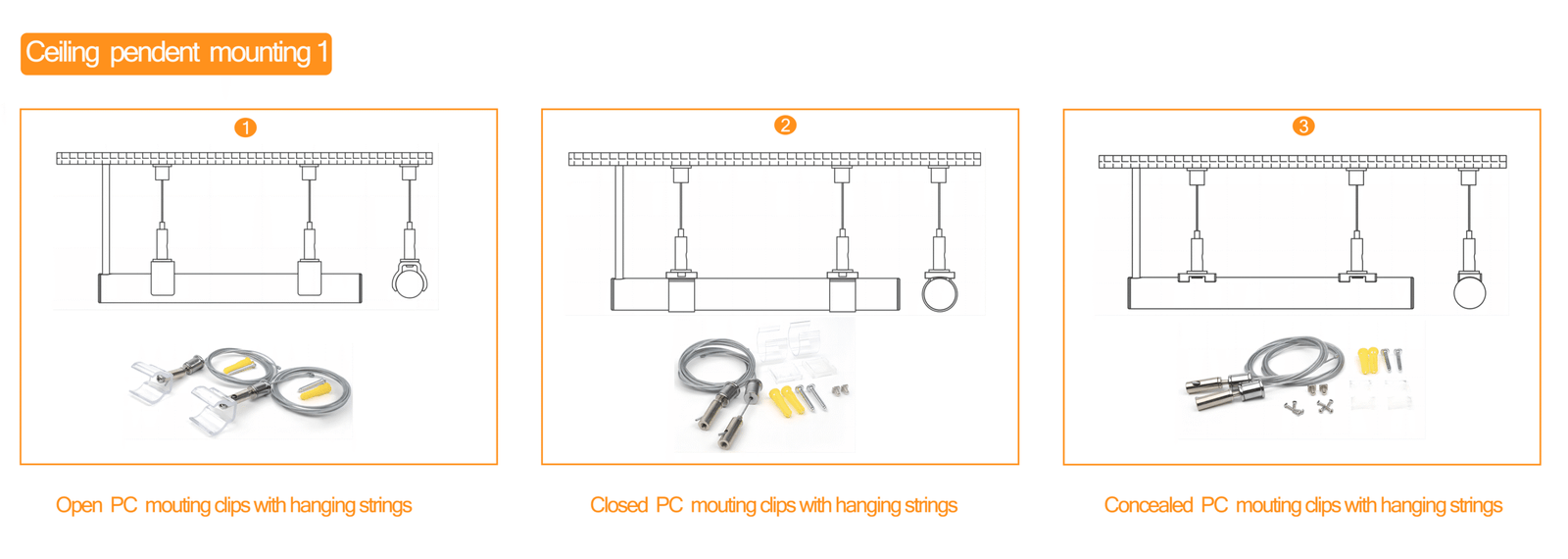

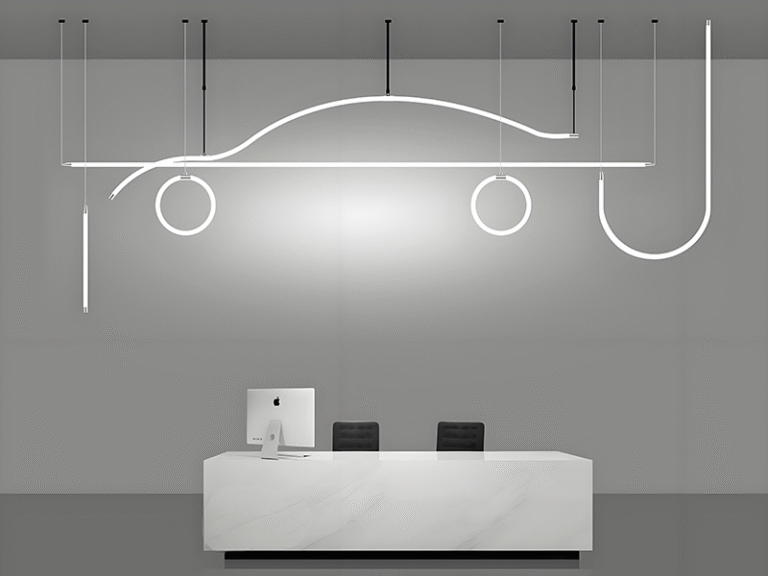

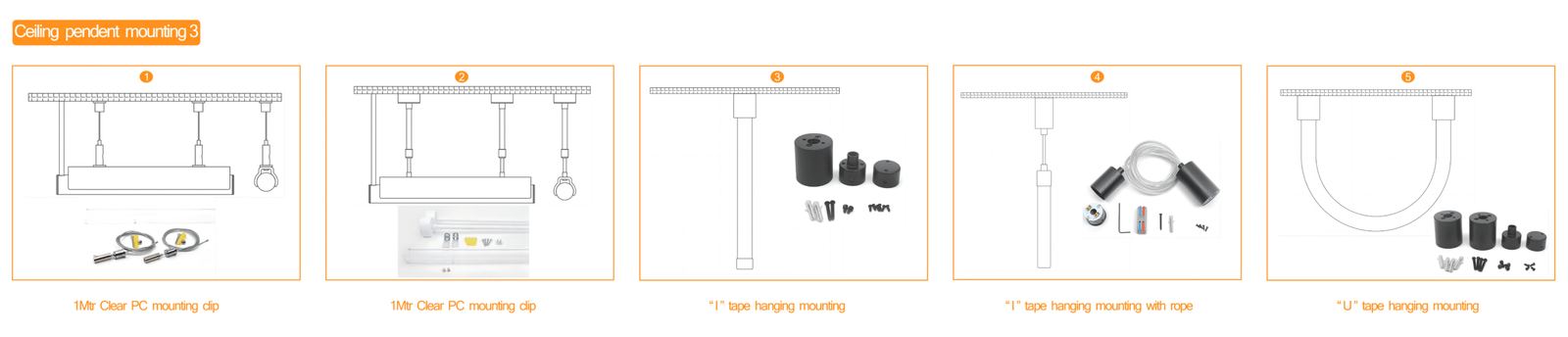

2.Ceiling pendant mounting
Certificate
To ensure the best user experience and the safety and quality of our LED sheet, we do our utmost to make every production step in good control and inspection. We are now hold the certificate for different market, such as UL, cUL, CE, UKCA, C-TICK, ect.

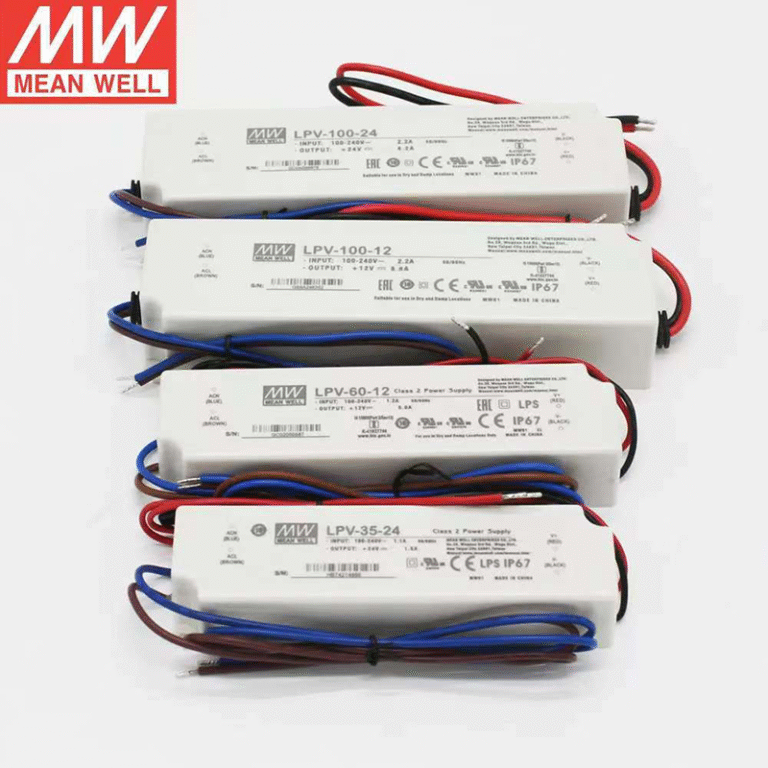

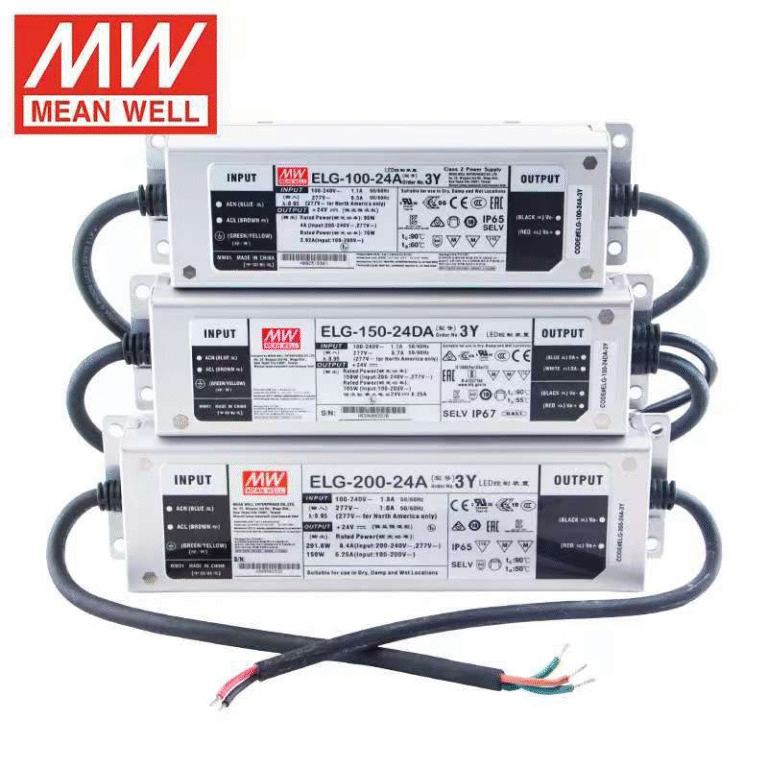

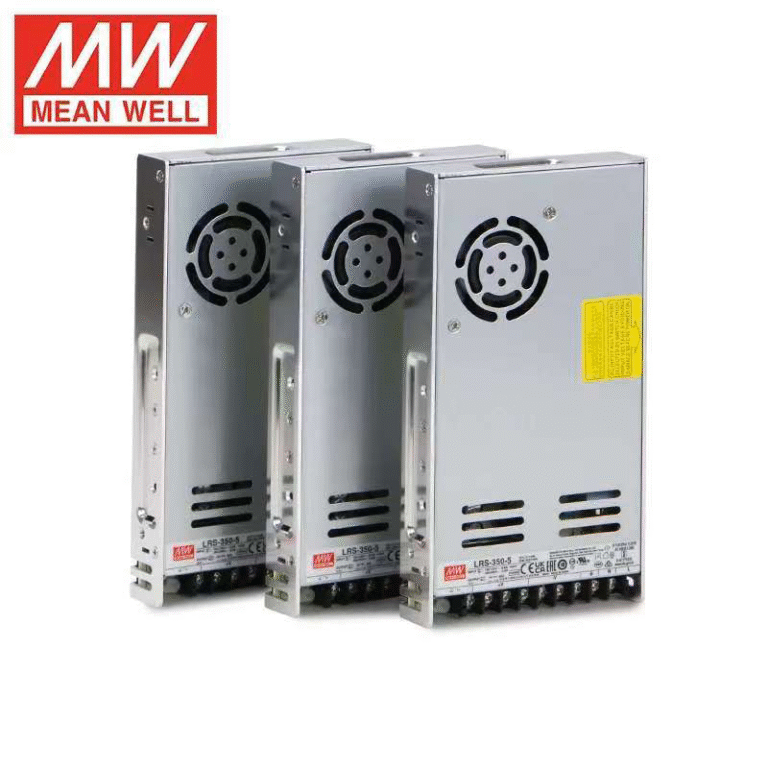

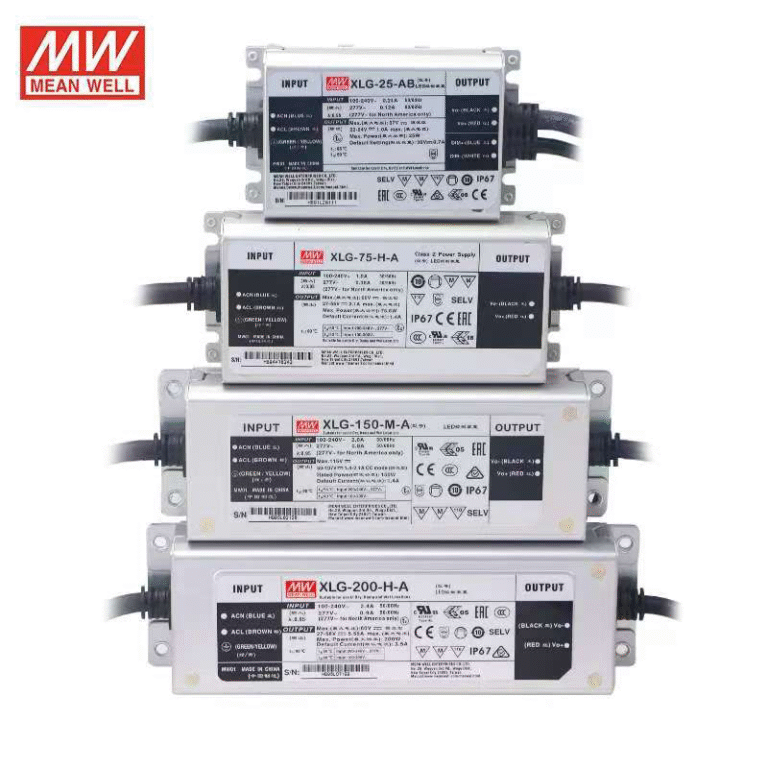

Power Supply & LED Controller

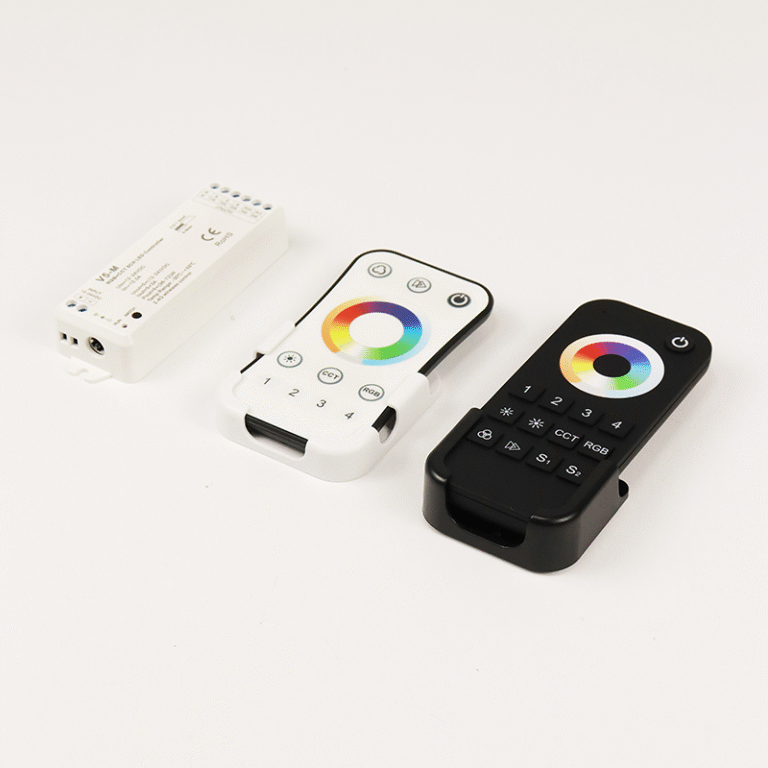

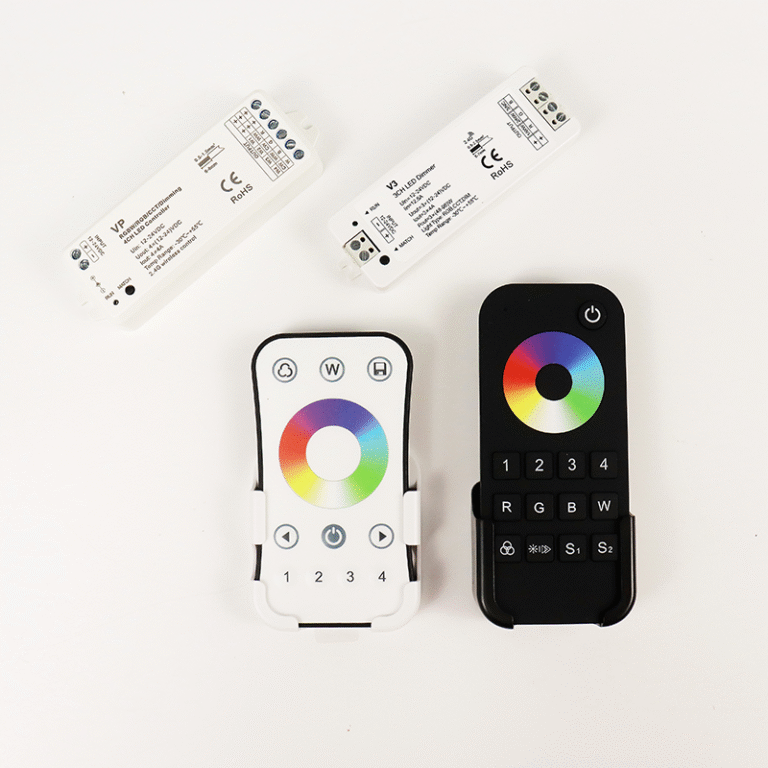

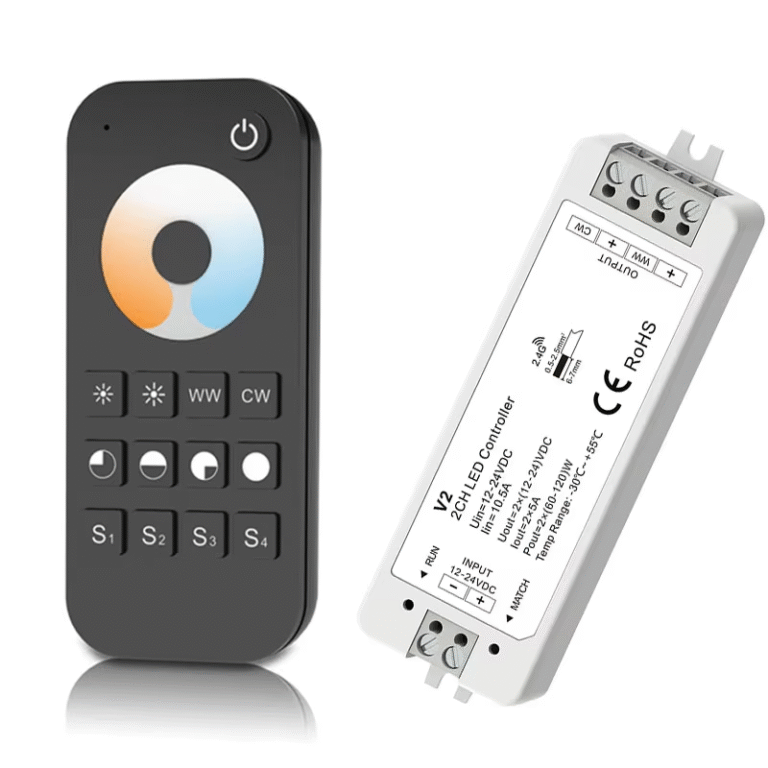

The commonly used controllers for 360 degree led neon flex include infrared remote control, RF radio frequency,Bluetooth,WiFi and SPI/DMX controllers, which are suitable for monochrome RGB、 Different types of light strips such as RGBW support brightness adjustment, color transformation, dynamic effects, and intelligent control. Users can choose the appropriate controller based on the voltage, control method, and usage scenario of the neon flex to achieve diversified lighting effects.
