Mini Neon LED Strip Light | Ultra Slim Silicone Neon Flex
- Uniform light output with no visible dots

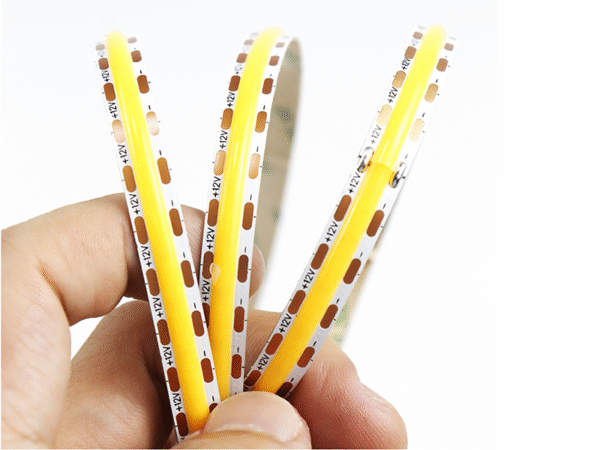

- Custom length and free cutting are supported
- Soft glare free light is comfortable to the eyes
- Mini size fits ultra fine lines and small lettering

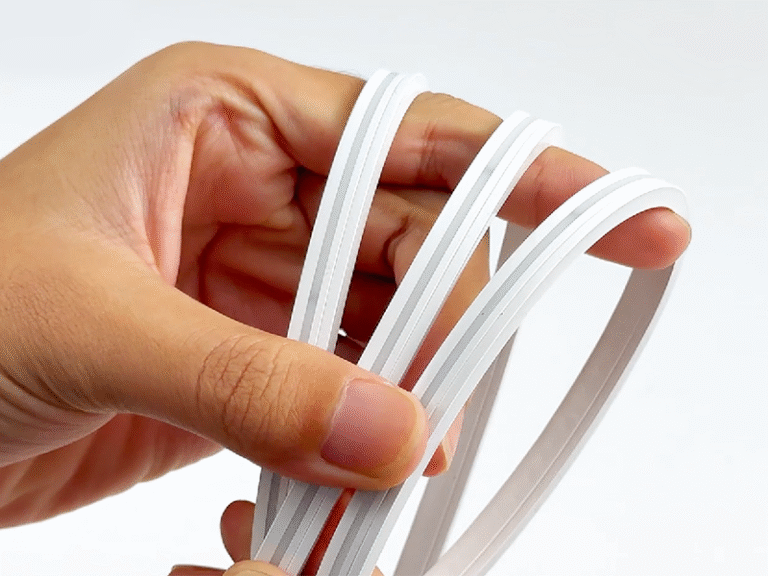

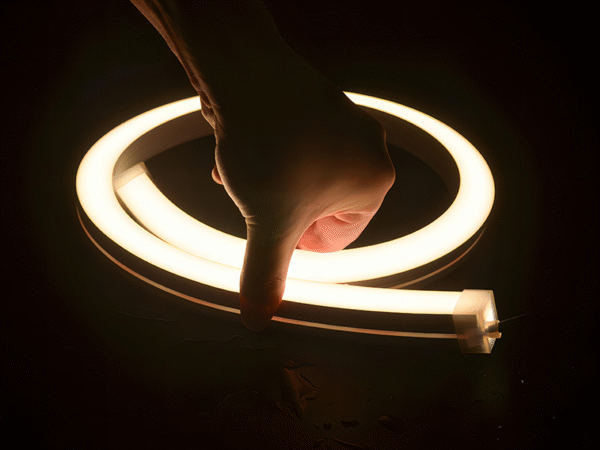

- Flexible structure follows complex contours easily
- Silicone housing protects against dust and moisture
- Low voltage power ensures safe and stable operation
- Easy installation works with many profiles and applications
Mini Neon light Series Index
What is Mini Led Neon flex light?

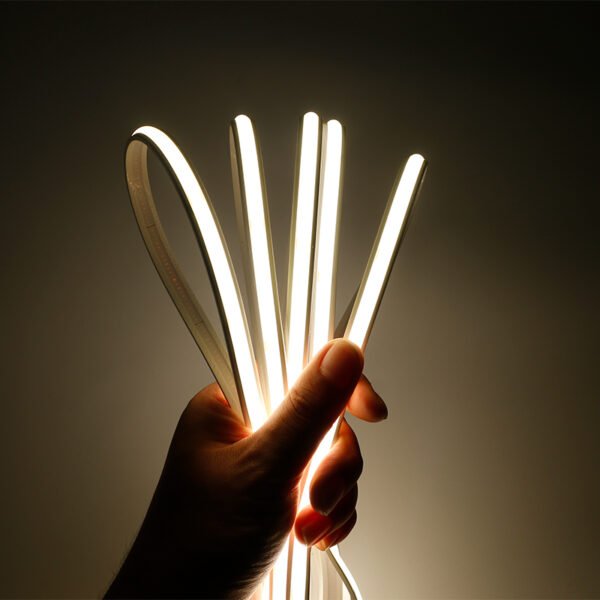

LED mini neon light is a flexible neon style light with an ultra slim low profile design that uses high density LEDs and an integrated silicone diffuser to deliver continuous uniform dot free linear illumination. Its compact size makes it ideal for small lettering fine contour outlining cabinet lighting and architectural detail applications where standard neon strips are too large while also offering flexibility low voltage operation safe performance and reliable dust and moisture resistance for professional commercial and architectural lighting projects.
Produce
1. Raw material preparation
Purchase LED chips (high brightness chips), FPCB flexible boards, silicone rubber materials, conductive wires, connector accessories, etc. Inspect the quality of incoming materials to ensure that all components meet performance standards (such as brightness, voltage, fire rating, etc.).
2. Surface mount technology (SMT)
Attach LED chips and electronic components onto the FPCB flexible circuit board. Use reflow soldering technology to solder components to ensure reliable electrical connections.
3. Welding and Testing
Weld the wire (power cord) onto the FPCB. Preliminary lighting test to check for solder leaks and dead lights in the lamp beads.
4. Encapsulation/ Extrusion coating
Using a 360 degree silicone extrusion molding process, the entire FPCB is wrapped in silicone. Simultaneously complete the shaping and curing of the light strip, ensuring its flexibility, weather resistance, and uniformity of light.
5. Cutting and welding the tail
Cut according to customer requirements and weld the tail seal or joint.
6. Waterproof treatment
Waterproof sealing treatment shall be applied to the joint and tail of the light strip. Some models support IP67~IP68 waterproof rating and require special pressure testing.
7. Aging test
Turn on the light strip for long-term aging (usually 4-8 hours) to test its stability and heat dissipation performance.
8. Quality Inspection and Packaging
Comprehensive quality inspection (appearance, brightness, voltage, current, waterproof performance, etc.). After passing the inspection, proceed with packaging steps such as winding, labeling, bagging, and sealing.
Application scenarios

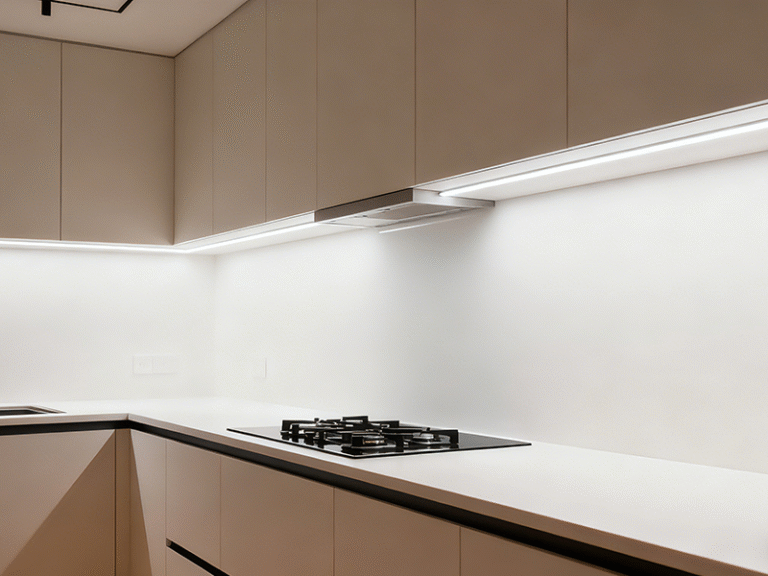

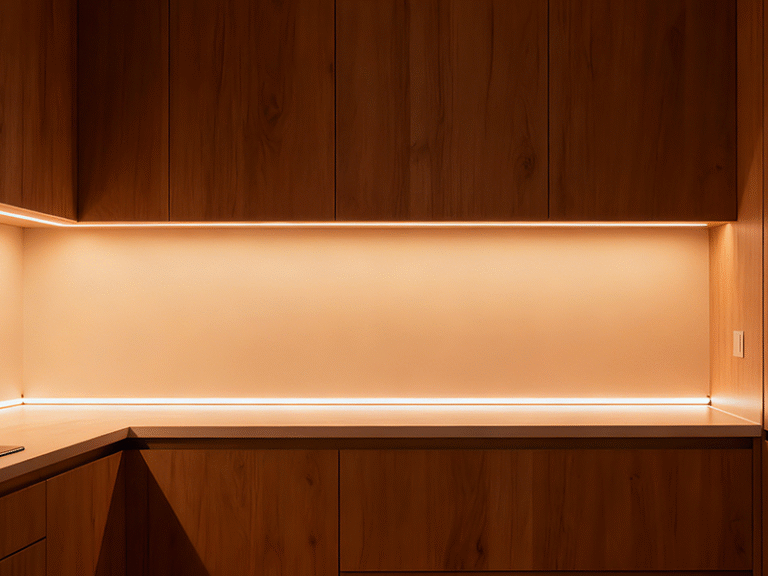

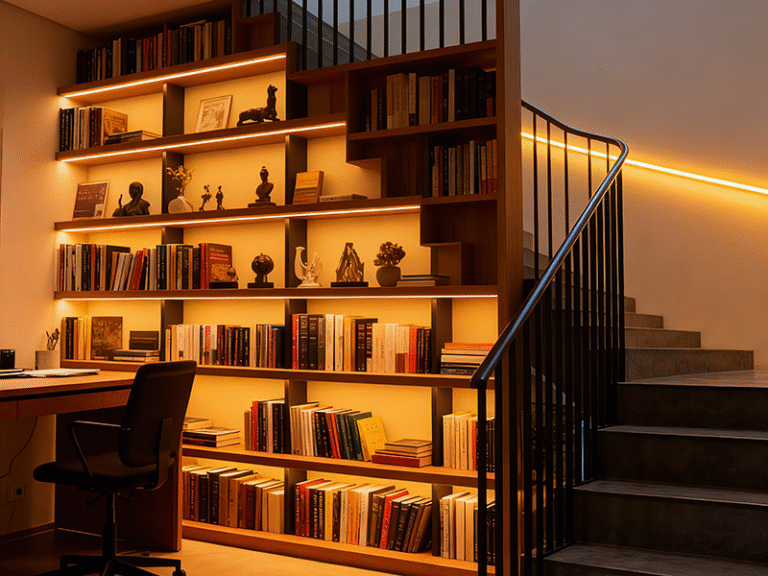

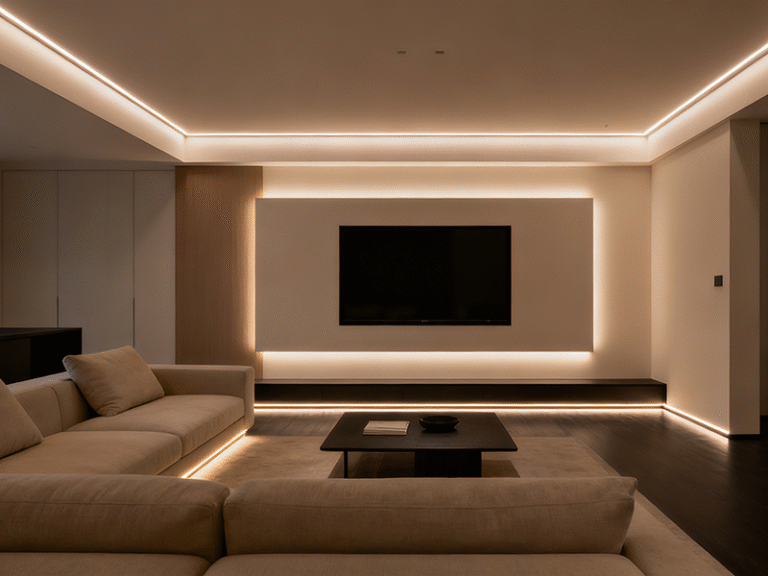

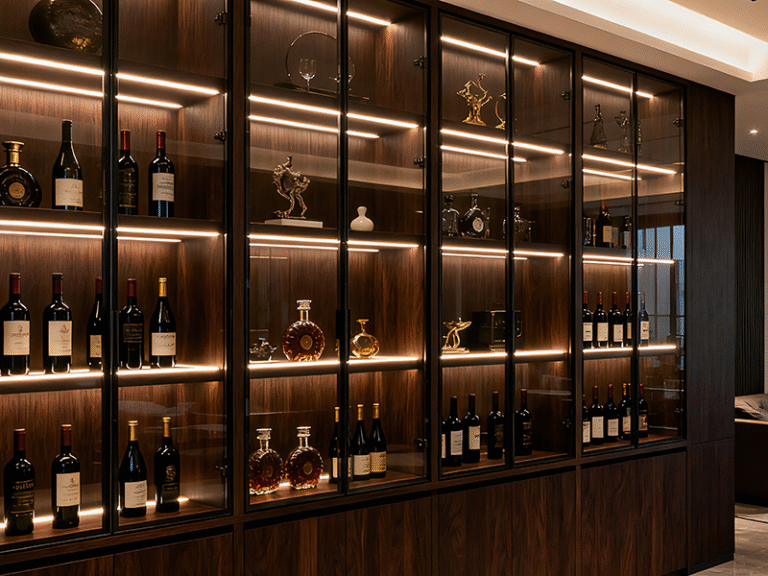

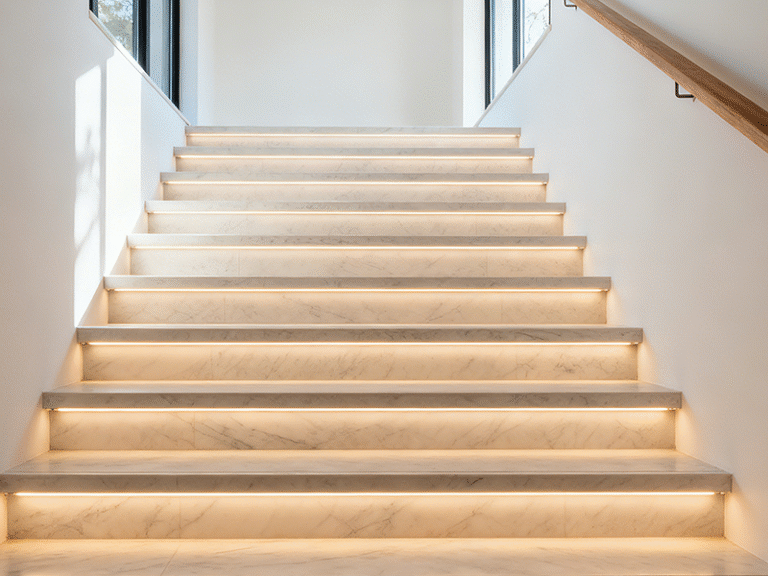

LED neon mini led lights feature an ultra-slim profile, high flexibility, and dot-free uniform illumination, making them ideal for precision linear lighting applications. They are widely used for hidden installation in cabinet undersides, wall grooves, ceiling coves, stair treads, handrail edges, and furniture outlines to highlight architectural lines and enhance spatial depth. In addition, they are well suited for commercial spaces, hotels, showrooms, and retail environments, where they provide continuous, soft, and directional outline lighting without disrupting the overall design.
Classification and Specification
LED neon mini led lights feature an ultra-slim profile, high flexibility, and dot-free uniform illumination, making them ideal for precision linear lighting applications. They are widely used for hidden installation in cabinet undersides, wall grooves, ceiling coves, stair treads, handrail edges, and furniture outlines to highlight architectural lines and enhance spatial depth. In addition, they are well suited for commercial spaces, hotels, showrooms, and retail environments, where they provide continuous, soft, and directional outline lighting without disrupting the overall design.
Part Number | Size(mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | CRI (Ra) | Color |
GL-S0408CV12 | L*W4*H8 | 120LEDs | 12V | 25mm | 8W | Ra＞80 | WW/NW/CW |
GL-S0408CV12 | L*W4*H8 | 120LEDs | 12V | 8.33mm | 8W | Ra＞80 | WW/NW/CW |
GL-S0408CV12E | L*W4*H8 | 120LEDs | 12V | 25mm | 8W | Ra＞80 | WW/NW/CW |
GL-S0408CV24E | L*W4*H8 | 120LEDs | 24V | 50mm | 8W | Ra＞80 | WW/NW/CW |
GL-F0606CV12 | L*W6*H6 | 228LEDs | 12V | 13.15mm | 12W | Ra＞80 | WW/NW/CW |
GL-F0606CV24 | L*W6*H6 | 228LEDs | 24V | 26.3mm | 12W | Ra＞80 | WW/NW/CW |
The Connection of Mini neon flex led strip
The neon led mini lights operates on a low-voltage DC 12V or 24V constant-voltage power supply to ensure safe and stable performance. The positive and negative output terminals of the power supply must be correctly connected to the corresponding “+” and “–” pads of the mini neon rope light. For long installation runs, parallel wiring is recommended to maintain consistent brightness and avoid voltage drop. When dimming or color control is required, the power supply should be connected to a compatible LED controller first, and then from the controller output to the mini neon strip. Always ensure the input voltage matches the strip rating to prevent damage and ensure long-term reliability.
Mini Led Neon light product video
The neon led mini lights operates on a low-voltage DC 12V or 24V constant-voltage power supply to ensure safe and stable performance. The positive and negative output terminals of the power supply must be correctly connected to the corresponding “+” and “–” pads of the mini neon rope light. For long installation runs, parallel wiring is recommended to maintain consistent brightness and avoid voltage drop. When dimming or color control is required, the power supply should be connected to a compatible LED controller first, and then from the controller output to the mini neon strip. Always ensure the input voltage matches the strip rating to prevent damage and ensure long-term reliability.
Certificate
To ensure the best user experience and the safety and quality of our Mini neon light, we do our utmost to make every production step in good control and inspection. We are now hold the certificate for different market, such as UL, cUL, CE, UKCA, C-TICK, ect..

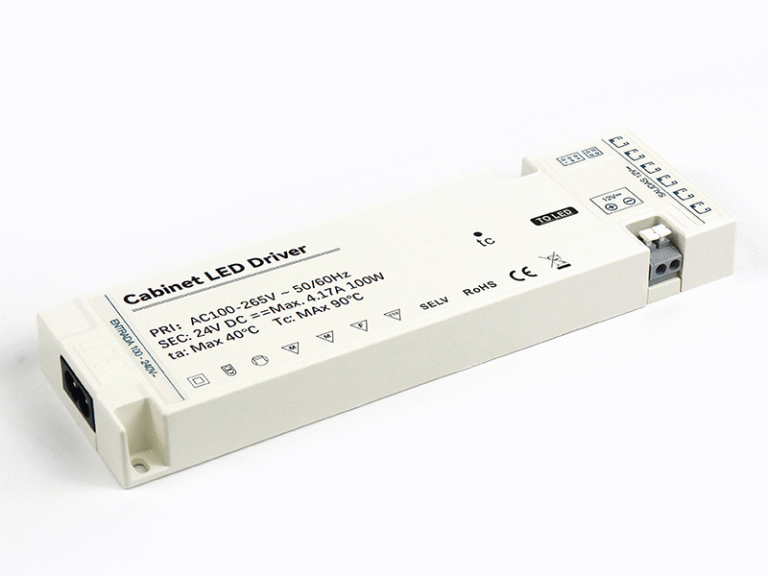

Power Supply & LED Controller
The LED mini neon lights requires a 12V or 24V low-voltage constant-voltage power supply to ensure stable and safe operation. For brightness adjustment, color control, or dynamic lighting effects, the strip can be paired with a compatible LED dimming controller or smart controller, which regulates output without causing flicker or voltage drop. This combination guarantees consistent illumination over long runs, precise control for various lighting scenes, and reliable performance for both residential and commercial installations.
