Side Bend Neon Strip
- 5-year warranty
- Side Bending Flexibility
- Uniform Neon-like Glow
- Safe Low Voltage Operation
- Energy Efficient & Long Lifespan
- Multiple Color & Control Options
- Cuttable & Customizable Lengths
- High Durability & Weather Resistance

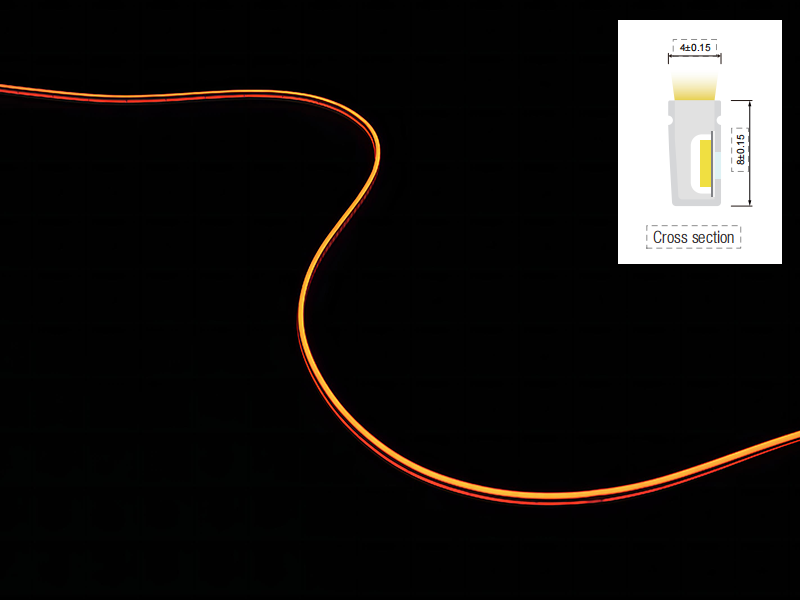

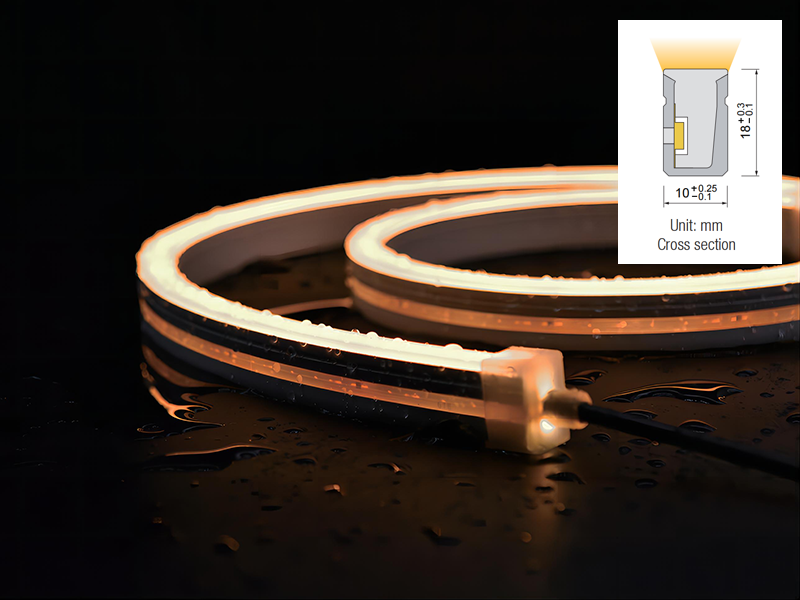

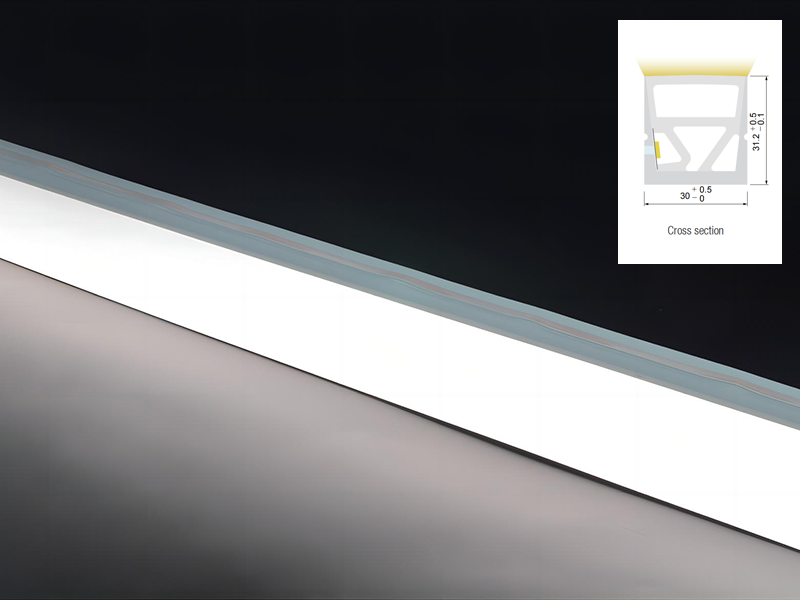

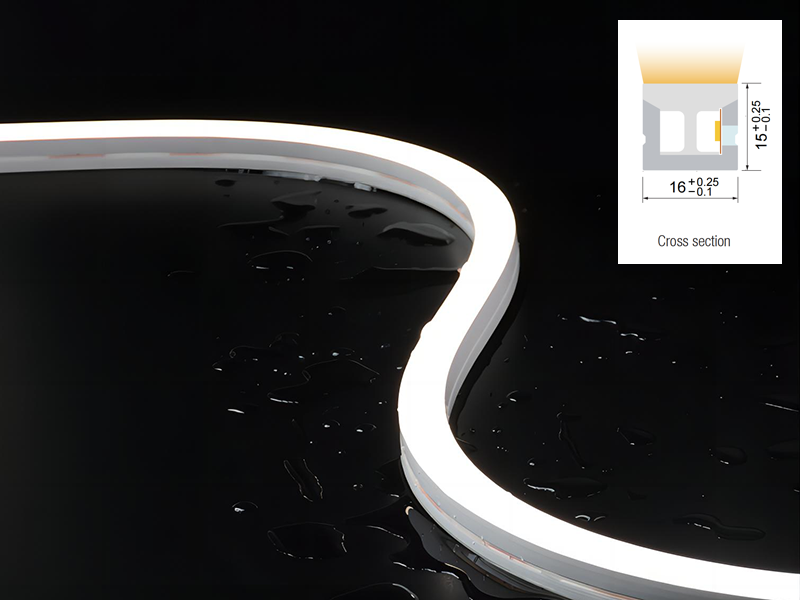

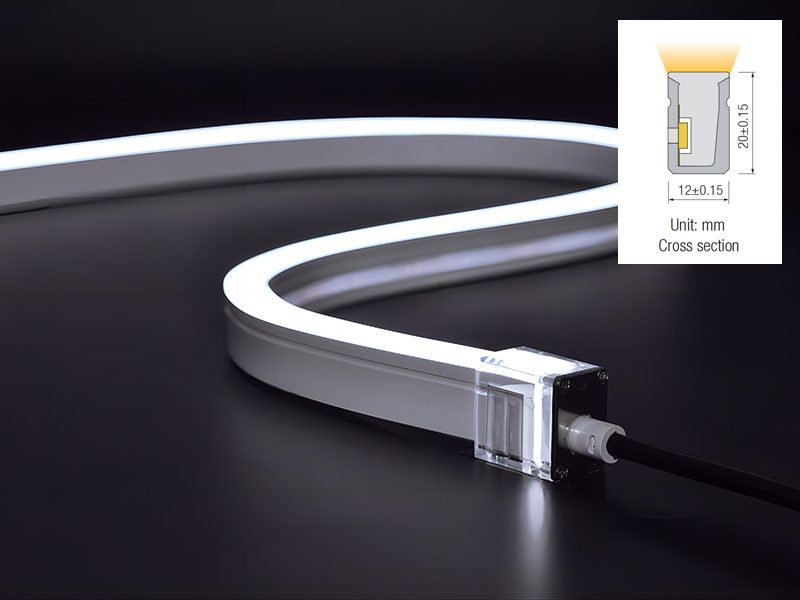

Side Bend Neon Strip Series Index

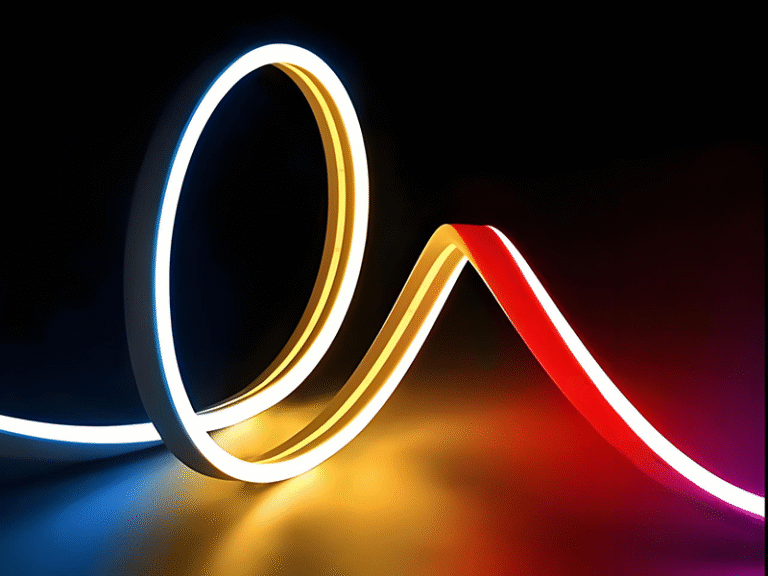

What is Side Bend Neon Strip?
The Side Bend neon led strip is a flexible lighting solution designed for lateral (side-to-side) bending. Encased in a durable silicone or PVC housing, Side bend neon led strip lights offers excellent flexibility, waterproof performance, and side-emitting illumination. Ideal for complex contour lighting, signage, architectural outlines, and both indoor and outdoor decoration, it provides a safer, more energy-efficient, and easier-to-install alternative to traditional glass neon lights. With vibrant color options, it’s widely used in commercial advertising and decorative lighting applications.
Produce
1. Raw material preparation
Purchase LED chips (high brightness chips), FPCB flexible boards, silicone rubber materials, conductive wires, connector accessories, etc. Inspect the quality of incoming materials to ensure that all components meet performance standards (such as brightness, voltage, fire rating, etc.).
2. Surface mount technology (SMT)
Attach LED chips and electronic components onto the FPCB flexible circuit board. Use reflow soldering technology to solder components to ensure reliable electrical connections.
3. Welding and Testing
Weld the wire (power cord) onto the FPCB. Preliminary lighting test to check for solder leaks and dead lights in the lamp beads.
4. Encapsulation/ Extrusion coating
Using a Side Bend silicone extrusion molding process, the entire FPCB is wrapped in silicone. Simultaneously complete the shaping and curing of the light strip, ensuring its flexibility, weather resistance, and uniformity of light.
5. Cutting and welding the tail
Cut according to customer requirements and weld the tail seal or joint.
6. Waterproof treatment
Waterproof sealing treatment shall be applied to the joint and tail of the light strip. Some models support IP67~IP68 waterproof rating and require special pressure testing.
7. Aging test
Turn on the light strip for long-term aging (usually 4-8 hours) to test its stability and heat dissipation performance.
8. Quality Inspection and Packaging
Comprehensive quality inspection (appearance, brightness, voltage, current, waterproof performance, etc.). After passing the inspection, proceed with packaging steps such as winding, labeling, bagging, and sealing.

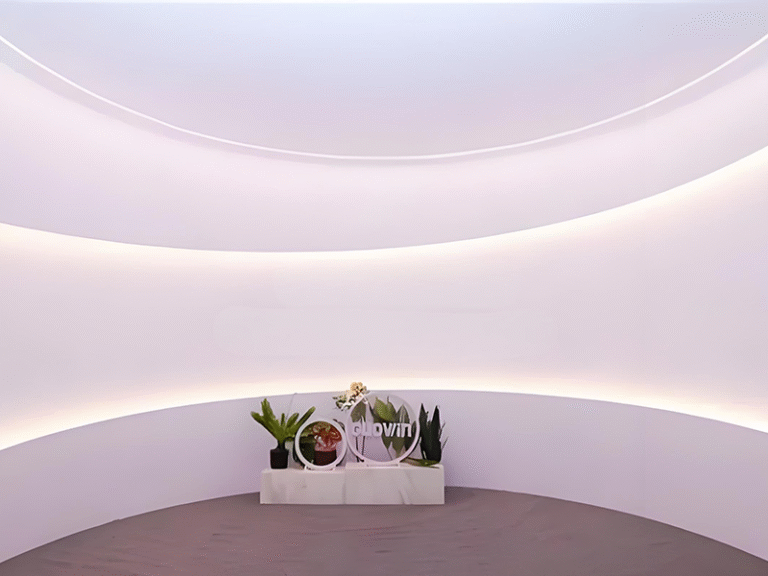

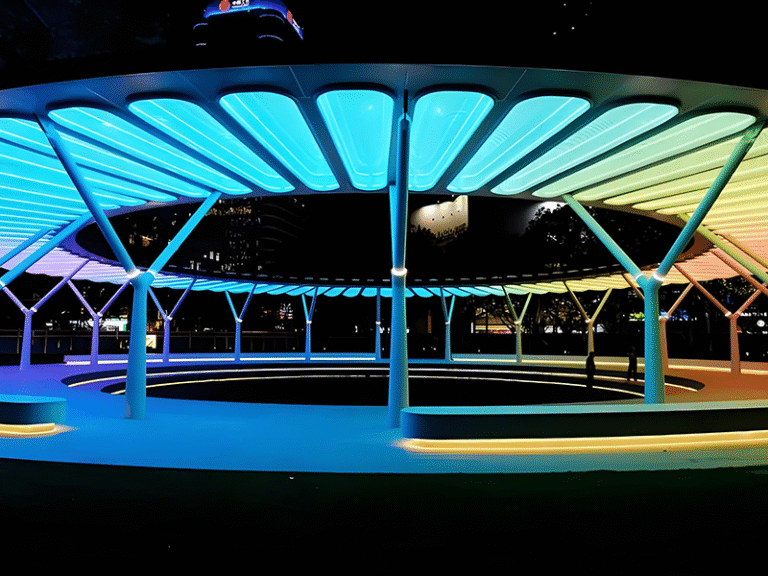

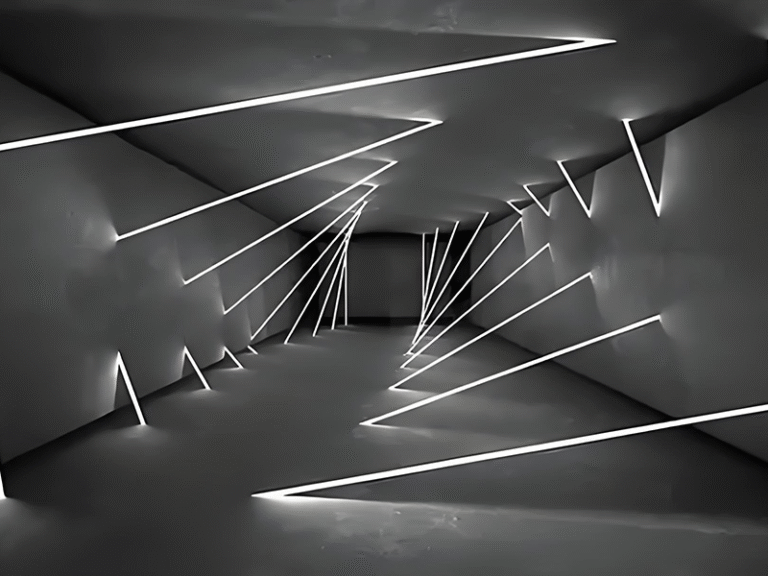

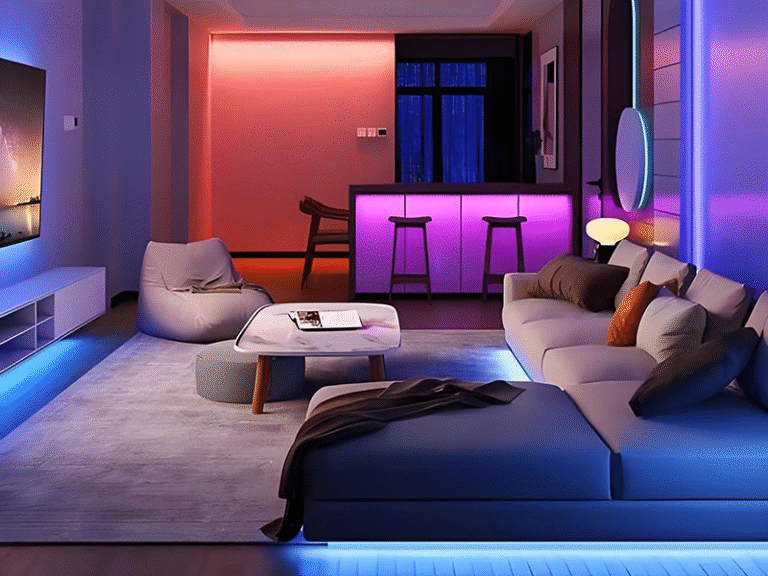

Application scenarios
The LED Side Bend neon flex light strip features high flexibility, side-bending capability, uniform illumination without visible light dots, excellent weather resistance, and a high level of waterproof and dustproof protection. LED Side bend neon led tape is ideal for applications requiring lateral installation and intricate shapes. Commonly used for architectural outlining, commercial signage, interior decoration, stair rail lighting, furniture design, and artistic lighting installations, it is especially suitable for creative lighting projects that demand a side-emitting effect.
Classification and Specification

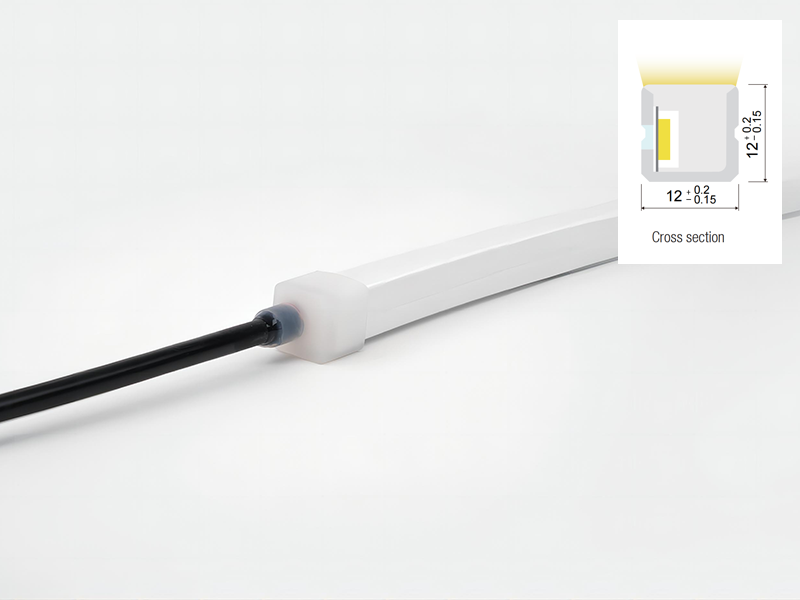

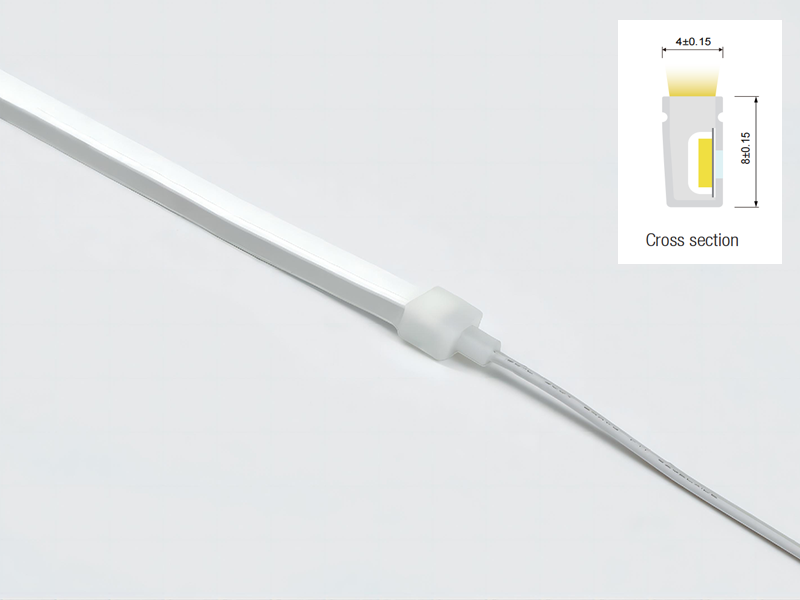

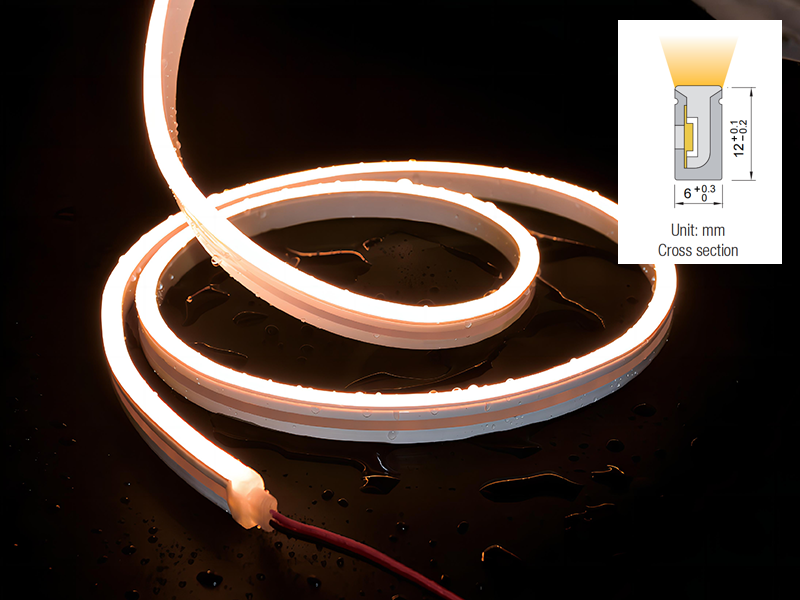

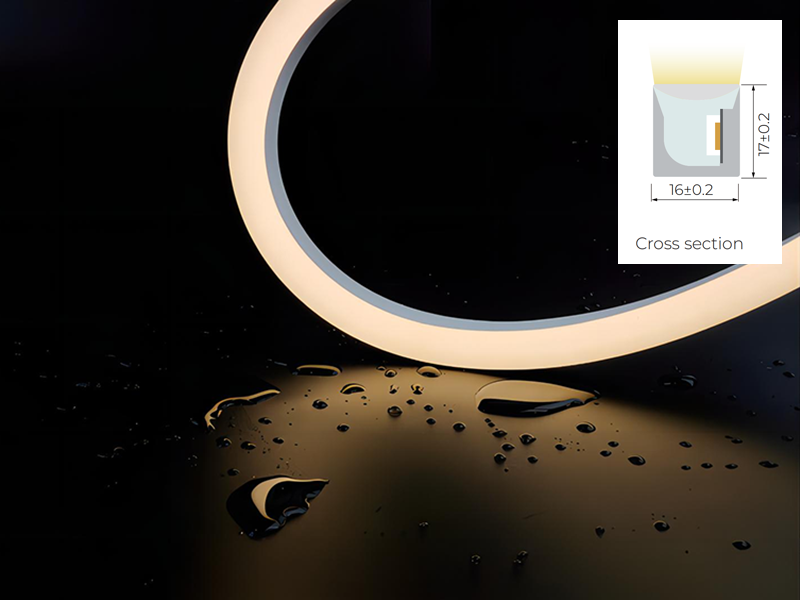

The Side bend neon led strip is suitable for decorative applications requiring different bending directions. Common specifications include widths of 5mm, 6mm, 8mm, 10mm, and 12mm, with voltage options of 12V, 24V, 110V, and 220V. Available in single color, dual color, RGB, and RGBW, these strips feature high brightness, excellent flexibility, and waterproof ratings of IP65, IP67, or IP68. They are ideal for indoor and outdoor contour outlining, signage lighting, and decorative illumination. Each product comes with a detailed specification sheet covering power, voltage, dimensions, cutting unit, bending radius, beam angle, and operating temperature.
The Connection of Side Bend Neon Strip
The Side Bend neon led strip lights features a flexible side-bending luminous design, ideal for architectural outlines, signage, and creative lighting applications, offering uniform brightness and excellent flexibility. Wiring is straightforward—simply connect the strip to its dedicated connector and link it to a compatible power supply (typically DC12V or DC24V). For enhanced lighting effects, users can integrate dimming or color control via single-color, dual-color, CCT, or RGB controllers. It is important to observe proper polarity and apply waterproof treatment for outdoor use to ensure safe and stable performance. With its cuttable and customizable design, the Side Bend led strip lights neon adapts to various installation needs, making it a reliable and stylish lighting solution for both indoor and outdoor environments.
Single Color:

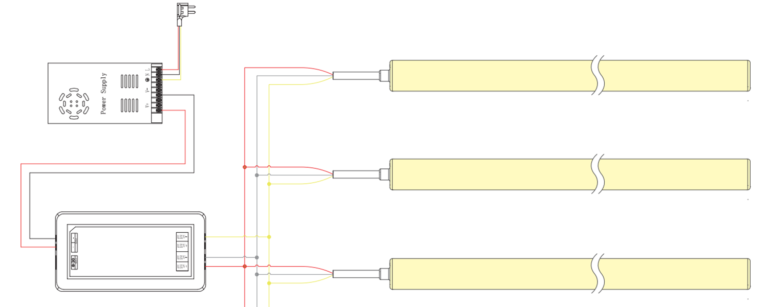

Dual Color:

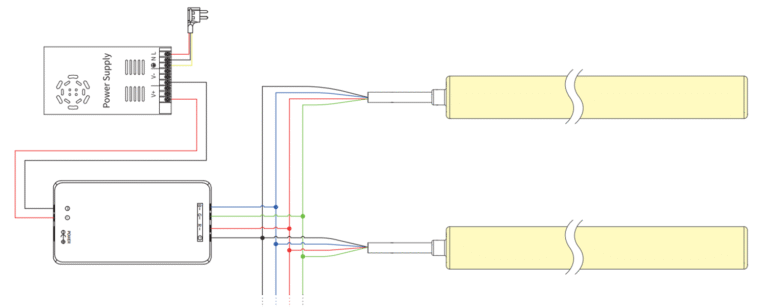

RGB:

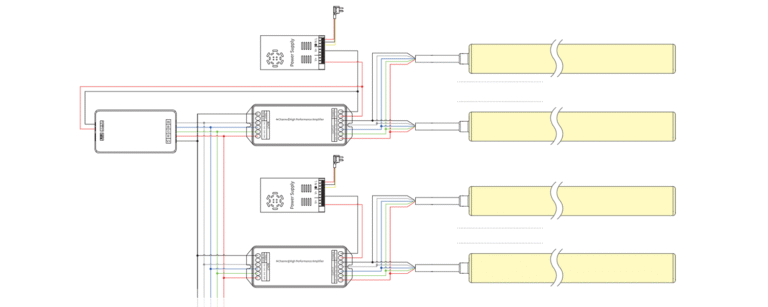

RGBW:
Side Bend neon strip product video
The Side Bend neon led strip lights features a flexible side-bending luminous design, ideal for architectural outlines, signage, and creative lighting applications, offering uniform brightness and excellent flexibility. Wiring is straightforward—simply connect the strip to its dedicated connector and link it to a compatible power supply (typically DC12V or DC24V). For enhanced lighting effects, users can integrate dimming or color control via single-color, dual-color, CCT, or RGB controllers. It is important to observe proper polarity and apply waterproof treatment for outdoor use to ensure safe and stable performance. With its cuttable and customizable design, the Side Bend led strip lights neon adapts to various installation needs, making it a reliable and stylish lighting solution for both indoor and outdoor environments.
Certificate
To ensure the best user experience and the safety and quality of our LED sheet, we do our utmost to make every production step in good control and inspection. We are now hold the certificate for different market, such as UL, cUL, CE, UKCA, C-TICK, ect.
Power Supply & LED Controller
This smart controller is specially designed for LED Side Bend neon flex light strip, compatible with RGB, RGBW, and CCT versions. It offers smooth dimming, dynamic effects, and precise color transitions to meet the demands of curved layouts and creative lighting designs. With multiple control options including RF remote, mobile app, and DMX512 system integration, it’s ideal for signage outlines, architectural accents, and decorative projects—making it the perfect solution for professional lighting control and customized ambiance.
