Top Bend Neon Strip
- 5-year warranty
- Multiple Color Options
- Various Voltage Options
- Waterproof and Durable
- Flexible Vertical Bending
- Uniform and Soft Lighting
- High Brightness & Energy Saving
- Customizable Lengths & Easy Installation

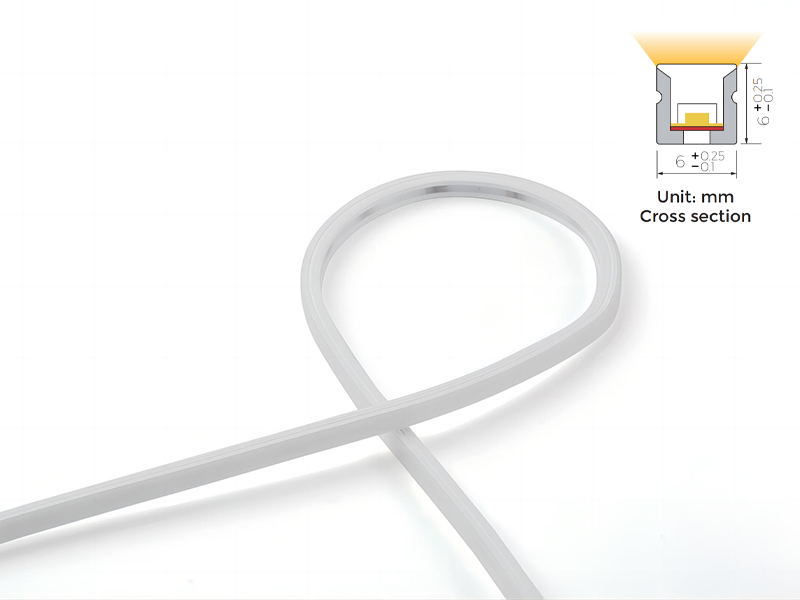

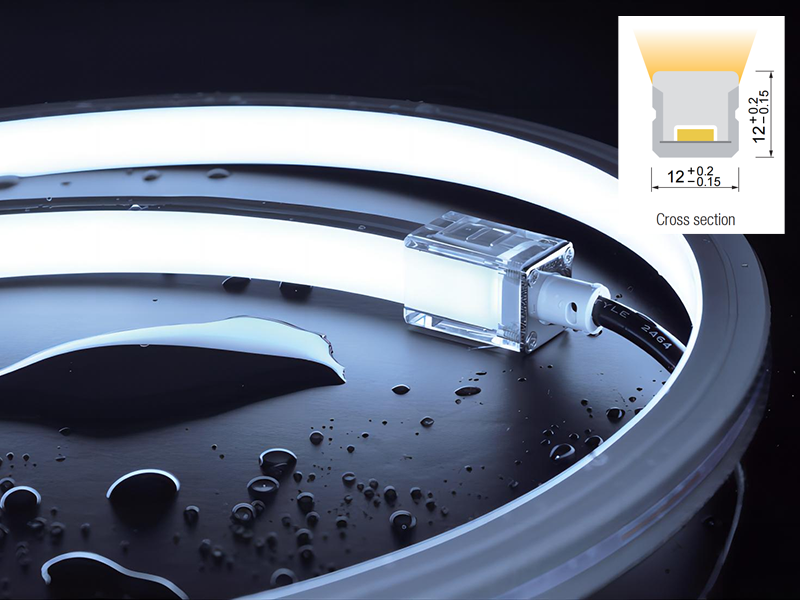

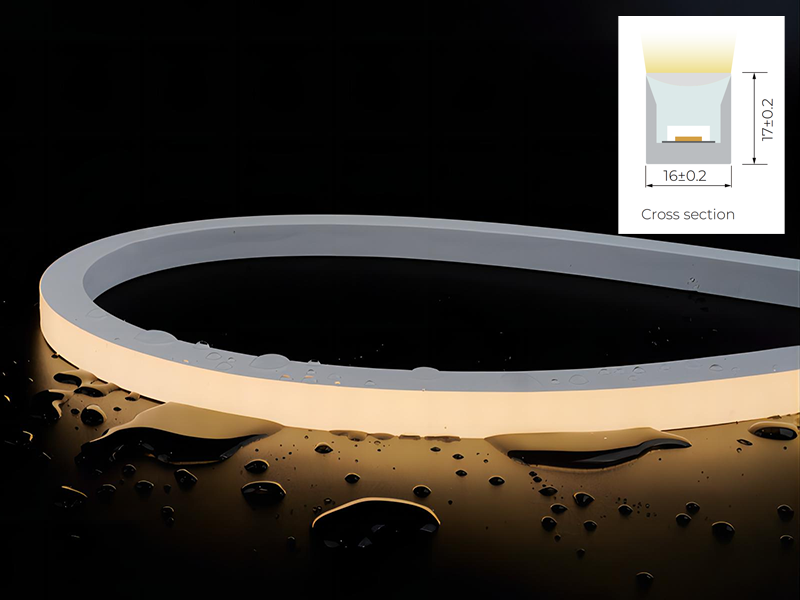

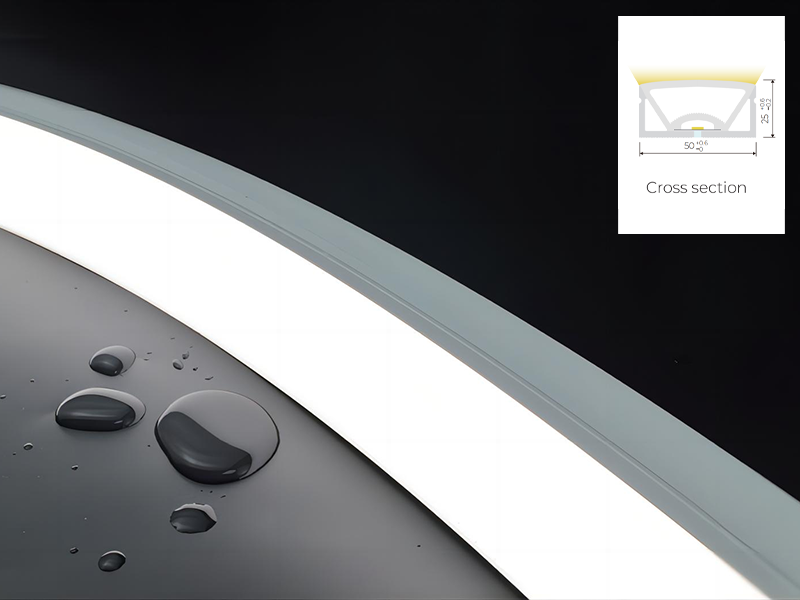

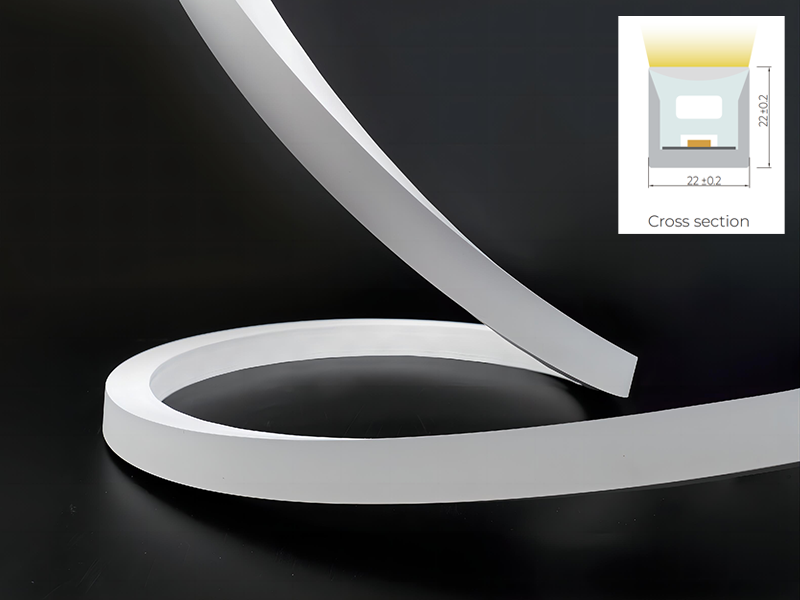

Top Bend Neon Strip Series Index
What is Top Bend Neon Strip?

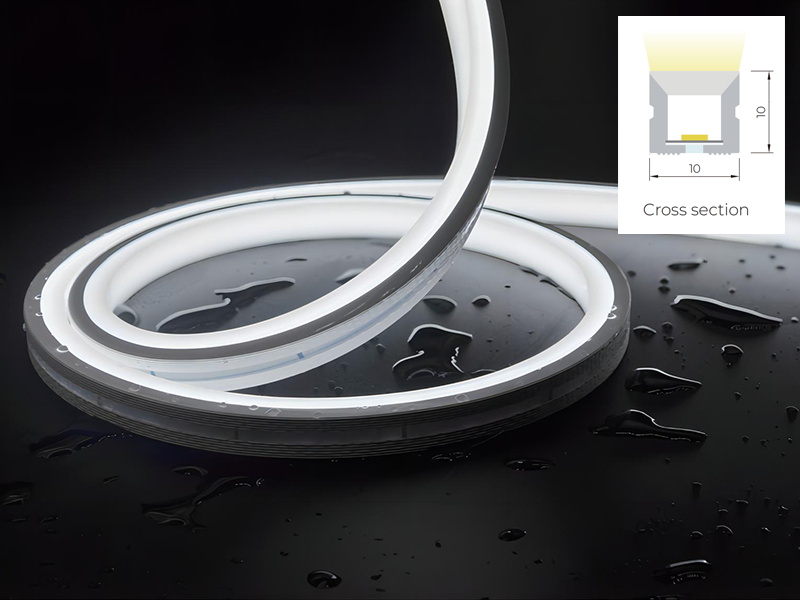

Top Bend neon led strip is a flexible lighting solution designed to bend vertically, making it ideal for building outlines, illuminated signage, light boxes, and other vertical lighting applications.LED Top bend neon strip lights features smooth, uniform illumination with no visible light dots, and is encased in durable silicone or PVC for excellent flexibility and weather resistance. With IP65/IP67/IP68 waterproof ratings, it supports single color, RGB, and other color options, making it a modern, energy-efficient alternative to traditional glass neon lights for both indoor and outdoor use.
Produce
1. Raw material preparation
Purchase LED chips (high brightness chips), FPCB flexible boards, silicone rubber materials, conductive wires, connector accessories, etc. Inspect the quality of incoming materials to ensure that all components meet performance standards (such as brightness, voltage, fire rating, etc.).
2. Surface mount technology (SMT)
Attach LED chips and electronic components onto the FPCB flexible circuit board. Use reflow soldering technology to solder components to ensure reliable electrical connections.
3. Welding and Testing
Weld the wire (power cord) onto the FPCB. Preliminary lighting test to check for solder leaks and dead lights in the lamp beads.
4. Encapsulation/ Extrusion coating
Using a Top bend silicone extrusion molding process, the entire FPCB is wrapped in silicone. Simultaneously complete the shaping and curing of the light strip, ensuring its flexibility, weather resistance, and uniformity of light.
5. Cutting and welding the tail
Cut according to customer requirements and weld the tail seal or joint.
6. Waterproof treatment
Waterproof sealing treatment shall be applied to the joint and tail of the light strip. Some models support IP67~IP68 waterproof rating and require special pressure testing.
7. Aging test
Turn on the light strip for long-term aging (usually 4-8 hours) to test its stability and heat dissipation performance.
8. Quality Inspection and Packaging
Comprehensive quality inspection (appearance, brightness, voltage, current, waterproof performance, etc.). After passing the inspection, proceed with packaging steps such as winding, labeling, bagging, and sealing.

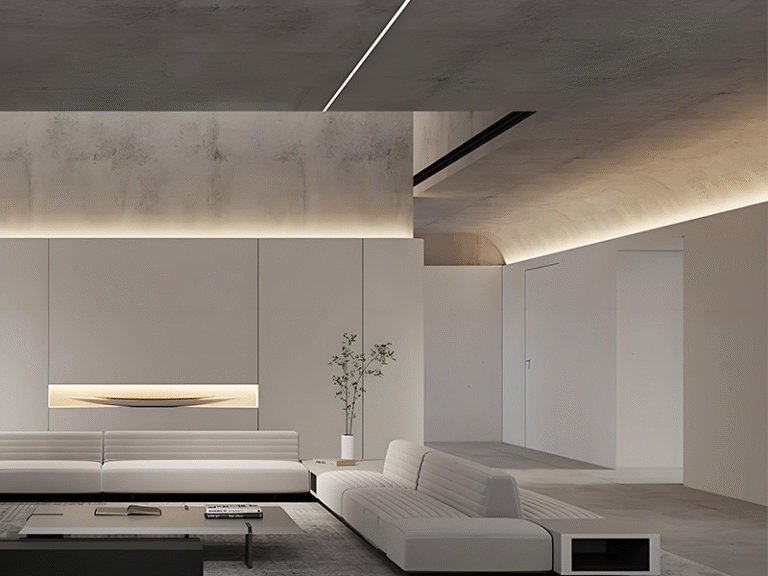

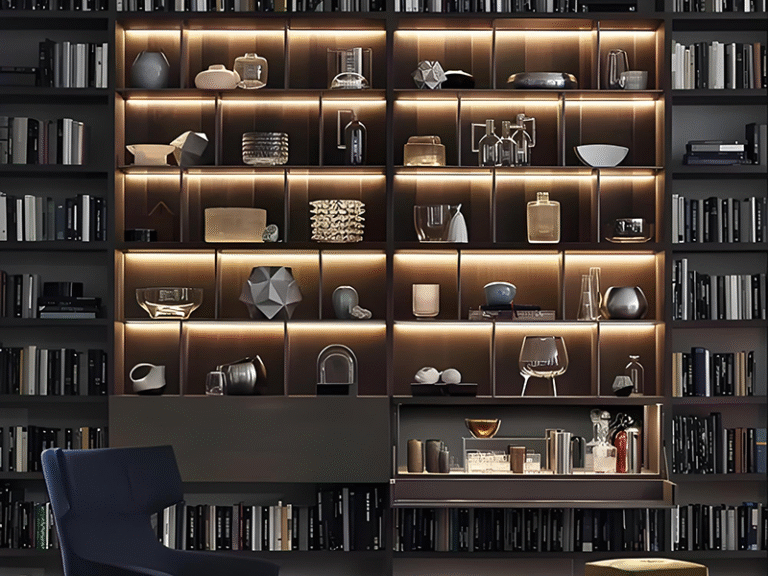

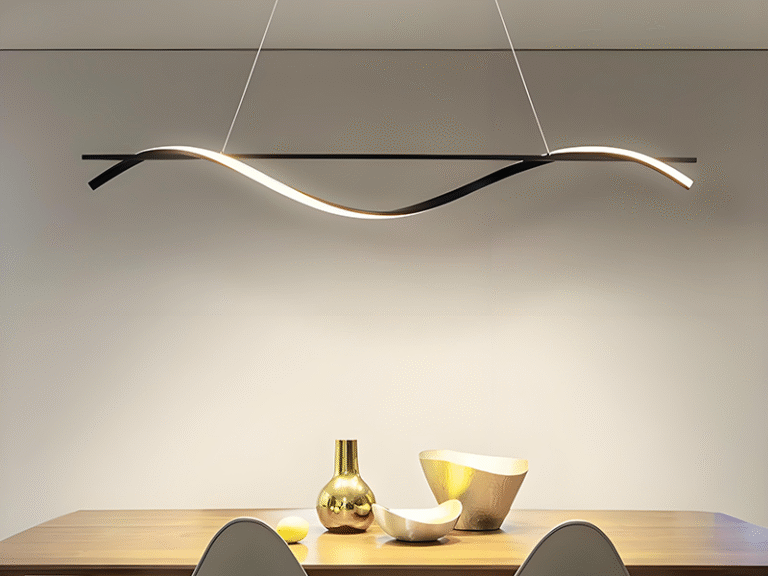

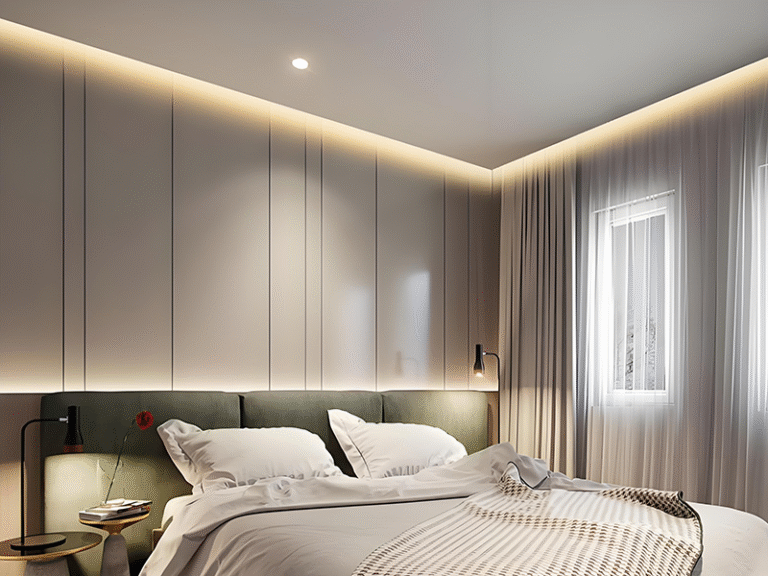

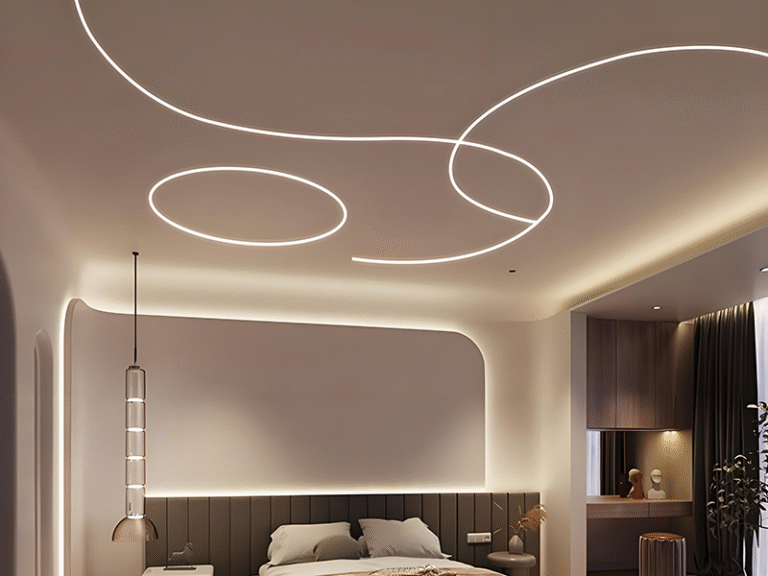

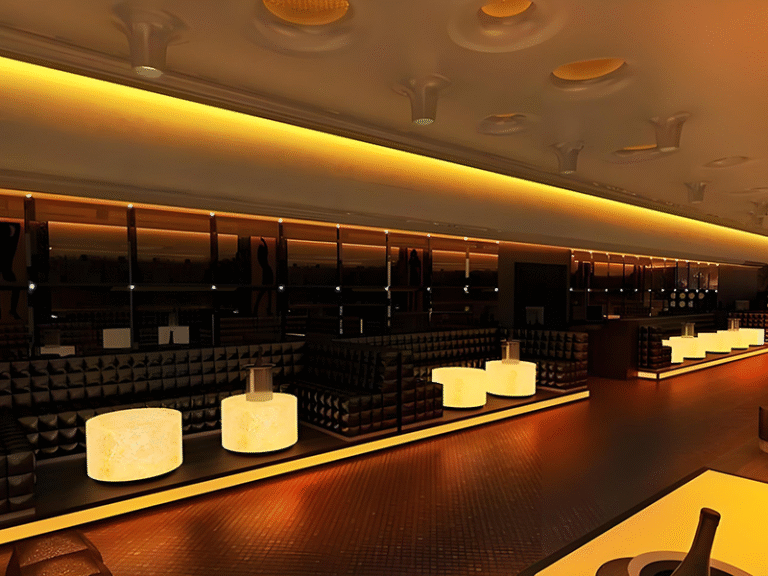

Application scenarios
The Top Bend led strip lights neon, characterized by its ability to bend along the top direction of the strip, is highly suitable for applications requiring complex shapes or outlined lettering. It is widely used in commercial signage, advertising letter contours, wall decorations, ceiling light troughs, building outlines, window displays, and atmosphere lighting in KTVs and bars. Especially ideal for designs demanding high flexibility, brightness, and smooth light lines, this strip delivers uniform illumination and excellent waterproof and dustproof performance. Its versatility makes it outstanding for both indoor and outdoor décor, enhancing spatial layering and visual appeal, and establishing itself as an indispensable lighting solution for modern decorative lighting and visual guidance projects.

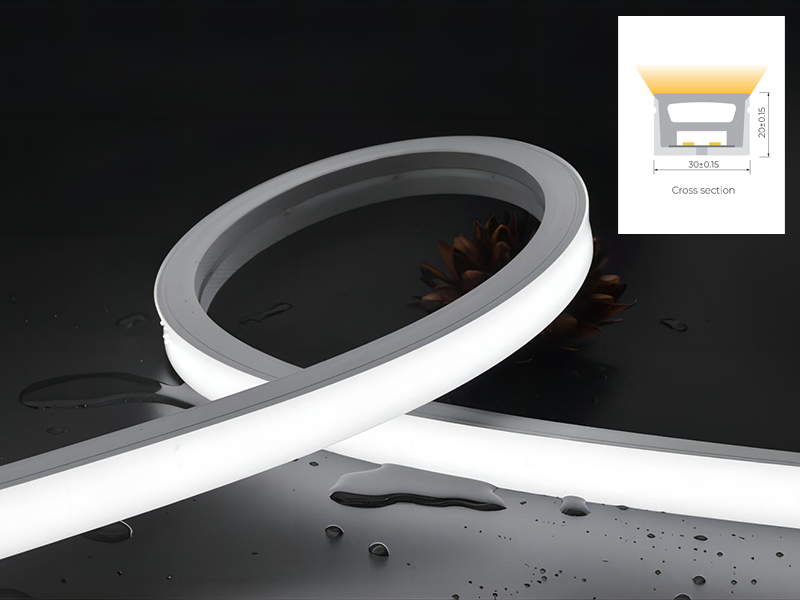

Classification and Specification

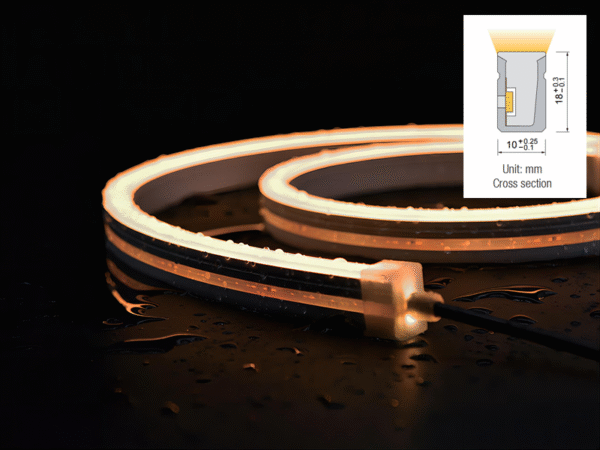

Top Bend neon led strip lights are categorized by bending angle, width, and voltage. Common specifications include widths of 5mm, 8mm, and 10mm, with voltage options of 12V, 24V, and 220V. They feature high brightness, excellent flexibility, and waterproof ratings of IP65 or higher, making them ideal for top-bend installation in decorative lighting. The product datasheet typically covers strip length, power consumption, chip type, color options (single color, RGB, etc.), bending radius, and application scenarios to meet diverse lighting design needs.
The Connection of Top Bend Neon Strip
The wiring of Top Bend neon led tape varies depending on the color type. Single-color strips typically have two wires, positive and negative, making them simple to connect. Dual-color strips usually feature three wires—two positive wires for each color and a common negative—allowing easy switching between two colors. RGB strips have four wires: red, green, blue positive wires, and a common negative, enabling multi-color effects by controlling each color channel. RGBW strips add an extra white positive wire on top of the RGB configuration, totaling five wires, which provides richer lighting and purer white light. For all types, it is essential to match the voltage correctly and observe proper polarity. Additionally, using compatible controllers and power supplies ensures stable operation and optimal lighting performance.
Single Color:

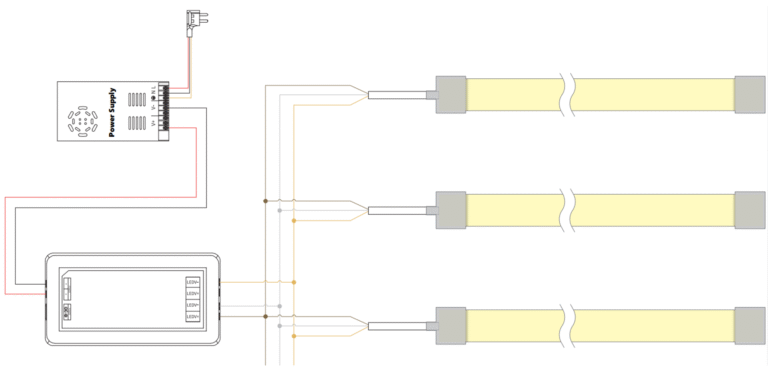

Dual Color:

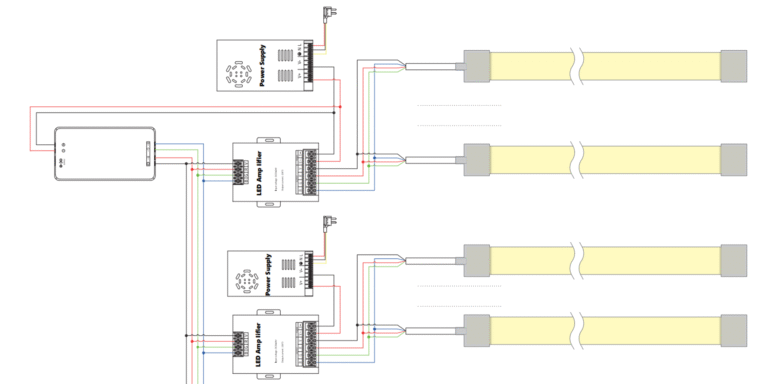

RGB:

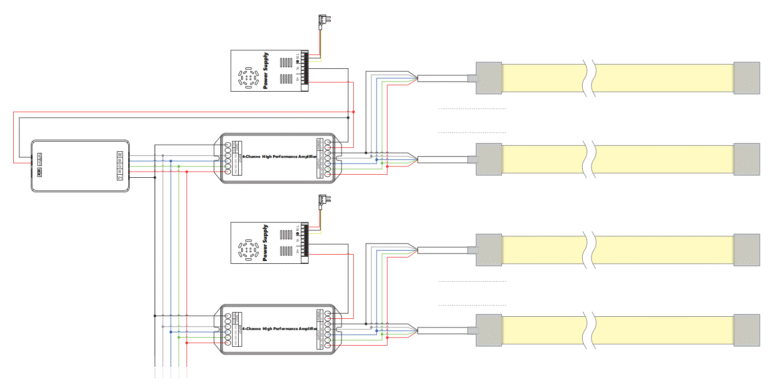

RGBW:
Top Bend neon strip product video
The Top Bend led neon strips is made from high-quality flexible materials, enabling precise bending in the top direction to perfectly fit various complex decorative contours and architectural lines. It emits uniform and soft light with rich, vibrant colors, enhancing visual appeal while meeting diverse lighting needs across multiple scenarios. The video demonstrates the strip’s bending performance at different angles and curvatures, showcasing its excellent flexibility and stability. Additionally, it features superior waterproof and dustproof capabilities, making it suitable for both indoor and outdoor environments. With its energy-efficient design and long lifespan, this LED Top Bend neon led lights strip provides durable, low-maintenance lighting solutions. It is a perfect fusion of modern lighting design and innovative craftsmanship, widely used in commercial displays, architectural outlines, advertising signage, and creative decorations.
Certificate
To ensure the best user experience and the safety and quality of our Top bend neon flex led light strip, we do our utmost to make every production step in good control and inspection. We are now hold the certificate for different market, such as UL, CUL, CE, UKCA, C-TICK, ect..
Power Supply & LED Controller
The Top Bend led neon strip typically uses a 12V or 24V DC power supply to ensure stable and safe operation. Its compatible controllers support various modes, including single-color dimming, tunable white, and full-color RGB/RGBW control. These controllers can be operated via remote control, mobile apps, or DMX systems to achieve diverse lighting effects such as fades, jumps, and dynamic animations, meeting the needs of different lighting and decorative applications.
