Tunable White COB LED Strip Light
- 5-year warranty
- Flicker-Free and High CRI
- Wide CCT Adjustable Range
- Low Voltage and Safe to Use
- Uniform Linear Light Output
- Strong Dimming Compatibility
- Energy-Efficient and Long Lifespan
- Easy Installation and Custom Length
Tunable White COB LED Strip Light Index

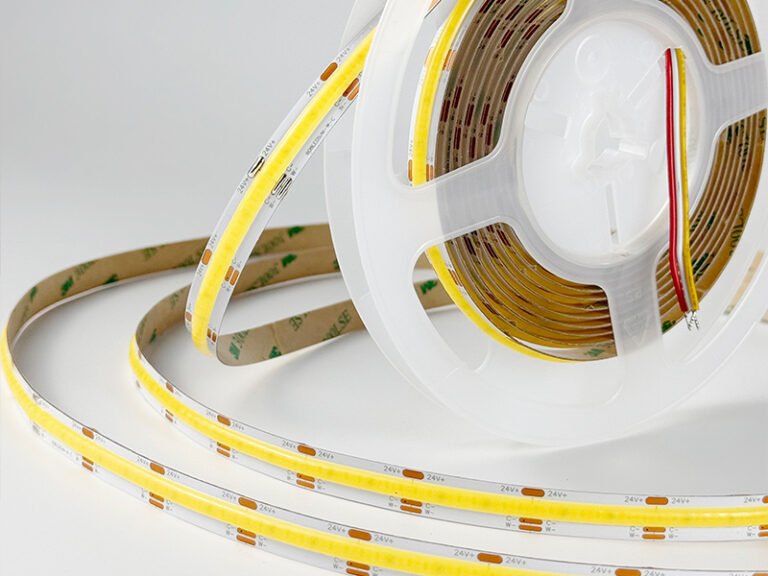

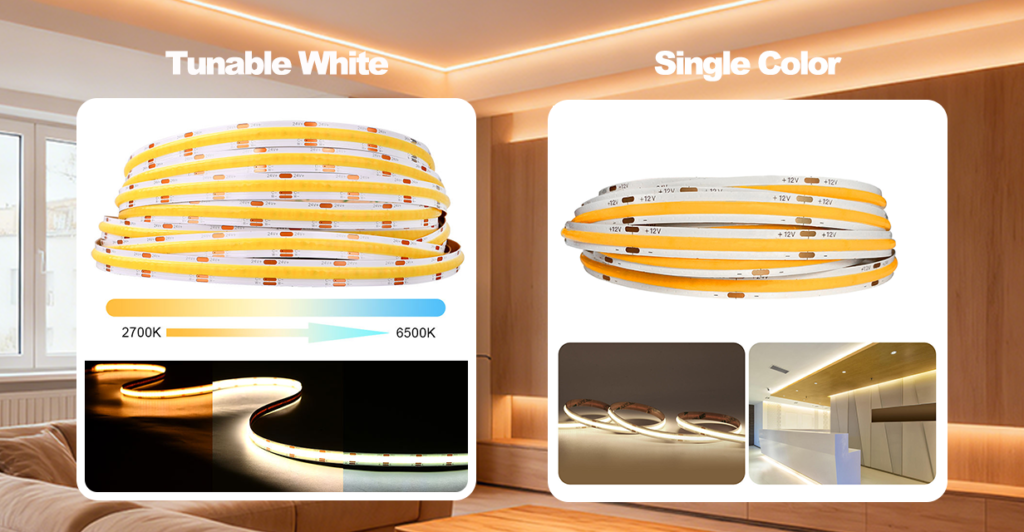

What is Tunable White COB LED Strip Light?
Tunable White cob led strip light is a type of LED strip that uses COB (Chip on Board) technology to deliver smooth and uniform lighting with no visible light spots, capable of seamlessly adjusting color temperature from warm white to cool white—typically within a range of 2700K to 6500K or wider. Controlled by a dedicated tunable white controller or smart dimming system, it allows flexible adjustment of both brightness and color temperature to suit different scenes, creating either a warm, cozy ambiance or bright, clear illumination. Featuring high color rendering, energy efficiency, durability, flexibility, and various waterproof ratings, it is ideal for residential, commercial, exhibition, and ambient lighting applications.
The difference between COB and SMD
Comparing to Surface Mounted Devices(SMD) led strip, COB LED strips offer wider beam angle, higher CRI and more uniform lighting. It is with a 180-degree beam angle, Free cutting of LED cob light strip. 90 CRI and dotless light illumination, flexible, energy efficiency, excellent heat dissipation and long lifespan.

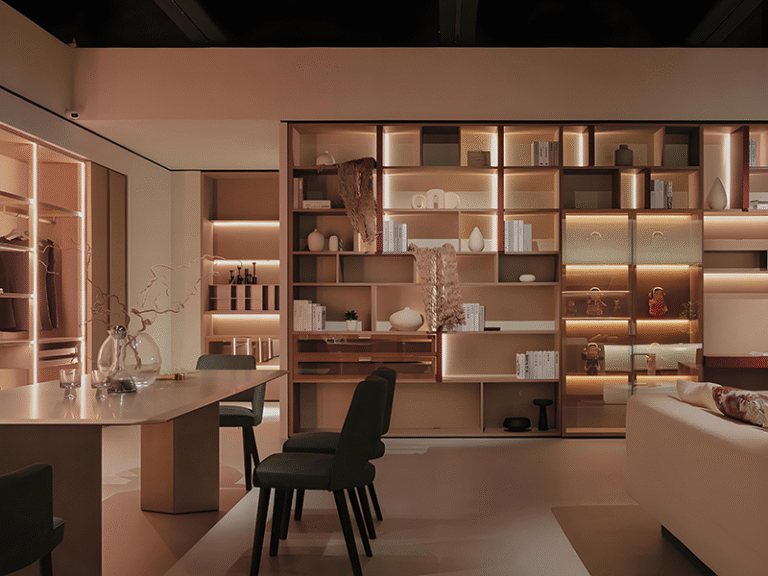

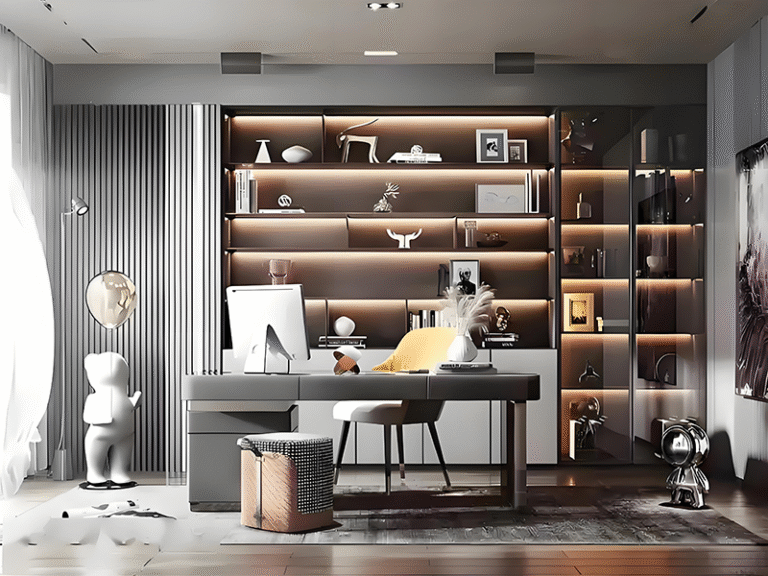

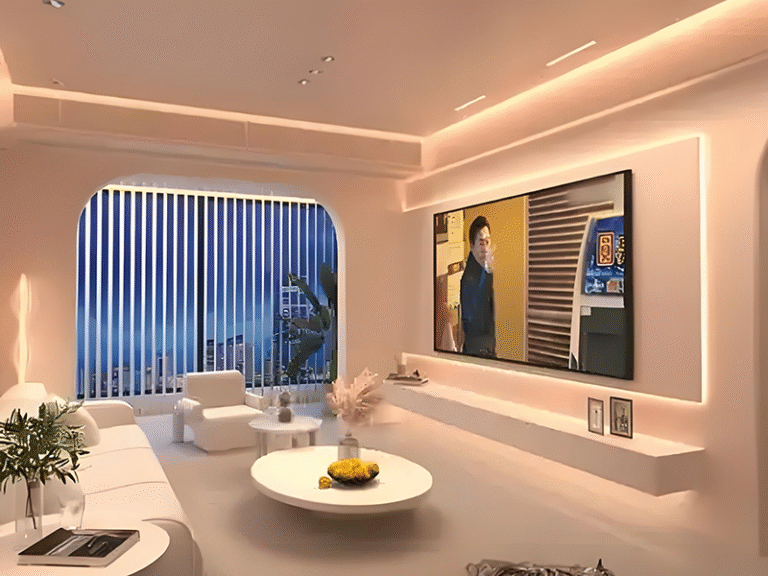

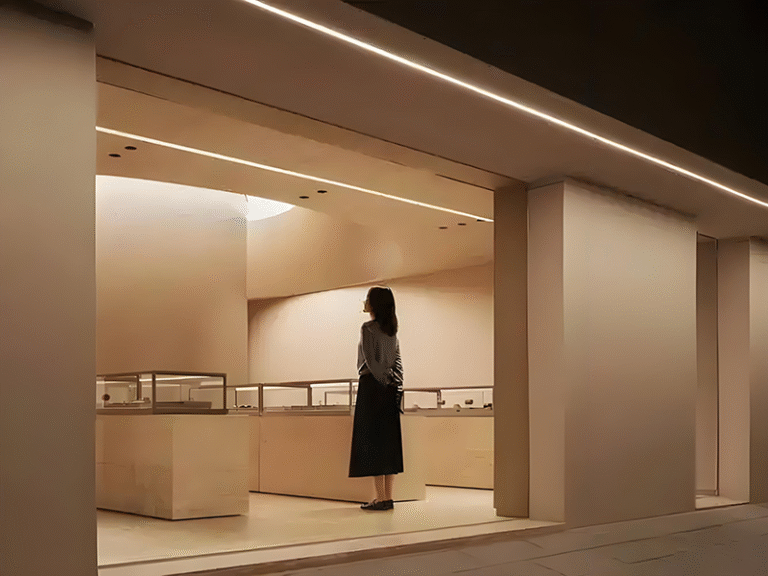

Applications of COB LED strips
The LED COB White Tunable light offers adjustable color temperatures (e.g., 2700K to 6500K), making it ideal for a wide range of applications.COB Tunable dimmable led light strips is widely used in residential lighting, commercial spaces, hotel rooms, cabinet lighting, and exhibition displays. Whether creating a warm and cozy ambiance or a bright and clear working environment,COB CCT Tunable dimmable led strip this strip allows for seamless switching to meet diverse lighting needs.
How to produce the COB LED Strip
We combine advanced technology with rigorous quality control to manufacture high-performance LED lighting products. Our production line is fully equipped with industry-leading machines and testing systems to guarantee precision and reliability at every stage.
Step1. Solder Past Printing
Step2. Flip Chip Bonding
Step3. Reflow Soldering
Step4. Testing Machine
Step5. Automated Dispensing
Step6. Oven
Step7. After Welding
Step8. Reeling & Labeling
Step9. Aging
Step10. Final Testing
Step11. Packing
How to set up the COB LED Strip
How to set up the COB Dual color CCT led strip.
The working voltage of tunable white led strip is DC12/24V. it needs the constant voltage led driver (LED power supply) to light up as below.

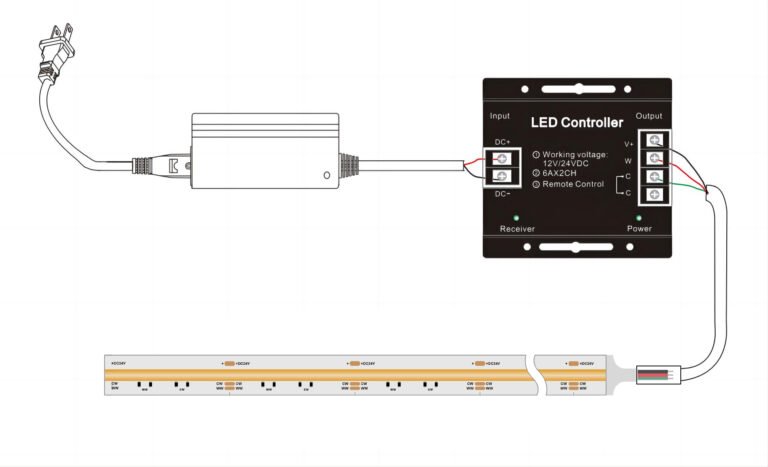

1. Controller - LED strip

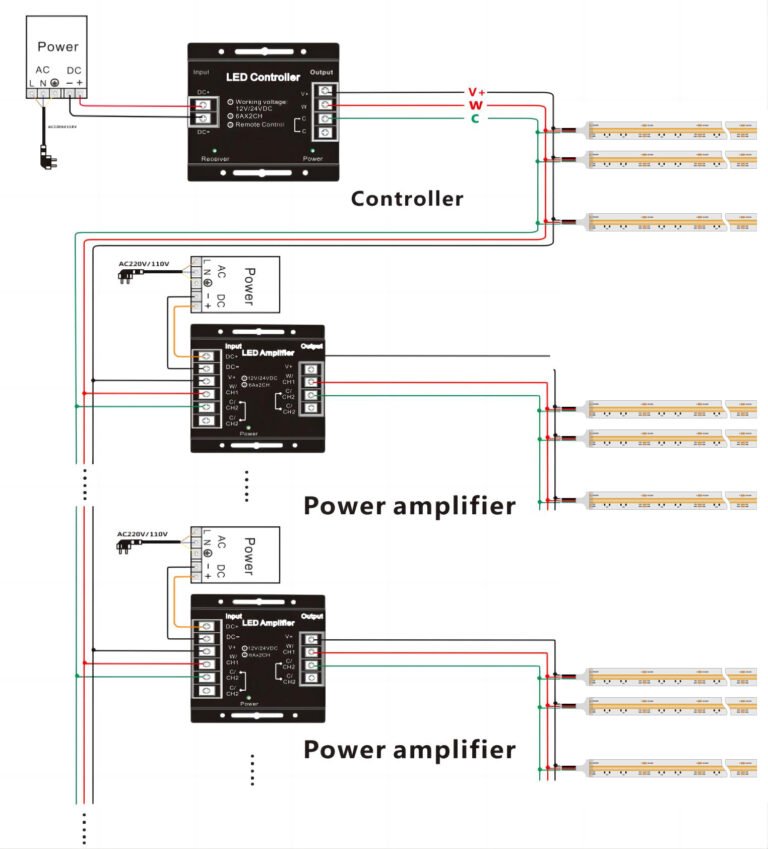

2. Controller - amplifier - LED strip
How to connect the COB LED strip lights by led strip connector
We have different type of connector to fit for different led strips. There are 2pin 3pin 4pin 5pin and 6pin to fit for 5mm 6mm 8mm 10mm 12mm PCB width LED strips. And there are Strip to Wire, Strip to Strip, Corner 3 different applications like below.

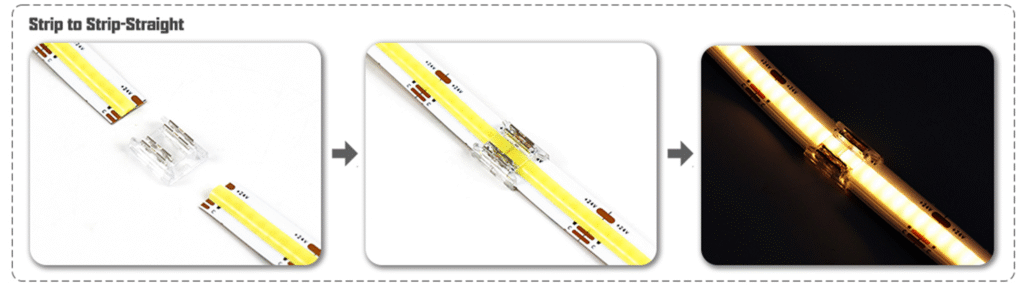

1. strip to strip - straight

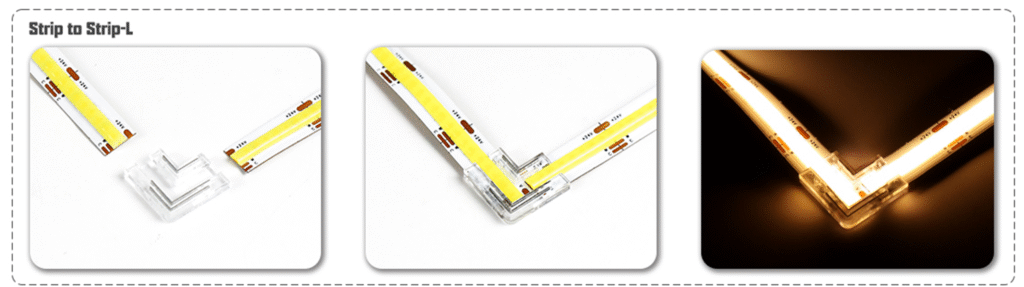

2. Strip to strip - L

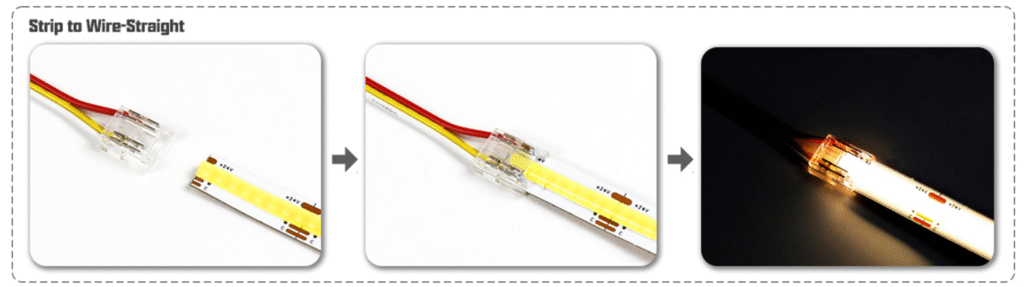

3. strip to wire - Straight
4. strip to wire - Corner
Classification
LED Tunable 24v cct led strip is mainly divided into 8mm, 10mm.
PCB Width (mm) | LEDQty/M (LEDs) | Working Voltage(v) | Cut Length(mm) | Watts/M(w) | Beam Angle(°) | CRI (Ra) | Color |
8mm | 576LEDs | 24V | 41.66mm | 20W | 120° | ＞90 | WW/CW |
8mm | 608LEDs | 12/24V | 13.16/26.31mm | 12W | 120° | ＞90 | WW/CW |
8mm | 624LEDs | 24V | 19.26mm | 14W | 120° | ＞90 | WW/CW |
10mm | 608LEDs | 12/24V | 26.31mm | 14W | 120° | ＞90 | WW/CW |
10mm | 624LEDs | 24V | 19.26mm | 14W | 120° | ＞90 | WW/CW |
Product specification
LED COB Tunable white cob LED Product video
LED COB CCT flexible light – dual color temperature in one strip. Easily switch between warm white, neutral white, and cool white to suit any mood or setting. High-density chip design ensures uniform, dot-free lighting. COB CCT dual color high density led strip lights Flexible, cuttable, and easy to install – perfect for residential, commercial, and display applications. With smart control compatibility, you can personalize your lighting experience effortlessly. Choose COB Tunable White CCT led strip light up your space the smart way.
Certificate
To ensure the best user experience and the safety and quality of our LED light strips, this is our leds certificate.

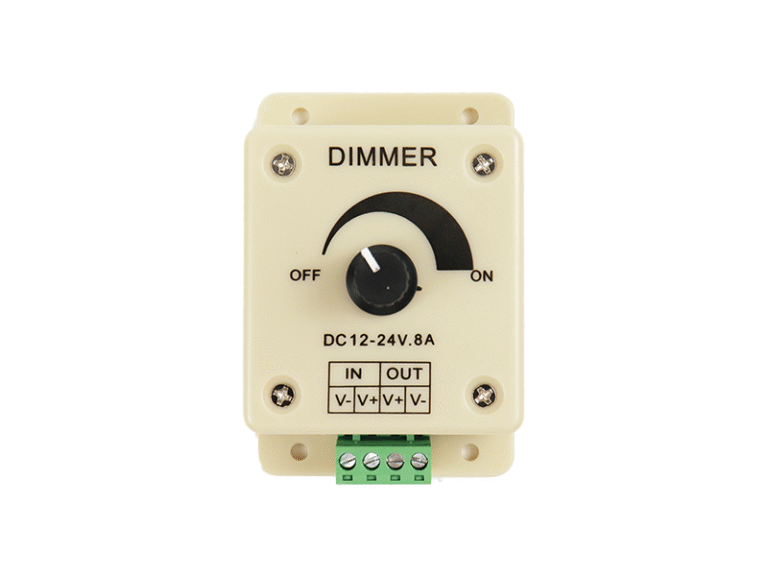

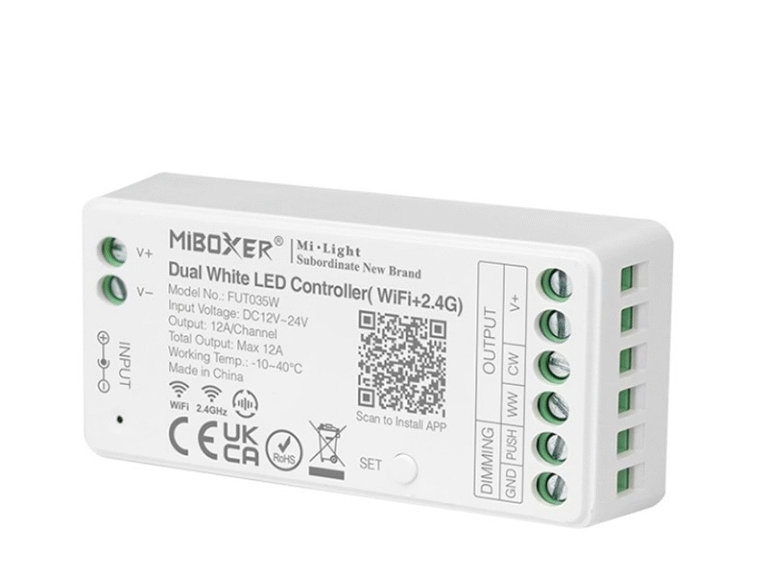

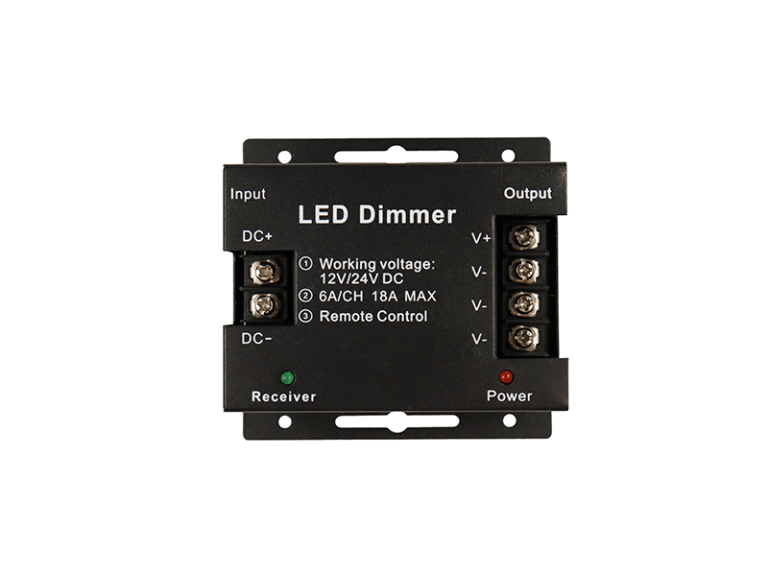

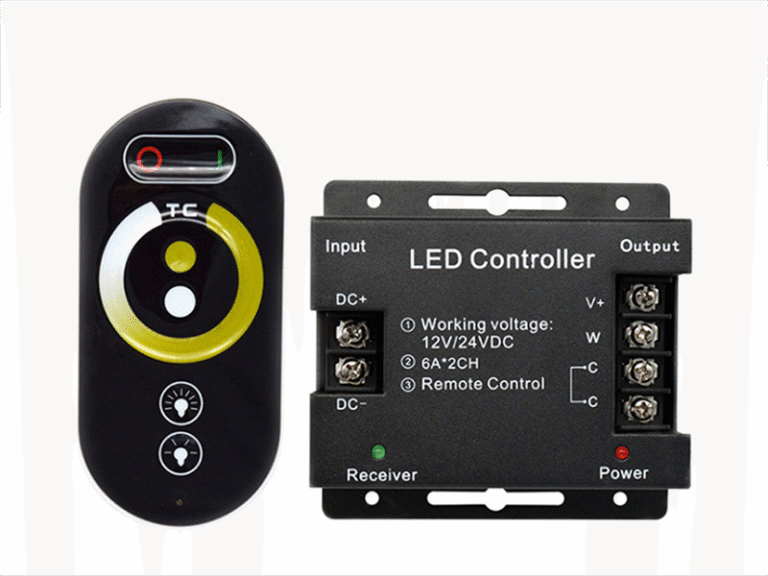

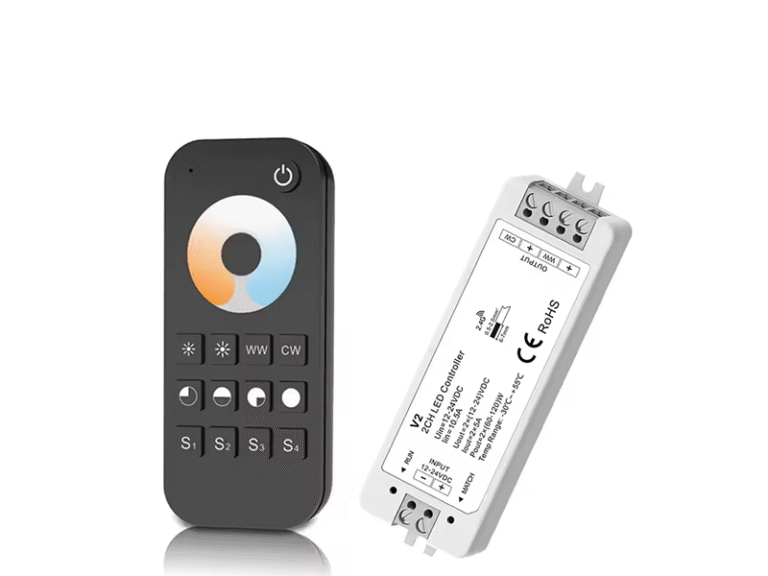

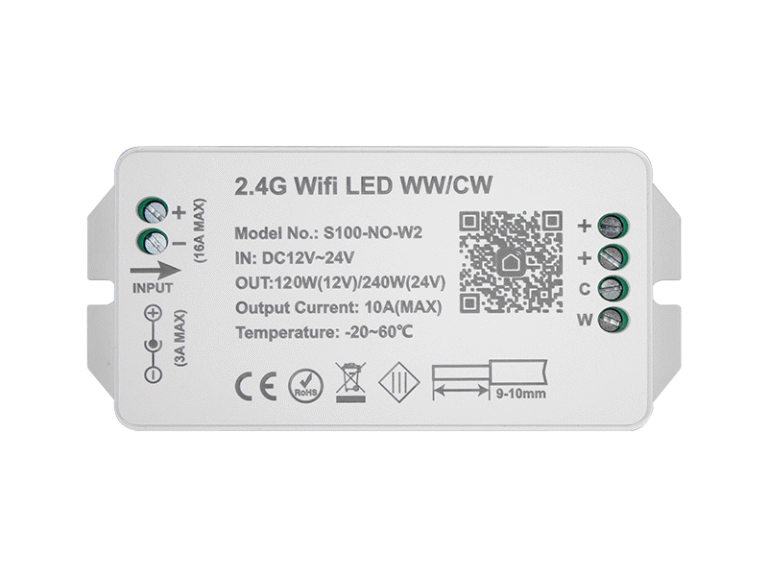

LED Light Controller
The LED COB Tunable white led strip lights requires a dedicated CCT (Correlated Color Temperature) controller to achieve smooth color temperature adjustment, typically from warm white (e.g., 2700K) to cool white (e.g., 6500K). The controller supports various control methods such as remote control, wall-mounted touch panels, rotary dimmers, mobile app control, and even integration with DMX or 0-10V systems.COB CCT dimmable led strip lights Ideal for ambient lighting, architectural lighting, and studio setups. Some models also feature zone control, memory function, and scheduled automation for smarter lighting.
Waterproof Rating Guide for LED Strip Lights
Understanding IP (Ingress Protection) ratings ensures proper usage in different environments. Here’s a breakdown of common classifications:
